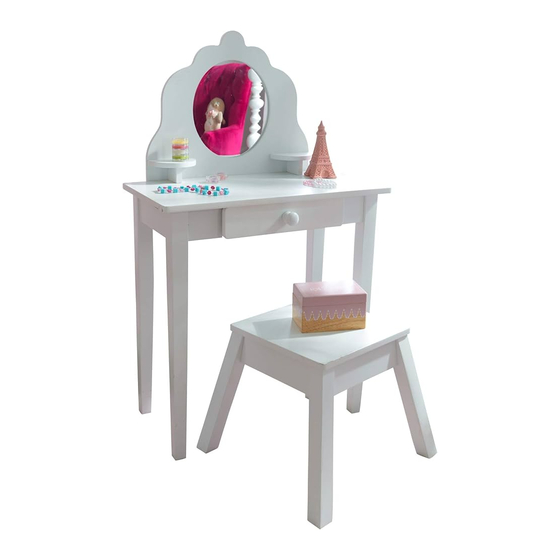

Medium vanity and stool

Advertisement

Quick Links

© 2010 KidKraft, LP
Please retain this information for future reference

HARDWARE

A. Cross Dowel Bolt x 8 pcs
2 in, 52 mm
B. Cross Dowel Bolt x 3 pcs
1 15/16 in, 37 mm
C. Screw x 4 pcs
1 1/8 in, 30 mm
D. Washer x 16 pcs
E. Spring Washer x 16 pcs
F. Cross Dowel Bolt x 8 pcs
2 3/4 in, 70 mm
Allen Wrench x 1 pcs
The following tool
(not included) is required
for assembly:
Phillips® screwdriver
WARNING:
ADULT ASSEMBLY REQUIRED.
Product includes small parts with potentially hazardous
sharp points and sharp edges in the unassembled state.
Keep unassembled parts away from children.
Medium Vanity and Stool
Assembly Instructions
1
4

USE AND MAINTENANCE:

-Use on level surfaces only
-Please check assembly at regular intervals, and
frequently tighten hardware if necessary. If
maintenance is not carried out, the product could
cease to function properly.
To order replacement parts, please visit www.kidkraft.com
3
x 2
5
WARNING:
CHOKING HAZARD. Small parts and sharp points, not suitable
for children under 3 years.
Item #13009A White, 13023A Pink
2
x 2
x 4
7
6
Customer Service
1-800-933-0771
www.kidkraft.com
1
