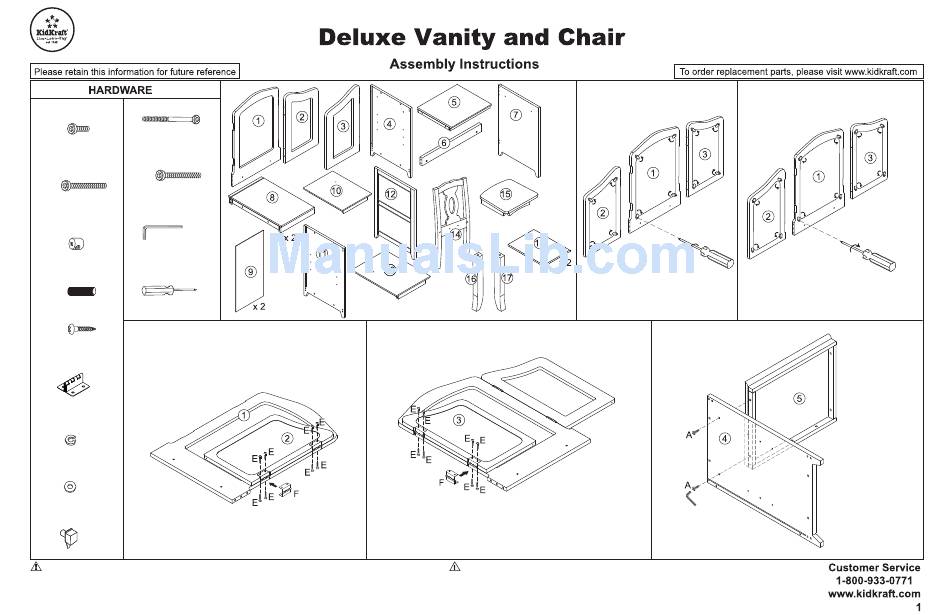

KidKraft 13018B Assembly Instruction

KidKraft 13018B Assembly Instruction

Deluxe vanity and chair

Advertisement

© 2009 KidKraft, LP
A. Cross Dowel Bolt
J. Hex Bolt x 2 pcs
x 24 pcs
(2 3/4in, 70mm)
(1 3/16 in / 30 mm)
K. Cross Dowel Bolt
B. Cross Dowel Bolt
x 4 pcs
x 4 pcs
(2 in / 50 mm)
(2 3/8 in / 60 mm)
Allen Wrench
x 1 pc
C. Cross Dowel Nut
x 4 pcs
The following tool
D. Wood Dowel
(not included) is
x 30 pcs
required for assembly
®
Phillips
Screwdriver
E. Screw x 16 pcs
Step 3
(5/8 in / 16 mm)
F. Mirror Hinge
x 4 pcs
G. Spring Washer
x 8 pcs
H. Flat Washer
x 8 pcs
I. Shelf Support
x 8 pcs
WARNING:
ADULT ASSEMBLY REQUIRED.
Product includes small parts with potentially hazardous
sharp points and sharp edges in the unassembled state.
Keep unassembled parts away from children.
:
Step 4
USE AND MAINTENANCE:
-Use on level surfaces only
-Please check assembly at regular intervals, and
frequently tighten hardware if necessary. If
maintenance is not carried out, the product could
cease to function properly.
Step 1

Vanity Assembly

*Loosen screws and
turn clips to the side.
*Remove mirror and
peel off plastic coating.
WARNING:
CHOKING HAZARD. Small parts and sharp points,
not suitable for children under 3 years.
Step 2
*Replace mirror, turn
clips back into place
and tighten screws.
Step 5
Item# 13018B
