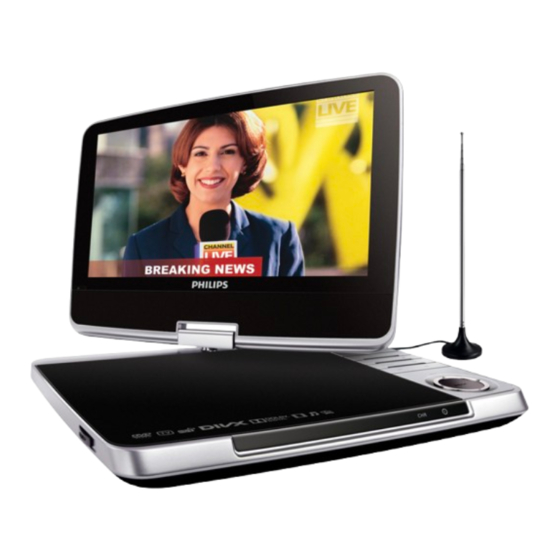

Summary of Contents for Philips PD9048/55

  • Page 1 Always there to help you Register your product and get support at www.philips.com/welcome Question? PD9048 Question? Contact Contact Philips Philips User manual...
  • Page 3: Table Of Contents

    Contents 1 Important Safety and notice Safety Compliance Care of the environment Copyright Warranty 2 Your portable DVD player What's in the box Overview Use the remote control 3 Get started Charge power Switch the player on or off Select the language for onscreen instructions 4 Play music or movies Play from discs Play from USB...
  • Page 4 5 Watch TV Connect TV antenna Tune in to TV channels 6 Adjust settings 7 Specifications 8 Troubleshooting...
  • Page 5: Important

    Important Safety and notice Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply. Safety Only use attachments/accessories specified by the manufacturer. Use only power supplies listed in the user manual. The product shall not be exposed to dripping or splashing.
  • Page 6: Compliance

    Warning • Never remove the casing of this product. • Never lubricate any part of this product. • Never place this product on other electrical equipment. • Keep this product away from direct sunlight, naked flames or heat. • Never look into the laser beam inside this product. •...
  • Page 7: Copyright

    Please visit www.recycle.philips.com for additional information on a recycling center in your area. Caution • Removal of the built-in battery invalidates the warranty and can destroy the product. Environmental information All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
  • Page 8: Warranty

    This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. ABOUT DIVX VIDEO: DivX®...
  • Page 9: Your Portable Dvd Player

    Your portable DVD player Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. What's in the box Check and identify the contents of your package: • Portable DVD player •...
  • Page 10: Overview

    Overview Main unit a Display panel b STOP • Stops disc play. • Press and hold to exit the TV search menu • Adjusts brightness of the screen backlight. d SETUP • Accesses or exits the setup menu. e ANTENNA •...
  • Page 11 • Connects USB device. g AV OUT • Audio/video output jack. • Headphone jack. i + VOL - • Increases or decreases volume. j (CHR)OFF•POWER•ON • Turns on/off DVD player. k CHR/ • Charging indicator/Power indicator. (CH+), (CH-), , • Navigates menus.
  • Page 12 q IR • Remote control sensor. r OPEN • Opens the disc compartment. s DC IN • Power supply socket. Remote control DISC SOURCE MENU OPTIONS SUBTITLE • Adjusts brightness of the screen backlight. b DISC MENU • For DVD, accesses or exits disc menu. •...
  • Page 13 c A-B • Marks the section for repeat play. d OPTIONS • Accesses options relating to the current activity or selection. e SUBTITLE • Selects a DVD subtitle language. f AUDIO • For DVD, selects an audio language. • For VCD, selects an audio mode. g ZOOM •...
  • Page 14: Use The Remote Control

    Use the remote control For first-time use: • Remove the protective tab to activate the remote control battery. To replace the remote control battery: Open the battery compartment. Insert one CR2025 battery with correct polarity (+/-) as indicated. Close the battery compartment.
  • Page 15: Get Started

    • Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial number of your player. The model number and serial number are on the bottom of your player.
  • Page 16 Connect the supplied AC adaptor to the player and to the AC outlet. » The charge indicator turns on. » When the battery is fully charged, the charge indicator turns off. • To maximize battery life, recharge the battery immediately once the battery is fully discharged. If you do not use the player for a long time, recharge the battery once every two months.
  • Page 17: Switch The Player On Or Off

    Charge through car adaptor Connect the supplied car adaptor to the player and car cigarette lighter. Switch the player on or off To switch on, push the (CHR)OFF•POWER•ON slider to ON. » The indicator turns on. To switch off, push the slider to (CHR)OFF. Select the language for onscreen instructions You can choose a different language for the on-screen display text.
  • Page 18 Go to [-- General Setup Page --] > [OSD Language]. Press to select an option. Press /OK to confirm. Press SETUP to exit.
  • Page 19: Play Music Or Movies

    Play music or movies Play from discs Press SOURCE repeatedly to switch to the disc mode. Press OPEN on the main unit to open the disc compartment. Insert a disc with the label side facing up. Push down to close the disc compartment. »...
  • Page 20 Alternatively, During disc play, press SUBTITLE repeatedly on the remote control to • select a language. Repeat During play, you can select different repeat options. Press OPTIONS. » The option menu is displayed. Press navigation keys to select a repeat option. For DVD Repeat Off: switch off the repeat mode •...
  • Page 21 Press ZOOM on the remote control repeatedly to zoom in and out. When the video image or picture is enlarged, press to pan through it. Rotate pictures For JPEG CDs only. While the JPEG is displayed: • Press to rotate counter-clockwise. •...
  • Page 22: Play From Usb

    • For the longest playtime, select Dim. • For the best view, select High. Play from USB You can play DivX, VOB, MP3, or JPEG files that are stored on a USB mass storage device. Connect the USB device to the player. »...
  • Page 23 Caution • Turn off your player before connecting to any additional equipment. Match the color of the AV cables (the AV cable connected to the TV is not supplied) with the jacks: • the yellow cable is for the yellow video jack. •...
  • Page 24: Watch Tv

    • Make sure you are in an area with sufficient signal coverage. You can check the signal coverage with the TV broadcast authority of your country or visit www.philips.com/support. Connect TV antenna To watch analog TV programs on the player, connect one of the TV antennas to the player: •...
  • Page 25 The first time you switch to the TV mode, start auto search to search for available TV channels: a Press SETUP. » A pop-up screen is displayed. b Select TV > Auto Search > Start: Press to select an option. Press /OK to confirm.
  • Page 26 To fine tune the channel, do the following: a Press repeatedly. b Press /OK to store the TV channel. To exit fine tune, press and hold STOP. • Check with local TV broadcast authorities for TV system configurations.
  • Page 27: Adjust Settings

    Adjust settings To maximize your play experience, use SETUP to fine tune your settings. Press SETUP. » The setup menu is displayed. Use navigation keys to select an option and press /OK to confirm. [-- General Setup Page --] [OSD Language] Select on-screen display language.
  • Page 28: Specifications

    • Specifications are subject to change without notice Dimensions 239 x 39 x 178 mm Weight 1.1 kg AC power adaptor ASUC12E - 090080 (Philips) Power supply Input: 100-240V ~ 50/60Hz, Output: DC 9V 0.8A Power consumption 9.0 W Operating temperature range 0-45°C...
  • Page 29 Playable media Disc DVD, DVD-Video, VCD/SVCD, Audio DVD+R/+RW, DVD-R/-RW, DVD+R/-R DL (Dual Layer) CD-R/CD-RW, MP3 media, JPEG files File format Video .avi, .divx, .mp4, xvid Audio .mp3 Picture .jpg, .jpeg Compatibility Hi-Speed USB (2.0) Class support USB Mass Storage Class (UMS) File system FAT16, FAT32 Maximum number of albums/folders...
  • Page 30: Troubleshooting

    To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www.philips.com/support). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available.
  • Page 31 Cannot play disc • Ensure the disc label is upwards. • Clean the disc. With a clean, soft, lint-free cloth, wipe the disc outwards from the center. • Check if the disc is defective by trying another disc. No response to operating commands •...
  • Page 32 Specifications are subject to change without notice © 2014 Koninklijke Philips N.V. PD9048_55_UM_V1.0 All rights reserved.
