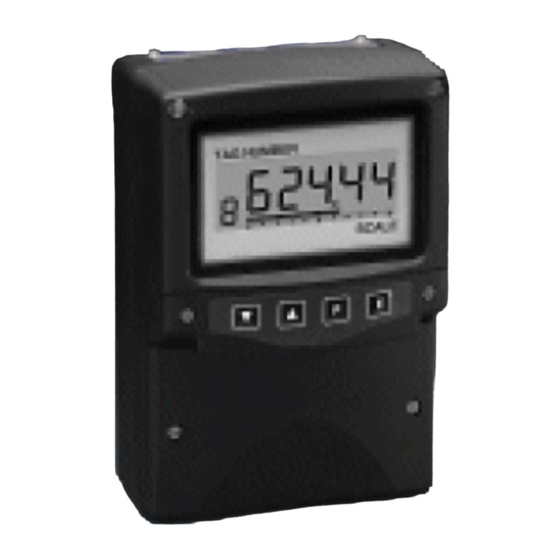

- Page 1 BA644DF-P PROFIBUS PA Field mounting 8 variable Fieldbus Indicator Issue 3 Issue: 3 March 2014...
-
Page 2: Table Of Contents
5.4.9 Configuration of bargraph 5.4.10 Scale numeric display 5.4.11 Access code for listener configuration menu. 5.4.12 Change from fieldbus listener to fieldbus node. 5.4.13 Reset to listener factory defaults. The BA644DF-P is CE marked to show compliance with the European EMC Directive 2004/108/EC... -
Page 3: Description

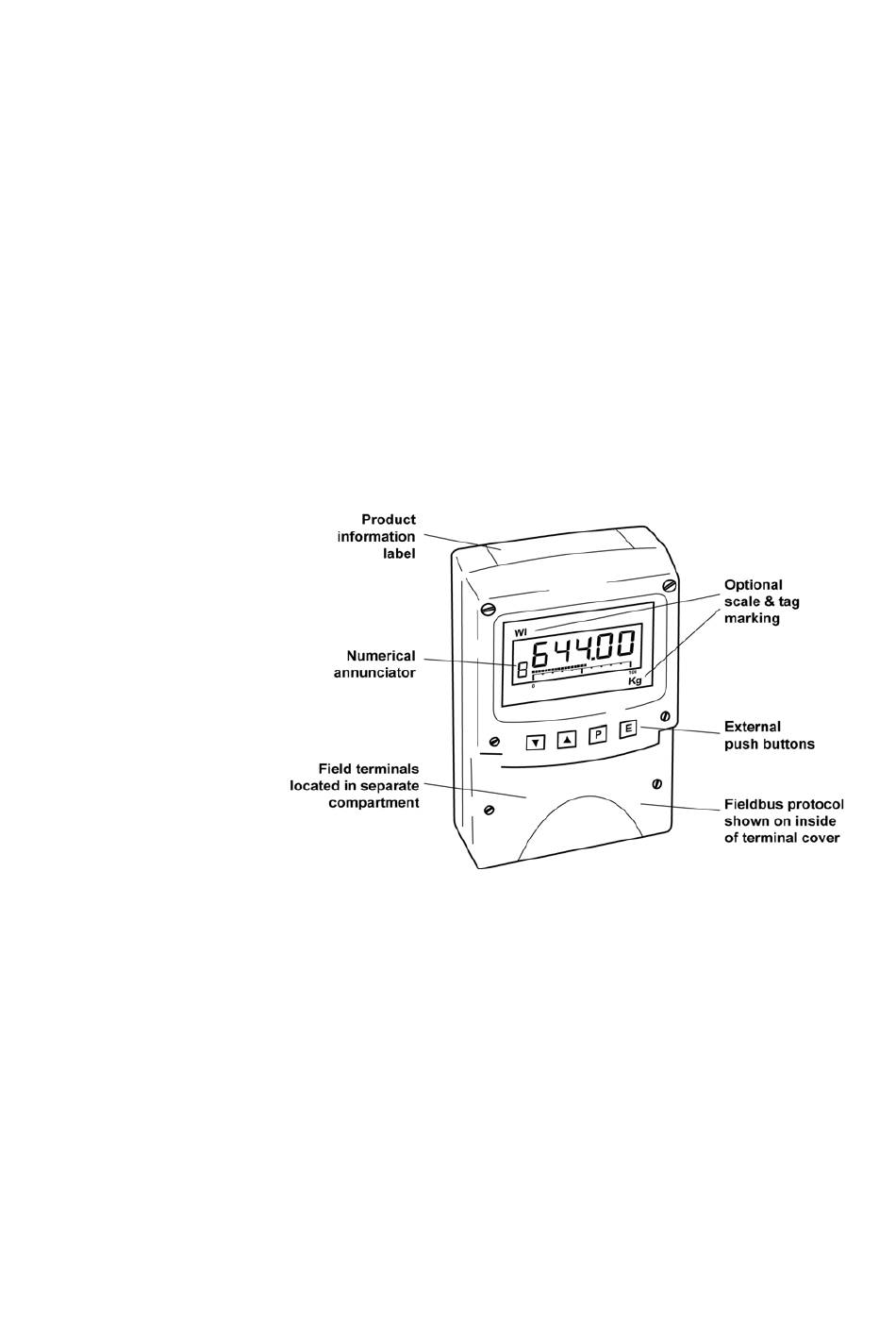

When configured as a fieldbus listener, the shown in Fig 1. The indicator may be connected to BA644DF-P is not visible to the fieldbus host and any PROFIBUS PA segment that can supply an can only be configured using the push buttons on additional 13mA at between 9 and 32V required to the front of the instrument. -
Page 4: Installation
The BA644DF-P earth terminal is connected to the carbon loaded GRP enclosure. If this enclosure is not bolted to a post or structure connected to the plant potential equalising network, the instrument’s... - Page 5 Fig 3 Dimensions and terminal connections...
-
Page 6: Configuration
New instruments are As a fieldbus listener, the BA644DF-P is not visible supplied configured with the default code 0000 to the fieldbus host and can only be configured via... -
Page 7: Listener Configuration Menu
5.2.4 Reset the instrument to node factory 5.3 Listener configuration menu When used as a fieldbus listener the BA644DF-P defaults ‘rESEt’ The BA644DF-P may be reset to the factory is not visible to the fieldbus host and can only be... -
Page 9: Access
'SCAn’ will be displayed. entered. If the BA644DF-P is protected by an access code, See section 5.4.5 ‘CodE’ will be displayed first. Pressing P will allow the four digit security code to be entered digit by ‘dSt’... -
Page 10: Description Of Listener Menu Functions
Fig 5. If there is more than one data If one of the eight BA644DF-P Listener’s inputs in- source, operating the ▼ or ▲ button will scroll 1 to in-8 has not had a Source Address, though all of them. -
Page 11: Enter Source Address
Index for the selected fieldbus Source Address to be entered and allocated to the ‘bArHi’ defines the listener’s numeric display at BA644DF-P listener input selected in the Edit which the bargraph is full scale, to enter the function. The data location is manufacturer specific function press P which will reveal the existing and can not be automatically determined;... -
Page 12: Access Code For Listener Configuration Menu
‘rESEt’ point. When ‘oFFSt’ has been set to the required The BA644DF-P listener may be reset to the value operating the E button will enter the selection factory defaults that are shown below: and return to the ‘oFFSt’... -
Page 13: Maintenance
STARTING MAINTENANCE commissioning the following procedure should be followed: If a BA644DF-P fails after it has been functioning correctly, the table shown in section 6.1 may help to identify the cause of the failure. Symptom Cause Check:... -
Page 14: Accessories
7.2 Tag plate The BA644DF-P can be supplied with a blank or custom laser marked stainless steel plate secured by two screws to the front of the instrument enclosure. This plate can accommodate: 1 row of 9 alphanumeric characters 10mm high...
