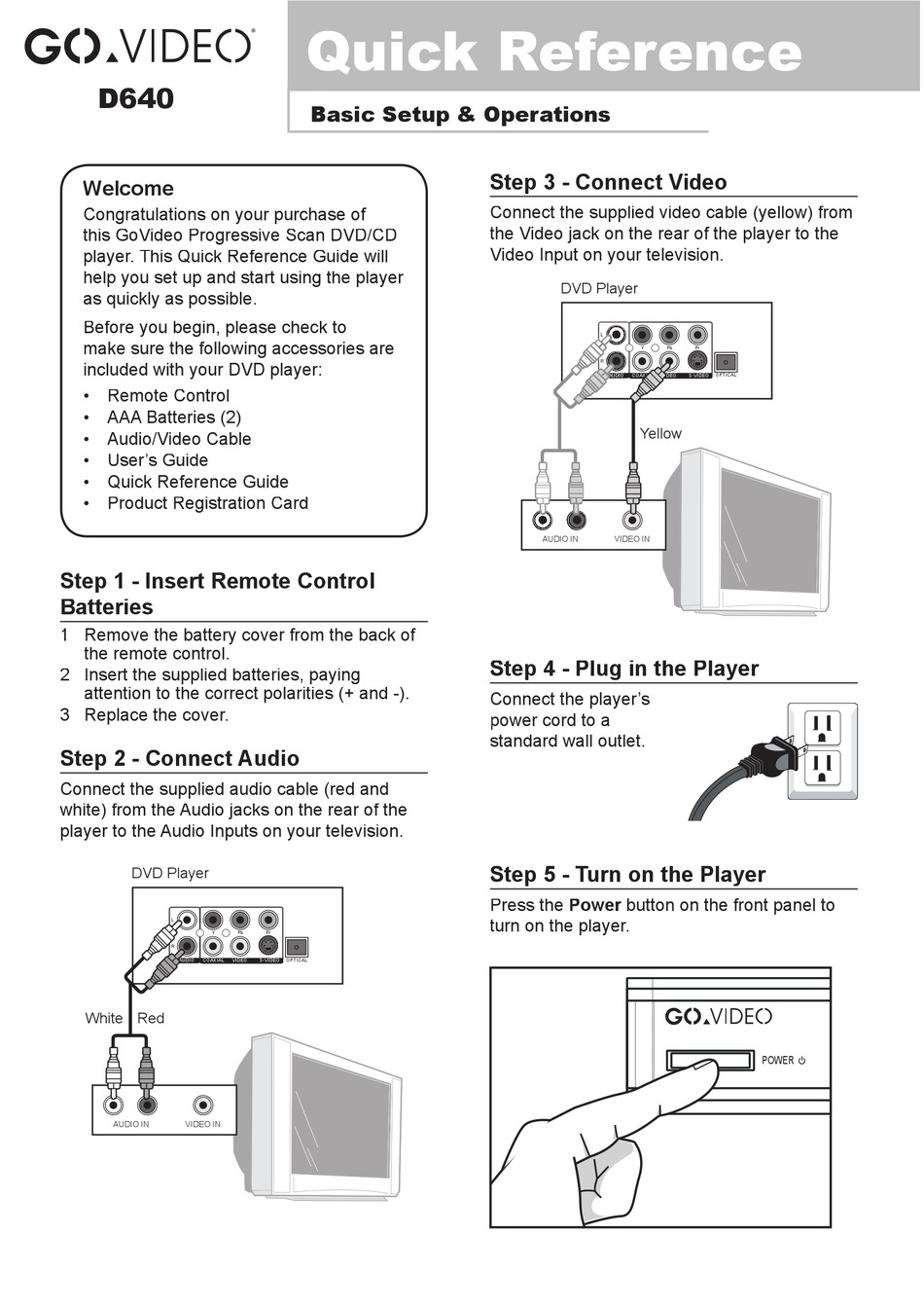

GoVideo D640 Quick Reference

D640
Welcome
Congratulations on your purchase of
this GoVideo Progressive Scan DVD/CD
player. This Quick Reference Guide will
help you set up and start using the player
as quickly as possible.
Before you begin, please check to
make sure the following accessories are
included with your DVD player:
• Remote Control
DVD Player
• AAA Batteries (2)
• Audio/Video Cable
• User's Guide
L
Y
• Quick Reference Guide
R
• Product Registration Card
AUDIO COAXIAL VIDEO
Yellow
Step 1 - Insert Remote Control
Batteries
1 Remove the battery cover from the back of
the remote control.
AUDIO IN VIDEO IN
2 Insert the supplied batteries, paying
attention to the correct polarities (+ and -).
3 Replace the cover.
Step 2 - Connect Audio
Connect the supplied audio cable (red and
white) from the Audio jacks on the rear of the
player to the Audio Inputs on your television.
DVD Player
L
Y
R
AUDIO COAXIAL VIDEO
White Red
AUDIO IN VIDEO IN
Quick Reference
Basic Setup & Operations
Pb Pr
S-VIDEO OPTICAL
Pb Pr
S-VIDEO OPTICAL
Step 3 - Connect Video
Connect the supplied video cable (yellow) from
the Video jack on the rear of the player to the
Video Input on your television.
DVD Player
L
Y
R
UDIO COAXIAL VIDEO
Yellow
AUDIO IN VIDEO IN
Step 4 - Plug in the Player
Connect the player's
power cord to a
standard wall outlet.
DVD Player
L
Y
R
AUDIO COAXIAL VIDEO
Step 5 - Turn on the Player
White Red
Press the Power button on the front panel to Power button on the front panel to Power
turn on the player.
AUDIO IN VIDEO IN
Pb Pr
OPTICAL
S-VIDEO
Pb Pr
OPTICAL
S-VIDEO
POWER
