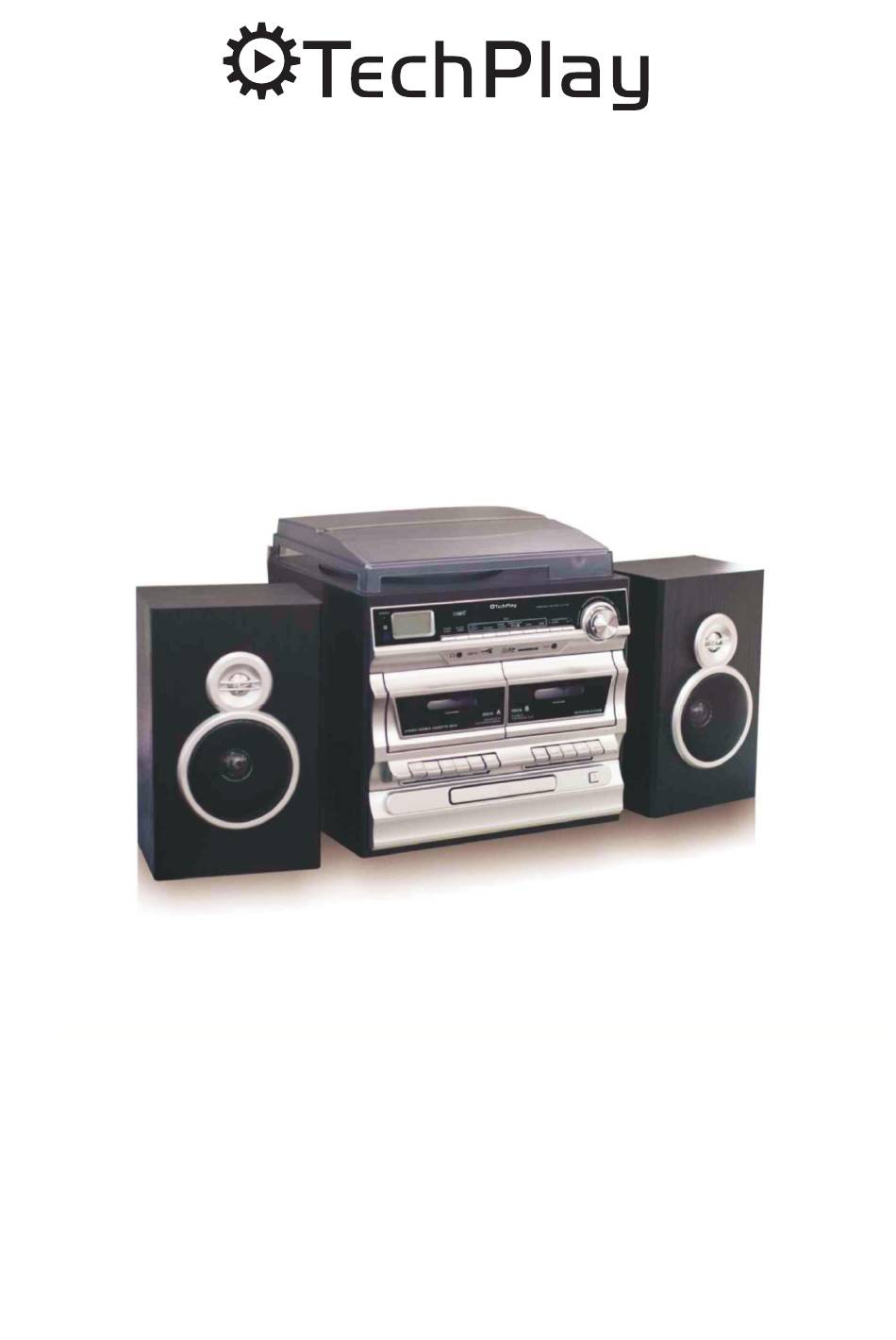

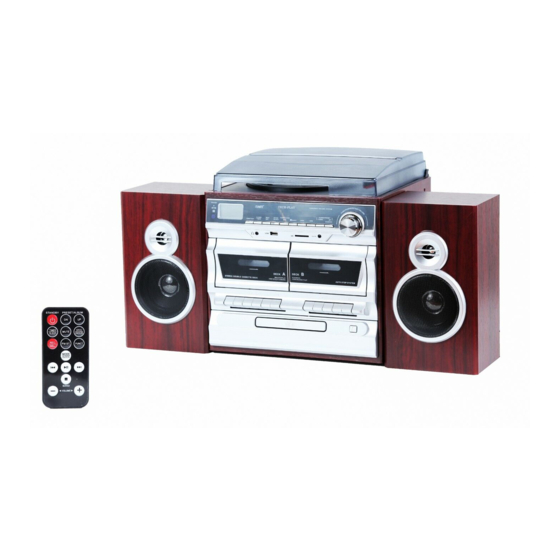

- Page 1 ODCK110 WD TURNTABLE WITH CD/MP3 PLAYER, DOUBLE CASSETTE DECK, PLL RADIO, AUX IN, CLOCK ALARM, REMOTE CONTROL, BLUETOOTH AND USB/SD ENCODING INSTRUCTION MANUAL READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE...
-
Page 2: Location Of Control
PRODUCT FEATURES 33/45/78 RPM SELECTABLE TURNTABLE AUTOMATIC / MANUAL STOP TURNTABLE BELT DRIVEN SYSTEM BLUETOOTH WIRELESS MUSIC STREAMING WITH NFC PRORAMMABLE CD/MP3 PLAYER DOUBLE CASSETTE DECK DIRECT USB/SD ENCODING FOR CD, TURNTABLE, CASSETTE, FM RADIO & AUX IN AUX IN FOR CONNECTION OF OTHER DEVICE (EG. CD & MP3 PLAYER) USB/SD SLOT FOR MP3 PLAYBACK PLL RADIO WITH PRESET 20 AM &... - Page 3 A) 45 RPM ADAPTOR B) LIFT LEVER (FOR RECORD PLAY / PAUSE) C) AUTO STOP ON/OFF BUTTON D) 33/45/78 RPM SPEED SELECTOR E) TONE ARM FUNCTION SLEEP / TIMER REC / DEL MODE / CLOCK PLAY/PAUSE BUTTON & TUNER SCAN STOP &...
-
Page 4: Setting The Clock
BATTERIES (BATTERY PACK OR BATTERIES INSTALLED) SHALL NOT BE EXPOSED TO EXCESSIVE HEAT SUCH AS SUNSHINE, FIRE OR THE LIKE. THE MAINS PLUGS OR AN APPLIANCE COUPLER IS USED AS THE DISCONNECT DEVICE, AND THE DISCONNECT DEVISE SHALL REMAIN READILY OPERABLE. PRECAUTIONS FOR USE INSTALLATION UNPACK ALL PARTS AND REMOVE PROTECTIVE MATERIAL. - Page 5 SNOOZE FUNCTION PRESS “SNOOZE” BUTTON ON THE REMOTE CONTROL WHEN ALARM IN ACTIVE, ALARM WILL BE SLIENT FOR 10 MINUTES. AFTER 10-MINUTUE SNOOZE INTERVAL, ALARM WILL BE ACTIVE AGAIN. SNOOZE CAN BE USED FOR REPEATEDLY WITHIN THE 1-HOUR ALARM ACTIVE INTERVAL. TIMER FUNCTION PUSH THE POWER KNOB TILL THE STANDBY INDICATOR LIGHT OFF.
-
Page 6: Phono & Encoding
REMARK:- THE RECORDING SPEED IS 1:1 AND ACCORDING TO THE ACTUAL PLAYING TIME OF FM OR FM-ST RADIO BIT RATE : 128 KBPS THE RECORDING FORMAT IS PRESET AT – MP3 DURING FM & FM-STEREO RADIO ENCODING, RADIO FREQEUNCY IS FXIED AND CANNOT BE TUNED PHONO &... -
Page 7: Aux In Jack & Encoding
PLAY: PRESS TO START PLAYING TAPE. PAUSE: PRESS TO STOP TAPE OPERATION TEMPORARILY. PRESS AGAIN TO RESUME PLAYBACK. RECORD: PRESS TOGETHER WITH PLAY BUTTON TO START TAPE RECORDING. (DECK A ONLY). PLAYBACK - PRESS FUNCTION BUTTON TO SELECT “TAPE” ON DISPLAY. - PUT IN CASSETTE TAPE. - Page 8 2.PRESS THE REC BUTTON, IT WILL TAKE 3-5 SECONDSS TO READ MEMORY DEVICE. THEN USB OR SD ICON WILL BE FLASHING. SKIP UP OR SKIP DOWN BUTTON TO SELECT DESIRED MODE (USB OR SD) FOR 3.PRESS ENCODING. THEN PRESS THE REC BUTTON AGAIN TO CONFIRM. AND THE SYSTEM IS STARTING THE ENCODING MODE AFTER FEW SECONDSS.
- Page 9 FILE. SKIP DOWN BUTTON CONTINUOUSLY TO SPEED UP SELECTING PRESS AND HOLD BACKWARD. FOLDER SEARCHING PRESS ALBUM DOWN OR ALBUM UP TO SEARCH FOLDER BACKWARD OR FORWARD. REPEAT FUNCTION DURING AUDIO PLAYBACK, PRESS MODE BUTTON ONCE, SINGLE TRACK WILL BE PLAYED REPEATEDLY.
- Page 10 4. WHEN THE USB OR SD ICON WILL STOP FLASHING, IT MEANS THAT ALL TRACK COPYING IS COMPLETED. REMARK: IF PRESS THE BUTTON DURING PLAYBACK OF USB OR SD MODE, THE FILE WILL COPY FROM USB TO SD OR SD TO USB. FILE DELETE FROM USB / SD CARD THE SYSTEM IS ABLE TO ERASE THE FILE STORED INSIDE THE USB DRIVE OR SD CARD BY FOLLOWING:- I) DELETE 1 TRACK...
- Page 11 FOLDER SEARCHING PRESS ALBUM DOWN OR ALBUM UP TO SEARCH FOLDER BACKWARD OR FORWARD. REPEAT FUNCTION DURING AUDIO PLAYBACK, PRESS MODE BUTTON ONCE, SINGLE TRACK WILL BE PLAYED REPEATEDLY. PRESS MODE BUTTON AGAIN, IT WILL REPEATEDLY PLAY ALL TRACKS IN THE WHOLE TRACKS PROGRAMMING UP TO 60 MP3 TRACKS &...
-
Page 12: Microphone Jack
FOR CONNECTION WITH YOUR BLUETOOH DEVICE (SUCH AS MOBILE PHONE). SWITCH ON THE BLUETOOTH FUNCTION OF YOUR BLUETOOH DEVICE, AND SELECT “ODCK110 WD” BLUETOOTH EQUIPMENT FOR CONNECTION. AFTER YOUR BLUETOOH DEVICE IS CONNECTED WITH THE UNIT VIA BLUETOOTH, START TO PLAYBACK YOUR DEVICE. -
Page 13: Remote Control Battery Installation
REMOTE CONTROL BATTERY INSTALLATION THE INFRA-RED TRANSMITTER REQUIRES 1 PC CR2025 LITHUM BATTERY FOR OPERATION BUTTON DESCRIPTION STANDBY: TRIGGER BETWEEN STANDBY MODE AND OPERATION MODE. PRESET/ALBUM DN: PERFORM SAME FUNCTION AS “ALBUM DOWN / PRESET DOWN” BUTTON ON THE UNIT. PRESET/ALBUM UP: PERFORM SAME FUNCTION AS “ALBUM UP / PRESET UP”... - Page 14 FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
