Summary of Contents for TechPlay ODCR2110 WD

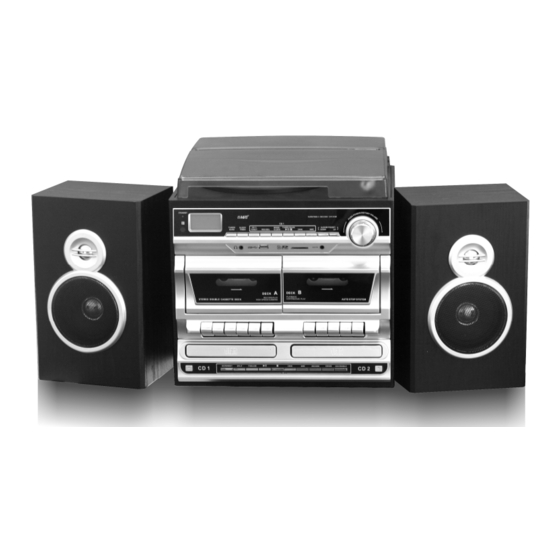

- Page 1 ODCR2110 WD TURNTABLE WITH CD/MP3 PLAYER, DOUBLE CASSETTE DECK, RADIO, BLUETOOTH & CD/USB/SD RECORDER INSTRUCTION MANUAL READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE...
- Page 2 PRODUCT FEATURES 33/45/78 RPM SELECTABLE TURNTABLE AUTOMATIC / MANUAL STOP TURNTABLE BELT DRIVEN SYSTEM BLUETOOTH WIRELESS MUSIC STREAMING WITH NFC PROGRAMMABLE CD/MP3 PLAYER DOUBLE CASSETTE DECK DIRECT USB/SD RECORDING FOR CD, TURNTABLE, CASSETTE, FM RADIO & AUX IN DIRECT CD RECORDING FOR CD, TURNTABLE, CASSETTE, AUX IN, USB/SD AUX IN FOR CONNECTION OF OTHER DEVICE (E.G.
- Page 3 A) 45 RPM ADAPTOR B) LIFT LEVER (FOR RECORD PLAY / PAUSE) C) AUTO STOP ON/OFF BUTTON D) 33/45/78 RPM SPEED SELECTOR E) TONE ARM TUNER BAND SLEEP / TIMER FUNCT REC / DEL MODE / CLOCK CD 1 - PLAY/PAUSE BUTTON &...
- Page 4 34) DUST COVER 35) POWER / VOLUME KNOB 36) CASSETTE DECK A DOOR 37) CD 1 – OPEN / CLOSE BUTTON 38) CD 1 – CD DOOR 39) EARPHONE JACK 40) USB SLOT 41) SD SLOT 42) AUX IN JACK 43) CD 2 –...
- Page 5 CONNECTION CONNECT SPEAKER BOX WITH SPEAKER BOX RCA JACK PLUG THE EXTERNAL POWER ADAPTOR WITH THE EXTERNAL POWER ADAPTOR JACK. PUSH THE POWER KNOB TO SWITCH ON THE UNIT, STANDBY INDICATOR WILL BE OFF. SETTING THE CLOCK WHEN THE STANDBY INDICATOR LIGHTS UP, THE UNIT IS IN THE STANDBY MODE. DURING STANDBY MODE, SELECT BETWEEN 12H OR 24H CLOCK OPTIONS: PRESS AND HOLD MODE BUTTON FOR 3-5 SECONDS;...
- Page 6 FOR CONNECTION WITH YOUR BLUETOOH DEVICE (SUCH AS MOBILE PHONE). SWITCH ON THE BLUETOOTH FUNCTION OF YOUR BLUETOOH DEVICE, AND SELECT “ODCR2110 WD” BLUETOOTH EQUIPMENT FOR CONNECTION. AFTER YOUR BLUETOOH DEVICE IS CONNECTED WITH THE UNIT VIA BLUETOOTH, START TO PLAYBACK YOUR DEVICE.
- Page 7 3. THE UNIT WILL START SEEKING AUTOMATICALLY AND STOP WHEN A RADIO STATION IS FOUND. MANUAL PRESET RADIO STATIONS WHEN THE DESIRED RADIO STATION IS FOUND, PRESS MODE BUTTON, PROGRAM NUMBER WILL BE FLASHING. PRESS PRESET UP OR PRESET DOWN BUTTON TO CHOOSE THE PROGRAM NUMBER FOR STORING THE DESIRED RADIO STATION.
- Page 8 ONCE YOU HAVE FINISHED LISTENING TO YOUR RECORD YOU CAN RETURN THE ARM TO THE REST EITHER USING THE LIFT LEVER OR MANUALLY. IF YOU FIND YOUR RECORD STOPS PLAYING OR RECORDING HALF WAY THROUGH YOU WILL NEED TO TURN OFF THE AUTO STOP FEATURE. THE SWITCH IS LOCATED NEXT TO THE SPEED ADJUSTMENT SWITCH ON THE RECORD PLAYER DECK.
- Page 9 RECORDING A.RECORDING FROM TAPE (DECK B TO DECK A) THIS UNIT ENABLE YOU TO DUPLICATE A PRE-RECORDED TAPE TO ANOTHER TAPE. IT IS PERFORMED ONLY WAY FROM DECK B (PLAYBACK) TO DECK A (PLAYBACK). NORMAL SPEED RECORDING SELECT “TAPE” FUNCTION. INSERT A PRE-RECORDED CASSETTE INTO DECK B AND A BLANK CASSETTE TAPE INTO DECK A.
- Page 10 AUX IN JACK & RECORDING TO USB/SD PRESS FUNCT BUTTON TO SELECT “AUX” ON DISPLAY, AND THEN CONNECT THE EXTERNAL AUDIO DEVICE (SUCH AS CD PLAYER) THROUGH THE AUX IN JACK. AUDIO SIGNAL FROM THE EXTERNAL AUDIO DEVICE CAN BE PLAYED THROUGH THE SYSTEM. AUX IN RECORDING TO USB/SD 1.
- Page 11 SKIP UP / SKIP DOWN BUTTON DURING MP3/WMA PLAYBACK, PRESS CD 1 - SKIP UP BUTTON ONCE TO PLAY THE NEXT FILE. PRESS AND HOLD CD 1 - SKIP UP BUTTON CONTINUOUSLY TO SPEED UP SELECTING FORWARD. DURING MP3/WMA PLAYBACK, PRESS CD 1 - SKIP DOWN BUTTON ONCE TO PLAY THE PREVIOUS FILE.
- Page 12 TO CANCEL PROGRAMMING, THEN “MEM” WILL DISAPPEAR IN THE DISPLAY. COPYING OF MP3/WMA FILE THE SYSTEM ALLOWS YOU TO COPY THE FILE FROM USB TO SD OR SD TO USB BY 1 FILE, 1 FOLDER OR ALL FILES. I) COPY 1 TRACK INSERT THE USB STORAGE MEDIA OR SD/MMC CARD, SET TO “USB”...
- Page 13 NOTE: DISPLAY WILL SHOW IF ANY PARTICULAR TRACK IS ENCRYPTED BY THE SONG PRODUCER WHO DOES NOT ALLOW DIGITAL COPYING TO USB/SD. FILE DELETE FROM USB / SD CARD THE SYSTEM IS ABLE TO ERASE THE FILES STORED INSIDE THE USB DRIVE OR SD CARD BY FOLLOWING:- I) DELETE 1 TRACK PRESS AND HOLD DEL BUTTON FOR 3-5 SECONDS DURING THE PLAYBACK OF THE DESIRED TRACK, THEN “ONE”...
- Page 14 3. PRESS CD 1 - CD DOOR BUTTON, CD DOOR WILL BE OPENED, PUT THE CD IN THE TRAY AND PRESS CD 1 - CD DOOR BUTTON AGAIN, CD DOOR WILL BE CLOSED. 4. THE SYSTEM WILL START READING THE CD AND AUDIO PLAYBACK. PLAY / PAUSE BUTTON PRESS CD 1 - PLAY/PAUSE BUTTON ONCE TO HALT PLAYING, PRESS IT AGAIN TO CONTINUE.
- Page 15 PROGRAMMED TRACKS, PRESS AND HOLD CD 1 - PLAY/PAUSE BUTTON FOR 3-5 SECONDS AGAIN TO CANCEL PROGRAMMING, THEN “MEM” WILL DISAPPEAR IN THE DISPLAY. CD RECORDING TO USB/SD THE SYSTEM ALLOWS YOU TO COPY THE TRACK FROM CD TO USB OR SD BY 1 TRACK, 1 FOLDER OR ALL FILES.
- Page 16 1 - SKIP UP BUTTON TO SELECT DESIRED MODE (USB OR SD) FOR RECORDING. THEN PRESS REC BUTTON AGAIN TO CONFIRM. 4. IF ONLY USB DRIVE OR SD/MMC CARD IS INSERTED, STEP 4 CAN BE SKIPPED. 5. USB OR SD ICON WILL BE FLASHING ON THE DISPLAY. 6.
- Page 17 KEEP PRESSING BUTTONS WHILE CD RECORDER IS OPERATING, YOU MIGHT CAUSE MALFUNCTION OF THE SYSTEM. PLEASE RE-START THE UNIT IF THIS HAPPENS. SO THIS IS NOT RECOMMENDED TO PRESS ANY UNNECESSARY BUTTON DURING CD RECORDING. 3. AFTER A BLANK CD-R/RW DISC IS PUT INTO CD-2. THE LCD DISPLAY WILL SHOW “NO TOC”, WHICH MEANS THE DISC CAN BE RECORDED.
- Page 18 SKIP DOWN BUTTON OR CD 2 - SKIP UP BUTTON TO SEARCH FOR THE DESIRED TRACK. 6. DURING STOP MODE, PRESS CD 2 – RECORD BUTTON, TRACK IN WHOLE CD, USB OR SD WILL BE RECORDED. PRESS CD 2 – INCREMENT DURING RECORDING, AUTO TRACK FUNCTION (AS ABOVE POINT 6) WILL PEFORM.
- Page 19 MUSIC PLAYBACK. THE NEWLY RECORDED TRACK IS ALWAYS RECORDED AS THE LAST TRACK OF CD-R/RW. PRESS CD 2 - SKIP DOWN BUTTON OR CD 2 - SKIP UP BUTTON TO SEARCH FOR THE DESIRED TRACK. IF THE CD-R/RW IS FULLY RECORDED, DISPLAY WILL SHOW “FULL”. RECORDING WILL STOP AUTOMATICALLY IF THERE IS NO AUDIO SIGNAL FROM TURNTABLE / CASSETTE / AUX IN AFTER AROUND 20 SECONDS, FINALIZE A CD-R/RW DISC...
- Page 20 UN-FINALIZE AND ERASE A CD-RW DISC 1. PRESS CD 2 – ENABLE TO ACTIVATE THE CD RECORDER. DISPLAY WILL SHOW “CD-2”. 2. PRESS CD 2 - CD DOOR BUTTON, CD DOOR WILL BE OPENED, PUT THE FINALIZED CD-RW IN THE TRAY AND PRESS CD 2 - CD DOOR BUTTON AGAIN TO CLOSE THE DOOR.
- Page 21 PLAY / PAUSE BUTTON PRESS CD 2 - PLAY/PAUSE BUTTON ONCE TO HALT PLAYING, PRESS IT AGAIN TO CONTINUE. ONLY CD AUDIO FORMAT CAN BE PLAYED IN CD-2, OTHER FORMAT (LIKE MP3) CANNOT BE PLAYED IN CD-2 STOP FUNCTION PRESS AND HOLD CD 2 – STOP BUTTON TO STOP AUDIO PLAYBACK SKIP UP / SKIP DOWN BUTTON...
-
Page 22: Remote Control
REMOTE CONTROL BATTERY INSTALLATION THE INFRA-RED TRANSMITTER REQUIRES 1 x CR2025 LITHIUM BATTERY FOR OPERATION BUTTON DESCRIPTION STANDBY: ALTERNATES BETWEEN STANDBY MODE AND OPERATION MODE. CD 2: PERFORMS SAME FUNCTION AS CD 2 – ENABLE BUTTON. TUNER / BAND: PERFORMS SAME FUNCTION AS BAND / TUNER BUTTON. CD 1 - MODE / CLOCK: PERFORMS SAME FUNCTION AS MODE / CLOCK BUTTON. - Page 23 CD 2 - (SKIP UP ): PERFORMS SAME FUNCTION AS CD 2 - SKIP UP BUTTON CD 2 - (PLAY/PAUSE): PERFORMS SAME FUNCTION AS CD 2 - PLAY/PAUSE BUTTON CD 2 – ERASE: PERFORMS SAME FUNCTION AS CD 2 – ERASE BUTTON CD 2 - (STOP): PERFORMS SAME FUNCTION AS CD 2 –...
- Page 24 FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
