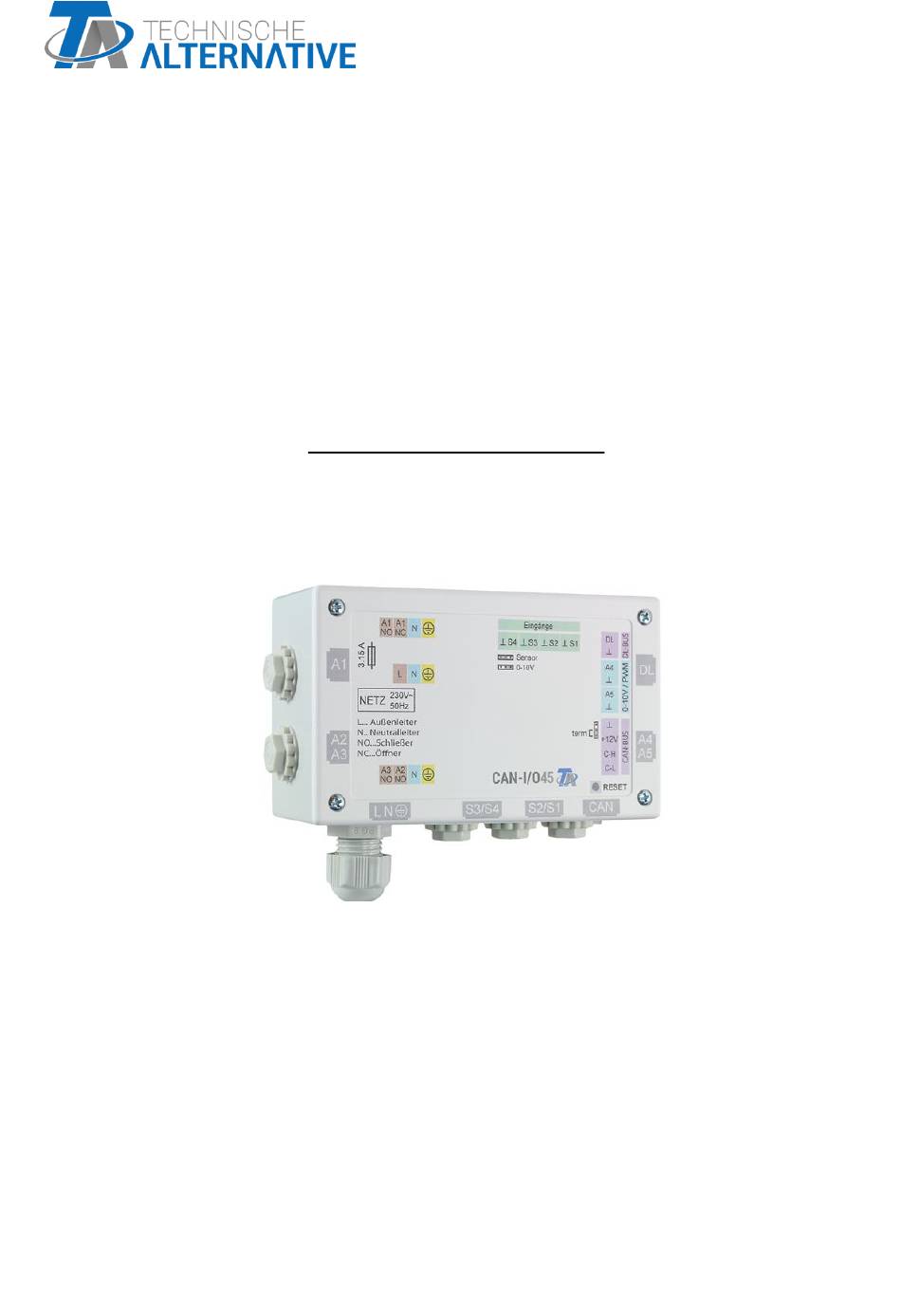

- Page 1 www.ta.co.at CAN-I/O 45 CAN-I/O Module 45 Installation instructions User manual Manual Version 1.15 English...
-
Page 3: Table Of Contents
Table of contents Manual version V1.15 EN Safety requirements ..........................4 Maintenance ............................4 Disposal ...............................4 Standard delivery ..........................5 Installing the device..........................5 Mounting dimensions ..........................5 Sensor installation ..........................6 Electrical connection ...........................7 Power supply ............................7 Terminal diagram and jumpers ........................ 8 Sensor leads .............................. -
Page 4: Safety Requirements
They must never be treated as ordinary household waste. ➢ We can undertake the environmentally responsible disposal of devices sold by Technische Alternative upon request. Packaging material must be disposed of in an environmentally responsible ➢ manner. -
Page 5: Standard Delivery
Installation instructions Standard delivery • CAN-I/O45 CAN extension module • Operating instructions • 7x 2-pole terminal • 3x 4-pole terminal • 1x 3-pole terminal • Wall plugs • Clamping plate screw Installing the device CAUTION: CAUTION: Before opening the enclosure always switch off the power supply! Only work inside the module when the power supply is at zero volt. -
Page 6: Sensor Installation
Installation instructions Sensor installation Correct arrangement and installation of the sensors is extremely important for correct functioning of the system. To this end, also ensure that they are completely inserted in their sensor wells. The cable fittings provided serve as strain relief. When used outdoors, no water must be allowed to penetrate the sensor wells (risk of frost). -
Page 7: Electrical Connection
Installation instructions DHW sensor: A rapid reaction to changes in the water volume is extremely important when using the controller in systems that generate domestic hot water by means of an external heat exchanger and variable speed pump (freshwater module). Therefore fit the DHW sensor directly on the heat exchanger outlet. -
Page 8: Terminal Diagram And Jumpers
Installation instructions Terminal diagram and jumpers 230 V connections All lines carrying mains power (230 V) must be kept as short as possible inside the enclosure and must not be routed via the components on the low voltage side (processor etc.). Fuse L: Mains phase conductor N: Mains neutral conductor... -
Page 9: Sensor Leads
Installation instructions Sensor leads Sensor terminal diagram Sensor 4 Sensor 3 Sensor 2 Sensor 1 By repositioning the jumper, the inputs IN3 and IN4 can be switched to measuring voltage up to 10 V. However, sensor values can then no longer be recorded. Example: Input IN4 as sensor input Input IN4 as 0-10 V input... -
Page 10: Data Cable For Dl Bus
Installation instructions Data cable for DL BUS Terminal diagram, DL BUS data cable The DL bus consists of just 2 wires: DL and sensor earth (⊥). The DL BUS itself supplies the necessary power for the DL BUS sensors. Cables can be routed with a star topology but also in serial formation (from one device to the next). Any cable with a cross-section of 0.75 mm², and measuring up to 30 m in length, can be used as a data link. -
Page 11: Can Bus Network
Installation instructions CAN BUS network Terminal diagram, CAN BUS cable Jumper for termination, here: terminated Guidelines for the topology of a CAN network Technical principles The CAN BUS comprises the cables CAN-High, CAN-Low, GND and one +12 V supply cable for BUS components without their own power supply. -
Page 12: Lightning Protection
In order to protect the individual components of a CAN network against indirect lightning strike, we recommend the use of surge arresters specifically developed for BUS systems. Examples: CAN bus surge arresters CAN-UES from Technische Alternative Gas discharge arrester for indirect earthing EPCOS N81-A90X Examples of different network versions Key to symbols: …... - Page 13 Installation instructions Network (across several buildings) without CAN bus converter CAN-BC2: Optiona Optiona Indirect earthing Optional Indirect earthing Max. cable length: 1000 m at 50 kbit/s The screen must be continued at every network node and earthed at a single point, as close to the cable centre as possible.
-
Page 14: Cable Selection And Network Topology
Installation instructions Cable selection and network topology Screened twisted pairs have proven useful in CANopen networks. These are cables with twisted pairs of conductors and a shared external screen. Such cables are relatively resistant to EMC interference and can still carry 50 kbit/s for up to 1000 m. The CANopen recommendations (CiA DR 303-1) for cable cross-sections are given in the table below. - Page 15 Installation instructions Wiring A CAN BUS network should never have a star topology. Rather, the correct topology is a line from the first device (with terminator) to the second, third and so forth. The last bus device has the termination jumper again.
- Page 16 Changing to cable types with different characteristic impedances is only permitted via signal separation through a CAN bus converter. However, such networks do not comply with the recommended specification. Technische Alternative RT GmbH therefore cannot guarantee trouble-free operation if one of the three options listed above is...
-
Page 17: Outputs
Installation instructions Outputs Terminal diagram, switching outputs Earth conductor terminal Outputs Mains connection Output A2 + A3 Diagram of switching outputs Mains S, S2, S3: N/O contact A1, A2, A3 Ö: N/C contact A1 N: Neutral conductor L: Phase conductor Output A1 Output A2 Output A3... -
Page 18: Terminal Diagram For Analogue Outputs (0-10 V / Pwm)
Installation instructions Terminal diagram for analogue outputs (0-10 V / PWM) The connections A4 and A5 are the positive poles; the connections ⊥ are the negative poles. When programmed as a "switching output", a HIREL-230V or HIREL-PF auxiliary relay can be connected. -
Page 19: Connection Auxiliary Relay Hirel-230V
Installation instructions Connection auxiliary relay HIREL-230V Example: Connection HIREL16x2 for analogue outputs A4 and A5. Program outputs A4 and A5 as switching outputs. The auxiliary relay cannot be integrated in the module; it requires its own enclosure. HIREL-230V Relay 1 Relay 2 Fuse 6,3A fast HIREL-230V wiring diagram... -
Page 20: Technical Data
Installation instructions Technical data All inputs Temperature sensors of type PT1000, KTY (2 kΩ/25 °C), KTY (1 kΩ/25 °C), PT100, PT500, Ni1000, Ni1000TK5000 and room sensors RAS or RASPT, radiation sensor GBS01, thermocouple THEL, humidity sensor RFS, rain sensor RES01, pulses max. 10 Hz (e.g. for flow rate transducer VSG), voltage up to 3.3 V DC, resistance (1-100 kΩ), and as a digital input Inputs 3, 4... -
Page 21: Tips On Troubleshooting
Installation instructions Tips on troubleshooting If no voltage can be measured at the outputs even though the relay is switched on, check the fuse (3.15 A slow). The fuse protects the relay contacts from damage through short circuits or overloading. If the status LED indicators are switched off, this indicates failure of the power supply for the electronics. - Page 22 If the sensor is faulty, note the sensor type when replacing. While it is possible to use a different type of sensor, the parameters for that input also have to be set to suit the type of sensor used. The current standard type used by Technische Alternative is PT1000. KTY (2 kΩ) was the standard type until 2010/2011.
-
Page 23: Troubleshooting In The Can Network
Installation instructions Troubleshooting in the CAN network To isolate the error we recommend shutting down part of the network and monitoring when the error disappears. General tests: Node numbers – no node number must be assigned twice Power supply to BUS subscribers (if necessary use the CAN-NT power supply unit) ... - Page 24 EU Declaration of conformity Document- Nr. / Date: TA17029 / 02/02/2017 Company / Manufacturer: Technische Alternative RT GmbH Address: A- 3872 Amaliendorf, Langestraße 124 This declaration of conformity is issued under the sole responsibility of the manufacturer. Product name: CAN-I/O45...
-
Page 25: User Manual
(www.ta.co.at) and on the controller's SD card. The CAN-I/O45 module can be used as an add-on module for the freely programmable UVR16x2 or UVR1611 controllers. It does not have an operating display screen directly on the device. -
Page 26: Operation Via Uvr16X2 Or Can-Mtx2
Operation Operation via UVR16x2 or CAN-MTx2 User levels To prevent incorrect operation of the controller, three different user groups can log onto the controller: User, Technician or Expert. Access by Technicians and Experts requires a password. The controller is always in User mode when the controller is started or when new function data has been loaded. -
Page 27: Information Displayed On The Controller
Operation The devices are operated via a 4.3" touchscreen. For greater ease of use, an operating pen is provided View of CAN-MTx2 View of UVR16x2 with cover open Stylus You can use the pen to tap operating fields on the screen and can scroll the view displayed by sliding it with the pen. -
Page 28: Main Menu Display
Operation Main menu display In the main menu you can view settings and display values in various sub-menus and can also change certain statuses that have been enabled for you. Tap the "Home icon" to go to the Function overview. The function overview is the most important menu for the user. -
Page 29: Function Overview Display
Operation Function overview display The function overview can be programmed as standard view or full screen view. Standard view Examples Start page with 4 links From the start page (= first page), tapping takes you to the controller's main menu. If only technicians or experts are permitted to access the menu, then the relevant password must be entered. - Page 30 Operation You can go back to the page displayed previously by tapping To go to the start page of the function overview, tap From the start page, tapping takes you to the controller's main menu. If only technicians or experts are permitted to access the menu, then the relevant password must be entered. If you press the background image for 3 seconds, 2 buttons appear which serve to access the version information and the general settings respectively.
- Page 31 Operation Full screen view In the full screen view, the upper status bar and the side buttons are hidden. Examples Start page with 4 links Page with graphic elements and links to time switch, calendar and settings:...
- Page 32 Operation If you press the background image for 3 seconds, 4 buttons appear which enable access to the version information of the controller, the general settings or the date, time and location settings, and the main menu of the controller. This button takes you to the main menu of the controller.
-
Page 33: Status Line
Operation Status line The top part of the display shows the output status, messages, faults, date and time. Output status Active outputs are highlighted against a green background. In the following example, outputs 1, 3 and 6 are active. Output 5 has been deactivated manually (Manual/OFF) and output 6 has been activated manually (Manual/ON). - Page 34 The values for geographical latitude and longitude are used to determine the location-specific solar data. That data can be used in functions (e.g. shading function). The factory default settings for the GPS data are for the location of Technische Alternative in Amaliendorf, Austria.
-
Page 35: Function Overview
Function overview, general Function overview If you are in the main menu, tapping the "Home" button opens the function overview. The function overview can be freely designed by the programmer and can therefore look different on every controller. It can be displayed with the aid of graphics or simply as a table. Values selected by the programmer can be changed either by all users, by Experts only or by Experts and Technicians. -
Page 36: Changing Values
Function overview, general Changing values Tapping the required value opens either a keypad or a selection box. Values can only be changed if they have been enabled for the user level by the programmer. Example: Changing the set room temperature "T.room standard" via a keypad: The keypad then appears: The current value is shown (example: 20.0 °C). - Page 37 Function overview, general Example: Changing the operating mode of the heating circuit with a selection box ("RAS" means that the operating mode is set by the room sensor's slide switch): A selection box appears with all possible settings: When you tap the required setting, it is changed and the required setting is displayed in the function overview.
-
Page 38: The Most Important Functions
Function overview, general The most important functions The most important functions for the user are: • • Heating circuit Individual room control • • Time switch DHW demand • • Calendar Solar control Various setting parameters for these functions are described in the following: Heating circuit In the heating circuit function, the set flow temperature is determined for the heating circuit and the heating circuit pump is switched off or on according to adjustable shutdown conditions. - Page 39 Heating circuit function Settings for the heating circuit operation with an additional link to the heat curve parameters: You can change the internal operating mode of the function by changing the Operation setting. RAS indicates that the setting of the room sensor is applied. If there is no room sensor installed, the setting Time/auto applies the time switch's time program to the heating circuit.
- Page 40 Heating circuit function Settings for the heat curve: Room influence: If a room sensor is installed, you can use this setting to define how much influence the actual room temperature should have on the calculation of the set flow temperature. Values higher than 50 % will have a very great influence and will be unfavourable in most cases.
- Page 41 Time switch Time switch The Time switch function is used to define the changeover between T.room standard and T.room setback in the heating circuit. The function can be programmed for a single heating circuit only, or jointly for several heating circuits. The "Time switch" can also be used to switch other functions or statuses.
- Page 42 Calendar Calendar The calendar function overwrites the internal settings and specifications of the time switch for the heating circuit. The following calendar modes can be set: • Holiday • Party • Bank holiday • Standby There are up to 10 date windows available in which each mode can be set. Up to 3 set values can be set in each mode, one of which can be applied in the heating circuit as the set room temperature.
- Page 43 Individual room control Individual room control This function is specially designed for the control of zone valves for heating and/or cooling of individual rooms. Room temperature thresholds and the operating mode switch on the room sensor can be utilised to switch between heating and cooling. Shutdown conditions prevent heating or cooling beyond the outside temperature thresholds.
- Page 44 DHW demand DHW demand This function is used in many systems to define the domestic hot water cylinder temperature. The Demand is currently set to OFF, so the effective set temperature is only 5 °C. You can define the set temperatures via the Settings key (gearwheel): The DHW demand can be switched between two set temperatures via a time program from the Time switch function.
- Page 45 Solar control Solar control The solar control starts or stops a solar pump based on the differential between the collector temperature and a reference temperature (e.g. temperature at the bottom of a cylinder). Option: use of a limit sensor (e.g. temperature at the top of the cylinder). Start conditions for the solar pump: 1.
-
Page 46: Messages
Messages Messages Sensor and bus errors Subject to programming, the "Messages" menu may also display faulty sensors and incorrect CAN and DL inputs. Faults of this kind are indicated by the right-hand warning symbol in the status line. Tapping the warning symbol takes you to the Messages menu. The incorrect inputs are displayed there. -
Page 47: Operation Via C.m.i
Operation via C.M.I. Operation via C.M.I. The C.M.I. can be accessed either via a PC / network, via the internet and the C.M.I. web portal (https://cmi.ta.co.at) or by port forwarding on the router. When you log in with an access code, the home page of the C.M.I. will appear. The operating status of the C.M.I. -
Page 48: Changing A Value
Operation via C.M.I. As with the function overview, the scheme may also comprise several pages. Example of a simple scheme with 2 heating circuits Changing a value For the user to be able to change a value, it must have been enabled by the programmer for the user. A value can be changed by clicking on it. - Page 52 2. The guarantee includes free repair (but not the cost of on-site fault finding, removal, refitting and shipping) due to operational and material defects which impair operation. In the event that a repair is not economical in the opinion of Technische Alternative for reasons of cost, the goods will be replaced.
