EE-102DLX User Manual
(32-bit PCIMCIA 10/100 Mbps Fast Ethernet Adapter)

Advertisement

Table of Contents
loading

Related Manuals for Gigafast EE102-DLX

Summary of Contents for Gigafast EE102-DLX

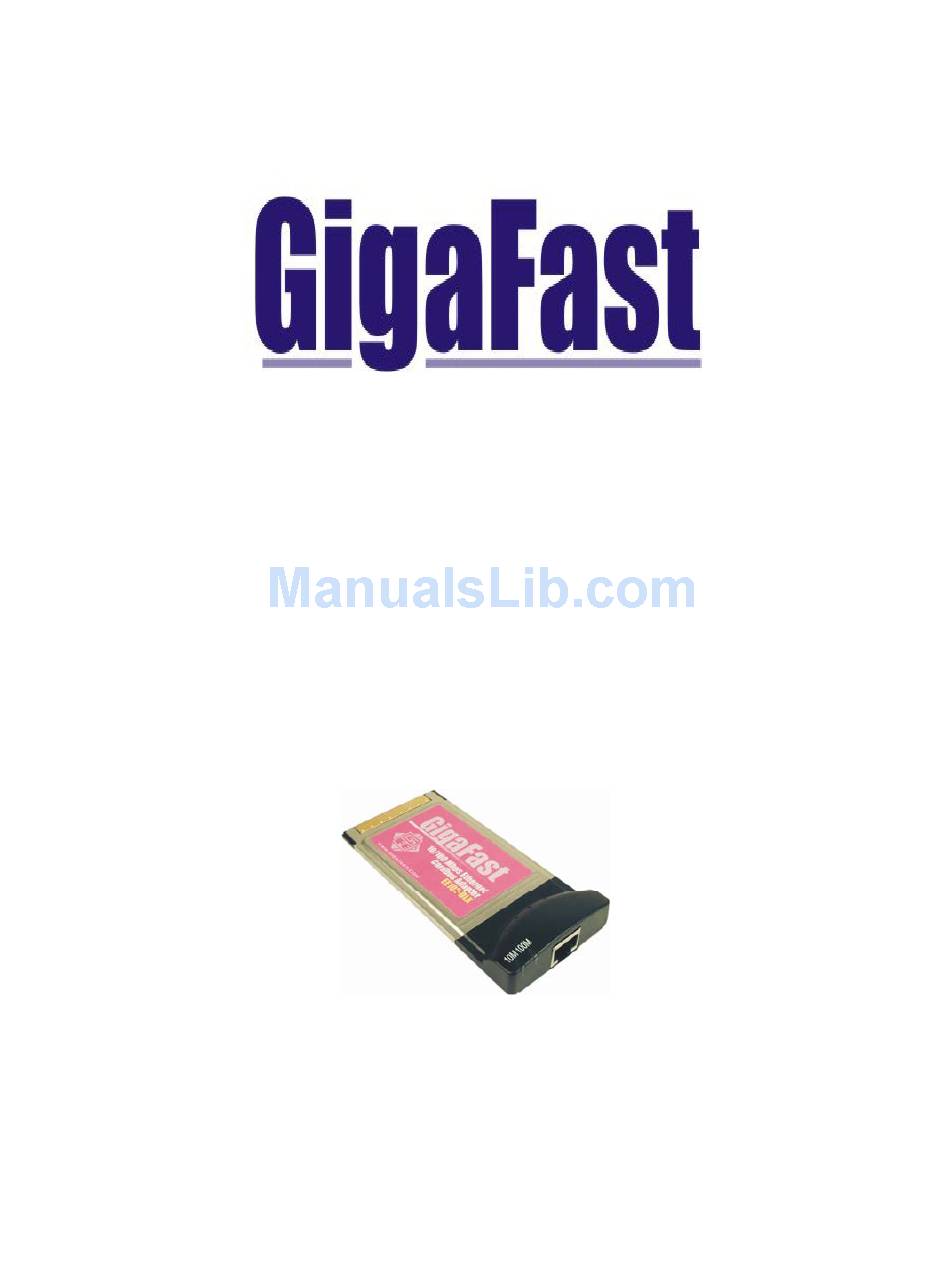

  • Page 1 EE-102DLX User Manual (32-bit PCIMCIA 10/100 Mbps Fast Ethernet Adapter)
  • Page 2 Trademarks All products, company, brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. Specifications are subject to be changed without prior notice. Copyright© 2004, GigaFast Inc., All Right Reserved...

  • Page 3: Fcc Interference Statement

    FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio interference in a commercial environment.

  • Page 4: Table Of Contents

    Table of Contents: Chapter 1 ... 5 Introduction ... 5 Features... 5 Package Content ... 5 Requirements... 6 Wire Diagram... 6 Chapter 2 ... 8 Installing Network Drivers ... 8 Standard Windows 95 (Version 4.00.950 and 4.00.950a)... 9 Standard Windows 95 Version 4.00.950b (OSR2) ... 10 Windows NT Version 4.0 ...

  • Page 5: Chapter 1

    Chapter 1 Introduction: Congratulations on the purchase of this 32 bit PCIMCIA 10/100 Mbps Ethernet adapter. High speed broadband internet is commonly used these days. It’s almost a must have product in homes and offices. No matter if you have a high speed broadband internet connection or a simple peer-to-peer connectivity;...

  • Page 6: Requirements

    Requirements: • A running operating system • A laptop (or reader) that has an open 32bit PCIMCIA slot available • A Pentium 1 similar or higher processor/IBM compatible personal computers ire Diagram: thernet Adapter to Network: The ‘Ethernet Adapter to Network’ simply shows how a user can use the EE- 100dlx to connect to his/her modem/router/switch.

  • Page 8: Chapter 2

    Chapter 2 Installing Network Drivers This file describes how to install REALTEK rtl8139B(L) CardBus network card that completes your notebook PC to network. Before You Install the Network Driver Make sure which network driver you should use. The drivers for each OS environment are provided on the list: Windows 95 version 4.00.950 or 4.00.950a Windows 95 version 4.00.950b or OSR2...

  • Page 9: Standard Windows 95 (Version 4.00.950 And 4.00.950A)

    Standard Windows 95 (Version 4.00.950 and 4.00.950a) Installation: 1. Make sure that the Rtl8139BL PC Card is inserted. 2. In the Windows 95 Control Panel, double-click on Add New Hardware. 3. In the Add New Hardware window, click Next. 4. Respond to the "Do you want Windows to search for your hardware" prompt with No and click Next.

  • Page 10: Standard Windows 95 Version 4.00.950B (Osr2)

    6. Double-click the Rtl8139BL name to display a description of the card and its current status. Standard Windows 95 Version 4.00.950b (OSR2) Installation: 1. Make sure that the Rtl8139BL PC Card is inserted. 2. In the Update Device Driver Wizard window, click Next. If this window does not appear, click System and then click Refresh.

  • Page 11: Windows 98

    6. Select "RealtekRTL8139(B/C) CardBus 10/100 Ethernet" and click OK. 7. Select proper resources allocations and click OK. 8. Click close. 9. Click YES to reboot your computer. Windows 98 Installation: 1. Make sure that the Rtl8139BL PC Card is inserted. 2.

  • Page 12: Windows Millennium Edition

    4. Select Specify a location and click Next. 5. Insert the OEM diskette in the floppy drive. Type or browse the directory "a:\win2000" and click OK. 6. Click Next. 7. In the Digital Signature Not Found window, click Yes. 8. Click Finish. Windows Millennium Edition Installation: 1.
  • Page 13 "device=c:\DOS\himem.sys" In order to work well with emm386, remove the argument "NOEMS" as "device=c:\dos\emm386" or edit it as "device=c:\dos\emm386 x=d000-d3ff" or remark it as "rem device=c:\dos\emm386" 3. Save it and reboot your PC. 4. Insert the OEM diskette in the floppy drive. Choose the directory "a:\nwclient".

  • Page 14: Microsoft Network Client For Dos

    Microsoft Network Client for DOS Windows for Workgroups v3.11 Installing the NDIS2 driver for CardBus card is the following steps: After install driver in Microsoft Client or Windows 3.11 1. Check config.sys and remove the argument "NOEMS" of EMM386.sys 2. Copy rtpci.exe and rtbios.com to any directory. Example c:\wfw311 3.

  • Page 15: Chapter 3

    Chapter 3 Troubleshooting / Frequently Asked Questions Win95b (Win95 OSR2) PROBLEM: The CardBus card is not detectable. SOLUTION: Win95b (Win95 OSR2) can't recognize some new CardBus controller devices by its default pcmcia.inf. Ask the CardBus controller vendor for new setup file, rename it to pcmcia.inf and copy it to c:\windows\inf.
  • Page 16 it hangs when using VLM or NETX to log on the net. SOLUTION: Select another Interrupt value in property dialog box of "Realtek Rtl8139(B/C) CardBus 10/100 Ethernet", and restart the computer.

  • Page 17: Appendix A: Cabling And Pin Assignment

    Appendix A: Cabling and Pin Assignment A-1 RJ-45 There are different grades, or categories, of twisted-pair cabling. Category 5 is the most reliable and is highly recommended. Category 3 is a good second choice. Straight-through cables are used for connecting computers’ NIC cards to a hub.
  • Page 18 In a straight-through cable, wire 1, 2, 3, and 6 at one end of the cable are the same as wires 1, 2, 3, and 6 at the other end. The straight through cable is used to connect the NIC card and the hub. Table 0-2 Straight Through Cabling Wire...

  • Page 19: Appendix B: Glossary

    Appendix B: Glossary DHCP Dynamic Host Configuration Protocol is a method in which IP addresses are assigned by server dynamically to the clients on the network. DHCP is used for Dynamic IP Addressing and requires a dedicated DHCP server on the network. Ethernet Ethernet is a 10/100Mbps network that runs over dedicated home/office wiring.
  • Page 20 Static IP Addressing A method of assigning IP addresses to clients on the network. In networks with Static IP address, the network administrator manually assigns an IP address to each computer. Once a Static IP address is assigned, a computer uses the same IP address every time it reboots and logs on to the network, unless it is manually changed.

  • Page 21: Appendix C: Technical Specifications

    Appendix C: Technical Specifications...

  • Page 22: Appendix D: Warranty Info

    Appendix D: Warranty Info. Limited Warranty Limited Warranty Statement: GigaFast Ethernet Solutions Inc. ("GFE") warrants its products to be free from defects in workmanship and materials, under normal use and service, for the applicable warranty term. All GFE products carry a standard limited warranty from the date of purchase from GFE or its Authorized Reseller.
