Installation
Hardware Installation:
To insert the network adapter into PC, follow the steps bellow:
1. Turn off the computer and remove its cover
2. Insert the adapter into a PCT slot
3. Secure this adapter to the rear of the computer chassis and put back the computer
cover.
4. Connect the adapter to the network using twisted-pair cable.
Driver Installation:
Win98
Turn on the computer; the window will automatically detect the network adapter. Insert
the Drive floppy, and put in a Win 98 CD in the CD-ROM

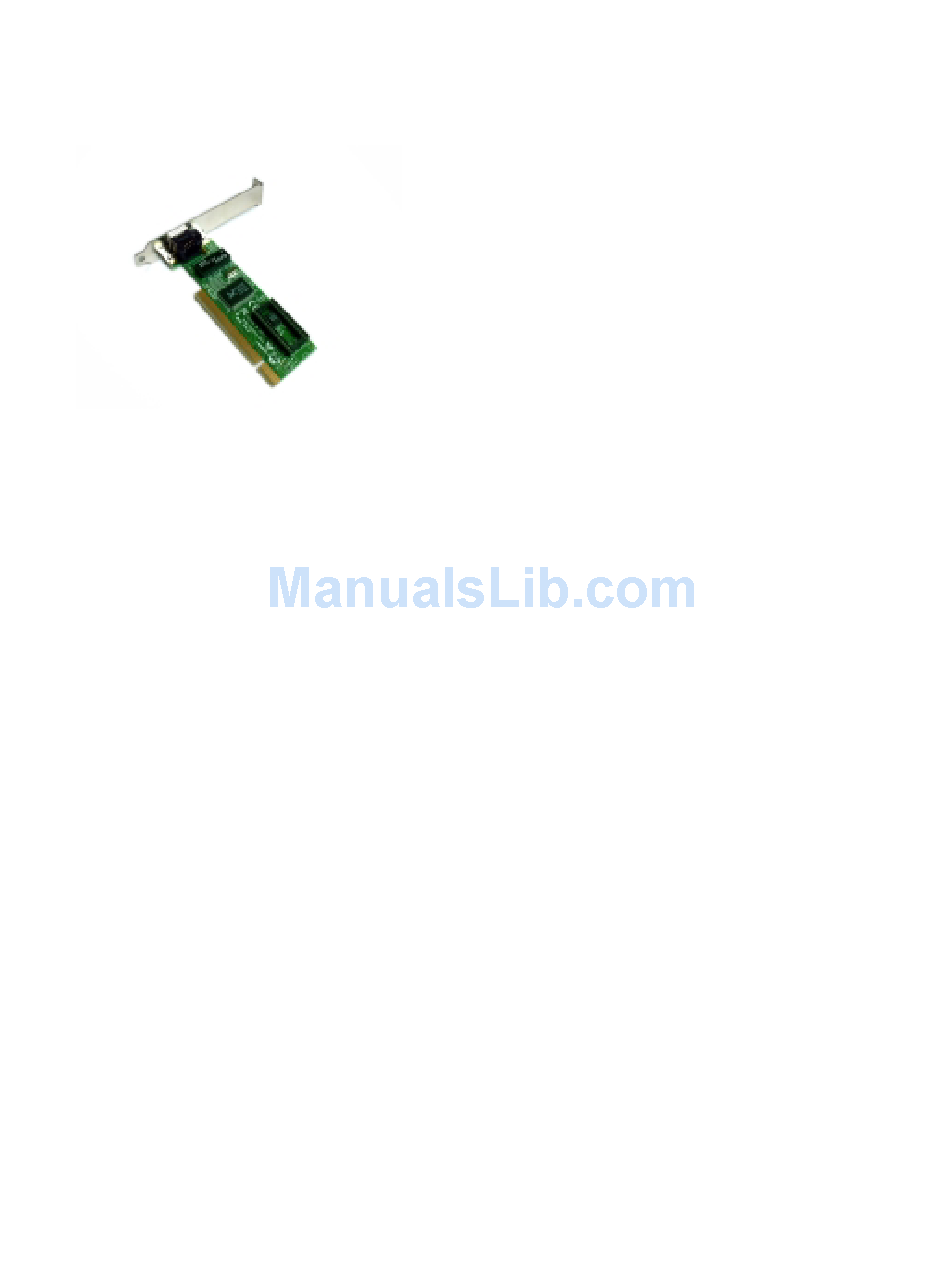

Ether Engine 100-AE
Advertisement
Related Manuals for Gigafast EE100-AEP
Summary of Contents for Gigafast EE100-AEP
- Page 1 Ether Engine 100-AE Installation Hardware Installation: To insert the network adapter into PC, follow the steps bellow: 1. Turn off the computer and remove its cover 2. Insert the adapter into a PCT slot 3. Secure this adapter to the rear of the computer chassis and put back the computer cover.
- Page 2 Screen 1: Found network adapter, click Next Screen 2: Search for the best driver for your device (Recommended), click Next...
- Page 3 Screen 3: Choose Specify a location and type in A:\Win98, click Next Screen 4: The updated driver (Recommended), click Next...
- Page 4 Screen 5: Windows driver file search for new device, click Next Screen 6: click, Ok Screen 7: Choose A:\Win98, click, Ok...
- Page 5 Screen 8: Window will automatically copy some files from the Window 98 CD Screen 9: Ether Engine 100-AE PCI card installation is done, click Finish Screen 10: click Yes...
- Page 6 Configuration: Win98 (no DHCP) Screen 1: Right click Networking Neighborhood icon on the desktop, go to Properties Highlight the TCP/IP, and then click the Properties button...
- Page 7 Screen 2: Chose Specify an IP address, and assign a static IP address...
- Page 8 Screen 3: If you have a DNS server, go to DNS Configuration. Key in the IP address for DNS server and click Add...
- Page 9 Screen 4: At the last, go to the Gateway. Key in the Gateway address and click Add. Make sure click the Ok button at the bottom when you finish configuration. Remarks: 1. Make sure the IP address you assign to the PCI card is under the same subnet with the gateway.
- Page 10 WIN 2k Turn on the computer, the window will automatically detect the network adapter and install the driver. Configuration: WIN 2k (no DHCP) Screen 1: Right click My Network Places icon on the desktop, go to Properties Highlight Local Area Connection, go to Properties...
- Page 11 Screen 2: Highlight the Internet Protocol TCP/IP, and then click the Properties button...
- Page 12 Screen 3: First choose “Use the following IP address” option, and then start key all the correct IP Address for each column. At the last, make sure click the Ok button at the bottom, when finish the entire configuration.
