Gigafast EE2400-S User Manual

24-port flexible switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EE 2400 - S
24-port Flexible Switch User
Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EE2400-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gigafast EE2400-S

Summary of Contents for Gigafast EE2400-S

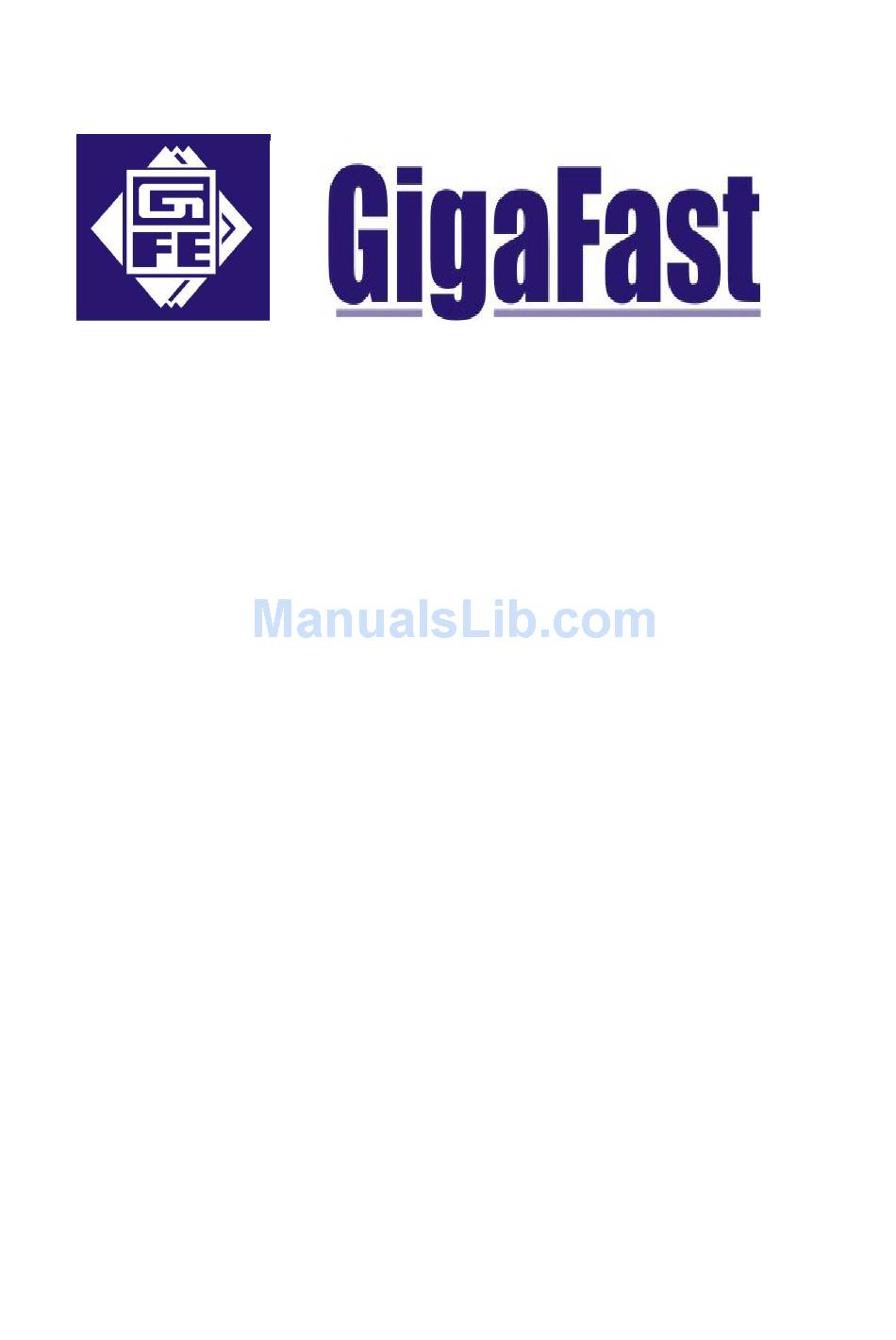

  • Page 1 EE 2400 - S 24-port Flexible Switch User Guide...
  • Page 2 Trademarks All products, company, brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. Specifications are subject to be changed without prior notice. Copyright© 2004, GigaFast Inc., All Right Reserved...

  • Page 3: Ce Declaration Of Conformity

    FCC Interference Statement This equipment has been tested and found to comply with the requirements for a Class A digital device, pursuant to Part 15 of the FCC Rules. These requirements are designed for reasonable protection against harmful interference when the equipment operating in a commercial environment. This equipment can generate and radiate electromagnetic energy and, if not installed and used in accordance with this guide, may cause significant interference with radio communication.

  • Page 4: Installation Guide

    Installation Guide Front View: Rear View: Side View:...

  • Page 5: Table Of Contents

    2.1 Setting Up Terminal 2.2 Port Setup 2.3 VLAN Setup 2.4 Trunking Setup 2.5 Store Setting 2.6 Load Default S 3. Switch Placement 3.1 Where to Place 3.2 How to Place 3.3 How to Mount Troubleshooting 4.1 Resolving No L 4.2 Q&A...

  • Page 6: Product Information

    Uplink Detect feature that detects if the connected client is another switch, hub, NIC or router. If so, the EE2400-S will automatically make the client port an uplink port. When connecting the EE2400-S to a network, just plug it in, an the EE2400-S will do all the rest, making it a fully Plug-and-Play solution to networking.
  • Page 7 Megabit/sec (full-duplex) ns ission method • Store and Forward ull Duplex • Auto-negotiation Glob l a Memory Buffer • share d by all ports Trun king bandwidth • 800Mbps (4-port t VLA g N rouping • 4 VLAN groups max. •...
  • Page 8 • 100 me ters for switch-to-repeater connection • 100 meters for switch-to-station LED layout • System Status LEDs - Power LED - VLAN - Trunk LED • Station port L - Link/Act LED - FDX/Col LE - VLAN/Trunk LEDs •...

  • Page 9: Package Content

    .3 Package Contents • One 24-port 10/100Mbps Ethernet Switch • One AC power Cor • One console cable • Two rack-mount kits and screws • Four self-adhesive ru • Installation Guide .4 LED Info STATUS Power Flashing Link / Act...

  • Page 10: Cable Specification

    Green 7. Not Used White-Brown 8. Not Used Brown Connection Hub to Hub (or Switch) Hub to Hub (or Switch) Hub to Server or Workstation Hub to Server or Workstation Hub to Print Server Hub to Print Server Cable Type and Use * Always limit the cable distance to 100 meters (328ft) as defined by IEEE specification.

  • Page 11: Setting Up Terminal

    Select COM port of PC > Set COM port parame heck: None, Stop console port (at rear panel) of the Switch to COM rogram is not found then use any available he connection file. If the connection files has not ters as “...
  • Page 12 Plug power cord into the Switch and a blank hyper terminal page will appear as follow: Pr ess Enter key...

  • Page 13: Port Setup

    2.2 Port Setup Now we are in the Switch setup MAIN MENU: Now press 1, then the screen will be as follow:...
  • Page 14 At this menu, the user will be able to enable/disable the auto-negotiation, bandwidth and half/full duplex mode for each port. If the auto-negotiation is disabled, users can set the connection speed, full/half duplex of the connection ports. The default setting is auto-negotiation enable. ollow the direction in the setup menu to setup the configuration of the connection ports.
  • Page 15 Once a port is done setting up, the menu will display the new settings as follow:...

  • Page 16: Vlan Setup

    2.3 VLAN Setup If you want to setup the VLAN function in the 24-port switch, press 2 at the MAIN MENU where it says “VLAN Setup”. At this screen, the user will be able to freely add or remove ports from VLAN groups. For example, now we will try to add port 2 into VLAN group 2.
  • Page 17 Now we will try to remove a port from a VLAN group. Press 1 in the Enter Port Number area, then press 1 in the Enter VLAN ID Number, and finally R in the Add or Remove area.

  • Page 18: Trunking Setup

    2.4 Trunking Setup To use trunking function in this 24-port switch, press 3 at the MAIN MENU where it says “Trunking Setup”. By enabling trunking function, the VLAN groups will be forced to a setting of 4 VLAN groups, with port 1,2,3,4,5,6 in VLAN1, port 7,8,9,10,11,12 in VLAN2, port 13,14,15,16,17,18 in VLAN3, and port 19,20,21,22,23,24 in VLAN4.

  • Page 19: Store Setting

    * 4-port trunking provides up to 800 Mbps in Full-Duplex 2.5 Store Setting Once the user is done configuring this Switch, user must store the new settings in order for them to take effects. To do this, press 4 at the MAIN MENU where it says “Store Setting”.

  • Page 20: Load Default S

    2.6 Load Default Setting/Reset Device Load Default Setting In order to load the factory default settings of the Switch, users must press 5 at the MAIN MENU where it says “Load Default Setting”. Then the Switch will be set to the original factory default setting.

  • Page 21: Switch Placement

    3. Switch Placement 3.1 Where to Place This 24-port Switch can be placed on a flat surface (your desk, shelf or table) or mounted onto a rack. Place the 24-port Switch at a location with these connection considerations in mind: •...

  • Page 22: How To Mount

    Place the first Switch on a firm flat surface where you want to install the stack c. Repeat step a. for each Switch before stacking them. The rubber foot pads cushion the Switch against shock or vibrations and provide space between each Switch for ventilation 3.3 How to Mount...

  • Page 23: Glossary

    Please check if trunking switching ports are used on the Switch • Please check the trunking setup from the Console port of the Switch to verify the trunking function is enable. 3. The setup page of the Console port can not appear •...
  • Page 24 “uplink” like a normal switch usually has it. All 24 ports on the EE2400-S are the Auto Uplink ports which mean all 24 ports on the EE2400-S could be an Uplink port if it detects another switch, hub, NIC or...
