  • Page 1 GA-MA74GM-S2H/ GA-MA74GM-S2 AM2+/AM2 socket motherboard for AMD Phenom II X3 processor/AMD Phenom AMD Phenom FX processor/AMD Phenom AMD Phenom X3 processor/AMD Athlon AMD Athlon processor/AMD Sempron AMD Sempron processor User's Manual Rev. 2001 12ME-MA74G2H-2001R II X4 processor/ X4 processor/ X2 processor/...

  • Page 3: Identifying Your Motherboard Revision

    GIGABYTE's prior written permission. Documentation Classifications In order to assist in the use of this product, GIGABYTE provides the following types of documentations:  For detailed product information, carefully read the User's Manual.  For instructions on how to use GIGABYTE's unique features, read or download the information on/from the Support\Motherboard\Technology Guide page on our website.

  • Page 4: Table Of Contents

    Box Contents ... 6 Optional Items... 6 GA-MA74GM-S2H/GA-MA74GM-S2 Motherboard Layout ... 7 Block Diagram... 8 Chapter 1 Hardware Installation ... 9 Installation Precautions ... 9 Product Specifications ... 10 Installing the CPU and CPU Cooler ... 12 1-3-1 Installing the CPU ... 12 1-3-2 Installing the CPU Cooler ...
  • Page 5 Chapter 3 Drivers Installation ... 53 Installing Chipset Drivers ... 53 Application Software ... 54 Technical Manuals ... 54 Contact ... 55 System ... 55 Download Center ... 56 Chapter 4 Unique Features ... 57 Xpress Recovery2 ... 57 BIOS Update Utilities ... 60 4-2-1 Updating the BIOS with the Q-Flash Utility ...

  • Page 6: Box Contents

    Box Contents GA-MA74GM-S2H or GA-MA74GM-S2 motherboard Motherboard driver disk User's Manual One IDE cable and one floppy disk drive cable Two SATA 3Gb/s cables I/O Shield • The box contents above are for reference only and the actual items shall depend on product package you obtain.

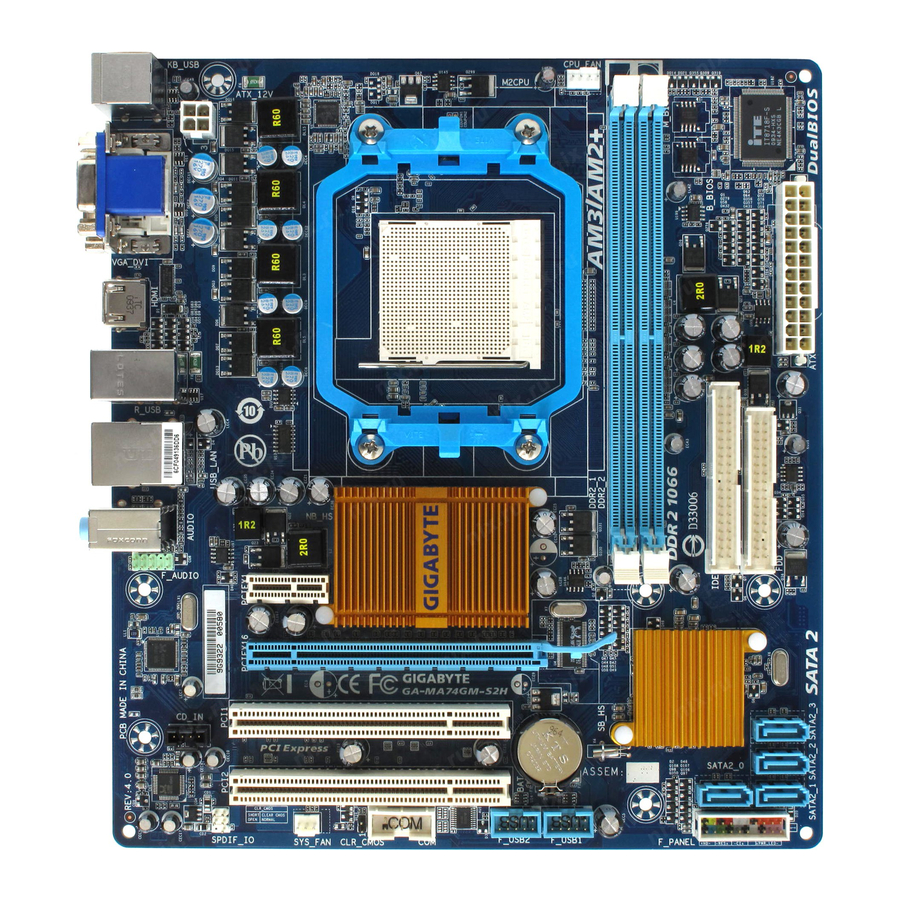

  • Page 7: Ga-Ma74Gm-S2H/Ga-Ma74Gm-S2 Motherboard Layout

    GA-MA74GM-S2H/GA-MA74GM-S2 Motherboard Layout _USB (Note) ATX_12V CPU_FAN BATTERY AUDIO F_AUDIO PCIEX1 PCIEX16 8111C PCI1 CD_IN PCI2 CODEC CLR_CMOS (Note) Use this port to connect a PS/2 keyboard or PS/2 mouse. Only for GA-MA74GM-S2H Socket AM2 GA-MA74GM-S2H/GA-MA74GM-S2 AMD 740G F_USB1 F_USB2...

  • Page 8: Block Diagram

    Block Diagram PCIe CLK (100 MHz) 1 PCI Express x16 PCI Express x16 PCI Express Bus PCIe CLK (100 MHz) 1 PCI Express x1 PCI Bus 2 PCI PCI CLK (33 MHz) (Note) Simultaneous output for DVI-D and HDMI is not supported. Only for GA-MA74GM-S2H AM3/AM2+/AM2 Hyper Transport Bus...

  • Page 9: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or •...

  • Page 10: Product Specifications

    Support for AM3/AM2+/AM2 processors:  AMD Phenom AMD Phenom AMD Phenom AMD Athlon AMD Sempron (Go to GIGABYTE's website for the latest CPU support list.) Hyper Transport Bus  2000 MT/s Chipset North Bridge: AMD 740G  South Bridge: AMD SB700 ...
  • Page 11 Internal Connectors 1 x serial port header  1 x chassis intrusion header  1 x power LED header  Back Panel 1 x PS/2 keyboard or PS/2 mouse port  Connectors 1 x parallel port  1 x D-Sub port ...

  • Page 12: Installing The Cpu And Cpu Cooler

    Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.
  • Page 13 B. Follow the steps below to correctly install the CPU into the motherboard CPU socket. Before installing the CPU, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the CPU. CPU Socket Locking Lever Step 1:...

  • Page 14: Installing The Cpu Cooler

    1-3-2 Installing the CPU Cooler Follow the steps below to correctly install the CPU cooler on the CPU. (The following procedure uses the GIGABYTE cooler as the example.) Step 1: Apply an even and thin layer of thermal grease on the surface of the installed CPU.

  • Page 15: Installing The Memory

    • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest memory support list.) • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.

  • Page 16: Installing A Memory

    1-4-2 Installing a Memory Before installing a memory module , make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module. DDR2 DIMMs are not compatible to DDR DIMMs. Be sure to install DDR2 DIMMs on this motherboard.

  • Page 17: Installing An Expansion Card

    Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: • Make sure the motherboard supports the expansion card. Carefully read the manual that came with your expansion card. • Always turn off the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage.

  • Page 18: Back Panel Connectors

    Back Panel Connectors USB Port The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as an USB keyboard/mouse, USB printer, USB flash drive and etc. PS/2 Keyboard or PS/2 Mouse Port Use this port to connect a PS/2 keyboard or PS/2 mouse. Parallel Port Use the parallel port to connect devices such as a printer, scanner and etc.
  • Page 19 A. Dual Display Configurations: This motherboard provides three ports for video output: DVI-D, HDMI and D-Sub. The table below shows the supported dual display configurations. Dual Combination Display DVI-D + D-Sub DVI-D + HDMI HDMI + D-Sub B. Playback of HD DVD and Blu-ray Discs: In order to get better playback quality, when playing the HD DVD or Blu-ray discs, refer to the recommended system requirements (or better) below.
  • Page 20 Line In Jack (Blue) The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc. Line Out Jack (Front Speaker Out, Green) The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used to connect front speakers in a 4/5.1-channel audio configuration.

  • Page 21: Internal Connectors

    Internal Connectors ATX_12V CPU_FAN SYS_FAN SATA2_0/ 1/ 2/ 3/ 4/ 5 PWR_LED Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. • Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
  • Page 22 1/2) ATX_12V/ATX (2x2 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed.
  • Page 23 3/4) CPU_FAN/SYS_FAN (Fan Headers) The motherboard has a 4-pin CPU fan header (CPU_FAN) and a 4-pin (SYS_FAN) system fan headers. Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire). The motherboard supports CPU fan speed control, which requires the use of a CPU fan with fan speed control design.
  • Page 24 6) IDE (IDE Connector) The IDE connector supports up to two IDE devices such as hard drives and optical drives. Before attaching the IDE cable, locate the foolproof groove on the connector. If you wish to connect two IDE devices, remember to set the jumpers and the cabling according to the role of the IDE devices (for example, master or slave).

  • Page 25: Battery

    8) PWR_LED (System Power LED Header) This header can be used to connect a system power LED on the chassis to indicate system power status. The LED is on when the system is operating. The LED keeps blinking when the system is in S1 sleep state.

  • Page 26: F_Panel

    10) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker and system status indicator on the chassis front panel to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. •...

  • Page 27: Front Panel Audio Header

    11) F_AUDIO (Front Panel Audio Header) The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may connect your chassis front panel audio module to this header. Make sure the wire assignments of the module connector match the pin assignments of the motherboard header. Incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it.
  • Page 28 13) F_USB1/F_USB2/F_USB3 (USB Headers) The headers conform to USB 2.0/1.1 specification. Each USB header can provide two USB ports via an optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer. • Do not plug the IEEE 1394 bracket (2x5-pin) cable into the USB header. •...

  • Page 29: Chassis Intrusion Header

    15) CI (Chassis Intrusion Header) This motherboard provides a chassis detection feature that detects if the chassis cover has been removed. This function requires a chassis with chassis intrusion detection design. 16) CLR_CMOS (Clearing CMOS Jumper) Use this jumper to clear the CMOS values (e.g. date information and BIOS configurations) and reset the CMOS values to factory defaults.
  • Page 30 GA-MA74GM-S2H/S2 Motherboard - 30 -...

  • Page 31: Chapter 2 Bios Setup

    To see more advanced BIOS Setup menu options, you can press <Ctrl> + <F1> in the main menu of the BIOS Setup program. To upgrade the BIOS, use either the GIGABYTE Q-Flash or @BIOS utility. Q-Flash allows the user to quickly and easily upgrade or back up BIOS without entering the •...

  • Page 32: Startup Screen

    Startup Screen The following screen may appear when the computer boots. Award Modular BIOS v6.00PG, An Energy Star Ally Copyright (C) 1984-2009, Award Software, Inc. AMD RS740 BIOS for GA-MA74GM-S2H Ef Motherboard Model BIOS Version <DEL>: BIOS Setup <F9>: XpressRecovery2 <F12>: Boot Menu <End>: Qflash 02/04/2009-RS740-SB700-6A669G06C-00 Function Keys: <DEL>: BIOS Setup...

  • Page 33: The Main Menu

    The Main Menu Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. (Sample BIOS Version: GA-MA74GM-S2H Ef) CMOS Setup Utility-Copyright (C) 1984-2009 Award Software ...
  • Page 34      MB Intelligent Tweaker(M.I.T.) Use this menu to configure the clock, frequency and voltages of your CPU, memory, etc.      Standard CMOS Features Use this menu to configure the system time and date, hard drive types, floppy disk drive types, and the type of errors that stop the system boot, etc.

  • Page 35: Mb Intelligent Tweaker(M.i.t.)

    MB Intelligent Tweaker(M.I.T.) CMOS Setup Utility-Copyright (C) 1984-2009 Award Software HT Link Frequency CPU Clock Ratio CPU NorthBridge Freq. (Note) CPU Host Clock Control x CPU Frequency (MHz) PCIE Clock (MHz) VGA Core Clock Set Memory Clock x Memory Clock DDR2 Voltage Control CPU Voltage Control CPU NB VID Control...
  • Page 36 CPU Frequency (MHz) Allows you to manually set the CPU host frequency. The adjustable range is from 200 MHz to 500 MHz. Important It is highly recommended that the CPU frequency be set in accordance with the CPU specifications. PCIE Clock (MHz) Allows you to manually set the PCIe clock frequency.

  • Page 37: Standard Cmos Features

    Standard CMOS Features CMOS Setup Utility-Copyright (C) 1984-2009 Award Software Date (mm:dd:yy) Time (hh:mm:ss)  IDE Channel 0 Master  IDE Channel 0 Slave  IDE Channel 1 Master  IDE Channel 1 Slave  IDE Channel 2 Master  IDE Channel 2 Slave ...
  • Page 38 Access Mode Sets the hard drive access mode. Options are: Auto (default), Large. The following fields display your hard drive specifications. If you wish to enter the parameters manually, refer to the information on the hard drive. Capacity Approximate capacity of the currently installed hard drive. Cylinder Number of cylinders.

  • Page 39: Advanced Bios Features

    Advanced BIOS Features CMOS Setup Utility-Copyright (C) 1984-2009 Award Software Virtualization AMD K8 Cool&Quiet control  Hard Disk Boot Priority First Boot Device Second Boot Device Third Boot Device Password Check HDD S.M.A.R.T. Capability Away Mode Init Display First x Surroundview Graphics Display Mode Internal Graphics Mode Frame Buffer Size...
  • Page 40 HDD S.M.A.R.T. Capability Enables or disables the S.M.A.R.T. (Self Monitoring and Reporting Technology) capability of your hard drive. This feature allows your system to report read/write errors of the hard drive and to issue warnings when a third party hardware monitor utility is installed. (Default: Disabled) Away Mode Enables or disables Away Mode in Windows XP Media Center operating system.

  • Page 41: Integrated Peripherals

    Integrated Peripherals CMOS Setup Utility-Copyright (C) 1984-2009 Award Software OnChip IDE Channel OnChip SATA Controller OnChip SATA Type x OnChip SATA Port4/5 Type Onboard LAN Function Onboard LAN Boot ROM  SMART LAN Onboard Audio Function OnChip USB Controller USB EHCI Controller USB Keyboard Support USB Mouse Support Legacy USB storage detect...
  • Page 42 SMART LAN (LAN Cable Diagnostic Function) CMOS Setup Utility-Copyright (C) 1984-2009 Award Software Start detecting at Port... Part1-2 Status = Open Part3-6 Status = Open Part4-5 Status = Open Part7-8 Status = Open : Move Enter: Select F5: Previous Values This motherboard incorporates cable diagnostic feature designed to detect the status of the attached LAN cable.
  • Page 43 Onboard Audio Function Enables or disables the onboard audio function. (Default: Enabled) If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to Disabled. OnChip USB Controller Enables or disables the integrated USB 1.1 controller. (Default: Enabled) USB EHCI Controller Enables or disables the integrated USB 2.0 controller.

  • Page 44: Power Management Setup

    Power Management Setup CMOS Setup Utility-Copyright (C) 1984-2009 Award Software ACPI Suspend Type Soft-Off by Power button USB Wake Up from S3 Modem Ring Resume PME Event Wake Up HPET Support (Note) Power On By Mouse Power On By Keyboard x KB Power ON Password AC Back Function Power-On by Alarm...
  • Page 45 PME Event Wake Up Allows the system to be awakened from an ACPI sleep state by a wake-up signal from a PCI or PCIe device. Note: To use this function, you need an ATX power supply providing at least 1A on the +5VSB lead.

  • Page 46: Pnp/Pci Configurations

    PnP/PCI Configurations CMOS Setup Utility-Copyright (C) 1984-2009 Award Software PCI1 IRQ Assignment PCI2 IRQ Assignment : Move Enter: Select F5: Previous Values PCI1 IRQ Assignment Auto 3,4,5,7,9,10,11,12,14,15 PCI2 IRQ Assignment Auto 3,4,5,7,9,10,11,12,14,15 GA-MA74GM-S2H/S2 Motherboard PnP/PCI Configurations [Auto] [Auto] +/-/PU/PD: Value F10: Save F6: Fail-Safe Defaults BIOS auto-assigns IRQ to the first PCI slot.

  • Page 47: Pc Health Status

    PC Health Status CMOS Setup Utility-Copyright (C) 1984-2009 Award Software Reset Case Open Status Case Opened Vcore DDR2 1.8V +3.3V +12V Current System Temperature Current CPU Temperature Current CPU FAN Speed Current SYSTEM FAN Speed CPU Warning Temperature CPU FAN Fail Warning SYSTEM FAN Fail Warning CPU Smart FAN Control CPU Smart FAN Mode...
  • Page 48 CPU Smart FAN Control Enables or disables the CPU fan speed control function. Enabled allows the CPU fan to run at different speed according to the CPU temperature. You can adjust the fan speed with EasyTune based on system requirements. If disabled, CPU fan runs at full speed. (Default: Enabled) CPU Smart FAN Mode Specifies how to control CPU fan speed.

  • Page 49: Load Fail-Safe Defaults

    2-10 Load Fail-Safe Defaults CMOS Setup Utility-Copyright (C) 1984-2009 Award Software  MB Intelligent Tweaker(M.I.T.)  Standard CMOS Features  Advanced BIOS Features  Integrated Peripherals  Power Management Setup  PnP/PCI Configurations  PC Health Status ESC: Quit F8: Q-Flash Press <Enter>...

  • Page 50: Set Supervisor/User Password

    2-12 Set Supervisor/User Password CMOS Setup Utility-Copyright (C) 1984-2009 Award Software  MB Intelligent Tweaker(M.I.T.)  Standard CMOS Features  Advanced BIOS Features  Integrated Peripherals  Power Management Setup  PnP/PCI Configurations  PC Health Status ESC: Quit F8: Q-Flash Press <Enter>...

  • Page 51: Save & Exit Setup

    2-13 Save & Exit Setup CMOS Setup Utility-Copyright (C) 1984-2009 Award Software  MB Intelligent Tweaker(M.I.T.)  Standard CMOS Features  Advanced BIOS Features  Integrated Peripherals  Power Management Setup  PnP/PCI Configurations  PC Health Status ESC: Quit F8: Q-Flash Press <Enter>...
  • Page 52 GA-MA74GM-S2H/S2 Motherboard - 52 -...

  • Page 53: Chapter 3 Drivers Installation

    Chapter 3 Drivers Installation • Before installing the drivers, first install the operating system. • After installing the operating system, insert the motherboard driver disk into your optical drive. The driver Autorun screen is automatically displayed which looks like that shown in the screen shot below.

  • Page 54: Application Software

    Application Software This page displays all the utilities and applications that GIGABYTE develops and some free software. You can click the Install button on the right of an item to install it. Technical Manuals This page provides GIGABYTE's application guides, content descriptions for this driver disk, and the motherboard manuals.

  • Page 55: Contact

    Contact For the detailed contact information of the GIGABYTE Taiwan headquarter or worldwide branch offices, click the URL on this page to link to the GIGABYTE website. System This page provides the basic system information. - 55 - Drivers Installation...

  • Page 56: Download Center

    Download Center To update the BIOS, drivers, or applications, click the Download Center button to link to the GIGABYTE website. The latest version of the BIOS, drivers, or applications will be displayed. GA-MA74GM-S2H/S2 Motherboard - 56 -...

  • Page 57: Chapter 4 Unique Features

    Chapter 4 Unique Features Xpress Recovery2 Before You Begin: • Xpress Recovery2 will check the first physical hard drive* for the operating system. Xpress Recovery2 can only back up/restore the first physical hard drive that has the operating system installed. •...
  • Page 58 Step 3: When partitioning your hard drive, make sure to leave unallocated space (10 GB or more is recommended; actual size requirements vary, depending on the amount of data) and begin the installation of the operating system. B. Accessing Xpress Recovery2 1.
  • Page 59 D. Using the Restore Function in Xpress Recovery2 E. Removing the Backup Step 1: If you wish to remove the backup file, select REMOVE. F. Exiting Xpress Recovery2 Select REBOOT to exit Xpress Recovery2. Select RESTORE to restore the backup to your hard drive in case the system breaks down.

  • Page 60: Bios Update Utilities

    4-2-1 Updating the BIOS with the Q-Flash Utility A. Before You Begin: 1. From GIGABYTE's website, download the latest compressed BIOS update file that matches your motherboard model. 2. Extract the file and save the new BIOS file (e.g. MA74S2H2.F1) to your floppy disk, USB flash drive, or hard drive.
  • Page 61 B. Updating the BIOS When updating the BIOS, choose the location where the BIOS file is saved. The follow procedure assumes that you save the BIOS file to a floppy disk. Step 1: 1. Insert the floppy disk containing the BIOS file into the floppy disk drive. In the main menu of Q-Flash, use the up or down arrow key to select Update BIOS from Drive and press <Enter>.
  • Page 62 Step 4: Press <Esc> and then <Enter> to exit Q-Flash and reboot the system. As the system boots, you should see the new BIOS version is present on the POST screen. Step 5: During the POST, press <Delete> to enter BIOS Setup. Select Load Optimized Defaults and press <Enter>...

  • Page 63: Updating The Bios With The @Bios Utility

    BIOS or a system that is unable to start. 3. Do not use the G.O.M. (GIGABYTE Online Management) function when using @BIOS. 4. GIGABYTE product warranty does not cover any BIOS damage or system failure resulting from an inadequate BIOS flashing.

  • Page 64: Easytune 6

    EasyTune 6 GIGABYTE's EasyTune 6 is a simple and easy-to-use interface that allows users to fine-tune their system settings or do overclock/overvoltage in Windows environment. The user-friendly EasyTune 6 interface also includes tabbed pages for CPU and memory information, lettings users read their system- related information without the need to install additional software.

  • Page 65: Q-Share

    Q-Share, you are able to share your data with computers on the same network, making full use of Internet resources. Directions for using Q-Share After installing Q-Share from the motherboard driver disk, go to Start>All Programs>GIGABYTE> Q-Share.exe to launch the Q-Share tool. Find the Q-Share icon on this icon to configure the data sharing settings.

  • Page 66: Time Repair

    Time Repair Based on the Microsoft Volume Shadow Copy Services technology, Time Repair allows you to quickly back up and restore your system data in the Windows Vista operating system. Time Repair supports NTFS file system and can restore system data on PATA and SATA hard drives. System Restore Choose a system restore point using the navigation bar on the right or at the bottom of the screen to view the system data backed up at different time.

  • Page 67: Chapter 5 Appendix

    Chapter 5 Appendix Configuring SATA Hard Drive(s) To configure SATA hard drive(s), follow the steps below: A. Install SATA hard drive(s) in your computer. B. Configure SATA controller mode in BIOS Setup. C . Configure a RAID array in RAID BIOS. D.
  • Page 68 B. Configuring SATA controller mode in BIOS Setup Make sure to configure the SATA controller mode correctly in system BIOS Setup . Step 1: Turn on your computer and press <Delete> to enter BIOS Setup during the POST (Power-On Self-Test). Ensure OnChip SATA Controller is enabled under Integrated Peripherals.
  • Page 69 C. Configuring RAID set in RAID BIOS Enter the RAID BIOS setup utility to configure a RAID array. Skip this step if you do not want to create RAID. Step 1: After the POST memory test begins and before the operating system boot begins, look for a message which says "Press <Ctrl-F>...
  • Page 70 RAID configuration menu (Figure 5). FastBuild (tm) Utility (c) 2008 Advanced Micro Devices, Inc. LD No RAID Mode LD 1 RAID 0 Stripe Block: Gigabyte Boundary: Channel:ID Drive Model 1:Mas WDC WD800JD-22LSA0 2:Mas WDC WD800JD-22LSA0 [] Up [] Down GA-MA74GM-S2H/S2 Motherboard...
  • Page 71 In the following procedure, we'll create RAID 0 as an example. 1. Under the RAID Mode section, press the <SPACE> key to select RAID 0. 2. Set the Stripe Block size. 64 KB is the default. 3. Under the Drives Assignments section, press the up or down arrow key to highlight a drive. 4.
  • Page 72 Delete an Array The Delete Array menu option allows for deletion of disk array assignments. Deleting an existing disk array could result in loss of data. Record all array information including the array type, the disk members, and stripe block size in case you wish to undo a deletion. 1.

  • Page 73: Making A Sata Raid/Ahci Driver Diskette For Windows Xp

    5-1-2 Making a SATA RAID/AHCI Driver Diskette for Windows XP (Required for AHCI and RAID Mode) To successfully install operating system onto SATA hard drive(s) that is/are configured to RAID/AHCI mode, you need to install the SATA controller driver during the OS installation. Without the driver, the hard drive may not be recognized during the Windows setup process.

  • Page 74: Installing The Sata Raid/Ahci Driver And Operating System

    5-1-3 Installing the SATA RAID/AHCI Driver and Operating System With the SATA RAID/AHCI driver diskette and correct BIOS settings, you are ready to install Windows Vista/XP onto your hard drive(s). The followings are examples of Windows XP and Vista installation. A.
  • Page 75 B. Installing Windows Vista (The procedure below assumes that only one RAID array exists in your system.) Step 1: Restart your system to boot from the Windows Vista setup disk and perform standard OS installation steps. When a screen similar to that below appears (RAID hard drive will not be detected at this stage), select Load Driver (Figure 3).
  • Page 76 Step 3: When a screen as shown in Figure 5 appears, select AMD AHCI Compatible RAID Controller and press Next. Step 4: After the driver is loaded, the RAID drive will appear. Select the RAID drive and then press Next to continue the OS installation (Figure 6).
  • Page 77 Rebuilding an Array: Rebuilding is the process of restoring data to a hard drive from other drives in the array. Rebuilding applies only to fault-tolerant arrays such as RAID 1 or RAID 10 arrays. To replace the old drive, make sure to use a new drive of equal or greater capacity.

  • Page 78: Configuring Audio Input And Output

    Configuring Audio Input and Output 5-2-1 Configuring 2/4/5.1/7.1-Channel Audio The motherboard provides three audio jacks on the back panel which support 2/4/5.1/7.1 ture to the right shows the default audio jack assignments. The integrated HD (High Definition) audio provides jack retasking capability that allows the user to change the func- tion for each jack through the audio driver.
  • Page 79 The pictures to the right show the 7.1-channel speaker configurations. Step 2: Connect an audio device to an audio jack. The The current connected device is dialog box appears. Select the device according to the type of device you connect. Then click OK. Step 3: On the Speakers screen, click the Speaker Con- figuration tab.
  • Page 80 B. Configuring Sound Effect: You may configure an audio environment on the Sound Effects tab. C. Activating an AC'97 Front Panel Audio Module: If your chassis provides an AC'97 front panel audio module, to activate the AC'97 functionality, click the tool icon on the Speaker Configuration tab.

  • Page 81: Configuring S/Pdif Out

    5-2-2 Configuring S/PDIF Out S/PDIF Out: The S/PDIF Out jacks can transmit audio signals to an external decoder for decoding to get the best audio quality. 1. Connecting a S/PDIF Out Cable S/PDIF Coaxial Cable 2. Configuring S/PDIF Out: On the Digital Output screen, click the Default Format tab and then select the sample rate and bit depth. Click OK to complete.

  • Page 82: Configuring Microphone Recording

    5-2-3 Configuring Microphone Recording Step 1: After installing the audio driver, the HD Audio Manager icon will appear in the notification area. Double- click the icon to access the HD Audio Manager. Step 2: Connect your microphone to the Mic in jack (pink) on the back panel or the Mic in jack (pink) on the front panel.
  • Page 83 Step 4: To raise the recording and playback volume for the microphone, click the Microphone Boost icon on the right of the Recording Volume slider and set the Microphone Boost level. Step 5: After completing the settings above, click Start, point to Programs, point to Accessories, and then click Sound Recorder to begin the sound recording.

  • Page 84: Using The Sound Recorder

    Step 3: When the Stereo Mix item appears, right-click on this item and select Enable. Then set it as the default device. Step 4: Now you can access the HD Audio Manager to configure Stereo Mix and use Sound Recorder to record the sound.

  • Page 85: Troubleshooting

    5-3-1 Frequently Asked Questions To read more FAQs for your motherboard, please go to the Support\Motherboard\FAQ page on GIGABYTE's website. Q: In the BIOS Setup program, why are some BIOS options missing? A: Some advanced options are hidden in the BIOS Setup program. Press <Delete> to enter BIOS Setup during the POST.

  • Page 86: Troubleshooting Procedure

    5-3-2 Troubleshooting Procedure If you encounter any troubles during system startup, follow the troubleshooting procedure below to solve the problem. Turn off the power. Remove all peripherals, connecting cables, and power cord etc. Make sure the motherboard does not short-circuit with the chassis or other metal objects.
  • Page 87 When the computer is turned on, is the CPU cooler running? Check if there is display on your monitor. Turn off the computer. Plugg in the keyboard and mouse and restart the computer. Check if the keyboard is working properly. Press <Delete>...

  • Page 88: Regulatory Statements

    "end of life" product. Restriction of Hazardous Substances (RoHS) Directive Statement GIGABYTE products have not intended to add and safe from hazardous substances (Cd, Pb, Hg, Cr+6, PBDE and PBB). The parts and components have been carefully selected to meet RoHS requirement.
  • Page 89 Finally, we suggest that you practice other environmentally friendly actions by understanding and using the energy-saving features of this product (where applicable), recycling the inner and outer packaging (including shipping containers) this product was delivered in, and by disposing of or recycling used batteries properly.
  • Page 90 GA-MA74GM-S2H/S2 Motherboard - 90 -...
  • Page 91 - 91 - Appendix...
  • Page 92 GA-MA74GM-S2H/S2 Motherboard - 92 -...
  • Page 93 - 93 - Appendix...
  • Page 94 GA-MA74GM-S2H/S2 Motherboard - 94 -...
  • Page 95 Xian TEL: +86-29-85531943 FAX: +86-29-85510930 Shenyang TEL: +86-24-83992901 FAX: +86-24-83992909 GIGABYTE TECHNOLOGY (INDIA) LIMITED - India      WEB address : http://www.gigabyte.in Saudi Arabia      WEB address : http://www.gigabyte.com.sa GIGABYTE TECHNOLOGY PTY. LTD. - Australia ...
  • Page 96 Kazakhstan      WEB address : http://www.giga-byte.kz You may go to the GIGABYTE website, select your language in the language list on the top right corner of the website. To submit a technical or non-technical (Sales/ Marketing) question, please link to : http://ggts.gigabyte.com.tw...
