Wen 413CV Instruction Manual

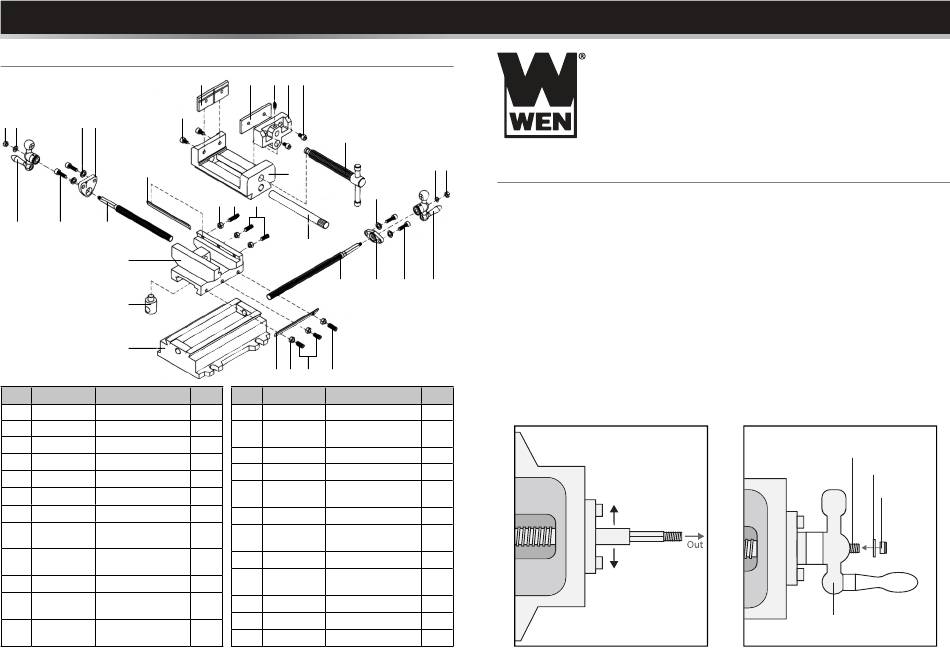

PARTS
17
13 7 24 22
4
12 11 8
3
2
1
No. Part No. Description
1 413CV-001 Base
2 413CV-002 Nut
3 413CV-003 Saddle
4 413CV-004 Gib
5 413CV-005 Hex Nut, M6
6 413CV-006 Set Screw, M6x15
7 413CV-007 Flat Washer, M6
Longitudinal
8 413CV-008
Feed Screw
Cross Feed
9 413CV-009
Screw
10 413CV-010 Retaining Plate
Socket Head Bolt,
11 413CV-011
M6x16
Crank Handle
12 413CV-012
Assembly
21 20 19 18 17
14
16
24
5 23 6
15
9 10
4 5 6 23
Qty. No. Part No. Description
1
13 413CV-013 Locking Nut, M6
Leadscrew With
1
14 413CV-014
Handle
1
15 413CV-015 Guide Rod
2
16 413CV-016 Body
6
Socket Head Bolt,
17 413CV-017
4
M6x12
2
18 413CV-018 Movable Jaw
Dog Point Set
1
19 413CV-019
Screw, M6x10
20 413CV-020 Jaw Plate
1
Grooved Jaw
21 413CV-021
1
Plate
22 413CV-022 Retaining Plate
4
23 413CV-023 Set Screw, M6x20
2
24 413CV-024 Lock Washer, M6
INSTRUCTION MANUAL
7 13
ASSEMBLY
1. Remove all components and parts from the box. Your cross vise includes the following
hardware:
• (3) Hex Wrenches
• (2) Locking Nuts
2. If necessary, adjust the longitudinal (top) feed screw until the handle-mounting portion of
the feed screw protrudes beyond the vise body, as shown in Fig. 1 below. Turning the feed
screw clockwise retracts it; turning it counterclockwise advances it. Turn the feed screw fully
11 12
clockwise until it can no longer retract.
3. Mount one of the crank handles on the leadscrew, as shown in Fig. 2 below.
4. Secure the crank handle to the feed screw using the included flat washer and locking nut (Fig.
2). Tighten the nut (turning clockwise) against the handle using a 10 mm socket (not included),
then back it off a quarter turn (turning counterclockwise). Turn the handle a couple of times. If
it is difficult to turn, loosen the nut. Adjust the nut as necessary to ensure that the handle turns
smoothly and advances the slide properly.
Qty.
5. Repeat the same procedure to mount the remaining crank handle on the cross feed screw.
2
1
1
1
4
1
1
1
1
1
2
4
3-1/2-INCH
CROSS VISE
• (2) Flat Washers
• (2) Crank Handles
Top View
Clockwise Brings
Feed Screw Out
Counterclockwise
Sends Feed Screw
In
Fig. 1
MODEL 413CV
ÉTAU POUR PERCEUSE
Compatible with WEN Drill Press:
4210, 4212, 4214, 4225, 4227
Top View
Feed Screw
Flat Washer
Locking Nut
Crank Handle
Fig. 2
