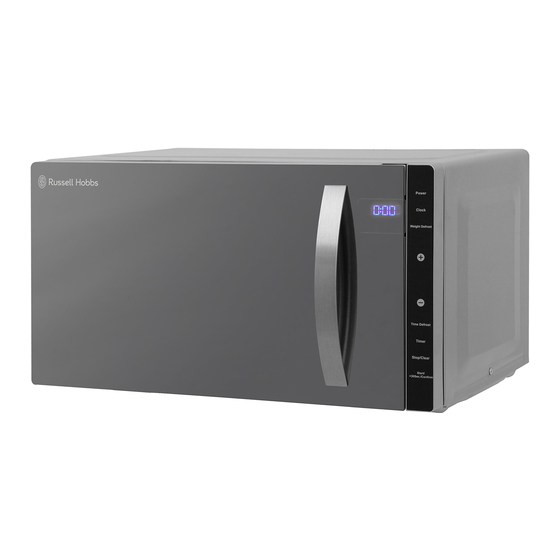

Russell Hobbs RHFM2363S User Manual
Hide thumbs Also See for RHFM2363S:

Advertisement

Microwave
23 Litre Touch Flatbed Microwave
User Guide
Model Number: RHFM2363B/RHFM2363S
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit
us at www.productcareuk.com
IMPORTANT: RETAIN FOR FUTURE
REFERENCE

Advertisement

Table of Contents
loading

Summary of Contents for Russell Hobbs RHFM2363S

  • Page 1 Microwave 23 Litre Touch Flatbed Microwave User Guide Model Number: RHFM2363B/RHFM2363S For Customer Services & Spare Parts please call 0345 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at www.productcareuk.com...
  • Page 2: Table Of Contents

    Contents Page Safety instructions ……………………………………… 3-11 Product Overview ……………………………………… About this microwave oven ……………………………………… Unpacking the microwave ……………………………………… Microwave oven installation ……………………………………… Control panel ……………………………………… 16-17 Using the microwave oven ……………………………………… 18-25 Cleaning and care ……………………………………… Important utensil information ……………………………………… Connection to the mains supply ………………………………………...
  • Page 3: Safety Instructions

    Safety instructions IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE WARNING: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 4 Safety instructions IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
  • Page 5 Safety instructions If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
  • Page 6 Safety instructions The rear surface of appliance may be placed against a wall. Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls. The microwave oven should be used freestanding only and must not be built-in or used in a cabinet.
  • Page 7 Safety instructions Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
  • Page 8 Safety instructions Do Not obstruct the ventilation from the microwave Only use thermometers that are approved for microwave ovens.
  • Page 9 Safety instructions • Food containing a mixture of fat and water (for example, stock) should stand for 30 to 60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent it from bubbling when a spoon is placed in it, or a stock cube is added.
  • Page 10 Safety instructions • The microwave is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, wheat bags, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. • Heat from the contents of a container may be transmitted to the container itself, so please be careful when removing it from the oven.
  • Page 11 Safety instructions • Do not use metal pans or dishes with metal handles. • Do not use anything with a metal trim. • Do not use paper covered wire twist-ties on plastic bags. • Do not use melamine dishes as they contain a material which will absorb microwave energy.
  • Page 12: Product Overview

    Product overview Control panel (including door release button) Window Door assembly Safety interlock latches Ventilation slots Oven cavity G. Flatbed cooking area For Customer Services & Spare Parts please call 0345 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at www.productcareuk.com...
  • Page 13: About This Microwave Oven

    About this microwave oven Microwaves are high-frequency electromagnetic waves similar to radio waves. While radio waves may vary in length from one metre to many kilometres, microwaves are very short (less than 12.5 centimetres). Microwaves do not make any heat themselves but only cause water molecules in food to vibrate.
  • Page 14: Unpacking The Microwave

    Unpacking the microwave Before you use your microwave oven 1. Remove all the packaging. Do not remove the small piece of card from the right hand side of the cavity wall. This is called a wave-guide cover and allows the microwaves to pass through to cook the food. Please ensure you keep this cover clean at all times.
  • Page 15: Microwave Oven Installation

    Microwave oven installation Select a level surface that provides enough space for the outlet vents. • The minimum installation height is 85cm. • A minimum clearance of 20cm is required between the oven and any adjacent walls. Leave a minimum clearance of 30cm above the oven.
  • Page 16: Control Panel

    Control panel MENU ACTION SCREEN Cooking time, power, action    Power indicators, and clock time are displayed.  Clock POWER Touch to select the power level for microwave cooking. Weight Defrost CLOCK Touch this button to set the clock.  WEIGHT DEFROST Touch this button for the weight    defrost.  TIME DEFROST  Touch this button for the time defrost.  +/‐  These buttons are used to scroll through menus, weights, etc. TIMER Touch this button to use the kitchen timer ...
  • Page 17 Menu Action Screen Indicates that the safety lock is engaged    Indicates that grams are shown on the display  Indicates microwave cooking is taking place    Indicates that time defrosting is taking place    Indicates that weight defrosting is taking place  Indicates that a power level is selected    Indicates that the time of day is shown on the display  Indicates that kitchen time is being used place    Indicates that the auto menu function has been selected    For Customer Services & Spare Parts please call 0345 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at www.productcareuk.com...
  • Page 18: Using The Microwave Oven

    Using the microwave oven Clock Setting  When  the  microwave  oven  is  first  turned  on,  the  oven  will  display "0:00", the buzzer will ring once.  1) Touch the   CLOCK button and the hour digits will flash.     " “   2) Touch the " " and " " buttons to adjust the hour digits.
  • Page 19 Using the microwave oven Kitchen Timer (no microwave function)  TIMER "  button and the menu screen will display 00:00 Touch the (not flashing)     2) Touch " " or “ ”   buttons to enter the  desired time.(The maximum time is 95 minutes.)  START/+30SEC/CONFIRM" 3) Touch "    to confirm setting.  4) When ...
  • Page 20 Using the microwave oven Microwave Cooking  1) Touch the "POWER " button once, " P100" will display and flash. 2) Touch the " POWER " button several times or touch " " or "                "  buttons to select the microwave power from 100% to 10%. 3) Touch the " START/+30SEC/CONFIRM " button to confirm the power level. 4) Touch the " "...
  • Page 21 Using the microwave oven Defrosting by Weight  1) Touch the "WEIGHT DEFROST" button once, the oven will display "dEF1". 2) Touch  "           "  or  "          "  to  select  the  weight  of  the food in grams. The weightshould be set between 100-2000g 3) Touch "START/+30SEC/CONFIRM" button to start defrosting.
  • Page 22 Using the microwave oven Speedy Cooking  1) Touch the "START/+30SEC/CONFIRM" button  to microwave   cook at 100% power level for 30 seconds. The microwave will start to cook immediately. 2) Each touch of the same button will increase the cooking time by 30 seconds. The maximum cooking time is 95 minutes.  3) An additional 30 seconds can be added at any point during the cooking process/countdown of the time.
  • Page 23 Using the microwave oven Multi‐Stage Cooking  This function can set a maximum of two different stages. IFor instance, to defrost an item and the follow it with the cooking cycle. Note:  The  auto  menu  cannot  be  set  as  one  of  the  multi‐stage  cooking functions.    Example: if you want to defrost 500g of food, then cook it at 80% microwave for 7 minutes.
  • Page 24 Using the microwave oven Auto Menu  1) Touch the  "               " button and "A-1" will display on the screen.           "  button to choose the menu you need.  Touch the"      " or " 3) Touch the " START/+30SEC/CONFIRM " button to confirm the menu you require. ...
  • Page 25 Using the microwave oven Checking Functions 1) During the cooking cycle, touch the button and the current "POWER" power will be displayed for 2-3 seconds. 2) During the cooking cycle, touch the "CLOCK" button to check the current time. It will be displayed for 2-3 seconds. Child lock ...
  • Page 26: Cleaning And Care

    Cleaning and care Before you clean the oven, turn it off and unplug it. • Keep the inside of the oven clean. When food or liquids stick to the • oven walls, wipe with a damp cloth. We recommend that you do not use harsh detergent or abrasives.
  • Page 27: Important Utensil Information

    Important utensil information Do not use metal pans or dishes with metal handles. • Do not use anything with a metal trim. • Do not use paper covered wire twist-ties on plastic bags. • Do not use melamine dishes as they contain a material which will •...
  • Page 28: Connection To The Mains Supply

    Connection to the mains supply WARNING- THIS APPLIANCE MUST BE EARTHED This appliance is designed to operate from a mains supply of 230-240V ~ 50Hz. Check that the voltage marked on the product corresponds with your supply voltage. This product is fitted with a 13A plug complying with BS1363. If this plug is unsuitable or needs to be replaced, please note the following: Important: The wires in the mains lead are coloured in accordance with the following code:...
  • Page 29 Connection to the mains supply For UK use only – Plug fitting details (where applicable): As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The GREEN/YELLOW wire is the EARTH and must be connected to the terminal which...
  • Page 30: Problem Solving & Plug

    Problems solving & plug Problem solving The microwave oven may cause interference to your radio, TV or similar equipment. If it does, you can get rid of the interference by moving the radio, TV or equipment as far away from your microwave oven as possible.
  • Page 31: Guarantee

    Guarantee This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship the faulty product must be returned to the place of purchase. Refund or replacement is at the discretion of the store. The following conditions apply: •...
  • Page 32: Technical Specification

    Technical Specification Rated Voltage 230V – 240V ~ 50Hz Rated Input Power(Microwave) 1270 W Rated Output Power(Microwave) 800W 23 L Oven Capacity External Dimensions(HxWxD) 303.5mm x502mm x 420mm Net Weight 13.76 kg Model number RHFM2363B & S For Customer Services & Spare Parts please call 0345 209 7461 Opening times: Monday - Friday 8am –...
  • Page 33: Notes

    Notes For Customer Services & Spare Parts please call 0345 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at www.productcareuk.com...
  • Page 34 Notes For Customer Services & Spare Parts please call 0345 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at www.productcareuk.com...
  • Page 35 Notes For Customer Services & Spare Parts please call 0345 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at www.productcareuk.com...
  • Page 36 For Customer Services & Spare Parts please call 0345 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at www.productcareuk.com Revision 1 This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste.
