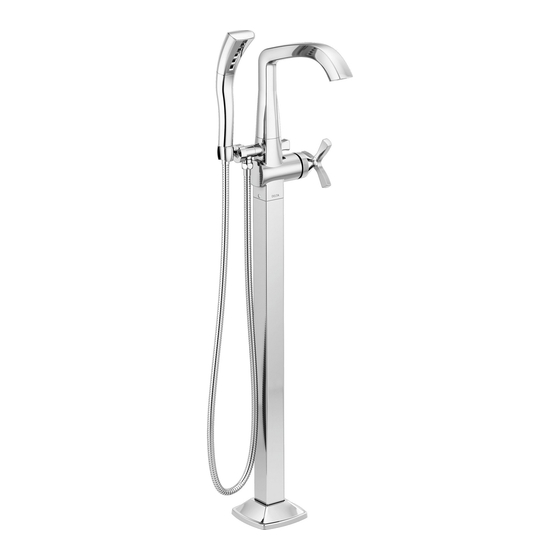

Floor mount tub filler trim

Advertisement

Quick Links

Models / Modelos / Modèles
T4776-FL & T47766-FL
STRYKE
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
For easy installation of your Delta faucet you will need:
• To READ ALL the instructions completely before beginning.
• To READ ALL warnings, care, and maintenance information.
• To purchase the correct water supply hook-up.

Cleaning and Care:

Care should be given to the cleaning of this product. Although its finish is extremely durable, it can be
damaged by harsh abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a
soft towel.

Backflow Protection System

Your Delta Faucet hand shower incorporates a backflow protection system that has been tested to be
in compliance with ASME A112.18.3 and ASME A112.18.1/CSA B125.1. It incorporates two certified
check valves in series, which operate independently and are integral, non-serviceable parts of the wand
assembly. It also incorporates a diverter mechanism that automatically diverts to the spout mode when
there is a reduction in the supply pressure.
Para instalación fácil de su llave Delta usted necesitará:
• LEER TODAS las instrucciones completamente antes de empezar.
• LEER TODOS los avisos, cuidados, e información de mantenimiento.
• Comprar las conexiones correctas para el suministro de agua.
Limpieza y Cuidado de su Llave
Tenga cuidado al ir a limpiar este producto. Aunque su acabado es sumamente durable, puede ser
afectado por agentes de limpieza o para pulir abrasivos. Para limpiar su llave, simplemente frótela
con un trapo húmedo y luego séquela con una toalla suave.
Sistema de protección contra el contraflujo
Ducha de mano Delta tiene un sistema de protección contra el contraflujo, incorporado, que ha sido
probado para cumplir con los requisitos de ASME A112.18.3 y ASME A112.18.1/CSA B125.1. Este
incorpora en la pieza de mano dos válvulas de retención o checadoras certificadas en una serie,
las cuales operan independientemente y son piezas integrantes que no requieren servicio. También
incorpora un mecanismo desviador que automáticamente desvía el agua al surtidor cuando la presión
del flujo de agua se desminuye.
Pour installer votre robinet Delta facilement, vous devez:
• LIRE TOUTES les instructions avant de débuter;
• LIRE TOUS les avertissements ainsi que toutes les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
Instructions de nettoyage
Il faut le nettoyer avec soin. Même si son fini est extrêmement durable, il peut être abîmé par des
produits fortement abrasifs ou des produits de polissage. Il faut simplement le frotter doucement avec
un chiffon humide et le sécher à l'aide d'un chiffon doux.
Dispositif anti-siphonnnage
Douche à main Delta comporte un dispositif anti-siphonnage qui a été éprouvé et qui est conforme
aux normes ASME A112.18.3 et ASME A112.18.1/CSA B125.1. Ce dispositif se compose de deux
clapets indépendants homologués, montés en série dans le tube rigide, qui sont non réparables. Il est
également doté d'un inverseur qui dirige automatiquement l'eau vers le bec en cas de diminution de la
pression d'alimentation.
www.deltafaucet.com
94042
1

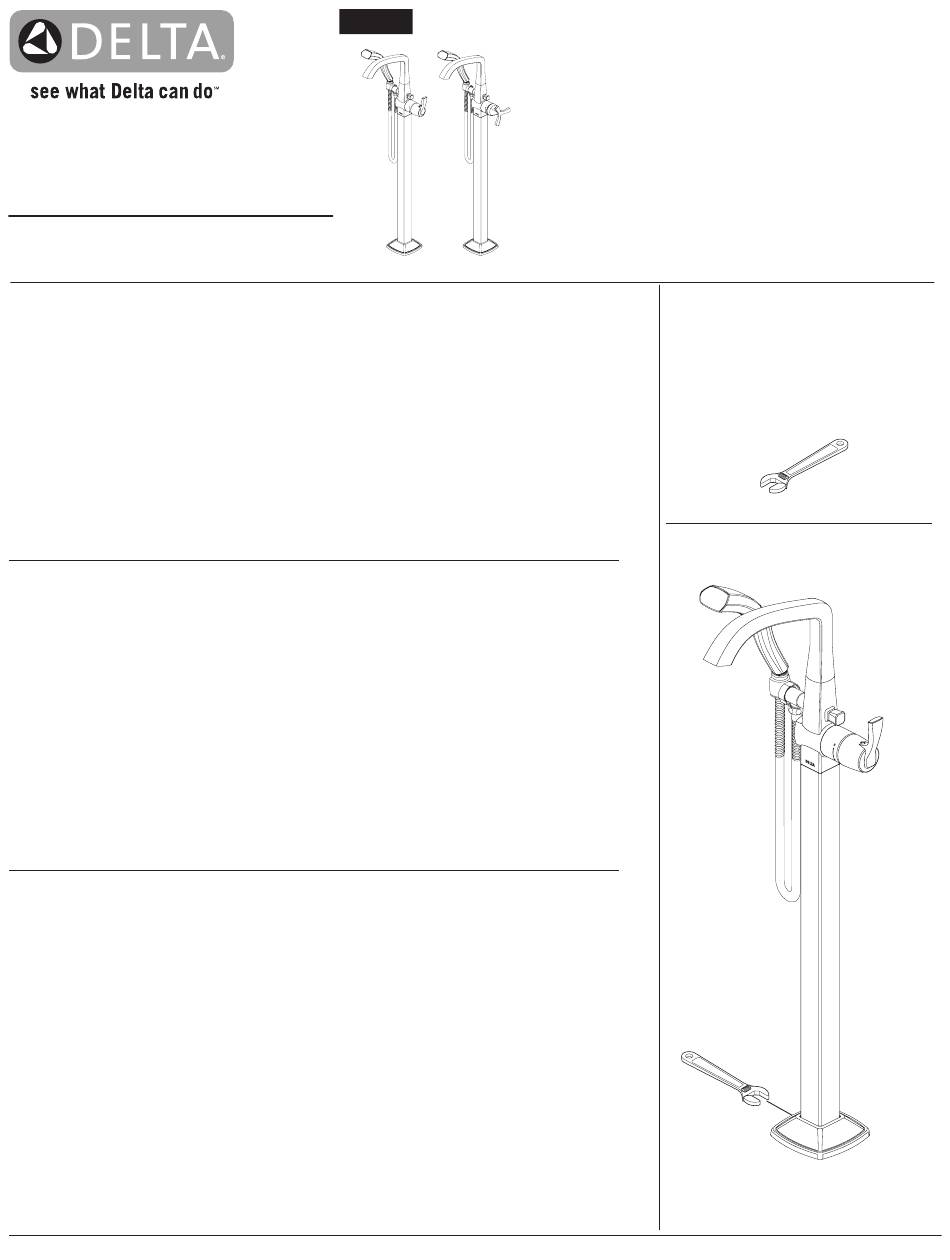

FLOOR MOUNT TUB FILLER TRIM
JUEGO DE ACCESORIOS PARA EL
LLENADO DE BAÑERAS,
INSTALACIÓN DE PISO.
TROUSSE DE FINITION DE ROBINET
DE PLANCHER POUR BAIGNOIRE
You may need:
Usted puede necesitar:
Articles dont vous pouvez
avoir besoin:
4/10/18 Rev. A
