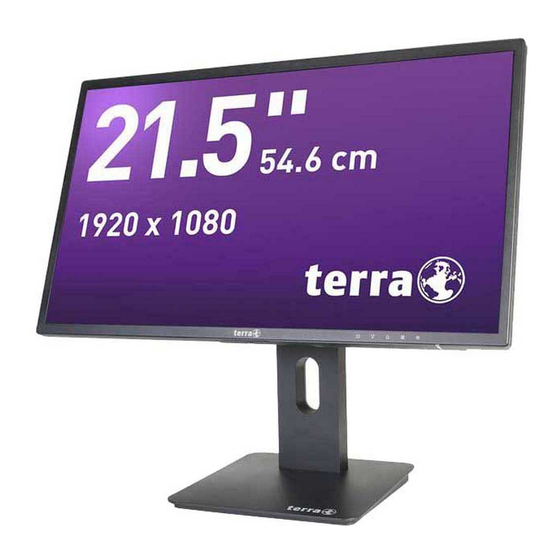

Wortmann Terra 2256W User Manual

Lcd/led pv monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LCD/LED 2256W PV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Terra 2256W and is the answer not in the manual?

Questions and answers

Related Manuals for Wortmann Terra 2256W

Summary of Contents for Wortmann Terra 2256W

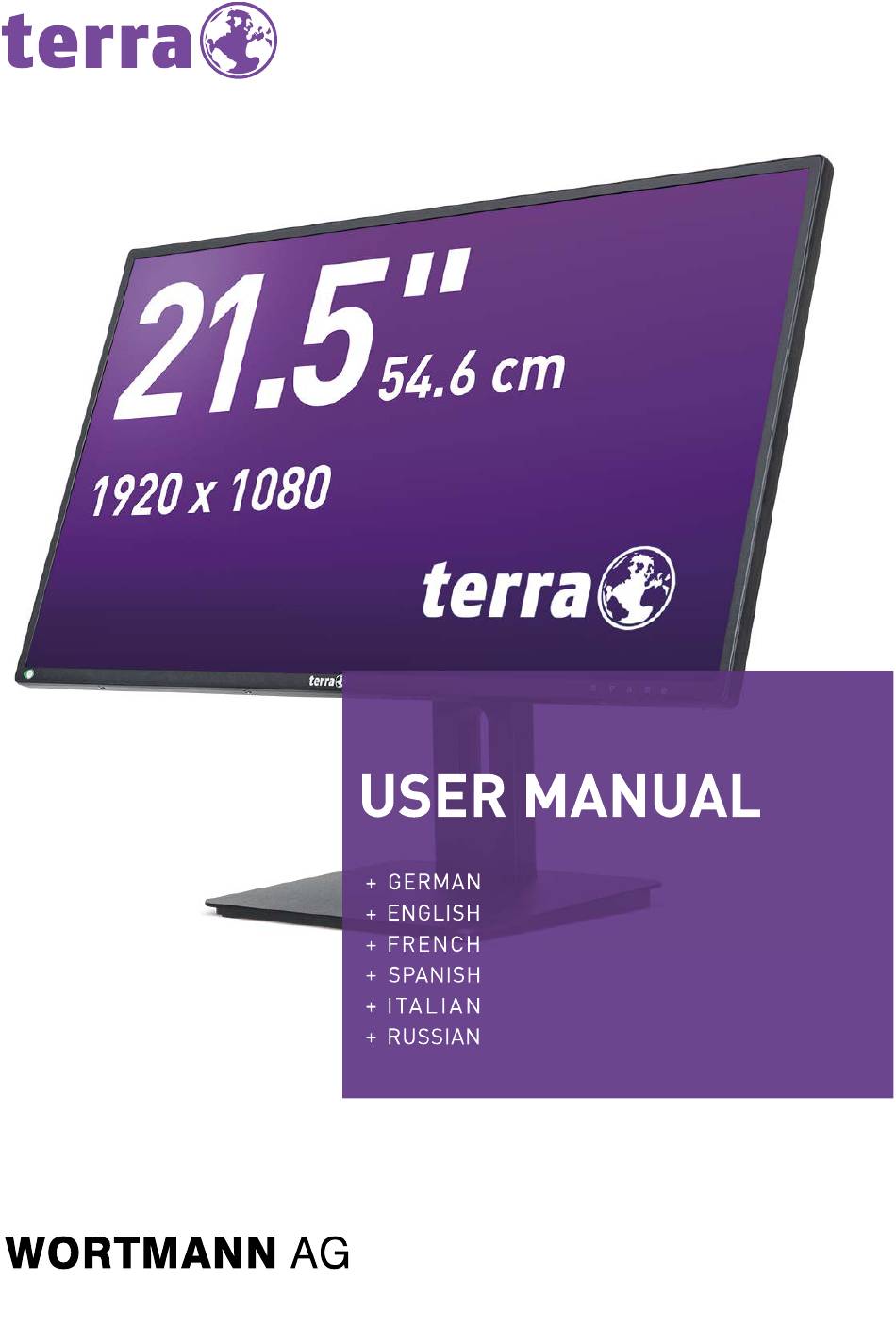

  • Page 1 LCD/LED 2256W PV...
  • Page 2 Congratulations! This display is designed for both you and the planet! The display you have just purchased carries the TCO Certified label. This ensures that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world.

  • Page 3: Table Of Contents

    Content Safety Precautions .......................... 1 First Setup ............................2 Quick Installation..........................3 Illustration for turning the high adjustable stand base ..............4 Front View of the Product ........................ 5 Rear View of the Product ........................ 6 Using On Screen Display (OSD) Functions ..................7 Supporting Timing Modes ......................

  • Page 4: Safety Precautions

    According to WEEE regulation, this monitor can't be handled as normal trash in Europe when it is out of usage. Please refer to the recycle information from our website to handle it. www.wortmann.de...

  • Page 5: First Setup

    First Setup Congratulation for purchasing this monitor of high performance! This monitor comes with the following accessories: ● HDMI cable (19 pin) AC Power cord  ● User’s guide Audio cable  ● Quick start guide Warranty card ...

  • Page 6: Quick Installation

    Quick Installation 1. Connect Video cable (HDMI cable) Make sure both monitor and computer are powered OFF. Connect the HDMI cable from HDMI output of computer to the HDMI input of the monitor. Or connect VGA cable *Optional Connect the VGA cable from VGA output of computer to the VGA input of the monitor. Or connect DisplayPort cable *Optional Connect the DisplayPort cable from DisplayPort output of computer to the DisplayPort input of the monitor.

  • Page 7: Illustration For Turning The High Adjustable Stand Base

    Illustration for turning the high adjustable stand base -5~20° (1) Tilt Angle Tilt UP: 20° Tilt DOWN: -5° (2) Lift Range 130mm 130mm (3) Swivel Angle Left: 140° 140° 140° Right: 140° 90° (4) Pivot Angle Right: 90° 90°...

  • Page 8: Front View Of The Product

    Front View of the Product ❶ ❷ ❸ ❹ ❺ ❻ ❶ OSD Menu On/Off ❷ Scroll Down/ Decrease ❸ Scroll Up/ Increase ❹ Confirm Select ❺ Power ON/OFF ❻ LED Indicator...

  • Page 9: Rear View Of The Product

    Rear View of the Product ❶ ❷ ❸ ❹ ❺ ❻ ❶ Power input ❷ Cable Management ❸ Audio input ❹ DisplayPort input (DisplayPort 20 pin) ❺ HDMI input (HDMI 19 pin) ❻ VGA input (D-sub 15 pin)

  • Page 10: Using On Screen Display (Osd) Functions

    Using On Screen Display (OSD) Functions Display main menu Exit from OSD menu Manual adjust mode select for VGA, HDMI, Displayport mode Confirm the Select Select the desired item when in OSD menu ▼ When not in OSD menu, directly enters the Contrast/Brightness mode menu Select the desired item when in OSD menu ▲...
  • Page 11 Contrast: To adjust the foreground white level of screen image.  ▲: increase contrast, ▼: decrease contrast. Brightness: To adjust the luminance of the video.  ▲: increase brightness, ▼: decrease brightness. DCR: To detect the distribution of the visual signals inputs, and create an ...
  • Page 12 H / V Position: To adjust the horizontal and vertical position of the video.  H. Position: ▲: move screen to the right, ▼: move screen to the left. V. Position: ▲: move screen up, ▼: move screen down. Horizontal Size: To adjust the width of the screen image. ...

  • Page 13: Supporting Timing Modes

    Supporting Timing Modes 720 x 400 @ 70Hz 640 x 480 @ 60Hz 640 x 480 @ 67Hz VESA 640 x 480 @ 72Hz VESA 640 x 480 @ 75Hz VESA 800 x 600 @ 56Hz VESA 800 x 600 @ 60Hz VESA 800 x 600 @ 72Hz VESA...

  • Page 14: Technical Information

    Technical Information Technical Specification LCD Panel 54.6 cm (21.5”) Energy Star Power Management VESA DPMS compatible Off Mode, < 0.5 W Full HD 1920 x 1080 max. Displayable Resolution Vertical Frequency 60Hz max. Pixel Dimension 0.248 x 0.248 mm LCD Display Color 16.7M Active Display Area 476.06 mm x 267.79 mm...

  • Page 15: Care And Maintenance

    Care and Maintenance Care  Avoid exposing your monitor directly to sunlight or other heat source. Place your monitor away from the sun to reduce glare.  Put your monitor in a well ventilated area.  Do not place any heavy things on top of your monitor. ...
  • Page 16 Pour plus d'information sur le recyclage, veuillez contacter votre centre de recyclage agréé. Votre attitude quand au recyclage améliorera l'avenir de la planète et créera un environnement de vie de qualité pour les générations futures. Wortmann AG Bredenhop 20 D-32609 Hüllhorst Tel.
  • Page 17 License and to the absence of any warranty; and give any other recipients of the Program a copy of this WORTMANN AG License along with the Program.
  • Page 18 with a work based on the Program) on a volume of a storage or distribution medium does not 10. If you wish to incorporate parts of the Program into other free programs whose distribution bring the other work under the scope of this License. conditions are different, write to the author to ask for permission.
