WARNING: Working with electricity can be dangerous. This product should only be used by people that are comfortable
working with electricy and electronic circuits. By using this product, the user accepts all responsibility for his or her saftey and
property.

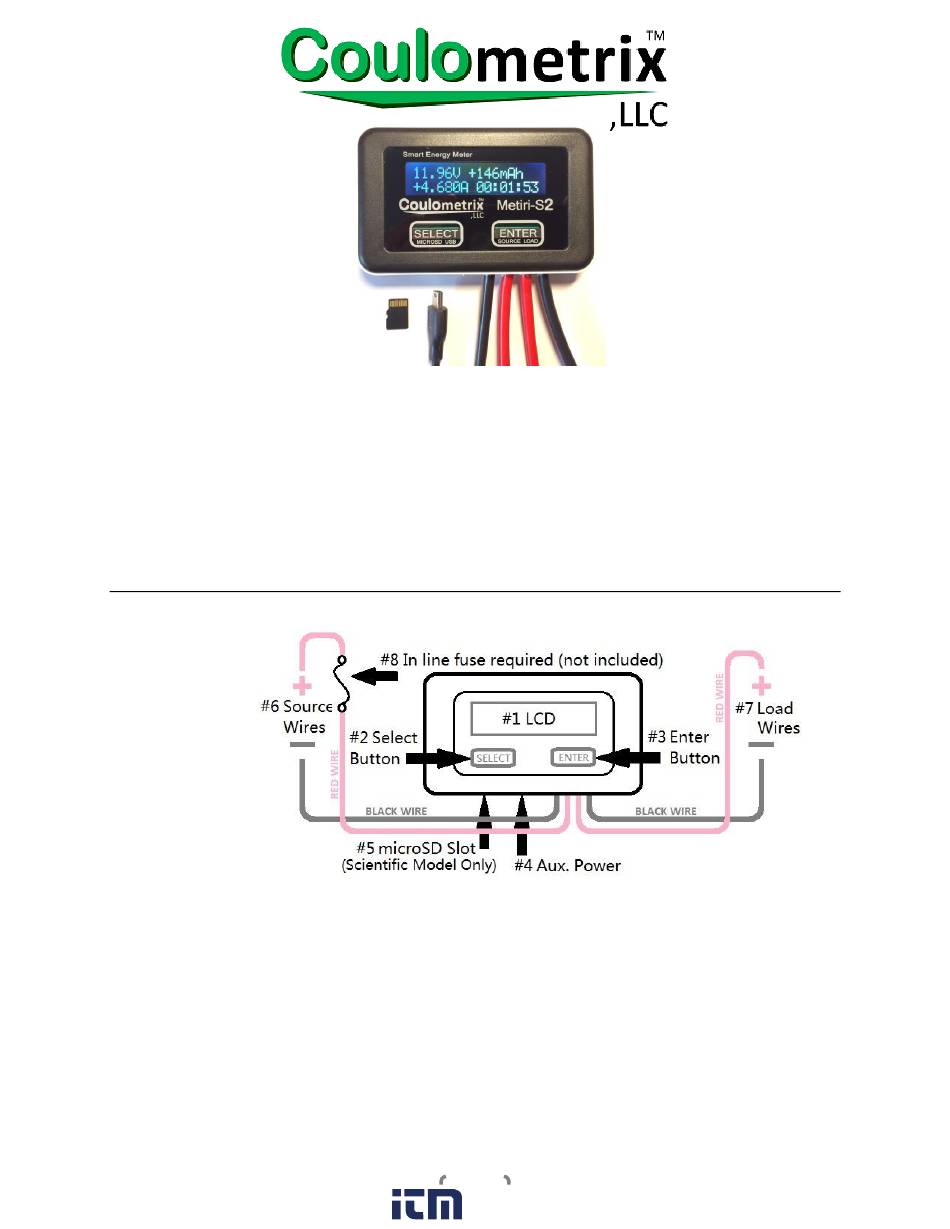

QUICK PRODUCT EXPLAINATION
1.
LCD: Back-lit primary display.
2.
Select Button: Touch sensitive button with LED touch indicator. Press to scroll through data options or Smart Graph.
3.
Enter Button: Touch sensitive button with LED touch indicator. Press to return to the main screen. If on the main
screen, will scroll through set-up options.
4.
Aux. Power: Female socket for device auxilliary power, 5.0Vdc +/-10%. Compatable with USB mini-B Plug.
5.
MicroSD Slot (Scientific Model Only): Card slot for recording of measured values. Can accept standard microSD
flash memory formated with FAT32. Metiri™-S will automatically detect card, create a CVS file, and start writing
measured data.
6.
Source Wires: Connect to power source or battery up to +60Vdc. Current flowing from Source to Load is considered
positive current. Forward continuous current should never exceed 50 amperes.
7.
Load Wires: Connect to power load or battery up to +60Vdc. Current flowing from Load to Source is considered
negative current. Negative continuous current should never exceed 50 amperes.
8.
In Line Fuse (Sold Separately): The Metiri™ products do not provide protection against excessive current. A fuse
installed in series with the positive Source Wire is required. Current should never exceed the current specified in the
Safe Operating Area graph.
1.800.561.8187
Metiri™ Scientific version 2
Portable Smart Energy Meter and Data Logger
Users Manual for Firmware ver: 1.0.65 / published Mar. 22, 2017
For part numbers: COUMET60100SC
www.
1
information@itm.com
.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Coulometrix Metiri COUMET60100SC
Summary of Contents for Coulometrix Metiri COUMET60100SC
- Page 1 Metiri™ Scientific version 2 Portable Smart Energy Meter and Data Logger Users Manual for Firmware ver: 1.0.65 / published Mar. 22, 2017 For part numbers: COUMET60100SC WARNING: Working with electricity can be dangerous. This product should only be used by people that are comfortable working with electricy and electronic circuits.
-
Page 2: Technical Specification
TECHNICAL SPECIFICATION Part Number COUMET60100SC Maximum Operating Values Voltage Operation Range +6.5Vdc to +60.0Vdc ...with Aux Power Supply 0.0Vdc to +60.0Vdc Maximum DC Current Less than +/-50Adc sustained Maximum Peak Current +/-100A for less than 9 seconds Input Current from Source or Load 8mA to 149mA* ...with Aux Power Supply <1mA... -
Page 3: Home Screen
Metiri™ products attempt to interfear as little as possible with current moving through it. Therefore the user must ensure the current through the Metiri™-S2 Smart Energy Meter does not exceed the Safe Operating Current shown in the following graph. If the Metiri™-S2 Smart Energy Meter detects the sense resistor temperature is too hot, then the LCD will begin to flash rapidly, warning the user. - Page 4 SELECT SCREENS Watts Screen: Touching SELECT when on the Home screen will display power in watts on top. Bottom left will display peak watts (P) and bottom right will display minnimum watts (M) recorded. The LCD will return to the Home Screen after ten seconds or if the ENTER button is touched.
- Page 5 ENTER SCREENS Set Home Screen: Touching the ENTER button when on the Home screen will present the user with the units currently programmed in the user screen, which appears on the top right of the Home screen. Touch SELECT to begin scrolling through the available units to appear on the user screen.
- Page 6 upgrading the firmware. STEP 1: Connect the Auxillary USB power for calibration. Connect a calibrated power source to the SOURCE wire side and a load to the LOAD wire side capable of 12.0 Amperes and 12 volts. NOTE: Voltage and current is read at different times. You can start the calibration with a 12 volt supply and switch to another power source capable of 12.0 ameres.
- Page 7 DATA LOGGING ON SD CARD Inserting a microSD card: When a microSD card is inserted, or when Metiri™-S2 starts with a card already inserted, the Metiri™-S2 will automatically detect and start the mounting proceedure. The mounting proceedure checks to see if the inserted microSD card can be used by checking the following: Is the Card Formatted? The microSD card must be formatted using the FAT32 filesystem before it can be used.
- Page 8 Metiri™-S2 driver when promted. The latest Metiri™-S2 USB-UART driver can be download from our website at http://www.coulometrix.com. Currently only Windows drivers are available. You will need a serial interface program to interact with the Metiri™-S2 through the USB-UART. Many free and open source programs are available and one of our favorites is the PuTTY SSH and telnet client.
- Page 9 added often. • q=Stop USBUART: This stops the output of data to the main screen. This should always be done before exiting the terminal. • s=Start Updates: This starts the continuous data output to the sensor field. • c=Command Menu: This opens up the command menu. q=Go Back: This will return the user to the home menu.
- Page 10 If no boot loader software is detected, the Metiri™-S2 continues to boot the firmware currently loaded in flash memory. The the latest Bootloader software, USB driver(s), and latest firmware image can always be downloaded on our website under support. http://www.coulometrix.com. Updating the Metiri™-S2 Firmware: In order to update the Metiri™-S2 (model number COUMET60100SC) firmware, the unit must be started with USB power.
- Page 11 Notice Summery: The following rules should always be obeyed when using the Metiri Smart Energy Meter. Working with electricity can be dangerous. Always use the Metiri Smart Energy Meter with an inline fuse and consult a professional before using this device. Never exceed 50A for any sustained length of time.
