Coulometrix Metiri COUMET60100SB User Manual

Smart energy meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

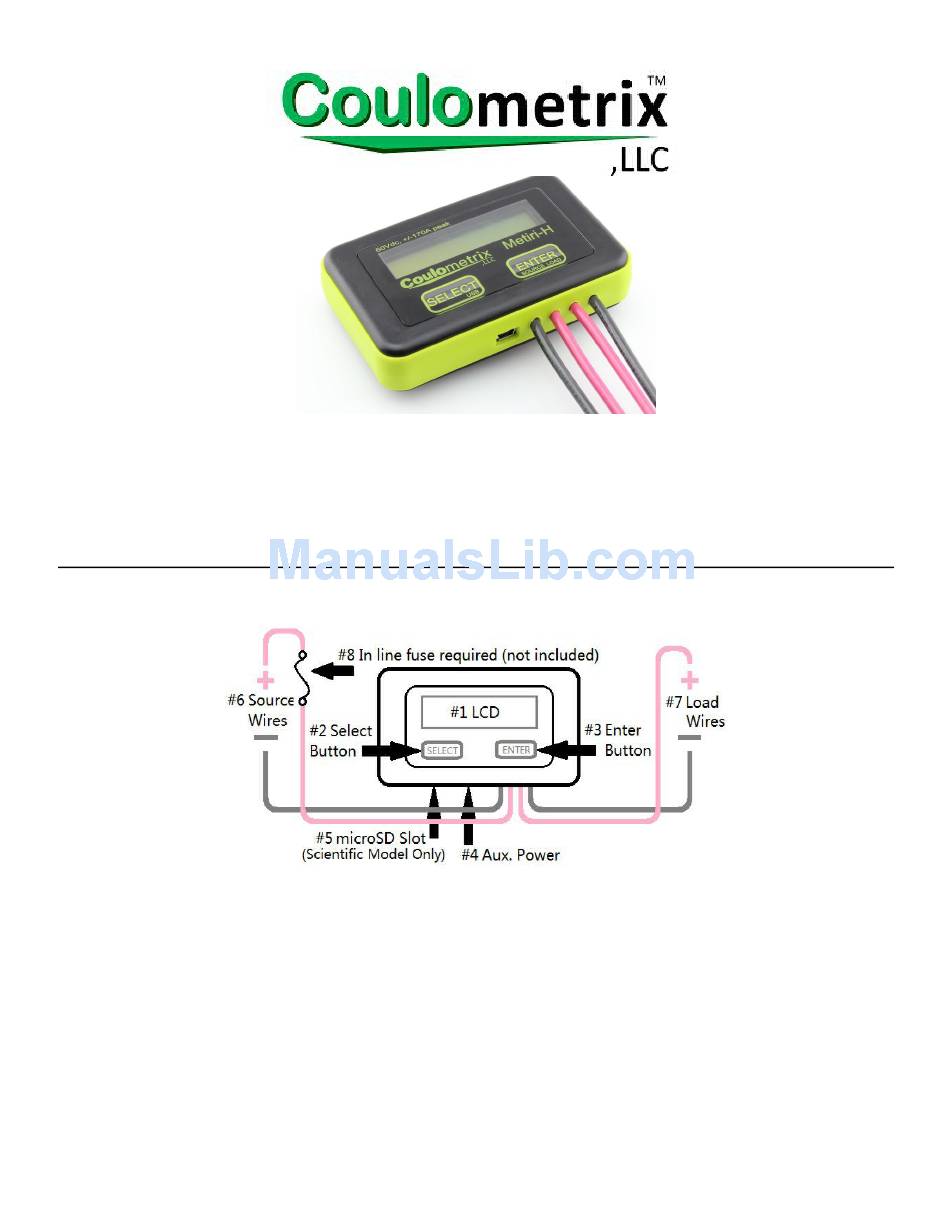

QUICK PRODUCT EXPLAINATION

1. LCD: Back-lit primary display.
2. Select Button: Touch sensitive button with LED touch indicator. Press to scroll through data options or Smart
Graph.
3. Enter Button: Touch sensitive button with LED touch indicator. Press to return to the main screen. If on the
main screen, will scroll through set-up options.
4. Aux. Power: Female socket for device auxilliary power, 5.0Vdc +/-10%. Compatable with USB mini-B Plug.
5. MicroSD Slot (Scientific Model Only): Card slot for recording of measured values. Can accept standard
microSD flash memory formated with FAT32. Metiri™-S will automatically detect card, create a CVS file, and
start writing measured data.
6. Source Wires: Connect to power source or battery up to +60Vdc. Current flowing from Source to Load is
considered positive current. Forward continuous current should never exceed 70 amperes.
7. Load Wires: Connect to power load or battery up to +60Vdc. Current flowing from Load to Source is
considered negative current. Negative continuous current should never exceed 70 amperes.
8. In Line Fuse (Sold Separately): The Metiri™ products do not provide protection against too much current
flowing through it. A fuse installed in series with the positive Source Wire is required. Current flowing through
the Metiri™ product should never exceed the current specified in the Safe Operating Area graph.
Find Quality Products Online at:
Metiri™ Scientific COUMET60100SB
Metiri™ Hobbyist COUMET60100HB
Smart Energy Meter
Users Manual for Firmware ver: 0.8.8
GlobalTestSupply
www.
.com
sales@GlobalTestSupply.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Metiri COUMET60100SB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coulometrix Metiri COUMET60100SB

Summary of Contents for Coulometrix Metiri COUMET60100SB

  • Page 1 Metiri™ Scientific COUMET60100SB Metiri™ Hobbyist COUMET60100HB Smart Energy Meter Users Manual for Firmware ver: 0.8.8 QUICK PRODUCT EXPLAINATION 1. LCD: Back-lit primary display. 2. Select Button: Touch sensitive button with LED touch indicator. Press to scroll through data options or Smart Graph.
  • Page 2 TECHNICAL SPECIFICATION Model Number COUMET60100HB COUMET60100SB Maximum Operating Values Voltage Operation Range +5.5Vdc to +60.0Vdc +6.5Vdc to +60.0Vdc ...with Aux Power Supply 0.0Vdc to +60.0Vdc 0.0Vdc to +60.0Vdc Maximum DC Current +/-70Adc sustained +/-70Adc sustained Maximum Peak Current +/-170A for less than 3 seconds +/-170A for less than 3 seconds Input Current from Source or Load 28mA +/-10%...

  • Page 3: Home Screen

    responsible for ensuring the current through the Metiri™ Smart Energy Meter does not exceed the Safe Operating Current shown in the graph below. If the Metiri Smart Energy Meter detects current exceeding the safe DC current level of 70A, the LCD will begin to flash rapidly, warning the user.
  • Page 4 Min & Max Values: Touching SELECT when on the Watts screen will display peak (Vp & Ip) and minimum (Vm & Im) current and voltage values recorded. The LCD will return to the Home Screen after ten seconds or if the ENTER button is touched.
  • Page 5 SD Write Time (Scientific Model Only): Touching the ENTER button when on the Eject SD Card screen will ask the user the time desired in between data being saved to the microSD card. Touch SELECT will change the time between saves, or touch ENTER to continue to the next screen. After 10 seconds of inactivity, the LCD will return to the Home screen.
  • Page 6 DC voltage or current through Metiri™ as instructed on the LCD and touch SELECT to confirm for each step, or touch ENTER to cancel. The initial screen will return to the home screen after 10 seconds of inactivity. Once calibration has begin, the screen will stay until calibration is complete or until the ENTER button is pressed to cancel calibration.
  • Page 7 OPEN FAILURE: Metiri™ encountered an error attempting to start a new file, or open an existing file. This is usually caused by the card locked to read only or something in the file system is preventing Metiri™ from writing to the SD card. The error will need to be corrected before the microSD card can be used. WRITE FAILURE: Metiri™...
