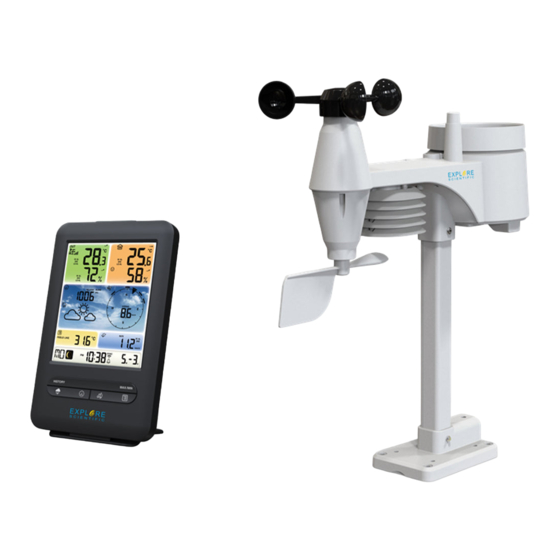

5-in-1 wifi professional weather station
Hide thumbs Also See for WSX1001:
Table of Contents

Advertisement

Quick Links

Download this manual
5-in-1 WiFi
Professional Weather Station
Art.No.: WSX1001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WSX1001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Explore Scientific WSX1001

Summary of Contents for Explore Scientific WSX1001

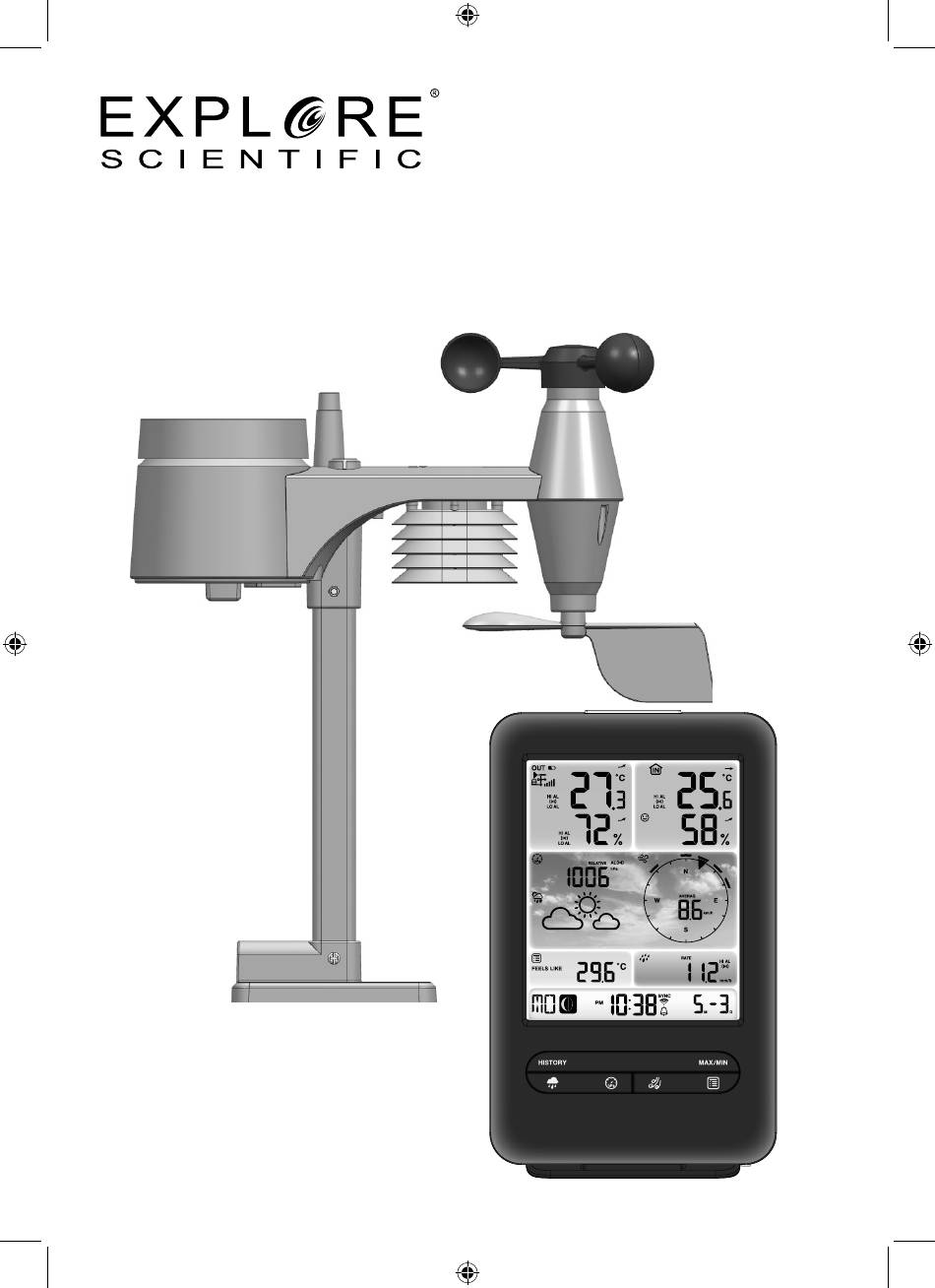

  • Page 1 5-in-1 WiFi Professional Weather Station Art.No.: WSX1001...
  • Page 2 INSTRUCTION MANUAL ABOUT THIS INSTRUCTION MANUAL These operating instructions are to be considered a component of the device. Please read the safety instructions and the operating instructions carefully before use. Keep these instructions for renewed use at a later date. When the device is sold or given to someone else, the instruction manual must be provided to the new owner/user of the product.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ..........OVERVIEW .

  • Page 4: Introduction

    INTRODUCTION Thank you for selecting the 5-in-1 WiFi Professional Weather Station. This system gathers and automatically uploads accurate and detailed weather data to Weather Underground and Weathercloud website - the famous weather service which allows weather observers to upload their local weather data with automated personal weather stations (PWS) - at which you can access and upload your weather data freely.

  • Page 5: Lcd Display

    1. [ ALARM/SNOOZE ] key 9. Table stand 17. Battery door 2. LCD display 10. Wall mounting holder 18. USB Power socket 3. [ HISTORY ] key 11. [ ALERT ] key 19. [ ] key 4. [ RAIN ] key 12.

  • Page 6: Installation And Setup

    RAIN GAUGE 1. Rain collector 2. Tipping bucket 3. Rain sensor 4. Drain holes TEMPERATURE AND HUMIDITY SENSOR 1. Radiation shield Sensor casing 2. Temperature and humidity sensor (inside the radiation shield) WIND SENSOR 1. Wind cups (anemometer) 2. Wind vane INSTALLATION AND SETUP INSTALL WIRELESS 5-IN-1 WEATHER SENSOR Your wireless 5-IN-1 sensor measures wind-speed, wind-direction, rainfall, temperature and...
  • Page 7 ASSEMBLY THE STAND AND POLE Step 1 Insert the top side of the pole to the square hole of the weather sensor. NOTE: Ensure the pole and sensor's indicator align. Step 2 Place the nut in the hexagon hole on the sensor, then insert the screw in other side and tighten it by the screw driver.

  • Page 8: Power Up Console

    Install the wireless 5-IN-1 sensor in an Add rubber open location with no obstructions above pads before Point to and around the sensor for accurate mount on NORTH rain and wind measurement. Install the pole the sensor with the smaller end facing the North to properly orient the wind direction vane.

  • Page 9: Pairing Wireless 5-In-1 Weather Sensor & Console

    SET LCD DISPLAY VIEWING ANGLE Press [ ] or [ ] key in normal mode to adjust LCD viewing angle to fi t table stand or wall mount situation. PAIRING WIRELESS 5-IN-1 WEATHER SENSOR & CONSOLE After insert of batteries, the console will automatically search and connect the wireless 5-IN-1 sensor (the sensor antenna icon blinking).
  • Page 10 3. In "My Weather Station" page bottom, press the "Add New Device" button to add your device. 4. Follow their instruction to enter your station information, in the Step "Tell Us More About Your Device", enter a Name for your weather station, then choose “Other” in “Device Hardware”...

  • Page 11: Create Weathercloud Account

    NOTE: Use the valid email address to register your account. 2. Sign in weathercloud and then you will go the "Devices" page, click "+ New" to create new device. 3. Enter all the information in Create new device page, for the Model* selection box select the "W100 Series"...

  • Page 12: Setup Wi-Fi Connection

    SETUP WI-FI CONNECTION 1. When you fi rst power up the console, or press and hold the [ SENSOR / WI-FI ]key for 6 seconds in normal mode, the console LCD will show "AP" and " " icon to signify that it has entered AP (access point) mode, and is ready for WI-FI settings.

  • Page 13: Setup The Weather Server Connection

    SETUP THE WEATHER SERVER CONNECTION Enter the following information into the below web interface "SETUP" page. If you choose not to use Wunderground.com or Weathercloud.net, leave the check boxes unchecked. Press “SETUP” icon Language: English to SETUP page SETUP ADVANCED WiFi Router setup Press to search router Select the Wi-fi router (SSID) you will connect to...

  • Page 14: Advance Setting In Web Interface

    The time will automatically synchronize Internet time server at 12:00AM and 12:00PM per day. Also you can press the [REFRESH ] key to get the internet time manually within 1 minute. ADVANCE SETTING IN WEB INTERFACE Press "ADVANCED" key at the top of web interface to enter the advance setting page, this page allow you to set and view the calibration data of the console, also you can update the firmware in here (Only available in PC platform).

  • Page 15: View Your Weather Data In Weathercloud

    Another way to view your station is use the web browser URL bar, type below in the URL bar: https://www.wunderground.com/dashboard/pws/XXXX Then replace the XXXX by your Weather underground station ID to go to your station live view directly. You can also use the Apple ipad's "WunderStation" app to login your own weather station to view the live data.

  • Page 16: Other Setting & Functions Of The Console

    FIRMWARE UPDATE STEP 1. Download the latest version fi rmware (function or WI-FI) to your PC. 2. Set the Console into AP (access point) mode then connect the PC to the console (ref to "SETUP WI-FI CONNECTION" section in previous page). 3.

  • Page 17: Moon Phase

    MOON PHASE The moon phase is determined by Northern Southern Moon Phase the time, date and time zone. The hemisphere hemisphere following table explains the moon New Moon phase icons of the Northern and Southern hemispheres. Please refer to ORIENTING THE 5-IN-1 SENSOR Waxing Crescent TOWARDS SOUTH section about how to setup for the Southern...

  • Page 18: Activating Alarm And Temperature Pre-Alarm Function

    ACTIVATING ALARM AND TEMPERATURE PRE-ALARM FUNCTION 1. In normal mode, press [ ALARM ] key to show the alarm time for 5 seconds. 2. When the alarm time displays, press [ ALARM ] key again to activate the alarm function. Or press [ ALARM ] key twice to activate the alarm with ice pre-alarm function.

  • Page 19: Wireless Sensor Signal Receiving

    WIRELESS SENSOR SIGNAL RECEIVING 1. The console display signal strength for the wireless 5-IN-1 sensor, as per table below: No signal Weak signal Good signal 2. If the signal has discontinued and does not recover within 15 minutes, the signal icon will disappear.

  • Page 20: Weather Forecast

    HEAT INDEX The heat index, which is determined by the wireless 5-IN-1 sensor's temperature & humidity data, when the temperature is between 27°C (80°F) and 50°C (120°F). Heat Index range Warning Explanation 27°C to 32°C (80°F to 90°F) Caution Possibility of heat exhaustion 33°C to 40°C (91°F to 105°F) Extreme Caution Possibility of heat dehydration...

  • Page 21: Rainfall

    TO VIEW THE ABSOLUTE / RELATIVE BAROMETRIC READING In normal mode, press [ BARO ] key to switch between ABSOLUTE / RELATIVE barometric reading. RAINFALL The RAINFALL section shows the rainfall and rain rate information. TO SET THE RAINFALL UNIT 1.

  • Page 22: Past 24 Hours History Data

    PAST 24 HOURS HISTORY DATA The console automatically stores the weather data of the past 24 hours. 1. Press [ HISTORY ] key to check the beginning of the current hour's weather data, e.g. the current time is 7:25 am, March 8, the display will show the data of 7:00am, March 8. 2.

  • Page 23: Backlight

    NOTE: - Once the alert is triggered, the alarm will sound for 2 minutes and the related alert icon and readings will flash. - If the alert alarm is automatically off after 2 minutes, the alert icon and readings will still keep flash until the weather reading is out of the alert range.

  • Page 24: Specification

    - Placement of this product on certain types of wood may result in damage to its finishing for which manufacturer will not be responsible. Consult the furniture manufacturer’s care instructions for information. - Only use fresh batteries. Do not mix new and old batteries. - Only use attachments / accessories specified by the manufacturer.
  • Page 25 Time synchronize method Through Internet time server to synchronize the UTC Weekday languages EN / DE / FR / ES / IT / NL / RU Time Zone +13 ~ -12 hour ON / OFF Barometer Display & Function Specification Note: The following details are listed as they are displayed or operate on the console.

  • Page 26: Wireless 5-In-1 Sensor

    Wind Speed & Direction Display and Function Specification Note: The following detail are listed as they are displayed or operate on the console. Wind speed unit mph, m/s, km/h and knots Wind speed display range 0 ~ 112mph, 50m/s, 180km/h, 97knots Resolution mph, m/s, km/h and knots (1 decimal place) Speed accuracy...
  • Page 27 EC DECLARATION OF CONFORMITY Hereby, Bresser GmbH declares that the equipment type with part number: WSX1001 is in compliance with Directive: 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.bresser.de/download/WSX1001/CE/WSX1001_CE.pdf RCM DECLARATION OF CONFORMITY The product complies with electrical safety, EMC and radio spectrum regulatory requirements for products supplied to the Australia or New Zealand market.
  • Page 28 MANUAL DOWNLOAD: SERVICE AND WARRANTY: www.bresser.de/download/WSX1001 www.bresser.de/warranty_terms Bresser GmbH Gutenbergstr. 2 · DE-46414 Rhede Germany www.bresser.de · service@bresser.de...
