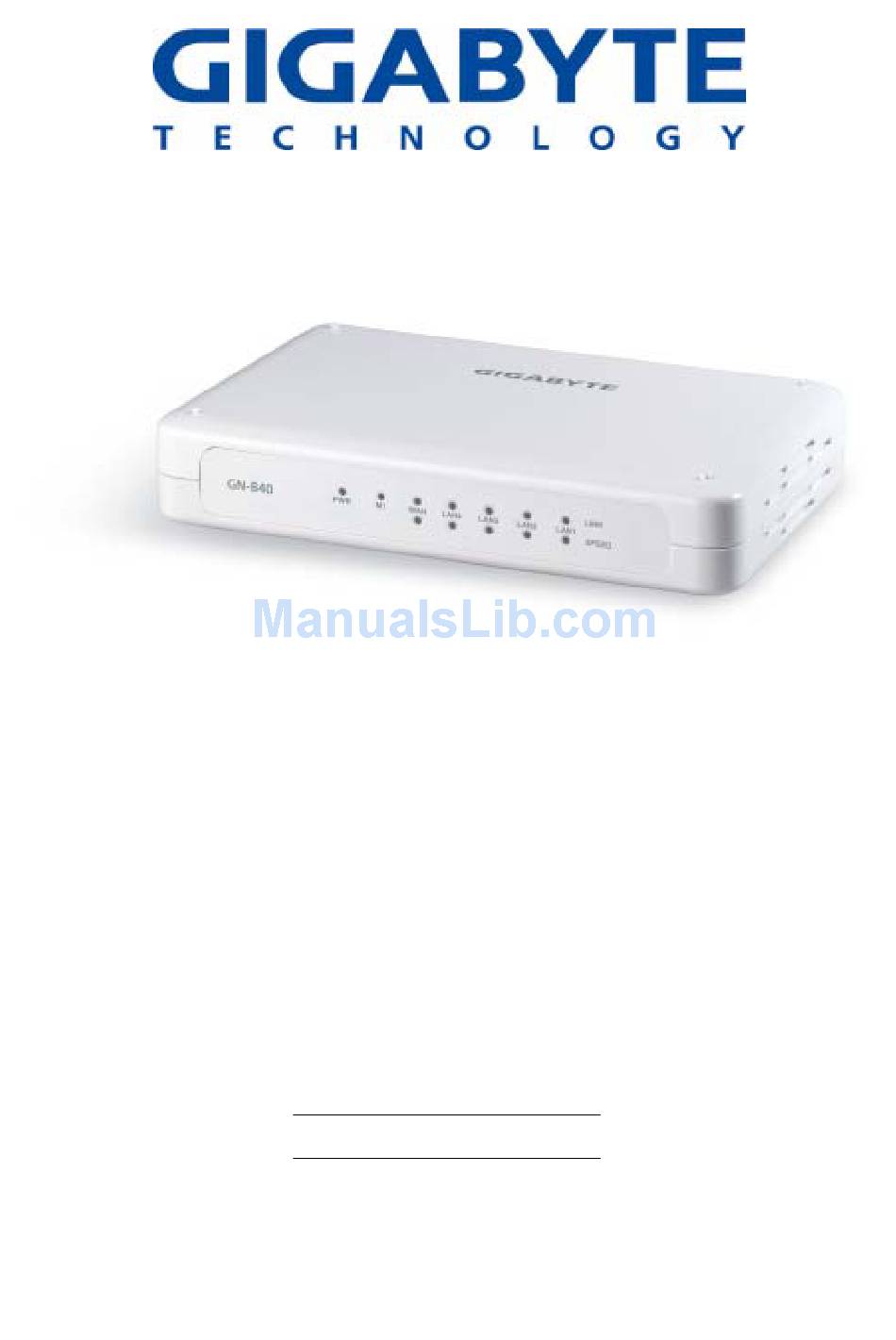

  • Page 1 Cable/DSL Router with 4-Port Switch GN-B40 User’s Manual http://www.gigabyte.com.tw Version 1.0...
  • Page 2 Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission.

  • Page 3: Table Of Contents

    3.8.6. M ISCELLANEOUS TEMS APPENDIX A TCP/IP CONFIGURATION FOR WINDOWS 95/98... 49 APPENDIX B FAQ AND TROUBLESHOOTING ... 54 APPENDIX C SPECIFICATIONS ... 55 APPENDIX D WARRANTY ... 56 GN-B40 C /DSL R ABLE OUTER WITH & P ... 2 ACKAGING )...

  • Page 4: Chapter 1 Product Overview

    1.2 Features Router Basic functions Broadband modem and NAT Router Connects multiple computers to a broadband (cable or DSL) modem or an Ethernet router to surf the Internet. Auto-sensing Ethernet Switch Equipped with a 4-port auto-sensing Ethernet switch.

  • Page 5: Physical Dimensions & Packaging

    The router also support vpn pass-through. SPI Mode Supported When SPI Mode is enabled, the router will check every incoming packet to detect if this packet is valid. DoS Attack Detection Supported When this feature is enabled, the router will detect and log the DoS attack comes from The Internet.

  • Page 6: Led Indicator

    Data is transmitting in 100Mbps Green on the corresponding LAN port. Description Power inlet: AC9V, 1A the port where you will connect your cable (or DSL) modem or Ethernet router. the ports where you will connect networked computers and other devices. Description product.

  • Page 7: Chapter 2 Installation

    Step 1: Decide where to place your Broadband Router You can place your Broadband Router on a desk or other flat surface, or you can mount it on a wall. For optimal performance, place your Broadband Router in the center of your office (or your home) in a location that is away from any potential source of interference, such as a metal wall or microwave oven.
  • Page 8 Step 4: Power on your PC. Connecting the power cord to power inlet and turning the power switch on, this product will automatically enter the self-test phase. When it is in the self-test phase, the indicators M1 will be lighted ON for about 10 seconds, and then M1&M2 will be flashed 3 times to indicate that the self-test operation has finished.

  • Page 9: Network Setting & Software Installation

    Network setting & Software Installation To use this product correctly, you have to properly configure the network settings of your computers and install the attached setup program into your MS Windows platform (Windows 95/98/NT/2000). Step 1: Make Correct Network Settings of Your Computer The default IP address of this product is 192.168.123.254, and the default subnet mask is 255.255.255.0.

  • Page 10: Chapter 3 Configuring Broadband Router

    Chapter 3 Configuring Broadband Router This product provides Web based configuration scheme, which is, configuring by your Web browser, such as Netscape Communicator or Internet Explorer. This approach can be adopted in any MS Windows, Macintosh or UNIX based platforms.

  • Page 11: Status

    Activate your browser, and disable the proxy or add the IP address of this product into the exceptions. Then, type this product’s IP address in the Location (for Netscape) or Address (for IE) field and press ENTER. For example: http://192.168.123.254. After the connection is established, you will see the web user interface of this product.

  • Page 12: Wizard

    3.3. Wizard Setup Wizard will guide you through a basic configuration procedure step by step. Press ”Next >” Setup Wizard - Select WAN Type: For detail settings, please refer to 3.4.1 primary setup.

  • Page 13: Basic Setting

    3.4. Basic Setting 3.4.1. Primary Setup – WAN Type, Virtual Computers...
  • Page 14 Press “Change” Note: This option is required to enable this product to work properly. The setting items and the web appearance depend on the WAN type. Choose correct WAN type before you start. 1. LAN IP Address: the local IP address of this device. The computers on your network must use the LAN IP address of your product as their Default Gateway.
  • Page 15 3.6.1.3 Dynamic IP Address with Road Runner Session Management. (e.g. Telstra BigPond) 1. LAN IP Address is the IP address of this product. It must be the default gateway of your computers. 2. WAN Type is Dynamic IP Address. If the WAN type is not correct, change it! 3.
  • Page 16 3.6.1.5 PPTP 1. My IP Address and My Subnet Mask: the private IP address and subnet mask your ISP assigned to you. 2. Server IP Address: the IP address of the PPTP server. 3. PPTP Account and Password: the account and password your ISP assigned to you. If you don't want to change the password, keep it empty.
  • Page 17 3.6.1.6 Virtual Computers Virtual Computer enables you to use the original NAT feature, and allows you to setup the one-to-one mapping of multiple global IP address and local IP address. • Global IP: Enter the global IP address assigned by your ISP. •...

  • Page 18: Dhcp Server

    3.4.2. DHCP Server Press “More>>” The settings of a TCP/IP environment include host IP, Subnet Mask, Gateway, and DNS configurations. It is not easy to manually configure all the computers and devices in your network. Fortunately, DHCP Server provides a rather simple approach to handle all these settings.

  • Page 19: Change Password

    3.4.3. Change Password You can change Password here. We strongly recommend you to change the system password for security reason.

  • Page 20: Forwarding Rules

    3.4.4. Forwarding Rules...

  • Page 21: F Orwarding R Ules

    3.5. Forwarding Rules...

  • Page 22: Virtual Server

    3.5.1. Virtual Server This product’s NAT firewall filters out unrecognized packets to protect your Intranet, so all hosts behind this product are invisible to the outside world. If you wish, you can make some of them accessible by enabling the Virtual Server Mapping. A virtual server is defined as a Service Port, and all requests to this port will be redirected to the computer specified by the Server IP.

  • Page 23: Special Ap

    Some applications require multiple connections, like Internet games, Video conferencing, Internet telephony, etc. Because of the firewall function, these applications cannot work with a pure NAT router. The Special Applications feature allows some of these applications to work with this product. If the mechanism of Special Applications fails to make an application work, try setting your computer as the DMZ host instead.

  • Page 24: Miscellaneous Items

    3.5.3. Miscellaneous Items IP Address of DMZ Host DMZ (DeMilitarized Zone) Host is a host without the protection of firewall. It allows a computer to be exposed to unrestricted 2-way communication for Internet games, Video conferencing, Internet telephony and other special applications. NOTE: This feature should be used only when needed.

  • Page 25: Security Settings

    3.6. Security Settings...

  • Page 26: Packet Filter

    3.6.1. Packet Filter Packet Filter enables you to control what packets are allowed to pass the router. Outbound filter applies on all outbound packets. However, Inbound filter applies on packets that destined to Virtual Servers or DMZ host only. You can select one of the two filtering policies: 1.
  • Page 27 (1000-1999). Add prefix "T" or "U" to specify TCP or UDP protocol. For example, T80, U53, U2000-2999. No prefix indicates both TCP and UDP are defined. An empty implies all port addresses. Packet Filter can work with Scheduling Rules, and give user more flexibility on Access control.
  • Page 28 Example 2: (1.2.3.100-1.2.3.119) They can do everything except read net news (port 119) and transfer files via FTP (port 21) Others are all allowed. After Inbound Packet Filter setting is configured, click the save button. Outbound Filter: To enable Outbound Packet Filter click the check box next to Enable in the Outbound Packet Filter field.
  • Page 29 Example 1: (192.168.123.100-192.168.123.149) They are allowed to send mail (port 25), receive mail (port 110), and browse Internet (port 80); port 53 (DNS) is necessary to resolve the domain name. (192.168.123.10-192.168.123.20) They can do everything (block nothing) Others are all blocked.
  • Page 30 Example 2: (192.168.123.100-192.168.123.119) They can do everything except read net news (port 119) and transfer files via FTP (port 21) Others are allowed After Outbound Packet Filter setting is configured, click the save button.

  • Page 31: Domain Filter

    3.6.2. Domain Filter Domain Filter Lets you prevent users under this device from accessing specific URLs. Domain Filter Enable Check if you want to enable Domain Filter. Log DNS Query Check if you want to log the action when someone accesses the specific URLs. Privilege IP Addresses Range Setting a group of hosts and privilege these hosts to access network without restriction.
  • Page 32 Example: In this example: 1. URL include “www.msn.com” will be blocked, and the action will be record in log-file. 2. URL include “www.sina.com” will not be blocked, but the action will be record in log-file. 3. URL include “www.google.com” will be blocked, but the action will not be record in log-file.

  • Page 33: Url Blocking

    3.6.3. URL Blocking URL Blocking will block LAN computers to connect to pre-defined websites. The major difference between “Domain filter” and “URL Blocking” is Domain filter require user to input suffix (like .com or .org, etc), while URL Blocking require user to input a keyword only.
  • Page 34 In this example: 1.URL include “msn” will be blocked, and the action will be record in log-file. 2.URL include “sina” will be blocked, but the action will be record in log-file 3.URL include “cnnsi” will not be blocked, but the action will be record in log-file. 4.

  • Page 35: Mac Address Control

    3.6.4. MAC Address Control MAC Address Control allows you to assign different access right for different users and to assign a specific IP address to a certain MAC address. MAC Address Control Check “Enable” to enable the “MAC Address Control”. All of the settings in this page will take effect only when “Enable”...

  • Page 36: Miscellaneous Items

    "Control table" is the table at the bottom of the "MAC Address Control" page. Each row of this table indicates the MAC address and the expected IP address mapping of a client. There are four columns in this table: In this page, we provide the following Combo box and button to help you to input the MAC address.
  • Page 37 When this feature is enabled, the router will record the packet information pass through the router like IP address, port address, ACK, SEQ number and so on. And the router will check every incoming packet to detect if this packet is valid.

  • Page 38: Advanced Settings

    3.7. Advanced Settings 3.7.1. System Time...

  • Page 39: System Log

    Get Date and Time by NTP Protocol Selected if you want to Get Date and Time by NTP Protocol. Time Server Select a NTP time server to consult UTC time Time Zone Select a time zone where this device locates. Set Date and Time manually Selected if you want to Set Date and Time manually.

  • Page 40: Dynamic Dns

    SMTP Server IP and Port Input the SMTP server IP and port, which are concated with ':'. If you do not specify port number, the default value is 25. For example, "mail.your_url.com" or "192.168.1.100:26". Send E-mail alert to The recipients who will receive these logs. You can assign more than 1 recipient, using ';' or ',' to separate these email addresses.

  • Page 41: Snmp Setting

    Example: After Dynamic DNS setting is configured, click the save button. 3.7.4. SNMP Setting...

  • Page 42: Routing Table

    In brief, SNMP, the Simple Network Management Protocol, is a protocol designed to give a user the capability to remotely manage a computer network by polling and setting terminal values and monitoring network events. Enable SNMP You must check either Local or Remote or both to enable SNMP function. If Local is checked, this device will response request from LAN.
  • Page 43 Routing Tables allow you to determine which physical interface address to use for outgoing IP data grams. If you have more than one routers and subnets, you will need to enable routing table to allow packets to find proper routing path and allow different subnets to communicate with each other.
  • Page 44 Configuration on NAT Router Destination SubnetMask 192.168.1.0 255.255.255.0 192.168.0.0 255.255.255.0 So if, for example, the client3 wanted to send an IP datagram to 192.168.0.2, it would use the above table to determine that it had to go via 192.168.123.103 (a gateway), And if it sends Packets to 192.168.1.11 will go via 192.168.123.216...

  • Page 45: Schedule Rule

    3.7.6. Schedule Rule You can set the schedule time to decide which service will be turned on or off. Select the “enable” item. Press “Add New Rule” You can write a rule name and set which day and what time to schedule from “Start Time”...
  • Page 46 After configure Rule 1 Schedule Enable Selected if you want to Enable the Scheduler. Edit To edit the schedule rule. Delete To delete the schedule rule, and the rule# of the rules behind the deleted one will decrease one automatically. Schedule Rule can be apply to Virtual server and Packet Filter, for example:...
  • Page 47 Exanple1: Virtual Server – Apply Rule#1 (ftp time: everyday 14:10 to 16:20) Exanple2: Packet Filter – Apply Rule#1 (ftp time: everyday 14:10 to 16:20).

  • Page 48: Toolbox

    3.8. Toolbox...

  • Page 49: System Log

    3.8.1. System Log You can View system log by clicking the View Log button 3.8.2. Firmware Upgrade You can upgrade firmware by clicking Firmware Upgrade button.

  • Page 50: Backup Setting

    3.8.3. Backup Setting You can backup your settings by clicking the Backup Setting button and save it as a bin file. Once you want to restore these settings, please click Firmware Upgrade button and use the bin file you saved. 3.8.4.

  • Page 51: Miscellaneous Items

    In order to enjoy this feature, the target device must be Wake-on-LAN enabled and you have to know the MAC address of this device, say 00-11-22-33-44-55. Clicking "Wake up" button will make the router to send the wake-up frame to the target device immediately.

  • Page 52: Appendix A Tcp/Ip Configuration For Windows 95/98

    And suppose you have been successfully installed one network card on your personal computer. If not, please refer to your network card manual. Moreover, the Section B.2 tells you how to set TCP/IP values for working with this NAT Router correctly. A.1 Install TCP/IP Protocol into Your PC 1.
  • Page 53 2. Double click Network icon. Select the TCP/IP line that has been associated to your network card in the Configuration tab of the Network window. 3. Click Properties button to set the TCP/IP protocol for this NAT Router. 4. Now, you have two setting methods:...
  • Page 54 b. Don’t input any value in the Gateway tab. c. Choose Disable DNS in the DNS Configuration tab.
  • Page 55 B. Configure IP manually a. Select Specify an IP address in the IP Address tab. The default IP address of this product is 192.168.123.254. So please use 192.168.123.xxx (xxx is between 1 and 253) for IP Address field and 255.255.255.0 for Subnet Mask field.
  • Page 56 c. In the DNS Configuration tab, add the DNS values which are provided by the ISP into DNS Server Search Order field and click Add button.

  • Page 57: Appendix B Faq And Troubleshooting

    Appendix B FAQ and Troubleshooting Reset to factory Default 1. Restore directly when the router power on First, hold the RESET button about 5 seconds(M1 will start flashing about 5 times),move away the hand. The RESTORE process is completed.

  • Page 58: Appendix C Specifications

    General Standards IEEE 802.3(10Base-T), IEEE 802.3u(100Base-TX) Ports / Buttons LAN – 4 ports 10/100 Ethernet (auto-MDIX), RJ-45 WAN - 10/100 Ethernet (auto-MDIX), RJ-45 One Init (Reset) button Power External; 9V AC, 1A Regulatory and Environmental Compliance certification Temperature Operating: 0 to 40 °C, Storage: -20 to 70 °C Range Humidity...

  • Page 59: Appendix D Warranty

    Thank you for purchasing the GIGABYTE Product. This limited warranty statement will provide you one year warranty starting from the purchase date. Of which if any defect is occurred due to accidents or any man-made factors, or any unauthorized torn-off or damage to GIGABYTE’s sticker on the product, GIGABYTE Technology will not provide after-sale services, such as: •...
