Summary of Contents for JETWAY HPC-156

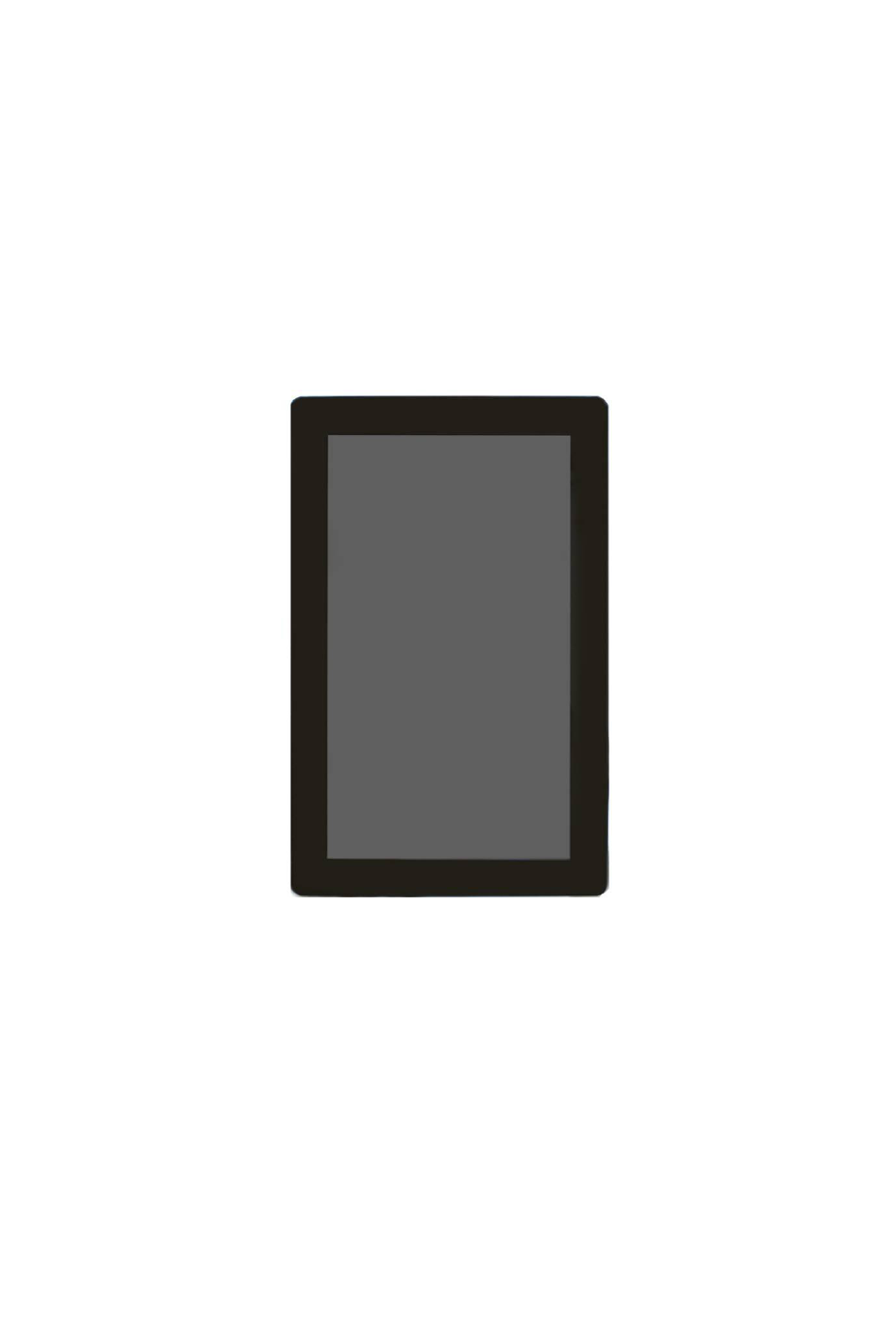

- Page 1 Panel PC User’s Manual NO. G03-PC156-F Manual Revision: 1.0 Release Date： 2020/5/1...
-
Page 2: Table Of Contents
TABLE OF CONTENT Safety Precautions..........................ii User’s Notice............................iii Package Contents..........................iii Environmental Protection Announcement .................. iii Chapter 1 Introduction........................1 1-1 General Descriptions......................1 1-2 Specifications........................1 1-3 I/O Outlets..........................3 1-4 Connector Pin Definition....................4 Chapter 2 Hardware and Jumper Settings.................. 6 2-1 Dimensions and Outlines....................6 2-2 To Open the Chassis...................... -
Page 3: Safety Precautions
Safety Precautions Operate the product according to the correct installation steps and with great care to make sure safety and comfort using experience. Please refer to the following safety instruction guide to avoid danger of electric shock or fire. Abide by the previous safety instruction guide to use and maintain the product and the hard disk to make sure of safe operating environment. -
Page 4: User's Notice
User’s Notice Copyright of this manual belongs to the manufacturer. No part of this manual, including the products and software described in it may be reproduced, transmitted or translated into any language in any form or by any means without written permission of the manufacturer. This manual contains all information required for the utilization of this product to meet the user’s requirements. -
Page 5: Chapter 1 Introduction
Design for easy Wall mount, Panel Mount, VESA Mount installation A true Flat, easy-to-clean front surface with edge-to-edge design Front IP65 for protection against water and dust 12V DC in (for HPC-156) PoE input Support (for HPC-P156) Support 802.11 b/g/n 2.4G, BT-V4.0 ... - Page 6 OS Support Android 5.1/9.0 or Debian 9.0 I/O Connector Common I/O: 2* USB2.0 (USB1 Co-lay OTG) 1*HDMI1.4 1*AUDIO(Line-out +MIC) I/O Ports & Switches 1*Micro SD Socket HPC-156: HPC-P156: 1*RJ45 1* PoE PD 1*12V DC Jack PoE(HPC-P156) Regulatory IEEE802.3af (PoE) Compliance Input Power 44～57V...
-
Page 7: I/O Outlets
1-3 I/O Outlets Motherboard I/O connectors are protected from exposure with the back shell IO shield. Please remove the screws in red circles to find IO connectors before making any connections. -
Page 8: Connector Pin Definition
12V DC-in Power For user to connect compatible power adapter to provide Jack 12V power supply for the system. (HPC-156) This connector functions as standard RJ-45 LAN jack for Network connection and power-in connector with PoE-PD Port compatible PoE power cable. - Page 9 To connect USB keyboard, mouse or other devices compatible with USB specification, also can function as *USB2.0/OTG Port USB OTG port for software upgrade flash by jumper select. To connect USB keyboard, mouse or other devices USB 2.0 Port compatible with USB specification. *Note: OTG/USB function is selected via OTG_JP jumper.
-
Page 10: Chapter 2 Hardware And Jumper Settings
Chapter 2 Hardware and Jumper Settings 2-1 Dimension and Outlines * Measure Unit: mm. -
Page 11: To Open The Chassis
2-2 To Open the Chassis Use a screwdriver to unscrew the screws marked in red circles that lock the back cover (see red circles). Remove them to open the chassis. Notice: When lifting the cover up to open the chassis for further installation, see to it that the connecting cables are not unplugged. -
Page 12: Jumper Settings
2-3 Jumper Settings Jumper is a small component consisting of jumper clip and jumper pins. Install jumper clip on 2 jumper pins to close the pins. And remove jumper clip from 2 jumper pins to open the pins. *Note: OTG_JP is in the marked position.User can select OTG or USB 2.0 function by jumper setting. -
Page 13: Appendix
Appendix General Notices European Union CE Marking and Compliance Notices Products intended for sale within the European Union are marked with the Conformity European (CE) Making, which indicates compliance with the applicable Directive and European standards and amendments identified. Shielded Cables Notice All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations. - Page 14 Electronic Emissions Notices European Union Compliance Statement Class B Compliance European Union – Compliance to the Electromagnetic Compatibility Directive This product is in conformity with the protection requirements of EU Council Directive 2004/108/EC on the approximation of the laws of the Member States relating to electromagnetic compatibility. We cannot accept responsibility for any failure to satisfy the protection requirements resulting from a non-recommended modification of the product, including the installation of option cards from other manufacturers.
