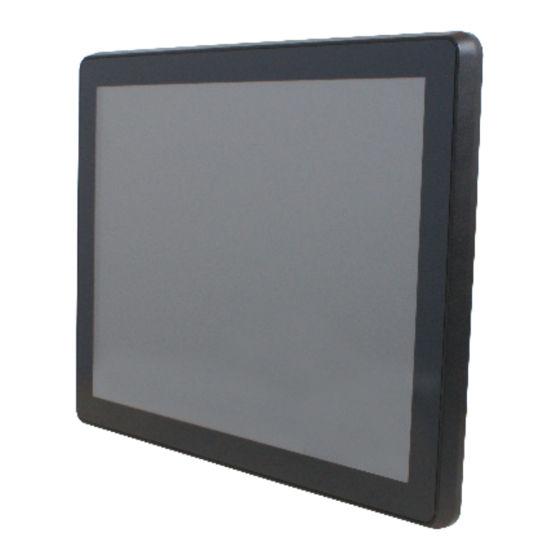

Panel PC
User's Manual
NO. G03-PCNC7PRFP-F
Manual Revision: 1.0
Release Date： 2020/8/27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPC150BR-FP7200 and is the answer not in the manual?

Questions and answers

Related Manuals for JETWAY HPC150BR-FP7200

Summary of Contents for JETWAY HPC150BR-FP7200

  • Page 1 Panel PC User’s Manual NO. G03-PCNC7PRFP-F Manual Revision: 1.0 Release Date： 2020/8/27...

  • Page 2: Table Of Contents

    TABLE OF CONTENT Safety Precautions..........................ii User’s Notice............................iii Package Contents..........................iii Environmental Protection Announcement .................. iii Chapter 1 Introduction........................1 1-1 General Descriptions......................1 1-2 Specifications........................2 1-3 I/O Outlets..........................4 1-4 Connector Pin Definition....................5 Chapter 2 Hardware and Installation.................... 7 2-1 Dimensions and Outlines....................7 2-2 To Open the Chassis......................

  • Page 3: Safety Precautions

    Safety Precautions Operate the product according to the correct installation steps and with great care to make sure  safety and comfort using experience. Please refer to the following safety instruction guide to avoid danger of electric shock or fire. Abide by the previous safety instruction guide to use and maintain the product and the hard disk to make sure of safe operating environment.

  • Page 4: User's Notice

    User’s Notice Copyright of this manual belongs to the manufacturer. No part of this manual, including the products and software described in it may be reproduced, transmitted or translated into any language in any form or by any means without written permission of the manufacturer. This manual contains all information required for the utilization of this product to meet the user’s requirements.

  • Page 5: Chapter 1 Introduction

    Thank you for purchasing the system, a new product developed, designed and manufactured under leading technical power and consistent dedication to fine workmanship. HPC150BR-FP7200 is a Flat Panel Embedded Panel PC with:  15.0'' 400 nits TFT LCD with LED backlight  5 Wire Resistive Touch/Anti-Reflection Protection Glass ...

  • Page 6: Specifications

    formats. GPU performances are excellent as well.  dB Value: The design of the system takes into consideration the needed quiet operating environment in the living room and the average dB value is below 26 under normal operation to ensure the tranquility. 1-2 Specifications Display Front Bezel...
  • Page 7 I/O Connector 4* USB3.0 2* USB2.0 (Optional & extended from internal header) 2* RS232/422/485 RS232(Optional & extended from internal header) I/O Ports & Switches 1* HDMI VGA(Optional & extended from internal header) 2* RJ-45 LAN (Intel ® I211AT Gigabit LAN) 1* Locking Jack 9~24V DC input 1* Power button Power...

  • Page 8: I/O Outlets

    1-3 I/O Outlets Bottom Side: Hand Screw Hand Screw 2*RS232/422/485 (COM1/2) 2*RJ-45 9V~24V DC 4*USB 3.0 Power Power Jack HDMI Button Top Side: Swappable HDD Hand Screw Hand Screw *Note: The diagrams in this manual only serve for illustration. If there are any differences that we do not cover, please refer to the actual product you purchase.

  • Page 9: Connector Pin Definition

    1-4 Connector Pin Definition (1) Connector Function Icon Name Function For user to connect compatible terminal power block DC Power Jack to provide power supply for the system Power Bottom Press to turn on/off the system. Mainly for user to connect external MODEM or other COM Port devices that...
  • Page 10 as RS422 or RS 485 port. User also needs to go to BIOS to set ‘Transmission Mode Select’ for COM1/COM2 (refer to Page 26) at first, before using specialized cable to connect different pins of this port. *Note: COM3 and COM4 are optioanl RS232 port extended from internal headers by order.

  • Page 11: Chapter 2 Hardware And Installation

    Chapter 2 Hardware and Installation 2-1 Dimension and Outlines...

  • Page 12: To Open The Chassis

    * Measure Unit: mm. 2-2 To Open the Chassis 1. Put the system upon a stable platform with this side up. Remove the 2 little screws marked as the photo shows.
  • Page 13 2. Remove the 2 big hand screws on the side by hand. 3. Remove the 2 big hand screws on the other side in the same way. 4. Lift up the chassis body with great care.
  • Page 14 5. The chassis body and the panel PC display screen are connected with some wires & cables. Wires & cables coming from the chassis body should be disconnected from corresponding connector or headers to separate the chassis and the panel. Panel Chassis 6.
  • Page 15 7. Put the chassis body upon a stable operation platform with this side up and remove the marked screws one by one. 8. Turn over the chassis and then remove the 2 marked screws on the rear panel IO shield. 9.
  • Page 16 SATA Cable SATA Power Cable Motherboard layout Chassis cover with heat sink fins 10. For user to have a clear view we disconnect the SATA cable and SATA power cable from the board during installation. *Note: 1. We might disconnect some pre-installed cables & wires during installation illustration to for user to have a clearer view.

  • Page 17: Jumper Settings

    2-3 Jumper Settings Jumper is a small component consisting of jumper clip and jumper pins. Install jumper clip on 2 jumper pins to close the pins. And remove jumper clip from 2 jumper pins to open the pins. Diagram 2-1 illustrates how to set up a jumper. Pin (1-2) of JBAT (6-pin): Clear CMOS RAM Settings Pin(1-2) of JBAT →...
  • Page 18 Pin (5-6) of JBAT (6-pin): PWROK Override Select Pin (5-6) of JBAT → PWROK Override Pin1 5-6 Open: Normal(Default); JBAT Pin1 5-6 Closed: PWROK Override. * Note: PWROK override is for manufacturing test only. JPCOM3 (4-pin): COM3 Header Pin9 Function Select JPCOM3 COM3 Header Pin-9 →...
  • Page 19 JPLCD (4-pin): LVDS/EDP Panel VCC Select JPLCD JPLCD LVDS/EDP Panel VCC → 3-4 Closed: 2-4 Closed: 4-6 Closed: LCD VCC=3.3V; LCD VCC =5V; LCD VCC =12V. JPLED (3-pin): LVDS/EDP INVERTER Backlight Select JPLED Pin (1-2) of JAT_COPEN (4-pin): AT Mode Select Pin (1-2) of JAT_COPEN →...

  • Page 20: Hardware Installation

    Pin (3-4) of JAT_COPEN (4-pin): Case Open Message Display Function Select Pin (3-4) of JAT_COPEN → Case Open Detection Pin1 JAT_COPEN Pin (3-4) short: When Case open function pin short to GND, the Case open function was detected. When used, needs to enter BIOS and enable ‘Case Open Detect’ function.

  • Page 21: To Install M.2 M-Key (2242) Sata Card

    3. Press down to secure the SO-DIMM to the 4. The eject tabs will lock automatically if slot. installing direction is correct. 2-4-2 To Install M.2 M key (2242) SATA Card 1. Locate M.2 M-key slot on the board. Remove the screw in the marked spot for further installation.

  • Page 22: To Install M.2 E-Key (2230) Wi-Fi Card

    2. Insert the gold-figure side of compatible M.2 M-key type-2242 SATA card into the slot and press down. 3. Lock the card to the board by tightening up the screw to the marked spot. 2-4-3 To Install M.2 E-key (2230) Wi-Fi Card Please refer to the following instructions and illustration for the installation of the compatibale M.2 E-Key Wi-Fi card.
  • Page 23 2. Insert the gold-figure side of the compatible M.2 E-key type-2230 Wi-Fi card into the slot and press down. 3. Secure the card to the board by tightening up the screw to the marked spot. 4. The metal hats on the end of the antenna strings are sealed by acetate tape to avoid possible damage to the system.
  • Page 24 5. Tear off the tape to find metal hats of Wi-Fi antenna strings. 6. Press the metal hats of the antenna string end to the antenna slots on the card as showed.

  • Page 25: To Install Hdd

    7. Locate the Wi-Fi antenna holes of the IO panel. Connect the external Wi-Fi receiver antenna to the antenna head on the panel. *Note: We suggest that the connection of the external Wi-Fi receiver antenna be made after all hardware installation finished and the chassis is assembled back to the panel.
  • Page 26 2. Press down to secure the SO-DIMM to 3. Push compatible HDD into the slot in the slot. Withdraw the HDD rack. the direction as the photo shows. 4. Turn over the rack to make sure that the screw holes from the HDD marched with those from the rack.
  • Page 27 6. Push the HDD fully into the reserved space, and then tightening up 2 screws to secure the HDD. 2-4-5 To Install Optional Chassis Fixed Parts 1. Find the optional fixed part from the accessory package. Make sure that the fixed part is installed in the way the photo shows, with protruding tips upwards.

  • Page 28: To Install Optional Chassis Fixed Parts

    3. Insert corresponding edges of the fixed part into the slots until them matched. Tightening up the screw so that the fixed part can be fitted into the slots tightly View）. （Side Top View 4. The system also has pairs of slots reserved on top side of the chassis. User can choose the height or position of installing spot.

  • Page 29: Chapter 3 Introducing Bios

    Chapter 3 Introducing BIOS Notice! The BIOS options in this manual are for reference only. Different configurations may lead to difference in BIOS screen and BIOS screens in manuals are usually the first BIOS version when the board is released and may be different from your purchased motherboard. Users are welcome to download the latest BIOS version form our official website.

  • Page 30: Function Keys

    Menu Bar General Help Items Current Setting Value Menu Items Function Keys Function Keys In the above BIOS Setup main menu of, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here: ...

  • Page 31: Menu Bars

    3-5 Menu Bars There are six menu bars on top of BIOS screen: Main To change system basic configuration Advanced To change system advanced configuration Chipset To change chipset configuration Security Password settings Boot To change boot settings Save & Exit Save setting, loading and exit options.

  • Page 32: Advanced Menu

    3-7 Advanced Menu *Note: The above screen is taken from JNC7P-E7100.  CPU Configuration Press [Enter] to view current CPU configuration and make settings for the following sub-items: Hardware Prefetcher Use this item to turn on/off the MLC streamer prefecher. The optional settings: [Disabled];...
  • Page 33 The optional settings: [Disabled]; [Enabled]. Package C State Limit Use this item to select the Maximum Package C State Limit Setting. The optional settings: [C0/C1]; [C2]; [C3]; [C6]; [C7]; [C7S]; [C8]; [C9]; [C10]; [CPU Default]; [Auto]. [CPU Default]: Leaves to Factory default value. [AUTO]: Initializes to deepest available Package C State Limit.
  • Page 34 The optional settings: [Disabled]; [Enabled].  ACPI Settings Press [Enter] to make settings for the following sub-item: ACPI Settings ACPI Sleep State Use this item to select the highest ACPI sleep state the system will enter when the suspend button is pressed. The optional settings: [Suspend Disabled];...
  • Page 35 Change Settings Use this item to select an optimal setting for Super IO Device. The optional settings: [IO=3F8h; IRQ=4;]; [IO=3F8h; IRQ=3,4,5,6,7, 9,10,11,12;]; [IO=2F8h; IRQ=3,4,5,6,7, 9,10,11,12;]; [IO=3E8h; IRQ=3,4,5,6,7, 9,10,11,12;]; [IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12;]. Transmission Mode Select The optional settings are: [RS422]; [RS232]; [RS485]. Mode Speed Select optional settings:...
  • Page 36 [IO=2E0h; IRQ=3,4,5,6,7,9,10,11,12;]. Serial Port FIFO Mode The optional settings are: [16-Byte FIFO]; [32-Byte FIFO]; [64-Byte FIFO]; [128-Byte FIFO]. ► Serial Port 4 Configuration Press [Enter] to make settings for the following items: Serial Port 4 Configuration Serial Port Use this item to enable or disable Serial Port (COM). The optional settings: [Disabled];...
  • Page 37 supply. Use needs to select AT or ATX Mode on MB jumper at first (refer to Pin (1-2) of jumper JAT_COPEN for ATX Mode / AT Mode Select). Case Open Detect Use this item to detect Case has already open or not, show message in POST. The optional settings: [Disabled];...
  • Page 38 The optional settings: [VT100]; [VT100+]; [VT-UTF8]; [ANSI]. Bits per second The optional settings: [9600]; [19200]; [38400]; [57600]; [115200]. Data Bits The optional settings: [7]; [8]. Parity A parity bit can be sent with the data bits to detect some transmission errors. The optional settings: [None];...
  • Page 39 Press [Enter] to make settings for the following sub-items. Out-of-Band Mgmt Port The optional settings: [COM1]; [COM1(Pci Bus0, Dev0, Func0) (Disabled)]. Terminal Type The optional settings: [VT100]; [VT100+]; [VT-UTF8]; [ANSI]. Bits per second Use this item to select serial port transmission speed. The speed must be matched on the other side.
  • Page 40 PXE boot wait time Use this item to set wait time to press [ESC] key to abort the PXE boot. Media Detect Count Use this item to set number of times presence of media will be checked. The optional settings range from [1] to [50]. ...

  • Page 41: Chipset Menu

    delay in seconds’. Device power-up delay in seconds The delay range is from [1] to [40] seconds, in one second increments.  Intel(R) I211 Gigabit Network Connection – XX:XX:XX:XX:XX:XX  Intel(R) I211 Gigabit Network Connection – XX:XX:XX:XX:XX:XX 3-8 Chipset Menu ...
  • Page 42 [256M]; [288M]; [320M]; [352M]; [384M]; [416M]; [448M]; [480M]; [512M]; [1024M]; [1536M]; [2048M]; [4M]; [8M]; [12M]; [16M]; [20M]; [24M]; [28M]; [32M/F7];[36M]; [40M]; [44M]; [48M]; [52M]; [56M]; [60M]. DVMT Total Gfx Mem Use this item to select DVMT 5.0 Total Graphics Memory Size used by the Internal Graphics Device.

  • Page 43: Security Menu

    BIOS or OS. The optional settings: [Disabled]; [Enabled]. HD Audio Use this item to control Detection of the HD-Audio device. The optional settings: [Disabled]; [Enabled]; [Auto]. [Disabled]: HDA will be unconditionally disabled. [Enabled]: HDA will be unconditionally enabled. [Auto]: HDA will be enabled if present, disabled otherwise. Onboard Lan1 Controller Use this item to enable or disable onboard Lan1 Controller.

  • Page 44: Boot Menu

    password then to clear/change password. Press again to confirm the new user password. 3-10 Boot Menu Boot Configuration Setup Prompt Timeout Use this item to set number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. Bootup NumLock State Use this item to select keyboard numlock state.

  • Page 45: Save & Exit Menu

    3-11 Save & Exit Menu Save Options Save Changes and Reset This item allows user to reset the system after saving the changes. Discard Changes and Reset This item allows user to reset the system without saving any changes. Default Options Restore Defaults Use this item to restore /load default values for all the setup options.

  • Page 46: Appendix

    Appendix General Notices European Union CE Marking and Compliance Notices Products intended for sale within the European Union are marked with the Conformity European (CE) Making, which indicates compliance with the applicable Directive and European standards and amendments identified. Shielded Cables Notice All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.
  • Page 47 Electronic Emissions Notices European Union Compliance Statement Class B Compliance European Union – Compliance to the Electromagnetic Compatibility Directive This product is in conformity with the protection requirements of EU Council Directive 2004/108/EC on the approximation of the laws of the Member States relating to electromagnetic compatibility. We cannot accept responsibility for any failure to satisfy the protection requirements resulting from a non-recommended modification of the product, including the installation of option cards from other manufacturers.
