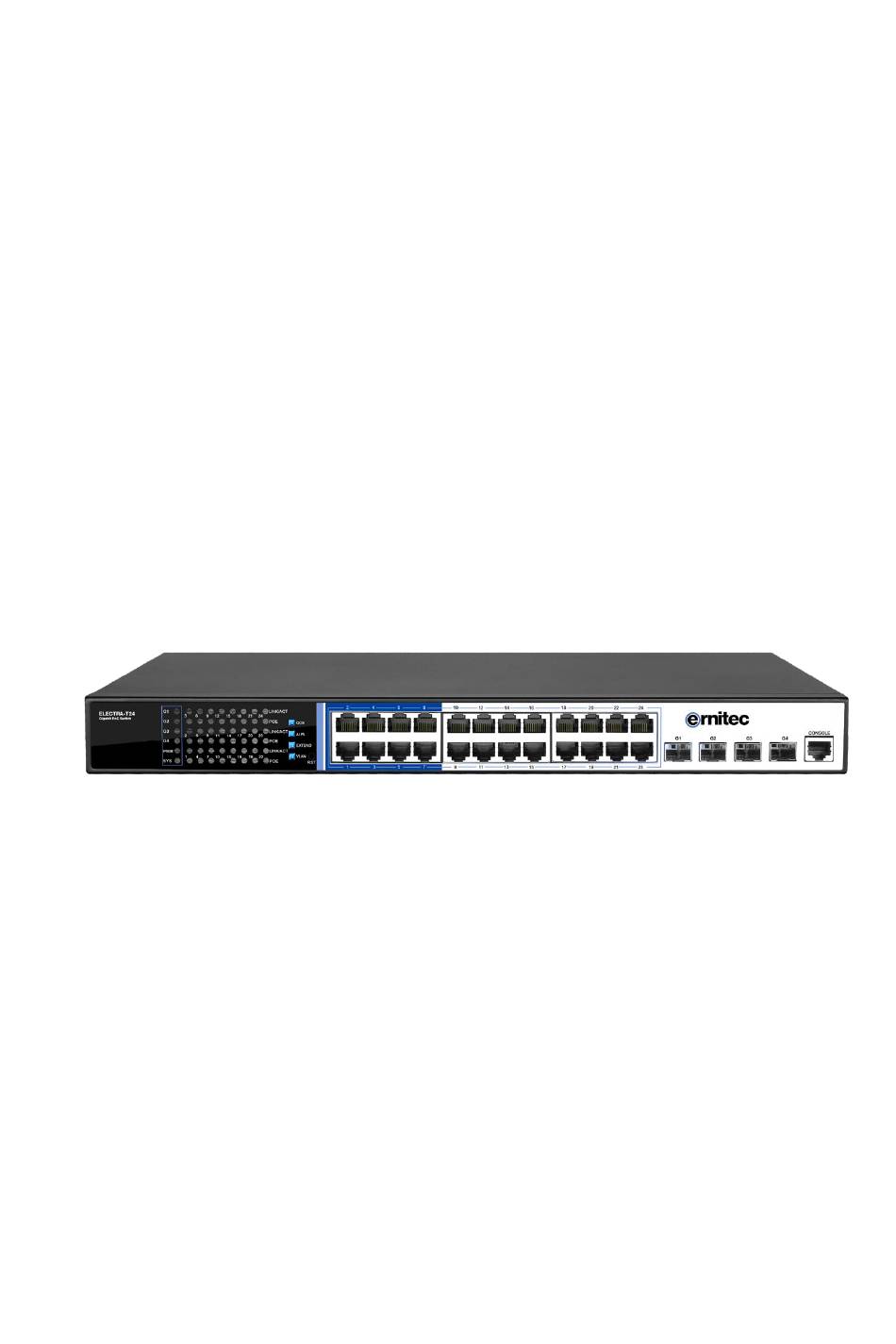

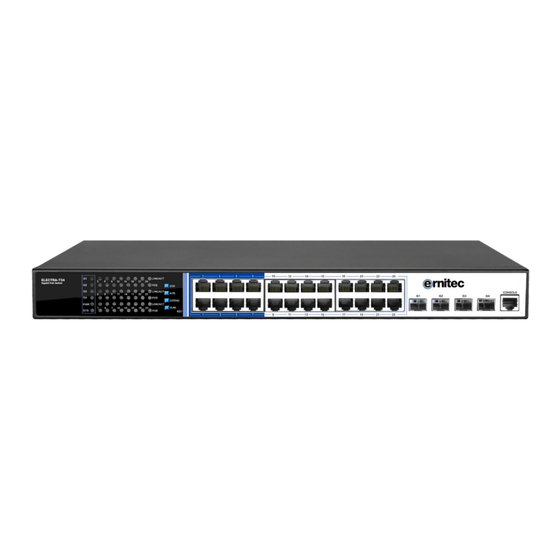

- Page 1 User Manual ELECTRA-T24 24 Gigabit Managed PoE Switch...
- Page 2 Agreement The term "switch" mentioned in this manual, unless otherwise specified, refers to 24-port full Gigabit managed PoE switch, hereinafter referred to as ELECTRA-T24 Some pictures for the schematic, the product itself and pictures may be different This icon indicates the items to be cautioned in the operation.
-
Page 3: Chapter 1 Product Introduction
Chapter 1 Product Introduction 1.1Product introduction ELECTRA-T24 is managed PoE switch for security transmission and WIFI coverage, meet the WIFI AP, IP-camera, WIFI bridge, IP phones and other types of equipment PoE power supply needs. Products using a new generation of high-performance hardware and software platforms, providing... - Page 4 When the switch mode of operation is CCTV mode, 1-8 port can support 250 meters power supply with 10Mbps speed rate SFP Port ELECTRA-T24 provide four Gigabit SFP optical ports (G1~G4), can be inserted into the Gigabit SFP module RST Button ...
- Page 5 Console port used to connect to computer or other terminal to manage or configure the switch. Back Panel Including: power socket, power switch, ground terminal Power socket A 100-240VAC 50/60 Hz power receptacle for accommodating the supplied power cord Power switch ...
-
Page 6: Electromagnetic Interference
Temperature and humidity To ensure the long-term stability working of the switch , please maintain a certain temperature and humidity environment. High or low humidity easily lead to leakage of insulation materials, deformation and even the corrosion of metal parts, the temperature is too high will accelerate the aging process of insulating materials, seriously affecting the service life of equipment. - Page 7 2.2 Product installation 19-inch standard rack installation ELECTRA-T24 is designed according to the standard 19-inch rack size, you can easily install to the rack, the specific installation steps are as follows: First, Check rack grounding and stability；...
- Page 8 Do not connect the RJ45 port to the phone line 3.2 SFP Port connection ELECTRA-T24 SFP port only support Gigabit fiber module. Recommended use of standard SFP module products The process of installing a fiber module on a switch is as follows: First, grasp the optic fiber module from the side, insert it smoothly along the SFP port slot until the optic fiber module and switch are in close contact;...
-
Page 9: Device Initialization
Note： Does not allow excessive bending fiber, the radius of curvature should not be less than 10cm; Ensure the cleanliness of the fiber surface; Please do not look directly into the optical fiber connector with your eyes as this may cause eye injury 3.3 Check before power on Check whether the outlet power supply meets the switch specifications;... - Page 10 Step 2、 Manually changed the computer IP address to 192.248.254.X (X is 2 ~ 254), subnet mask is 255.255.255.0 Step3、 Open computer's browser, type 192.248.254.1 in the address box, hit the Enter key Step4、Enter the default username and password “admin” and then click Login Step5、Entered the switch web management interface successfully when you see picture as below, you can begin to configure the switch...
-
Page 11: Chapter 4 Hardware Specifications
Chapter 4 Hardware Specifications 4.1Hardware Specifications IEEE 802.3: Ethernet Media Access Control (MAC) protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX fast Ethernet IEEE 802.3ab:1000BASE-T gigabit Ethernet IEEE 802.3z:1000BASE-X gigabit Ethernet（fiber） IEEE 802.3ae:10GBASE-SR/LR 10G Ethernet（fiber） IEEE 802.3ad: comply link aggregation standard Network standard IEEE 802.3x: flow control IEEE 802.1p: About the traffic priority of the second layer of Qos / Cos protocol (multicast filtering) -
Page 12: Software Specifications
4.2 Software Specifications One key VLAN One key CCTV(1-8 port 250meters PoE distance) Shortcut function One key Q0S (Video priority) One key AI power supply Support RIP V1/V2 dynamic routing Routing Support static routing Support DHCP server DHCP Support DHCP reply Support DHCP Snooping Support 4K VLAN VLAN... - Page 13 Support 8 port queue Support port priority, 802.1p priority, DSCP priority Support SP、RR、WRR、WFQ Priority scheduling algorithm Support STP(IEEE 802.1d)，RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocol Spanning Tree Support loop protection, BPDU protection Support WEB management（HTTP） Support CLI（Telnet、local serial port） Support SNMP V1/V2/V3，Compatible with public MIBS Support LLDP、RMON Management and...
- Page 14 4.2 Features 1-8 port support 250Meters long-distance power supply (recommended cat5e or 6 network cable) Support a key VLAN, the port 1-24 isolated from each other, which can effectively inhibit network storms, improve network performance Supports IEEE 802.3af / at standard, automatically detects and identifies ...
