ADDITIONAL POWER SUPPLY UNIT
ALIMENTATORE SUPPLEMENTARE PER SISTEMA FORUM 9000
User manual
Manuale d'uso
RCF
the rules of sound
FPS9600
FORUM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FORUM FPS9600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RCF FORUM FPS9600

Summary of Contents for RCF FORUM FPS9600

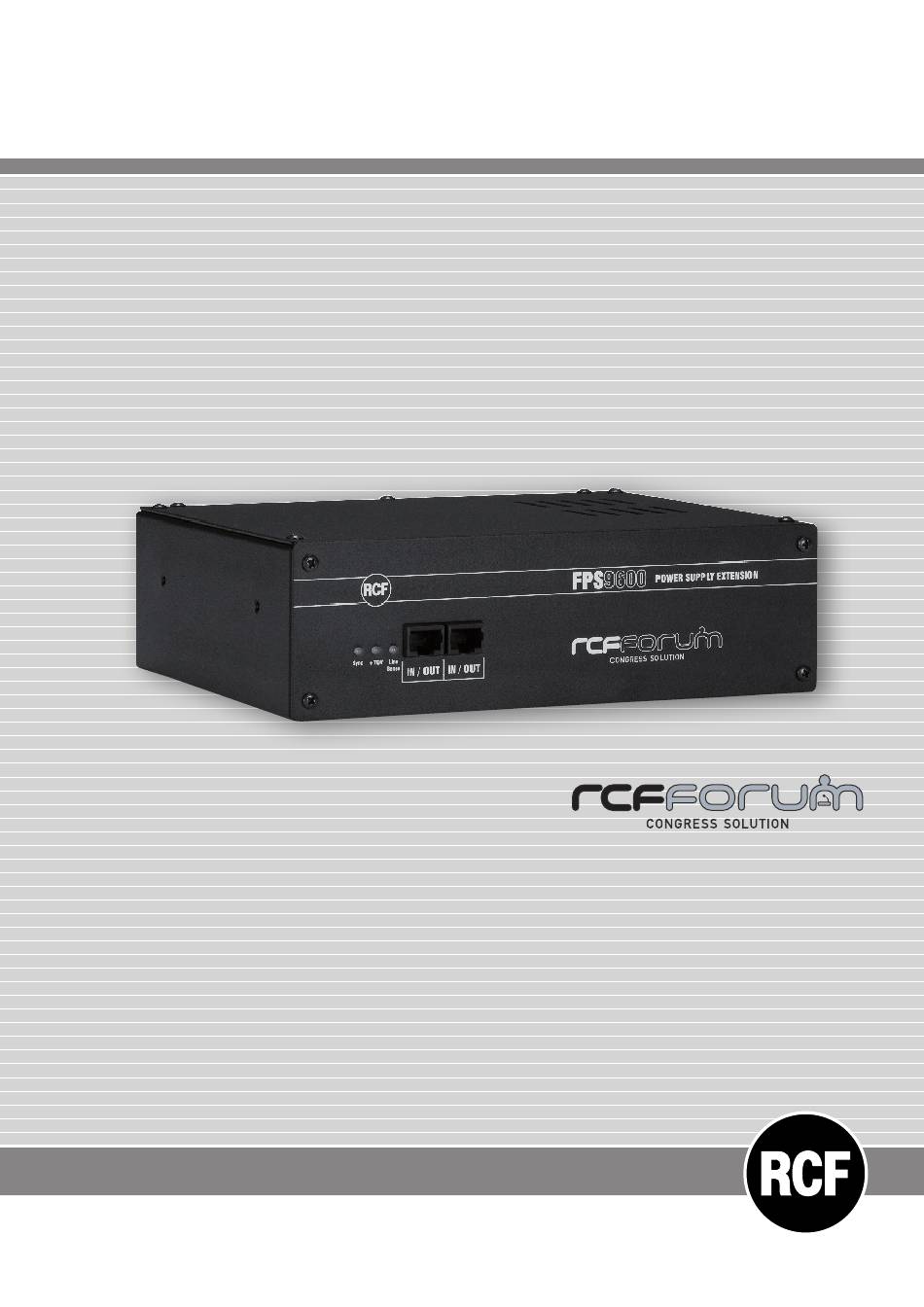

  • Page 1 FPS9600 FORUM ADDITIONAL POWER SUPPLY UNIT ALIMENTATORE SUPPLEMENTARE PER SISTEMA FORUM 9000 User manual Manuale d’uso the rules of sound...

  • Page 2: Avvertenze Per La Sicurezza

    (continua o alternata) di tensione d’uscita dello stesso corrisponda a quella d’ingresso del prodotto, in caso contrario rivolgersi ad un rivenditore RCF; verificare inoltre che l’alimentatore non sia stato danneggiato da eventuali urti o sovraccarichi.

  • Page 3: Note Importanti

    Verificare inoltre l’idoneità del supporto (parete, soffitto, struttura ecc., al quale è ancorato il prodotto) e dei componenti utilizzati per il fissaggio (tasselli, viti, staffe non fornite da RCF ecc.) che devono garantire la sicurezza dell’impianto / installazione nel tempo, anche considerando, ad esempio, vibrazioni meccaniche normalmente generate da un trasduttore.
  • Page 4 RCF S.p.A. Vi ringrazia per l’acquisto di questo prodotto, realizzato in modo da garantirne l’affidabilità e prestazioni elevate. GENERALITÀ L’alimentatore supplementare per sistema Forum 9000 è un accessorio del sistema Forum 9000. Utilizzando l’alimentatore si possono collegare fino a 60 console microfoniche FMS 9411-S per ognuna delle 4 uscite della master unit FMU 9100.
  • Page 5 DESCRIZIONE DEI LED PANNELLO FRONTALE 3 indicatori LED riportano lo status dell’alimentatore (Sync, + 70V, Line Sense) • Tutti e tre spenti = alimentatore spento • Line Sense acceso, Sync e + 70V spenti = alimentatore alimentato ma non in funzione •...

  • Page 6: Important Notes

    (direct / alternating) corresponds to the product input voltage, if not, please contact your RCF dealer; verify also that the adapter hasn’t been damaged due to possible clashes / hits or overloads.

  • Page 7: Operating Precautions

    (screw anchors, screws, brackets not supplied by RCF etc.), which must guarantee the security of the system / installation over time, also considering, for example, the mechanical vibrations normally generated by transducers.

  • Page 8: General Introduction

    RCF S.p.A. would like to thank you for purchasing this product, which has been designed to guarantee reliability and high performance. GENERAL INTRODUCTION The additional power supplier for the Forum 9000 system is an accessory. Using the additional power supplier allows to connect up to 60 FMS 9411-S microphone consoles on each of the 4 FMU 9100 master unit outputs.

  • Page 9: Controls Description

    CONTROLS DESCRIPTION: FRONT PANEL 3 LED indicators report the power supply status (Sync, + 70V, Line Sense) All three switched off = Power supplier switched off Line Sense ON, Sync and + 70V OFF = Power supplier on but in stand by mode Sync and Line sense ON = Power supplier ON During the starting phase of the FMU 9100 Master Unit, while completing the registration of the microphone consoles connected, all the three LED are on.
  • Page 10 Except possible errors and omissions. RCF S.p.A. reserves the right to make modifications without prior notice. the rules of sound RCF SpA: Via Raffaello, 13 - 42010 Reggio Emilia Italy > tel. +39 0522 274411 - fax +39 0522 274484 - e-mail: rcfservice@rcf.it...
