Before Using the Handset

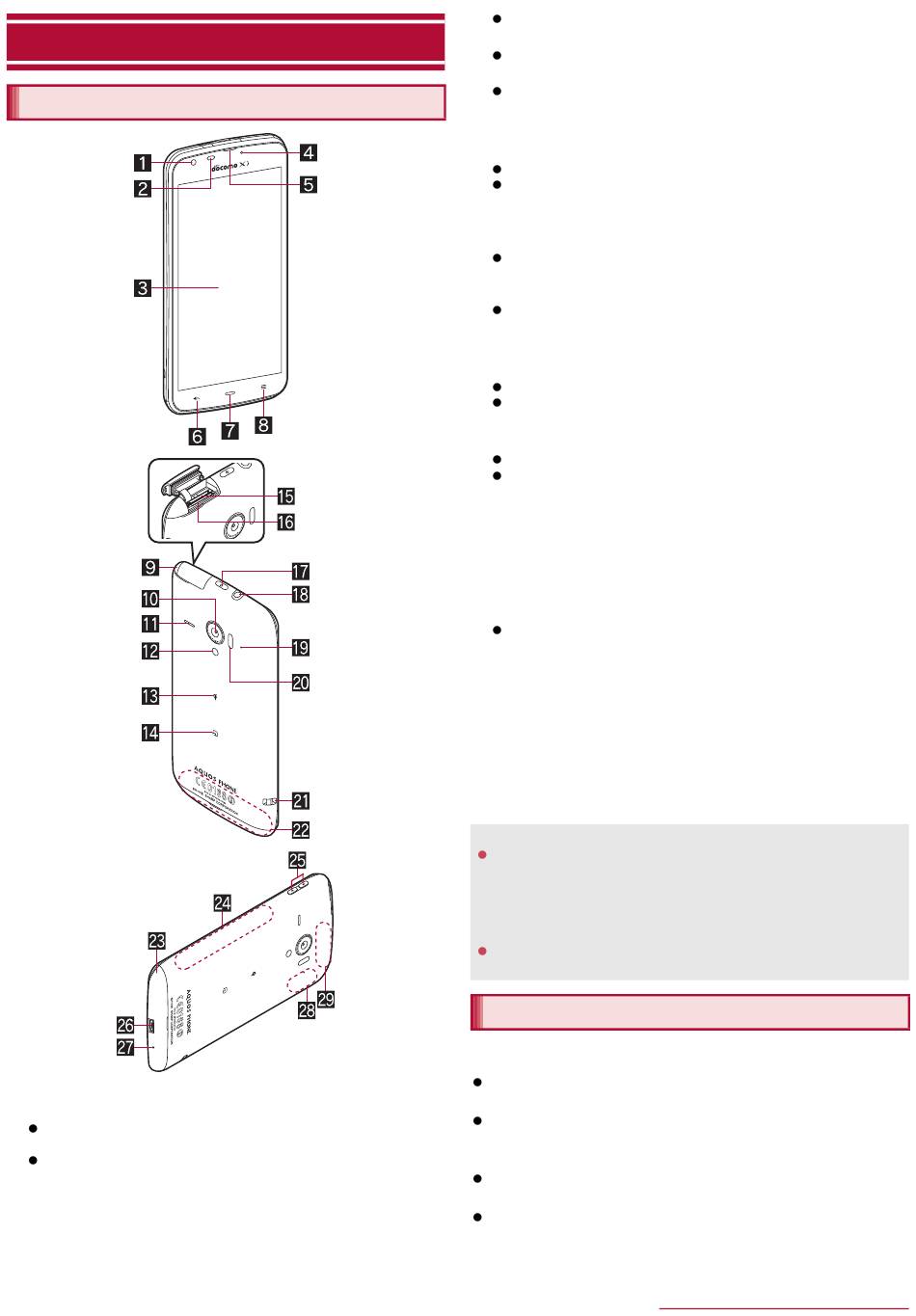

Part names and functions
1 In-camera
2 Proximity sensor/Brightness sensor
The proximity sensor detects the distance to the face and
prevents inadvertent operation of touch panel during a call.
The brightness sensor detects the brightness of the
surrounding area and adjusts the brightness of the backlight.
3 Display/Touch panel
4 Incoming/Charging lamp
5 Earpiece
6 {: Back key
*1
12
Returns to the previous screen.
7 |: Home key
Displays the main page of the home screen.
8 z: Menu key
Displays available functions (menus).
9 Mobacas/1Seg antenna
a Out-camera
b Speaker
Ringtone, music, etc. can be heard from here.
The other party's voice can be heard from here during a
hands-free call.
c Mobile light
d b mark
When charging, place the handset slowly so that b mark of
the wireless charger faces that of the handset.
e a mark
IC card is contained (It cannot be removed).
f microSD Card slot
g docomo mini UIM card slot
h H: Power key
Use to turn the power on/off, etc.
Use to turn the display on/off.
i Earphone/Microphone terminal
j Out-microphone
Use as a stereo microphone for recording videos.
Use to measure ambient noises for communicating by making
your voices sound clear when using Noise suppression.
k Infrared port
l Strap hole
*2
m FOMA/Xi antenna
n Back cover
o FM transmitter antenna
p x/y: Volume UP/DOWN key
Adjusts the volume in each function.
q External connector terminal
r Mouthpiece/Microphone
s Wi-Fi/Bluetooth antenna
t GPS antenna *2
, FOMA/Xi sub antenna
*1 Do not cover the sensor area with your hand or paste a sticker
etc. on the sensor area. The sensor may not work properly.
*2 The antenna is built into the main body. Covering the antenna
area with your hand may influence the quality.
Earphone/Microphone terminal
For details on the corresponding earphone/microphone, refer to
the following website.
h ttp://k-tai.sharp.co.jp/support/d/sh-06e/peripherals.html#!/ (
earphone_support) (in Japanese only)
Out-microphone
When using functions which support the out-microphone, do not
cover the hole of the out-microphone.
docomo mini UIM card
A docomo mini UIM card is an IC card that records personal
information, such as phone numbers.
You cannot make a call and use functions such as packet
communication etc. without inserting a docomo mini UIM card.
You cannot use the docomo mini UIM card with other than
compatible handsets and may not be able to use a part of the
website and data when you change from the UIM.
In Japan, you cannot call to the emergency number (110, 119 or
118) without inserting a docomo mini UIM card.
A docomo mini UIM card has a security code called PIN code
(nP. 66).
*2
*2
*2
