- Page 1 USER’S GUIDE Installation, Operation, and Maintenance for your product. Built‐In Wine Cooler Model – AWC241DZRH / AWC241DZLH www.avallon.com 1‐866‐471‐7427 V2.1‐07112018 ...
- Page 2 Important Safety Information Improper handling can cause serious damage to the Avallon wine refrigerator and / or injury to the user. This wine refrigerator is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. Please review the rating label located on the rear panel of the unit for electrical and other technical data related to this unit. The unit must be used in a properly grounded wall outlet. Please read and follow the safety information listed below to reduce the risk of fire, electric shock, or injury. ELECTRICAL SAFETY • Do not exceed the power outlet ratings. • It is recommended the wine refrigerator be connected on its own circuit. • The unit must be installed in accordance with state and local electrical codes. • A standard electrical supply (115 V, 60Hz), that is properly grounded in accordance with the National Electrical Code and local codes and ordinances is required. • Use outlets that cannot be turned off by a switch or pull chain. • Always turn the unit off and unplug it from the outlet when cleaning. • Unplug the unit if it is not going to be used for an extended period of time. • Do not operate the unit with a power plug missing the ground plug, a damaged cord, or a loose socket. • Be sure the wine refrigerator is properly grounded. ...
- Page 3 GENERAL SAFETY • To prevent back and other types of injuries, use at least two people to move and install the wine cooler. • This appliance is not intended for use by persons, including children, with reduced physical, sensory, or mental capabilities, unless they have been given supervision or instruction concerning the use of the appliance by the person(s) responsible for their safety. • Install the wine refrigerator in a well ventilated area where the ambient temperature is above 50° F and below 90° F. • The temperature range for this cooler is optimized for wine and beverage storage. Perishable food items may require a different storage environment. • Do not place hot or warm items into the cooler before they cool down to room temperature. • This unit is designed to be installed indoors, and protected from rain, sleet, snow, and / or moisture. •...
-
Page 4: Table Of Contents
Table of Contents Important Safety Information…………………………………………………………………………………………………………………………………………….. ii Table of Contents……………………………………………………………………………………………………………………………………………………………….. i v First Time Operating Instructions………………………………………………………………………………………………………………………………………….v Introduction……………………………………………………………………………………………………………………………………………………………………….. 1 Parts Identification…………………………………………………………………………………………………………………………………………………………….. 2 Full View………………………………………………………………………………………………………………………………………………..…………………………… 2 Empty View………………………………………………………………………………………………………………………………………………………………………… 2 Carbon Filter………………………………………………………………………………………………………………………………………………………………………. 3 Internal Fan…………………………………………………………………………………………………………………………………………………………………………3 Installing Your Wine Refrigerator……………………………………………………………………………………………………………………………………….. 3 TYPES OF INSTALLATION…………………………………………………………………………………………………………………………………………………….. 4 Free‐standing Installation……………………………………………………………………………………………………………………………………………………4 Built‐in Installation………………………………………………………………………………………………………………………………………………………………4 Installation Clearance Requirements………………………………………………………………………………………………………………………………….. 4 LEVELING……………………………………………………………………………………………………………………………………………………………………………. 5 RECOMMENDED GROUNDING METHOD……………………………………………………………………………………………………………………………. 5 Installing Your Door Handle and Shelves…………………………………………………………………………………………………………………………….. 5 INSTALLING THE DOOR HANDLE…………………………………………………………………………………………………………………………………………. 5 INSTALLING THE SHELVES…………………………………………………………………………………………………………………………………………………… ... -
Page 5: First Time Operating Instructions
Troubleshooting…………………………………………………………………………………………………………………………………………………………………. 10 Specifications……………………………………………………………………………………………………………………………………………………………………… 1 2 Avallon Product Warranty………………………………………………………………………………………………………………………………………………….. Error! Bookmark not defined. First Time Operating Instructions: Before use, make sure all packaging labels and materials are removed from the unit. Be sure to keep track of all included parts and pieces before discarding packaging materials. It is advised that you keep the original box and packaging materials in case you need to move or ship the appliance in the future. Allow the unit to stand for at least 24 hours before you use it; this allows the cooling components time to settle from transit. The instruction manual should be read before use. This owner’s manual is provided for reference use only. Specifications may change without prior notice. Refer to the product label on the back of your wine refrigerator for the latest technical information. v ... -
Page 6: Introduction
Model Number: Serial Number: Date of Purchase: To better serve you, please do the following before contacting customer service: • If you received a damaged product, immediately contact the retailer or dealer that sold you the product. • Read and follow this instruction manual carefully to help you install, use, and maintain your wine refrigerator. • Read the troubleshooting section of this manual as it will help you diagnose and solve common issues. • Visit us on the web at http://www.avallon.com to download product guides, additional troubleshooting resources, and up‐to‐date information. • If you need warranty service, our friendly customer service representatives are available via email at service@avallon.com or by telephone at 1 (866) 471‐7427. ... -
Page 7: Parts Identification

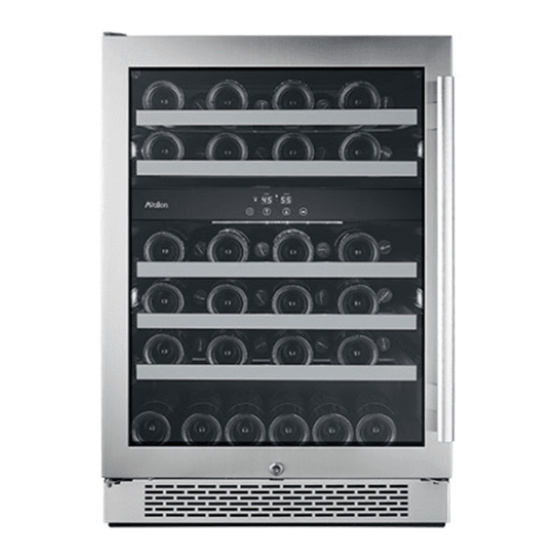

Parts Identification Full View Empty View ... -
Page 8: Carbon Filter
Carbon Filter A built‐in carbon filter protects your wine by acting as a natural barrier against harmful odors. Internal Fan This is an air‐cooled unit equipped with an internal fan that maintains a consistent internal temperature. Note: The carbon filter should be replaced every 3 ‐ 6 months depending on the unit’s exposure level to odor. If the unit is placed in a kitchen, regular replacement every three (3) months is ideal. Tip: Gather the model and serial number from the product label and write them down before installing the wine cooler. Installing Your Wine Refrigerator The wine refrigerator should be installed in accordance with local electrical code requirements. It should ... -
Page 9: Types Of Installation
TYPES OF INSTALLATION: This wine refrigerator has been designed for free‐standing or built‐in installation. In every case, there must be adequate ventilation and access for service. Free‐standing Installation A free‐standing installation will allow you to install the wine refrigerator in almost any place you desire. You must follow the stated instructions for electrical requirements and leveling the wine refrigerator. Built‐in Installation A recessed installation will allow you to install the wine cooler under a counter or in a kitchen cabinet provided the clearance space requirements around the wine cooler are followed. It is necessary to allow adequate ventilation space around the unit (make sure there is at least some ventilation room for the back of the unit). The following additional items must be observed: 1. Place the wine refrigerator in front of the installation location. 2. Adjust the feet and place the unit flat on the floor or on a platform depending on your installation requirements. 3. If the electrical outlet for the wine refrigerator is behind the cabinet, plug in the wine refrigerator. 4. Push the wine refrigerator into position. 5. Warning: DO NOT install the wine refrigerator behind a closed cabinet door. Installation Clearance Requirements: When installing the wine refrigerator under a counter, follow the recommended spacing dimensions shown. • To ensure proper service access and ventilation, allow between 2 ‐ 3 inches of clearance at the back as shown in the diagram. • The installation should allow the unit to be pulled forward for servicing, if necessary. • A standard electrical supply (115 VAC only, 60 Hz), properly grounded in accordance with National Electrical Code and local codes and ordinances, is required. ... -
Page 10: Leveling
LEVELING: The wine refrigerator should be installed on a firm and level surface that will be able to support the entire weight of a fully loaded unit. It is important for the wine refrigerator to be leveled in order to work properly. It can be raised or lowered by rotating the plastic sheaths around each of the feet on the bottom of the machine. If you find that the surface is not level, rotate the feet until the wine refrigerator becomes level. You may need to make several adjustments to level it. We recommend using a carpenter’s level to check the machine. Turn the leveling feet to the right to lower that side of the refrigerator. Turn the leveling feet to the left to raise that side of the refrigerator. RECOMMENDED GROUNDING METHOD: For your personal safety, this appliance must be grounded. It is equipped with a power supply cord having a 3‐prong grounding plug. To minimize possible shock hazard, the cord must be plugged into a mating 3‐ pronged wall socket, and grounded in accordance with the National Electrical Code and local codes and ordinances. If a mating wall socket is not available, it is the personal responsibility of the customer to have a properly grounded, 3‐prong wall receptacle installed by a qualified electrician. Electrical Shock Hazard! Plug into a grounded 3‐prong outlet. Never remove the grounding prong from the plug. Never use an adapter to bypass the grounding prong. DO NOT use an extension cord. Failure to follow these instructions can result in fire, electrical shock, or personal injury. Before you move your wine refrigerator into its final location, it is important to make sure you have the proper electrical connection. A standard electrical supply (115 V, 60Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances, is required. It is recommended that a ... -
Page 11: Installing The Shelves
INSTALLING THE SHELVES: 1. Open the door completely. 2. Push the shelf tracks affixed to the walls of the inner cabinet to the rear of the unit so that the tracks are fully seated inside the cooler compartment. 3. Line up the rails affixed to the shelf with the corresponding wine cooler tracks attached to the inner cabinet walls. 4. Push the front of the shelf inwards evenly until the shelf rests fully inside of the unit and you are able to close the door. 5. The shelf should glide smoothly back and forth. If it does not, you may need to remove it and start over. REMOVING THE SHELVES: 1. Open the door completely. 2. Remove all of the contents loaded on the shelf, if applicable. 3. Pull the shelf towards yourself until it is fully extended outward. 4. The shelf has plastic posts on both sides as indicated in the diagram below. While facing the unit, press the plastic post on the right side down while pulling up on the left plastic post. You may choose to do this by hand or by using a flathead screwdriver. 5. Evenly pull out the shelf from the track until it is completely removed from the inner compartment. ... -
Page 12: Using Your Control Panel
USING YOUR CONTROL PANEL: This wine cooler has a temperature range from 40° F to 65° F. The upper zone has a temperature range of 40° F to 54° F. The lower zone has a temperature range of 54° F to 65° F. Power Button Press and hold this button down for three seconds to power your unit on. Once pressed, the “Run” indicator light will illuminate to indicate the unit is on and running. Press and hold this button for three seconds again and the unit will power off and the “Run” Indicator light will turn off. Upper Zone Temperature To change the temperature of your upper zone, press this button to lower the temperature by one (1) degree increments. Once the temperature setting is set at 40° F, pressing this button again will bring it back to 54° F. Lower Zone Temperature To change the temperature of your lower zone, press this button to lower the temperature by one (1) degree increments. Once the temperature setting is set at 54° F, pressing this button again will bring it back to 65° F. Interior Light Press this button to cycle through the different internal light settings. There are four light settings: Constant Blue, Constant White, Automatic Blue, and Automatic White. Press this button to choose the next option in the progression, eventually cycling back to the original setting. The lights will fade out of the previous setting and into the next setting in the cycle each time you press this button. Press and hold this button for three seconds to turn the lights completely off or to turn them back on. Open and close the door to check the internal light color and whether the lights stay on with the door closed (Constant Mode) or illuminate only when the door is open (Automatic Mode). Please refer to the “Internal Light” section on the next page for further detail. ... -
Page 13: Internal Light
Note: Pressing and holding the Upper Zone and Lower Zone Temperature buttons at the same time will switch the temperature display from °F to °C. Tip: If you powered the unit off, please wait at least five (5) minutes before powering it back on. Warning: Allow at least 24 hours for your wine cooler to run before storing your beverages to allow the temperature to acclimate. Whether your wine cooler can reach the actual set temperature depends on the ambient environmental conditions. Internal Light This refrigerator is equipped with top and side internal lights that can be set to a blue or white color. Because the unit comes with a glass door, the inside will be seen whether the door is open or closed. You can choose to display each color of light in two different modes: Constant Mode and Automatic Mode. Constant Mode The internal lights will stay constantly illuminated whether the door is open or closed. Automatic Mode The internal lights will illuminate each time the door is opened and fade off once the door is closed. This feature is triggered by a sensor located on the front vent. This sensor allows the refrigerator to recognize when the door is open or closed. With each press of the light button, the unit will progress through the cycle of light settings seen below. ... -
Page 14: Defrosting
Defrosting Note that under most refrigerating settings, the unit will automatically defrost under most ambient conditions. However, on colder settings, some frost may build up. Additionally, the more humid the ambient conditions, the more frost may build up. Keep the door closed as much as possible and avoid opening the door unnecessarily to minimize frost build‐up. If frost is preventing the door from closing properly, you may need to power the unit off until the frost melts. Use a soft absorbent towel to dry the unit. Warning: Never attempt to remove frost with a sharp object. Normal Sounds Your new wine refrigerator may make sounds that are not familiar to you. Most of the new sounds are normal. Hard surfaces like the floor or walls can make the sounds seem louder than they actually are. The following describes the kinds of sounds that might be new to you and what may be making them. • Rattling noises may come from the flow of the refrigerant or the water line. • Items stored on top of the wine refrigerator can also make noises. • The high efficiency compressor may make a pulsating or high‐pitched sound. • The internal fan will run frequently to create a consistent internal temperature environment. • Water running from the evaporator to the water bin may make a splashing sound. • As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your wine refrigerator. • You may hear air being forced over the condenser by the condenser fan. Cleaning and Maintenance Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. ... -
Page 15: Preparing Your Wine Refrigerator For Storage
Preparing Your Wine Refrigerator for Storage If the wine refrigerator will not be used for a long time, or is to be moved to another place, it will be necessary to defrost the unit and dry the interior. 1. Disconnect the cooler from the power supply by removing the power plug from the wall socket. 2. Leave the door open to allow for air circulation and to prevent mold, mildew, and unpleasant smells. 3. Once the interior is dry and clean the unit will be ready for storage. Caution: Store the unit out of the reach of children. If you have children, you may want to take additional precautions such as removing the door to prevent a child from being trapped inside the cooler. Important: Do NOT touch the power plug when your hands are wet. NEVER unplug the unit by pulling the plug. Troubleshooting ISSUE POSSIBLE CAUSE SOLUTION The wine cooler turns on and off The room temperature is higher Run the cooler at the appropriate frequently. than the recommended ambient ambient temperature. ... - Page 16 ISSUE POSSIBLE CAUSE SOLUTION The wine cooler is making strange Certain sounds are normal Read the “Normal Sounds” noises. section. The unit is not level or is touching Check to make sure the cooler is another appliance. level and that it is not in contact with another appliance or furniture. The body of the wine cooler is The unit is not properly grounded. Contact your local electrician to electrified. test your electrical grounding system. Frost is forming in the wine The environment is humid. Through the unit uses an “auto‐ cooler. defrost” system, under certain The ambient temperature is too conditions, manual defrosting may low. be required. If frost builds up, you The door is being opened too can try running the cooler on a frequently. warmer temperature setting, minimizing the number of times you open the door, or unplugging the unit to allow the frost to melt. The door will not shut properly. ...
- Page 17 Specifications DESCRIPTION OF PRODUCT Dual Zone Built‐In Wine Refrigerator MODEL AWC241DZRH / AWC241DZLH VOLTAGE / FREQUENCY AC 115 / 60 Hz AMPERAGE 1.1 A INPUT POWER 120 W COLOR Black Cabinet with Stainless Steel Door STORAGE CAPACITY 46 Bottles* REFRIGERANT R600a, 1.4 oz. TEMPERATURE RANGE 40° F to 65° F DIMENSIONS 34 ” X 23 ” X 25 ” ** (HEIGHT X WIDTH X DEPTH) WEIGHT 128 Pounds Note: Technical data and performance information are provided for reference only. Specifications are ...
- Page 18 Once an Avallon authorized representative has con- firmed that your product is defective and eligible for warranty service, the product must be returned to an Avallon authorized repair facility.
