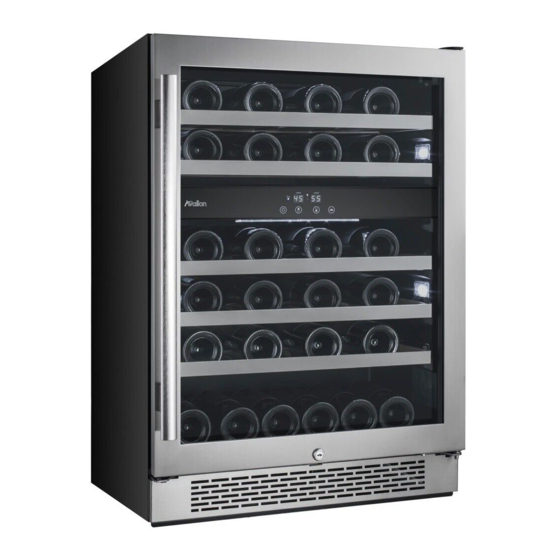

- Page 1 USER’S GUIDE Installation, Operation, and Maintenance for your product. BUILT‐IN WINE COOLER Model ‐ AWC241SZ www.avallon.com 1‐866‐471‐7427 ...
-
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the Avallon wine refrigerator and/or injury to the user. This wine refrigerator is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. Please review the rating label located on the rear panel of the unit for electrical and other technical data related to this unit. The unit must be used in a properly grounded wall outlet. Please read and follow the safety information listed below to reduce the risk of fire, electric shock, or injury. ELECTRICAL SAFETY • Do not exceed the power outlet ratings. • It is recommended the wine refrigerator be connected on its own circuit. • The unit must be installed in accordance with state and local electrical codes. • A standard electrical supply (115 V, 60Hz), that is properly grounded in accordance with the National Electrical Code and local codes and ordinances is required. • Use outlets that cannot be turned off by a switch or pull chain. • Always turn the unit off and unplug it from the outlet when cleaning. • Unplug the unit if it is not going to be used for an extended period of time. • Do not operate the unit with a power plug missing the ground plug, a damaged cord or a loose socket. • Be sure the wine refrigerator is properly grounded. • Never plug or unplug the unit with wet hands. • Do not bypass, cut or remove the grounding plug. • Do not use extension cords or power strips with this unit. You may need to contact your electrician if it is necessary to use a longer cord or if you do not have a grounded outlet. Do not modify the power cord’s length or share the outlet with other appliances. • Do not start or stop the unit by switching the circuit’s power on and off. ... -
Page 3: Table Of Contents
Table of Contents Important Safety Information ........................ 2 Introduction ............................ 4 Parts Identification .......................... 5 Installing Your Wine Refrigerator ...................... 6 Installing Your Wine Refrigerator Continued ................ 7 Installing Your Door Handle and Shelves .................... 8 Operation ............................... 9 Internal Light ............................ 10 Defrosting ............................. 10 Normal Sounds ............................. 11 Cleaning and Maintenance ........................ 11 Preparing Your Wine Refrigerator for Storage .................. 11 Troubleshooting ........................... 12 Specifications ............................ 13 First Time Operating Instructions: Before use, make sure all packaging labels and materials are removed from the unit. Be sure to keep track of all included parts and pieces before discarding packaging materials. It is advised that you keep the original box and packaging materials in case you are ever to move or ship the appliance in the future. Allow the unit to stand for at least 24 hours before you use it; this allows the cooling components time to settle from transit. The instruction manual should be read before use. This owner’s manual is provided for reference use only. Specifications may change without prior notice. Refer to the product label on the back of your wine refrigerator for the latest technical information. ... -
Page 4: Introduction
Introduction Thank you for purchasing your Avallon wine refrigerator. Avallon is dedicated to developing products that will enhance your lifestyle with superior quality and distinctive features. Please visit www.avallon.com for more information on your product and other Avallon products. This manual contains important information regarding the proper installation, use, and maintenance of your wine refrigerator. Following this manual will ensure that your product will work at its peak performance and efficiency. Please save the original product packaging in case you need to safely transport your wine refrigerator. For Your Records: Please write down the model number and serial number below for future reference. Both numbers are located on the rating label on the back of your unit and are needed to obtain warranty service. You may also want to staple your receipt to this manual as it is the proof of your purchase, and is also needed for service under your warranty. Model Number: Serial Number: Date of Purchase: To better serve you, please do the following before contacting customer service: • If you received a damaged product, immediately contact the retailer or dealer that sold you the product. • Read and follow this instruction manual carefully to help you install, use, and maintain your wine refrigerator. • Read the troubleshooting section of this manual as it will help you diagnose and solve common issues. • Visit us on the web at http://www.avallon.com to download product guides, additional troubleshooting resources, and up‐to‐date information. •If you need warranty service, our friendly customer service representatives are available via email at service@avallon.com or by telephone at 1 (866) 471‐7427. ... -
Page 5: Parts Identification
Parts Identification Control Panel Seamless Stainless Door Roll‐Out Shelf Door Handle Internal Fan Door Lock Front Vent Carbon Filter Internal Fan This is an air‐cooled unit equipped with an internal fan that maintains a consistent internal temperature. Carbon Filter Door Lock A built‐in carbon filter protects your wine by acting as a natural barrier against harmful odors. Leveling Legs NOTE: The carbon filter should be replaced every 3‐6 months depending on the unit’s exposure level to odor. If the unit is placed in a kitchen, regular replacement every three (3) months is ideal. TIP: Gather the model and serial number from the product label and write down before installing the wine cooler 5 ... -
Page 6: Installing Your Wine Refrigerator
Installing Your Wine Refrigerator The wine refrigerator should be installed in accordance with local electrical code requirements. It should also be placed in a location that is strong enough to support its total weight, keeping in mind that it will weigh substantially more when fully loaded than when empty. Before you plug the wine refrigerator into a power supply, be sure to let it stand upright for at least 24 hours to allow the compressor’s oils to settle. WARNING: Use two or more people to move and install the wine refrigerator. Failure to do so can result in back or other injury. Carefully remove the packaging materials. Remove any shipping tape and glue from your wine refrigerator before using. Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your wine refrigerator. IMPORTANT: Do not remove any safety, warning, or product information labels from your wine refrigerator. TYPES OF INSTALLATION: This wine refrigerator has been designed for free‐standing or built‐in installation. In every case, there must be adequate ventilation and access for service. Free‐standing installation: A free‐standing installation will allow you to install the wine refrigerator in almost any place you desire. You must follow the stated instructions for electrical requirements and leveling the wine refrigerator. Built‐in installation: A recessed installation will allow you to install the wine cooler under a counter or in a kitchen cabinet provided the clearance space requirements around the wine cooler are followed. It is necessary to allow adequate ventilation space around the unit (make sure there is at least some ventilation room for the back of the unit). The following additional items must be observed: 1. Place the wine refrigerator in front of the installation location. 2. Adjust the feet and place the unit flat on the floor or on a platform depending on your installation requirements. 3. If the electrical outlet for the wine refrigerator is behind the cabinet, plug in the wine refrigerator. 4. Push the wine refrigerator into position. WARNING: Do NOT install the wine refrigerator behind a closed cabinet door. ... -
Page 7: Installing Your Wine Refrigerator Continued
Installing Your Wine Refrigerator Continued INSTALLING: When installing the wine refrigerator under a counter, follow the recommended spacing dimensions shown. • To ensure proper service access and ventilation, allow between 2‐3 inches of clearance at the back as shown in the diagram. • The installation should allow the unit to be pulled forward for servicing, if necessary. • A standard electrical supply (115 VAC only, 60 Hz), properly grounded in accordance with National Electrical Code and local codes and ordinances is required. IMPORTANT: Once you are ready to install it in a cabinet or directly on the floor, you must adjust the feet to level the wine refrigerator. LEVELING: The wine refrigerator should be installed on a firm and level surface that will be able to support the entire weight of a fully loaded unit. It is important for the wine refrigerator to be leveled in order to work properly. It can be raised or lowered by rotating the plastic sheaths around each of the feet on the bottom of the machine. If you find that the surface is not level, rotate the feet until the wine refrigerator becomes level. You may need to make several adjustments to level it. We recommend using a carpenter’s level to check the machine. Turn the leveling feet to the right to lower that side of the refrigerator. Turn the leveling feet to the left to raise that side of the refrigerator. RECOMMENDED GROUNDING METHOD: For your personal safety, this appliance must be grounded. It is equipped with a power supply cord having a 3‐prong grounding plug. To minimize possible shock hazard, the cord must be plugged into a mating 3‐pronged wall socket, and grounded in accordance with the National Electrical Code and local codes and ordinances. If a mating wall socket is not available, it is the personal responsibility of the customer to have a properly grounded, 3‐prong wall receptacle installed by a qualified electrician. ... -
Page 8: Installing Your Door Handle And Shelves
Installing Your Door Handle and Shelves INSTALLING THE DOOR HANDLE: 1. Open the door and carefully pull the door gasket around the area where the handle is to be installed. 2. Insert each Phillips head screw through the gasket side of the door until the screw pass through the door. 3. Align the handle with the screws and tighten using a Phillips head screwdriver until the handle is flush against the door frame. CAUTION: Do not over‐tighten the screws as this may cause damage to the handle or to the stainless steel door. 4. Carefully press the door gasket into its original position. INSTALLING THE SHELVES: 1. Open the door completely. 2. Push the shelf tracks affixed to the walls of the inner cabinet to the rear of the unit so that the tracks are fully seated inside the cooler compartment. 3. Line up the rails affixed to the shelf with the corresponding wine cooler tracks attached to the inner cabinet walls. 4. Push the front of the shelf inwards evenly until the shelf rests fully inside of the unit and you are able to close the door. 5. The shelf should glide smoothly back and forth. If it does not, you may need to remove it and start over. REMOVING THE SHELVES: 1. Open the door completely. 2. Remove all of the contents loaded on the shelf, if applicable. 3. Pull the shelf towards yourself until it is fully extended outward. 4. The shelf has plastic posts on both sides as indicated in the diagram below. While facing the unit, press the plastic post on the right side down while pulling up on the left plastic post. You may choose to do this by hand or by using a flathead screwdriver. ... -
Page 9: Operation
Operation INSTALLATION CHECK LIST BEFORE OPERATION: 1. Have all packing materials and tape been removed from the interior and exterior of the wine refrigerator? 2. Have the installation instructions been followed, including connecting the machine to electricity? 3. Has proper grounding been installed for the wine refrigerator? 4. Has the machine been leveled? 5. Is the wine refrigerator in a site where the ambient temperature is between 50º F and 90º F all year round? 6. Is there a clearance of at least 2 to 3” at the rear for proper air circulation? USING YOUR CONTROL PANEL: This refrigerator has a temperature range from 40°F to 65°F. POWER BUTTON: Press and hold down for three seconds to power your unit on. Once pressed the “Run” indicator light will illuminate to indicate the unit is on and running. Press and hold for three seconds again and the unit will power off and the “Run” Indicator light will turn off. INCREASING THE TEMPERATURE: To increase the temperature, press this button to raise the temperature by one (1) degree increments. DECREASING THE TEMPERATURE: To decrease the temperature, press this button to lower the temperature by one (1) degree increments. INTERIOR LIGHT: Press this button to cycle through the different internal light settings. There ... -
Page 10: Internal Light
Internal Light This refrigerator is equipped with top and side internal lights that can be either blue or white in color – whichever you choose. Additionally, because it comes with a glass door, the lights have the option to display in two different modes: Constant Mode and Automatic Mode. CONSTANT MODE: The internal lights will stay illuminated whether the door is open or closed. AUTOMATIC MODE: The internal lights will illuminate when the door is open and turn off when the door is closed. With each press of the light button, the unit will progress through the light setting cycle seen below. NOTE: We run test every unit that we produce in our factory. Because of this, your model may default to any of the above settings out of the box. Simply cycle through the progression until you reach your desired light setting The lights will return to the Constant Blue Setting after the Automatic White setting, thus starting back at the beginning of the progression. TIP: Close the door to determine if the light is currently in Constant Mode or Automatic Mode. Holding the light button for three seconds will turn the lights on and off. If you power the lights off they will remain off, even when the door is open. Hold the light button for three seconds again to turn the lights back on. The automatic light feature is triggered by a sensor located on the front vent. This sensor allows the refrigerator to recognize when the door is open or closed. Defrosting Note that under most refrigerating settings, the unit will automatically defrost under most ambient conditions. However, on colder settings, some frost may build up. Additionally, the more humid the ambient conditions, the more frost may build up. Keep the door closed as much as possible and avoid opening the door unnecessarily to minimize frost build‐up. If frost is preventing the door from closing properly, you may need to power the unit off until the frost melts. Use a soft absorbent towel to dry the unit. WARNING: Never attempt to remove frost with a sharp object. ... -
Page 11: Normal Sounds
Normal Sounds Your new wine refrigerator may make sounds that are not familiar to you. Most of the new sounds are normal. Hard surfaces like the floor or walls can make the sounds seem louder than they actually are. The following describes the kinds of sounds that might be new to you and what may be making them. • Rattling noises may come from the flow of the refrigerant or the water line. • Items stored on top of the wine refrigerator can also make noises. • The high efficiency compressor may make a pulsating or high‐pitched sound. • The internal fan will run frequently to create a consistent internal temperature environment. • Water running from the evaporator to the water bin may make a splashing sound. • As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your wine refrigerator. • You may hear air being forced over the condenser by the condenser fan. Cleaning and Maintenance Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. INTERIOR CLEANING: 1. Disconnect power to the unit. 2. Open the door and remove the contents and shelves. 3. Wait until the unit defrosts. 4. With a clean cloth, wipe down the interior of the unit. 5. Reinsert the shelves and beverages. 6. Reconnect power to the unit. EXTERIOR CLEANING: The door and cabinet may be cleaned with a mild detergent and lukewarm water solution such as two (2) tablespoons of baking soda to one (1) quart of water. Do not use solvent based or abrasive cleaners. Use a soft sponge and rinse with clean water. Wipe with a soft clean towel to prevent water spotting. If the door panel is stainless steel, it can discolor ... -
Page 12: Troubleshooting
Troubleshooting ISSUE POSSIBLE CAUSE SOLUTION The wine cooler turns on • The room temperature is higher than the • Run the cooler at the appropriate ambient and off frequently. recommended ambient environment. temperature. • The door is being opened often. • Minimize the number of times the door is • The door is not completely closed. opened. •The door gasket is not sealing properly. • Make sure the door is completely closed. •The cooler does not have the suggested • Make sure the door gasket is properly ventilation. sealed. • Read and follow the “Installation Clearance Requirements” section. The wine cooler does • There is a power failure. • Ensure the cooler is plugged in and the not turn on. • The cooler is not plugged in. power outlet has power. • A house fuse has blown or the circuit • Plug the unit in to a power outlet that has breaker is tripped. sufficient amperage. • Replace the broken fuse in your fuse box or reset the breaker. The wine cooler will not • The cooler is placed too close to a heat • Keep the cooler away from direct sunlight or reach the desired source. other heat sources. ... -
Page 13: Specifications
Specifications DESCRIPTION OF PRODUCT Single Zone Built‐In Wine Refrigerator MODEL AWC241SZ VOLTAGE / FREQUENCY AC 115 / 60 Hz AMPERAGE 1.1A INPUT POWER 120W COLOR Black Cabinet with Stainless Steel Door STORAGE CAPACITY 54 Bottles REFRIGERANT R600a, 1.4oz. TEMPERATURE RANGE 40 to 65 F° ... - Page 14 Once an Avallon authorized representative has con- firmed that your product is defective and eligible for warranty service, the product must be returned to an Avallon authorized repair facility.
- Page 15 AVALLON GLOBAL, LLC 3736 Bee Cave Rd. STE 1 #188 West Lake Hills, TX 78746 Toll Free: 1-866-471-7427 Web: http://www.avallon.com E-mail: service@avallon.com Product contents and specifications may change without notice. Copyright © 2015 Avallon Gobal, LLC...
