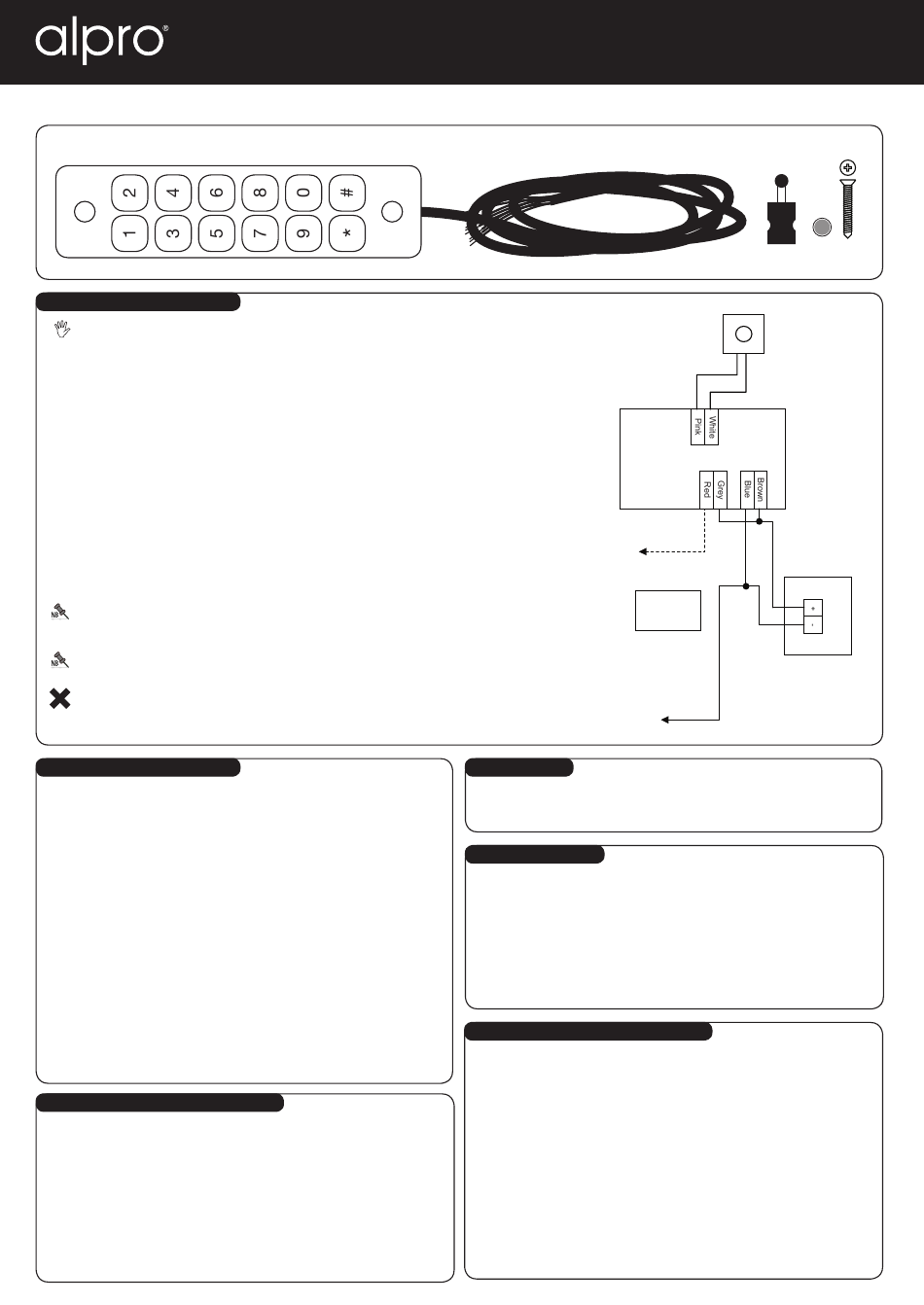

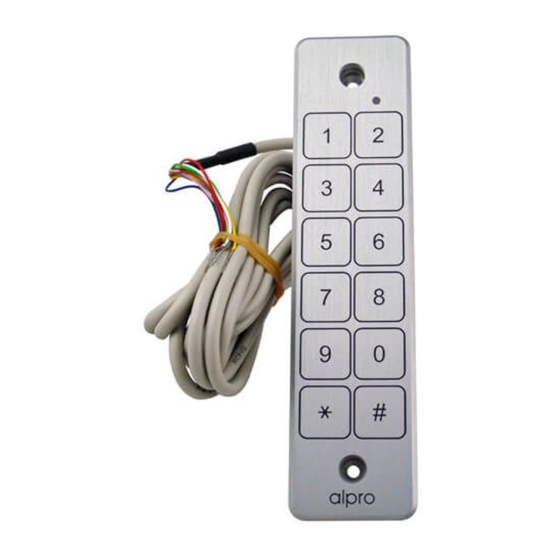

alpro AS626 Installation Instructions

Read all instructions before starting installation
PACK CONTENTS
MOUNTING INSTRUCTIONS
Connect keypad using wiring description.
Wiring description
Power
Brown
Blue
Output Relay
Grey
Red
Exit Button
White/Pink
Power Consumption
For 12vDC inductive loads such as electric strikes and electromagnetic locks,
the enclosed 12vDC metal oxide varistor must be connected in parallel with
the load, at the load terminals and not in the keypad.
Ensure power supply is of correct rating, taking into account the current
requirements of the locking items and accessories.
Do not insert security plugs into fixing holes until all installation and testing has
been completed. These items require drilling out and cannot be re-fitted.
ACTIVATION
LED signalling explanation
GREEN LED Door Strike activated
RED LED Normal Operation:
Programming Mode:
The door remote opening (via exit switch) is possible when a dry contact is
made between the wires White and Orange.
The lock is activated for the time the system is programmed. Factory set @
5 seconds.
Remote opening is disabled during programming and latch mode.
TROUBLE SHOOTING
The keypad does not "respond" when activating the keys.
1. Make sure the electronic unit has been properly wired to the PSU and the
power has not been cut-off.
The keypad "responds" but the door does not open.
1. Make sure the Green LED is illuminated.
2. If not, the entered code has not been programmed yet. Please refer to
"Programming".
3. Enter the Master Code and make sure the door opens correctly. If not,
check the wiring and the Lock's integrity.
12 or 24v AC or DC
(AC does not have a polarity)
+ Positive
- Negative
Max 2amp @ 24v
Common
Selectable – Relay NO or NC (Default is set to NO)
To change see 7 & 8 under 'Programming the Keypad'
Contact 2 Amp. Dry contact for Door Strike
Push to make – Volt free
Exit Button (NO)
Stand by – Approximately 25 milliamps @12vDC
Operation – Approximately 80 milliamps @12vDC
(unlocked)
3 sec. ON = wrong
Code Entry
Slow flashing = wrong code
entry 3 times
Fast flashing = programming
different functions
Slow flashing = programming
stand-by
Very fast flashing = erasing all
user codes
Waterproof Keypad
Connect to + of
Locking Device
Connect to - of
Locking Device
INITIALISATION
Apply power to the keypad. The keypad's buzzer will sound briefly, the
Red LED will illuminate briefly Initialisation is now complete, with a default
master code of 1-2-3-4 and a 5-second open door.
TESTING THE UNIT
Enter the master code [1 2 3 4 #]
The Door Relay changes its contacts for 5 sec.
The Green LED will light up for 5 sec. Repeat this step 2,3 times.
If the master code is wrongly typed in, the Red LED lights up for 3 sec. re-
enter the Code as soon as the LED goes OFF.
IMPORTANT: CHANGE THE FACTORY SET MASTER CODE WHEN YOU PROGRAM
YOUR UNIT FOR USE. THERE IS NO WAY TO RECOVER THE NEW MASTER CODE IF
IT IS LOST OR FORGOTTEN. THE UNIT CAN BE RESET TO FACTORY PRESETS AND
CUSTOMISED AGAIN. See Data Reset
PROGRAMMING THE KEYPAD
Enter 1 2 3 4
H H H H
The keypad enters programming mode, the Red LED flashes
If no further information is added, the unit will revert to normal
operation after a 3 second delay. To exit programming press #.
There are six programming options: -
1. Set new master code
It is suggested the Master Code is not changed until person
programming is familiar with all aspects of programming the keypad!
2. Set new user code
3. Erase a user code
4. Erase all user codes
5. Set door open time (1-99s)
6. Set output to latch option
Continued over...
AS626S
x2
Exit Button
Power Supply
Breakglass
x2
