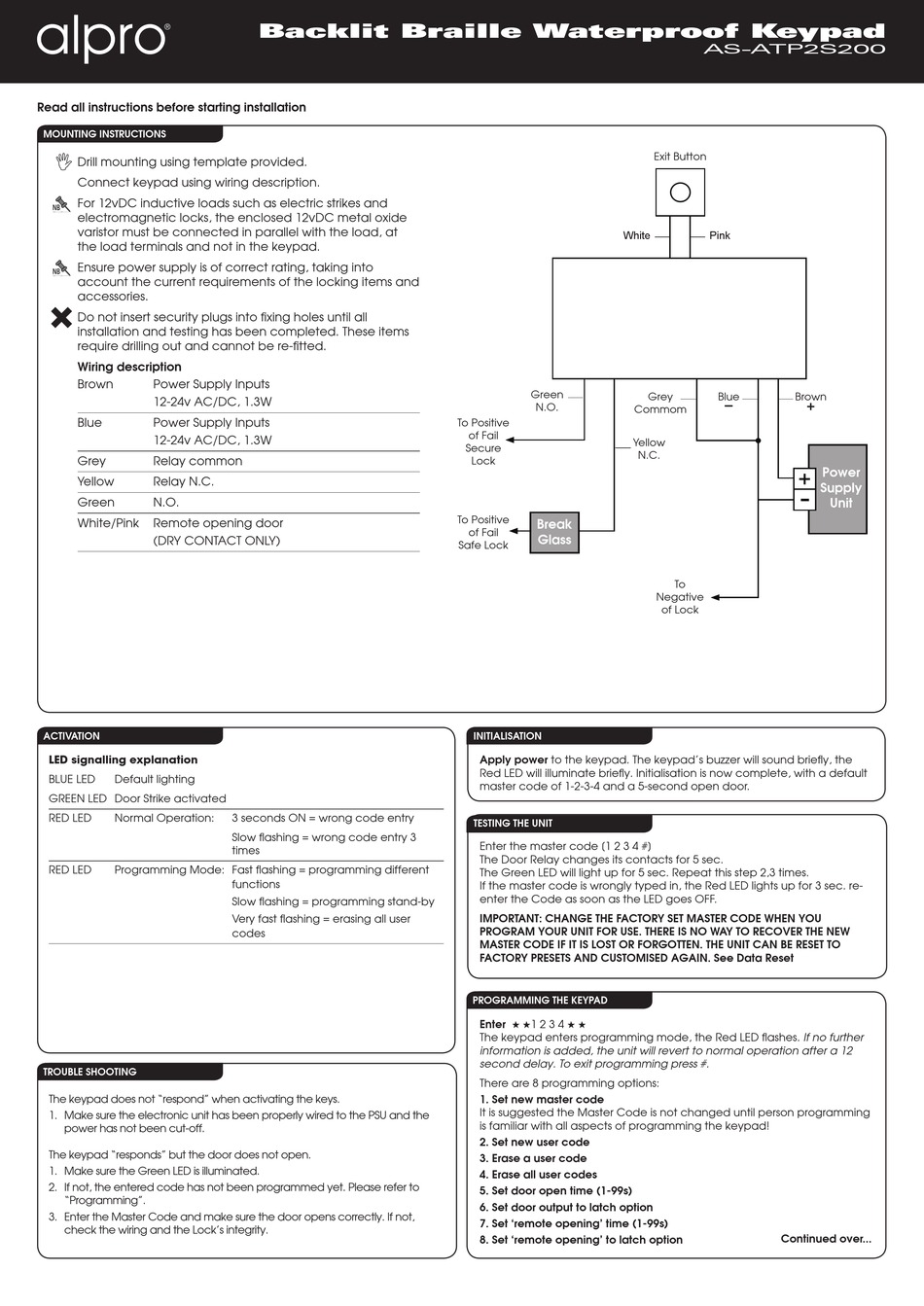

alpro AS-ATP2S200 Instructions

Read all instructions before starting installation
MOUNTING INSTRUCTIONS
Drill mounting using template provided.
Connect keypad using wiring description.
For 12vDC inductive loads such as electric strikes and
electromagnetic locks, the enclosed 12vDC metal oxide
varistor must be connected in parallel with the load, at
the load terminals and not in the keypad.
Ensure power supply is of correct rating, taking into
account the current requirements of the locking items and
accessories.
Do not insert security plugs into fixing holes until all
installation and testing has been completed. These items
require drilling out and cannot be re-fitted.
Wiring description
Brown Power Supply Inputs
12-24v AC/DC, 1.3W
Blue Power Supply Inputs
12-24v AC/DC, 1.3W
Grey Relay common
Yellow Relay N.C.
Green N.O.
White/Pink Remote opening door
(DRY CONTACT ONLY)
ACTIVATION
LED signalling explanation
BLUE LED Default lighting
GREEN LED Door Strike activated
RED LED Normal Operation:
RED LED Programming Mode: Fast flashing = programming different
TROUBLE SHOOTING
The keypad does not "respond" when activating the keys.
1. Make sure the electronic unit has been properly wired to the PSU and the
power has not been cut-off.
The keypad "responds" but the door does not open.
1. Make sure the Green LED is illuminated.
2. If not, the entered code has not been programmed yet. Please refer to
"Programming".
3. Enter the Master Code and make sure the door opens correctly. If not,
check the wiring and the Lock's integrity.
Backlit Braille Waterproof Keypad
3 seconds ON = wrong code entry
Slow flashing = wrong code entry 3
times
functions
Slow flashing = programming stand-by
Very fast flashing = erasing all user
codes
White
Green
N.O.
To Positive
of Fail
Secure
Lock
To Positive
Break
of Fail
Glass
Safe Lock
INITIALISATION
Apply power to the keypad. The keypad's buzzer will sound briefly, the
Red LED will illuminate briefly. Initialisation is now complete, with a default
master code of 1-2-3-4 and a 5-second open door.
TESTING THE UNIT
Enter the master code [1 2 3 4 #]
The Door Relay changes its contacts for 5 sec.
The Green LED will light up for 5 sec. Repeat this step 2,3 times.
If the master code is wrongly typed in, the Red LED lights up for 3 sec. re-
enter the Code as soon as the LED goes OFF.
IMPORTANT: CHANGE THE FACTORY SET MASTER CODE WHEN YOU
PROGRAM YOUR UNIT FOR USE. THERE IS NO WAY TO RECOVER THE NEW
MASTER CODE IF IT IS LOST OR FORGOTTEN. THE UNIT CAN BE RESET TO
FACTORY PRESETS AND CUSTOMISED AGAIN. See Data Reset
PROGRAMMING THE KEYPAD
Enter
1 2 3 4
H H H H
The keypad enters programming mode, the Red LED flashes. If no further
information is added, the unit will revert to normal operation after a 12
second delay. To exit programming press #.
There are 8 programming options:
1. Set new master code
It is suggested the Master Code is not changed until person programming
is familiar with all aspects of programming the keypad!
2. Set new user code
3. Erase a user code
4. Erase all user codes
5. Set door open time (1-99s)
6. Set door output to latch option
7. Set 'remote opening' time (1-99s)
8. Set 'remote opening' to latch option
AS-ATP2S200
Exit Button
Pink
Grey Blue Brown
- +
Commom
Yellow
N.C.
To
Negative
of Lock
Continued over...
Power
Supply
Unit
