OWNER'S OPERATION AND INSTALLATION MANUAL
PFS
®
MF42 MODELS MAY BE USED WITH LMF42-SC LOGS ONLY
US
MF48 MODELS MAY BE USED WITH LMF48-SC LOGS ONLY
DANGER
•
•
•
WARNING: No not store gasoline or other flamable vapors and liquids in the vicinity of
this or any other appliance. An LP-cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
WARNING: Improper installation, adjustment, alteration, service or maintenance can
cause injury or property damage. Read the installation, operating and maintenance instruc-
tions thoroughly before installing or servicing this equipment.
WHEN USED AS INDOOR VENTED APPLIANCE
WARNING: If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

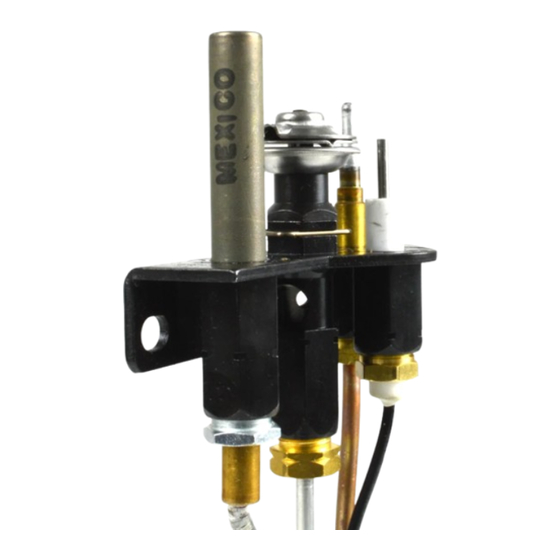

VENTED GAS LOG APPLIANCE
REMOTE-READy LOG SET AND BURNER SySTEM
MF42ONR, MF42OPR, MF48ONR, MF48OPR
WHEN USED AS AN OUTDOOR APPLIANCE
CARBON MONOXIDE
WARNING
This appliance can pro-
duce carbon monoxide
which has no odor.
Using it in an enclosed
space can kill you.
Never use this appliance
in an enclosed space
such as a camper, tent,
car or home.
For more information, visit www.fmiproducts.com
MODELS
WARNING: For Outdoor Use Only.
DANGER
IF YOU SMELL GAS:
1.
Shut off gas to appliance.
2.
Extinguish any open flame.
3.
If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FMI MF42ONR
Summary of Contents for FMI MF42ONR
- Page 1 VENTED GAS LOG APPLIANCE OWNER’S OPERATION AND INSTALLATION MANUAL REMOTE-READy LOG SET AND BURNER SySTEM MODELS MF42ONR, MF42OPR, MF48ONR, MF48OPR ® MF42 MODELS MAY BE USED WITH LMF42-SC LOGS ONLY MF48 MODELS MAY BE USED WITH LMF48-SC LOGS ONLY WHEN USED AS AN OUTDOOR APPLIANCE...
-
