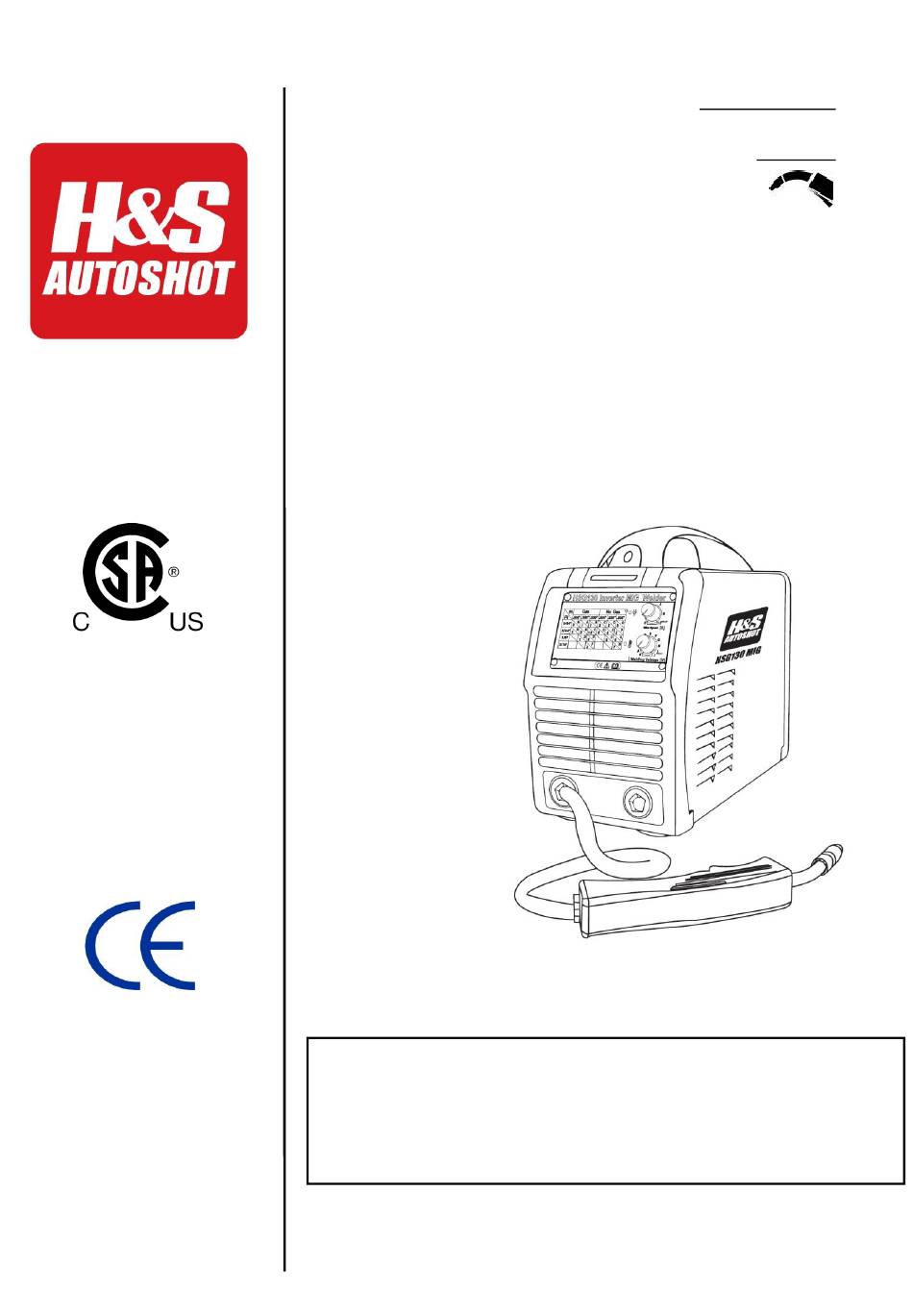

Part # HSW-6213
Processes
MIG/MAG(GTAW) Arc Welding
Flux-Cored (FCAW) Arc Welding
115 VAC 50/60Hz
INVERTER MIG WELDING MACHINE
HSG130
OPERATOR'S MANUAL
IMPORTANT: Read this Owner's Manual Completely before attempting to use this
equipment. Save this manual and keep it handy for quick reference. Pay particular
attention to the safety instructions we have provided for your protection. Contact your
.
distributor if you do not fully understand this manual.
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for H&S AUTOSHOT HSW-6213
Summary of Contents for H&S AUTOSHOT HSW-6213
- Page 1 Part # HSW-6213 Processes MIG/MAG(GTAW) Arc Welding Flux-Cored (FCAW) Arc Welding 115 VAC 50/60Hz INVERTER MIG WELDING MACHINE HSG130 OPERATOR’S MANUAL IMPORTANT: Read this Owner’s Manual Completely before attempting to use this equipment. Save this manual and keep it handy for quick reference. Pay particular attention to the safety instructions we have provided for your protection.
-
Page 2: Table Of Contents
CONTENT §1 SAFETY ..........................1 §1.1 S ......................1 IGNAL XPLANATION §1.2 A ..................... 1 ELDING AMAGE §1.3 T ............5 HE KNOWLEDGE OF LECTRIC AND AGNETIC IELDS §2 OVERIVEW ........................... 7 § 2.1 B ....................... 7 RIEF NTRODUCTION §2.2 W ...................... -
Page 3: Safety
§1 Safety §1.1 Signal Explanation The above signals mean warning! Notice! Running parts and getting an electric shock or thermal parts will take damage for your body or others. The corresponding notices are as follows. It is quite a safe operation after taking several necessary protection measures. §1.2 Arc Welding Damage ... - Page 4 SAFETY touch these “hot” parts with your bare skin or wet clothing. Wear dry, hole-free gloves to insulate hands. In semiautomatic or automatic wire welding, the electrode, electrode reel, welding head, nozzle or semiautomatic welding gun are also electrically “hot”. ...
- Page 5 SAFETY to be used, including the material safety data sheet and follow your employer’s safety practices. ARC RAYS CAN BURN. Use a shield with the proper filter and cover plates to protect your eyes from sparks and the rays of the arc when welding or observing open arc welding. ...
- Page 6 SAFETY prevent hazardous situation. When not welding, make certain no part of the electrode circuit is touching the work or ground. Accidental contact can cause overheating and create a fire hazard. Do not heat, cut or weld tanks, drums or containers until the proper steps have been taken to insure that such procedures will not cause flammable or toxic vapors from substances inside.
- Page 7 SAFETY §1.3 Knowledge of Electric and Magnetic Fields Electric current flowing through any conductor causes localized Electric and Magnetic Fields (EMF). The discussion on the effect of EMF is ongoing all the world. Up to now, no material evidences show that EMF may have effects on health. However, the research on damage of EMF is still ongoing.
-
Page 8: Brief Introduction
OVERVIEW §2 Overview §2.1 Brief Introduction The HSW INVERTER arc welding machine adopts the latest pulse width modulation (PWM) technology and insulated gate bipolar transistor (IGBT) power module, which can change work frequency to medium frequency so as to replace the traditional hulking work frequency transformer with the compact medium frequency transformer. -
Page 9: Working Principle
OVERVIEW §2.2 Working Principle The working principle of HSW SERIES arc welding machine is shown as the following figure. single-phase 110V work frequency AC is rectified into DC（154V）, then is converted to medium frequency AC (about 37KHz) by inverter device (IGBT), after reducing voltage by medium transformer (the main transformer) and rectifying by medium frequency rectifier (fast recovery diodes), and is outputted by inductance filtering. - Page 10 OVERVIEW §2.4Principles of welding...
-
Page 11: Installation And Adjustment
INSTALLATION AND ADJUSTMENT §3 Installation and Adjustment §3.1 Parameters Model HSG130(115V) Parameters Input Voltage 1~110/115±10% （V） Input Current 43 (max.) （A） Input Power （KW） Welding 35~140 Current（A） No-load Voltage（V） Duty cycle 20%130A （40℃） 100%70A Diameter(mm) Fe：0.6/0.8 SS: 0.6/0.8 Flux-Cored：0.6/0.8/0.9 Protection IP23 class Insulation... -
Page 12: Equipment Connection
INSTALLATION AND ADJUSTMENT §3.3 Equipment Connection Operation Steps： 1. Connect the power cord of welding machine to electric outlet with the NEMA5-15P. 2. Connect input shield gas hose from regulator to input fitting on back of machine. 3. Connect the negative (-) cable clamp to the work piece (base metal). 4. -
Page 13: Operation
OPERATION §4 Operation §4.1 Layout for the front and rear panel 1. Alarm Led: Illuminated in over or under LINE voltage or over heated condition. 2. Power Led: Power led is illuminated when LINE power is in machine. 3. Wire speed knob: Adjusts the feeder speed of the welding wire. 4. -
Page 14: Welding Operation
OPERATION §4.2 Welding Operation §4.2.1 Output Voltage Setting (V) SELECT “Gas” or “No Gas” chart. Follow welding wire diameter (installed in machine) down the chart to the material thickness to be welder and SET VOLTAGE “V”. §4.2.2 Wire Speed Setting SELECT “Gas”... -
Page 15: Maintenance & Troubleshooting
THANK YOU FOR USING OUR PRODUCTS s§5 Maintenance & Troubleshooting §5.1 Maintenance In order to guarantee that arc welding machine works high-efficiently and in safety, it must be maintained regularly. Let customers understand the maintenance methods and means of arc welding machine more , enable customers to carry on simple examination and safeguarding by oneself, try one's best to reduce the fault rate and repair times of arc welding machine, so as to lengthen service life of arc welding machine .Maintenance items in detail are in the following... -
Page 16: Troubleshooting
THANK YOU FOR USING OUR PRODUCTS §5.2 Troubleshooting ⚫ All welding machines have undergone 100% inspection before leaving the factory. ⚫ Disconnect power cord from LINE before any trouble shooting and only professional maintenance personal should perform any action on the machine! Item Trouble Reasons... - Page 17 THANK YOU FOR USING OUR PRODUCTS §5.3 Replacement Exploded Parts Drawing...
- Page 18 THANK YOU FOR USING OUR PRODUCTS §5.4 MIG Gun Exploded Parts...
- Page 19 THANK YOU FOR USING OUR PRODUCTS §5.5 Electrical Schematic Drawing HSG130 (115VAC input)
