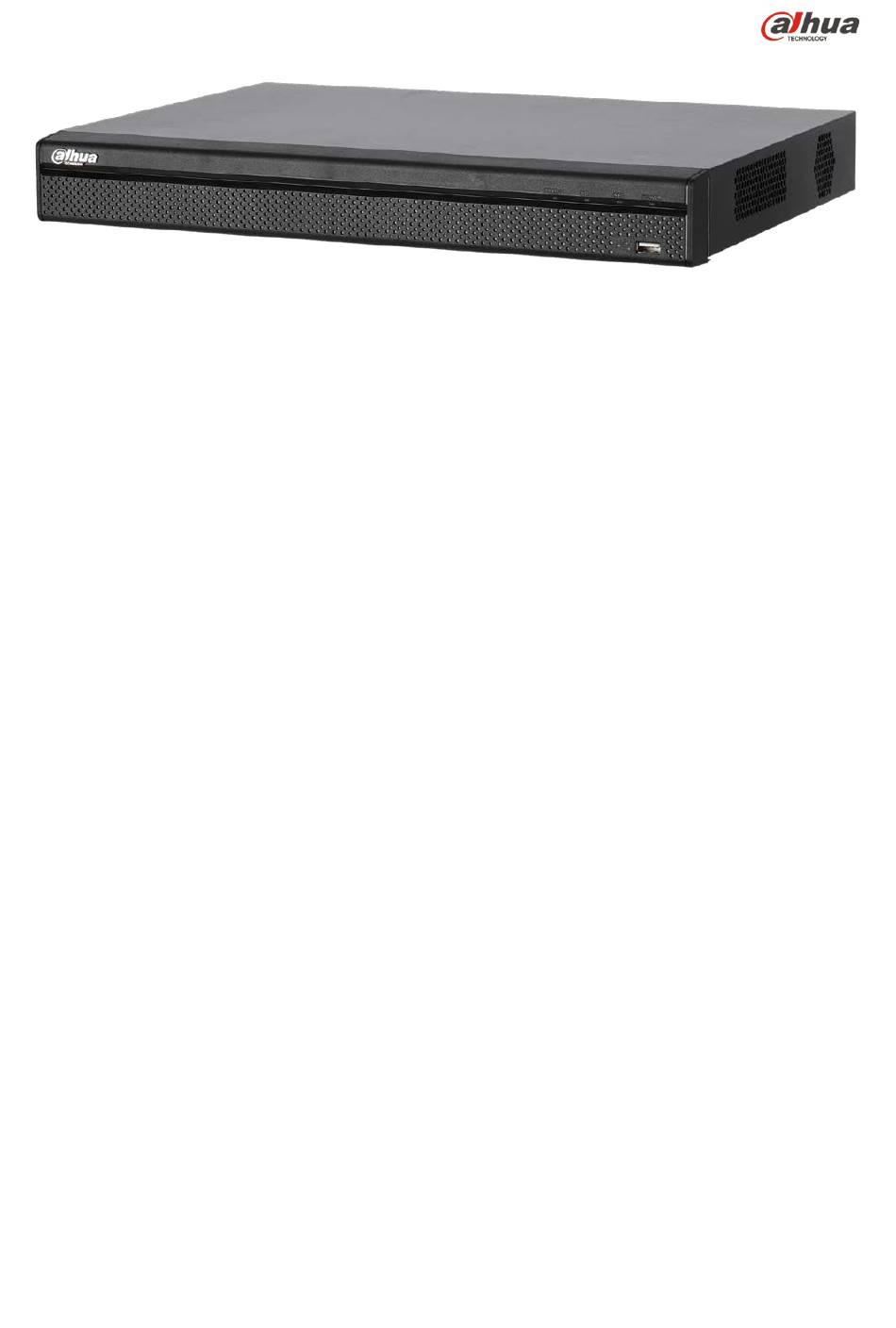

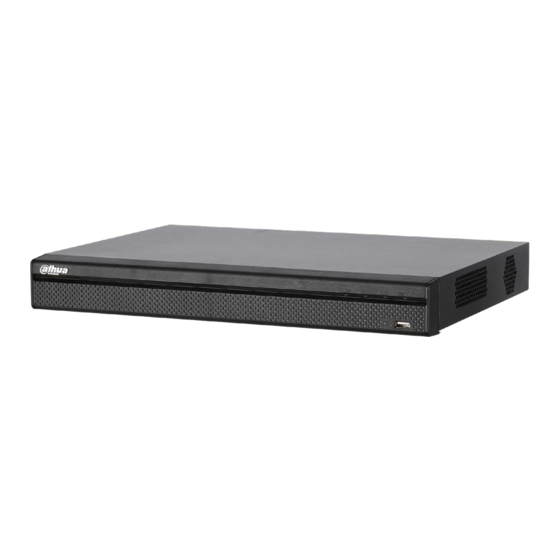

- Page 1 16-Channel 1080p 1.5U HDCVI Digital Video Recorder X34A3L Quick Start Guide Version 1.0.1 Dahua Technology USA Inc.
-
Page 2: Table Of Contents
Table of Contents Welcome........................1 Important Safeguards and Warnings ..............1 Electrical safety ....................1 Environmental Precautions ................2 Operation and Daily Maintenance ..............2 Warnings ......................2 FCC Information ....................3 FCC compliance： .................... 3 Legal Notices ....................3 Copyright ...................... -
Page 3: Welcome
Ensure a service technician uses replacement parts specified by the manufacturer, or that have the same characteristics as the original parts. Unauthorized parts may cause fire, electrical shock, or other hazards. Dahua is not liable for any damage or harm caused by unauthorized modifications or repairs. -
Page 4: Environmental Precautions
Incorporate a readily accessible disconnect device in the building installation wiring for quick power disconnect to the unit. • Dahua assumes no liability or responsibility for any fire or electrical shock caused by improper handling or installation. Environmental Precautions •... -
Page 5: Fcc Information
1.3 Legal Notices Copyright This user guide is ©2017, Dahua Technology Company, LTD. This user guide is the intellectual property of Dahua Technology Company, LTD and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly. -
Page 6: Unpacking
2 Unpacking This equipment should be unpacked and handled with care. If an item appears to have sustained damage during shipping, notify the shipper immediately. Verify that all the parts are included. If an item is missing, contact customer support or your local representative. -
Page 7: Dvr Components
3 DVR Components Check the label on the bottom of the DVR and note the model number and the power requirements for this DVR. The label on the rear panel lists the serial number for the DVR. Please provide this serial number when requesting information or service for this device. -
Page 8: Installing The Hard Drive
4 Installing the Hard Drive The DVR contains four (4) SATA ports that can each accommodate an 8 TB HDD rated at 7200 RPM or higher. The installation requires a Phillips-head screwdriver. 1. Shut down the device and then unplug the power cable before you open the case to add or to replace the HDD. - Page 9 5 Rack Installation This DVR occupies 1.5 units of vertical rack space. Use the following guidelines when mounting the DVR to a rack: • Use 12 screws to attach the DVR to the rack. • Ensure the indoor temperature is below 35 °C (95 °F) where the DVR is installed. •...
-
Page 10: Dvr Setup
