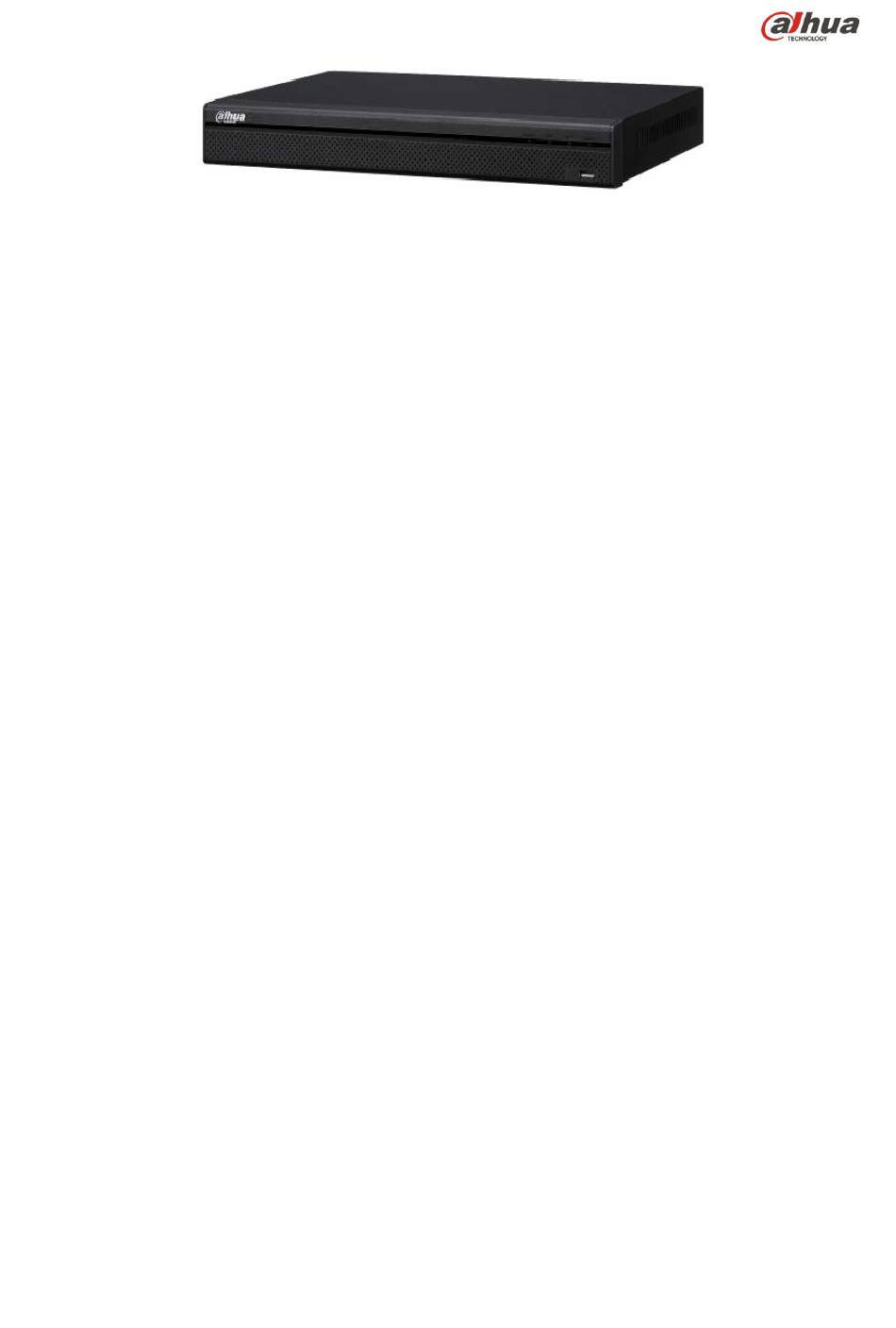

- Page 1 Penta-brid 1080p 1U Digital Video Recorder X32A1A/X32A2A/X32A3A Quick Start Guide Version 1.0.1 Dahua Technology USA Inc.
-
Page 2: Table Of Contents
Table of Contents Welcome........................1 Important Safeguards and Warnings..............1 Electrical safety ....................1 Environmental Precautions ................2 Operation and Daily Maintenance ..............2 Warnings ......................2 FCC Information ....................3 FCC compliance： .................... 3 Legal Notices ....................3 Copyright ......................3 Trademarks ....................... -
Page 3: Welcome
Ensure a service technician uses replacement parts specified by the manufacturer, or that have the same characteristics as the original parts. Unauthorized parts may cause fire, electrical shock, or other hazards. Dahua is not liable for any damage or harm caused by unauthorized modifications or repairs. -
Page 4: Environmental Precautions
• Dahua assumes no liability or responsibility for any fire or electrical shock caused by improper handling or installation. Environmental Precautions • Transport, use, and store the unit within the specified temperature and humidity range. • Do not place the unit in a wet, dusty, extremely hot or an extremely cold environment; and avoid environments with strong electromagnetic radiation or unstable lighting. -
Page 5: Fcc Information
1.3 Legal Notices Copyright This user guide is ©2016, Dahua Technology Company, LTD. This user guide is the intellectual property of Dahua Technology Company, LTD and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly. -
Page 6: Unpacking
2 Unpacking This equipment should be unpacked and handled with care. If an item appears to have sustained damage during shipping, notify the shipper immediately. Verify that all the parts are included. If an item is missing, contact customer support or your local representative. -
Page 7: Dvr Components
USB 2.0 port CD/DVD burner). 3.2 Rear Panel The figure below depicts the DVR rear panel for the 4-, 8-, and 16-channel units (image for reference only). X32A1A 4 + 2 Channel DVR Figure 3-2 Name Name Name Analog Video Input (x4) - Page 8 X32A2A 8 + 4 Channel DVR Figure 3-3 Name Name Name Analog Video Input (x8) RS485 Port (A/B) VGA Output Audio Output USB Port Alarm Input/Output HDMI Port DC12V Input On/Off Button RJ-45 Port (1000 M) Audio Input (x4) X32A3A 16 + 8 Channel DVR Figure 3-4 Name Name...
-
Page 9: Installing The Hard Drive
4 Installing the Hard Drive The Wi-Fi DVR uses one (1) SATA III Port that can accommodate a 6 TB HDD rated at 7200 RPM or higher. The installation requires a Phillips-head screwdriver. 1. Shut down the device and then unplug the power cable before you open the case to replace the HDD 2. -
Page 10: Dvr Setup
5 DVR Setup 5.1 Making Connections 1. Determine where you will install your system. 2. Connect the mouse to the USB port on the rear panel. 3. (Optional) Connect a network cable to the DVR and to a router or a modem. 4. -
Page 11: Accessing The Dvr Via The Web
6 Accessing the DVR via the Web The DVR can be accessed directly from the Internet Explorer Web browser. The Web Interface allows you to set parameters, configure inputs and outputs, set recording options, view live camera images, and review recorded video. Note: Different devices may have different Web interfaces, the figures below are for reference only, and may not represent the Web Interface for your device. - Page 12 Dahua Technology USA Inc. 23 Hubble, Irvine, CA 92618 Tel: (949) 679-7777 Fax: (949) 679-5760 Email: sales.usa@global.dahuatech.com Rev 001.001 © 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice.
