Tube Works 924 Owner's Manual

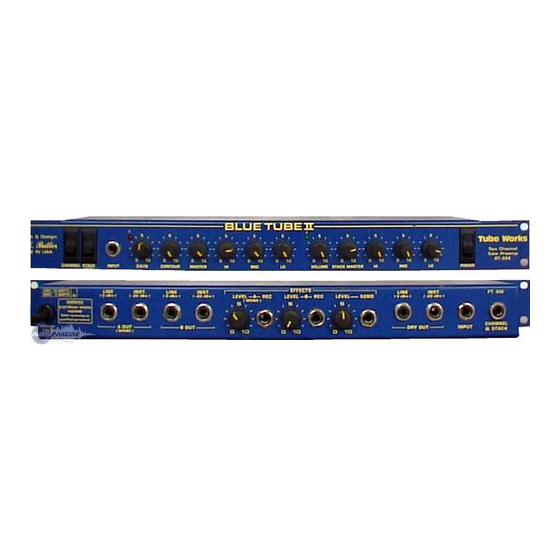

Tube preamp rack

™

Blue Tube

II Rack

OWNER'S MANUAL

We thank you for your purchase of the most versatile and best designed tube preamp rack on

the market. We are confident this product will meet your desires to acquire the Real "TUBE"

sound.

TAKE TIME TO KNOW THE "RACK"

The rack is a very versatile unit. Please take the necessary time to look over this manual and

become familiar with the basic layout of controls as well as the unique features. Take time and

let your ears guide you through the tonal possibilities. The EQ sections have been carefully op-

timized for current and classic playing styles and have an extremely wide range of control. It is

possible that you may be just a "tweak" away from your desired sound, so be patient and jot

down the settings that you prefer most. Also become fully aware of the several mode combina-

tions possible with the two channels plus the channel stacking feature.

APPLICATIONS OVERVIEW

The Blue Tube II Rack is a two-channel tube pre-amp designed for both bass and guitar appli-

cations. The wide input range of channel 2 allows it to remain clean even with high transient

inputs. The stereo effects loop and adjustable send and receive levels aid greatly in achieving

proper signal level and signal to, noise ratio regardless of the effect used. This unit can be

used with either basic power amplifiers or combo (instrument level) amplifiers. We strongly rec-

ommend that you audition this preamp with our MosValve power amplifier, as this combination

will Insure optimum tone and performance.

-1-

Table of Contents

Do you have a question about the 924 and is the answer not in the manual?

Page 1: Applications Overview
APPLICATIONS OVERVIEW The Blue Tube II Rack is a two-channel tube pre-amp designed for both bass and guitar appli- cations. The wide input range of channel 2 allows it to remain clean even with high transient inputs.
Page 2 FRONT PANEL CONTROLS CHANNEL SWITCH — Switches between channel 1 and 2. This switch is overridden when a footswitch line is connected to the channel jack on the rear panel. STACK SWITCH — Switches the unit in and out of the “Stack” mode. BOTH Green and Red LEDs light in this mode.
Page 3 EFFECTS RECEIVE JACK (Ch B) — Effects receive jack for Ch B. NOTE: True Stereo opera- tion is obtained when using a stereo or “panning” effects device plugged into both A & B Ef- fects Receive Jacks. Stereo outputs A & B (both line and instrument level) can then be routed to either a stereo power amp, or two separate combo amps, etc.
Page 4 This warranty covers parts and labor only; shipping charges remain the sole responsibility of the owner. Damage due to misuse, modification or abuse is excluded from this warranty. If service is required, you must contact Genz Benz Enclosures/Tube Works for a RETURN MERCHANDISE AUTHORIZATION NUMBER (RMA) by calling 480-941-0705. Whenever possible please use original packaging material for all returns, this will insure that the units are not further damaged in transit.
