EN Installation, Operation and Maintenance Instructions
FR Instructions d'installation, d'utilisation et d'entretien
ES Instrucciones de instalación, operación y mantenimiento
Note: Wine Cellars are designed exclusively for the
storage of wine. Wine Cellars cannot attain storage
temperatures suitable for fresh food storage.
Remarque : Les celliers sont conçues exclusivement
pour y garder des vins. Elles ne peuvent pas atteindre des
températures de conservation convenant à l'entreposage
d'aliments frais.
Nota:
Estas bodegas están diseñadas exclusivamente
para el almacenamiento de vino. Las bodegas para vinos
no pueden alcanzar las temperaturas adecuadas para el
almacenamiento de alimentos frescos.

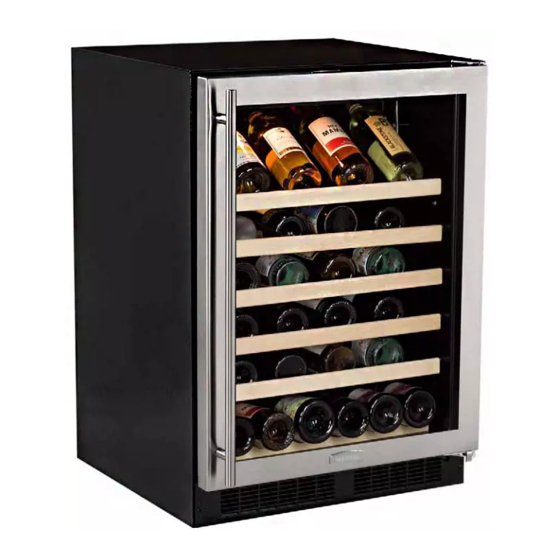

Wine Cellars
Celliers
Bodegas para vinos
ML15WS
ML24WS
ML24WD
Advertisement
Table of Contents
Related Manuals for AGA marvel ML15WS
Summary of Contents for AGA marvel ML15WS
- Page 1 FR Instructions d’installation, d’utilisation et d’entretien ES Instrucciones de instalación, operación y mantenimiento Wine Cellars Celliers Bodegas para vinos ML15WS ML24WS ML24WD Note: Wine Cellars are designed exclusively for the storage of wine. Wine Cellars cannot attain storage temperatures suitable for fresh food storage.
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions Contents: Warnings and safety instructions appearing in this guide Safety information ...............2 are not meant to cover all possible conditions and situa- Unpacking your appliance ..........3 tions that may occur. Common sense, caution, and care Warranty registration .............3 must be exercised when installing, maintaining, or operat- Installing your appliance ............4 ing this appliance. -
Page 3: Unpacking Your Appliance
UNPACKING YOUR APPLIANCE Warranty Registration WARNING It is important you send in your warranty registration card immediately after taking delivery of your appliance or you can register online at www.agamarvel.com. EXCESSIVE WEIGHT HAZARD Use two or more people to move product. Failure to do so can result in personal injury. -
Page 4: Installing Your Appliance
For this reason it is important this area not be obstructed and the grille openings kept clean. AGA MARVEL does not recommend the use of a custom made grille as air flow may be restrict-... -
Page 5: Electrical Connection
INSTALLING YOUR APPLIANCE WARNING Electrical Shock Hazard • Do not use an extension cord with this appliance. They can be hazardous and can degrade product performance. • This appliance should not, under any circumstanc- es, be installed to an un-grounded electrical supply. •... -
Page 6: Installing The Anti-Tip Device
INSTALLING THE ANTI TIP DEVICE Anti-Tip WARNING Bracket Leveling Leg • ALL APPLIANCES CAN TIP RESULTING IN INJURY. • INSTALL THE ANTI-TIP Bottom View of ⁄ " BRACKET PACKED WITH Wine Cellar (54.6 cm) THE APPLIANCE. • FOLLOW THE INSTRUC- TIONS BELOW Front of cabinet Anti-Tip Device... - Page 7 INSTALLING THE ANTI TIP DEVICE WARNING TIP OVER HAZARD: One of the rear cabinet leveling legs must be engaged under an anti-tip bracket. NOTE When the floor mounted anti-tip bracket is used the mini- mum adjusted height of the cabinet is increased by ⁄...
-
Page 8: Product Dimensions
⁄ " ⁄ " 34" to 35" ⁄ " ⁄ " ⁄ " ML15WS(P) or (F) (38.1 cm) (87 to 89.5 cm) (37.8 cm) (86.4 to 88.9 cm) (58.1 cm) (95.2 cm) 35.9 cm) 24" **34" to 35" ⁄ "... - Page 9 PRODUCT DIMENSIONS PRODUCT DATA ELECTRICAL PRODUCT MODEL REQUIREMENTS # WEIGHT 105 lbs ML15WSG 115V/60Hz/15A (47.7 kg) 105 lbs ML15WS(P) or (F) 115V/60Hz/15A (47.7 kg) 140 lbs ML24W*G 115V/60Hz/15A (63.6 kg) 140 lbs ML24W*(P) or (F) 115V/60Hz/15A (63.6 kg) "J" "H"...
-
Page 10: Using Your Electronic Control
USING YOUR ELECTRONIC CONTROL Upper/Lower Lights keypad Temp zones Temp (glass door System Status Minus On/Off Plus (Dual Zone Lock indicators keypad keypad keypad models only) Display Area only) keypad Figure 9 Electronic control To wake the display press any keypad. A confirm tone will sound, and the current storage compartment temperature will be displayed. -
Page 11: Adjusting The Temperature
USING YOUR ELECTRONIC CONTROL Adjusting the temperature: Lower zone Upper zone selected selected NOTE When initially loading your product with warm contents, it Dual Zone Models: may take up to 48-hours for the storage compartment tem- Temperatures can be set for each individual zone (upper perature to stabilize. -
Page 12: Temperature Mode
USING YOUR ELECTRONIC CONTROL Power Failure ALARM RESET Temperature mode (Single and Dual Zone): • Power failure - If power to the appliance is inter- The temperature mode is preset from the factory in Fahren- rupted the System Status indicator will turn-off and heit (°F) but you have the option to change it to Centigrade the "Power Failure"... -
Page 13: Vacation Mode
USING YOUR ELECTRONIC CONTROL Vacation mode (Single and Dual Zone): This operating mode can be used to save energy during high cost energy periods, or when you won't be using your appliance for an extended period of time by disabling the lights, alarm tones, and keypad entry tones. -
Page 14: Overlay Door Panel Installation
OVERLAY DOOR PANEL INSTALLATION If you purchased an overlay panel model, your unit is WARNING equipped with articulated hinges to allow fully integrated built-in installations. Custom panel thicknesses of ⁄ " (15 mm) and ⁄ " (18 mm) are accommodated. Use extreme caution with the articulated hinges. - Page 15 OVERLAY DOOR PANEL INSTALLATION Press and hold down this tab on the wire connector Clearance for and pull the connector apart. screw head, 4 places Figure 11 Figure 13 Left Hand Hinged Door 15" (38.1 cm) wide appliance Overlay panel flush with top and side of door.
- Page 16 OVERLAY DOOR PANEL INSTALLATION Clearance for CAUTION screw head, 4 places Clearance for screw head, Weight of overlay door panel must not 4 places exceed 15 pounds (6.8 kg) for a solid door model or 10 pounds (4.5 kg) for a glass door model.
- Page 17 OVERLAY DOOR PANEL INSTALLATION Clearance CAUTION for hinge Clearance for at top and screw head, bottom Weight of overlay door panel must not exceed 15 4 places pounds (6.8 kg) for a solid door model or 10 pounds (4.5 kg) for a glass door model. Material Type #10 Wood Screw Hardwood...
-
Page 18: Shelving Configurations
OVERLAY DOOR PANEL INSTALLATION AND SHELVING CONFIGURATIONS Step 5: Install the door Loading Tips and Suggestions Carefully open the top and bottom hinges on the door being Your appliance is equipped with a rollout shelf system careful as there are many pinch points. Place the hinges which provides maximum access and visibility for the prod- over the 4 screws in the cabinet, 2 at the top and 2 at the uct stored on the shelving arrangements listed below. - Page 19 SHELVING CONFIGURATIONS Figure 27 Dual Zone Wine Cellar: 24" (61 cm) Wide models: Figure 25 Upper Zone: (3) 8 bottle tray shelf with vibration dampening mat Single Zone Wine Cellar: Lower Zone: (1) 8 bottle tray shelf with vibration dampening mat 24"...
-
Page 20: Care And Cleaning
CARE AND CLEANING AND ENERGY SAVING TIPS The following suggestions will minimize the Front Grille cost of operating your refrigeration appliance. Be sure that nothing obstructs the required air flow open- ings in front of the cabinet. At least once or twice a year, brush or vacuum lint and dirt from the front grille area (see 1. -
Page 21: Door Alignment
If the product is within the first year warranty period models: please contact your dealer or call AGA MARVEL Cus- The door should be parallel to the sides and top of the ap- tomer Service at 800.223.3900 for directions on how to pliance. -
Page 22: Troubleshooting
TROUBLESHOOTING Before You Call for Service WARNING If the appliance appears to be malfunctioning, read through this manual first. If the problem persists, check the trouble- shooting guide below. Locate the problem in the guide and Electrocution Hazard refer to the cause and its remedy before calling for service. •... -
Page 23: Warranty
Limited One Year Parts and Labor Warranty Not Supplied or Designated by AGA MARVEL AGA MARVEL warrants that it will supply all necessary The above warranties also do not apply if: parts and labor to repair or replace in the end user’s home or office, any component which proves to be defective •... - Page 24 www.agamarvel.com 1260 E. VanDeinse St. Greenville MI 48838 800.223.3900 41013358-EN Rev E All specifications and product designs subject to change without notice. Such revisions do not 11/5/14 entitle the buyer to corresponding changes, improvements, additions, replacements or compensa- tion for previously purchased products.
