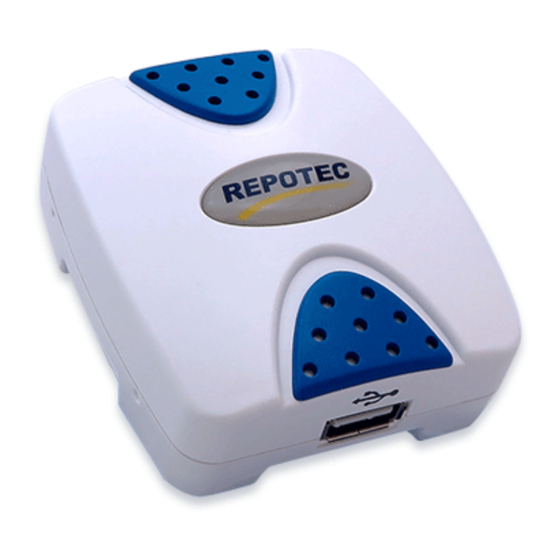

Repotec RP-UB2801A Quick Installation Manual

Hide thumbs Also See for RP-UB2801A:

Advertisement

Quick Links

Download this manual
1-Port Wired Print Server
Quick Installation Guide
V1.3
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the RP-UB2801A and is the answer not in the manual?

Questions and answers

Related Manuals for Repotec RP-UB2801A

Summary of Contents for Repotec RP-UB2801A

  • Page 1 1-Port Wired Print Server Quick Installation Guide V1.3...
  • Page 2 Before you start, you should prepare the following items: One Windows-based PC with print server setup CD One printer One printer cable One HUB Wired Network with Print Server: Print Server Printer Computer Computer Computer Hardware Installation: Turn off the printer’s power. Connect the print server to your printer with the supplied printer cable.
  • Page 3 Note: For setup wizard under Windows Vista, you have to choose the Run as administrator by right-click the icon on desktop. Choose Setup Wizard to install the print server and configure the connected printer.
  • Page 4 Click Next, the wizard will automatically discover the print server. From the Select A Print Server screen, select the print server that you want to configure and click Next.
  • Page 5 On the Change Settings screen, select No or Yes:...
  • Page 6 Click No if you want the print server to keep using the default IP address and keep the default settings, and then click Next. IP address: 192.168.0.10 Subnet Mask: 255.255.255.0 Click Yes if you want to change IP address to the print server, and then click Next. Note: 1.
  • Page 7 installed before and does not appear in the list. Click Add New Printer to launch Windows Add Printer Wizard.
  • Page 8 Click Next and select Local Printer, make sure the Automatically detect and install my Plug and Play printer check box is NOT checked. Then click Next. 10. Make sure the Use the following port radio-button is clicked and select LPT1: (Recommended Printer Port) from the pull-down list.
  • Page 9 11. Select Manufacturer and Printer from the lists of printer’s driver. Then click Next. 12. If you already have the printer’s driver installed, you will be asked whether to keep it or to replace it. Click Next. Supply a name for the printer and choose whether you want to make it your default printer.
  • Page 10 13. Then, choose whether you want to share the printer with other network users, print a test page (please select No.), etc. Select the appropriate radio-button and click Next and Finish. 14. In the setup wizard, finish the installation by highlighting the installed printer in the Select a Printer list and click Next ->...
  • Page 11 16. Right-click, select Properties -> Ports and verify that the print server’s port appears. 17. Go to General; click Print Test Page to verify the configuration.
  • Page 12 18. Done. Note: If you wish to install more print servers, start setup wizard from your Windows Start menu: start -> All Programs -> Network Print Server -> PSWizard and repeat the installation procedure. All contents are subject to change without prior notice. PS1P V1.3...
