Summary of Contents for Bosch SMD6TCX00E

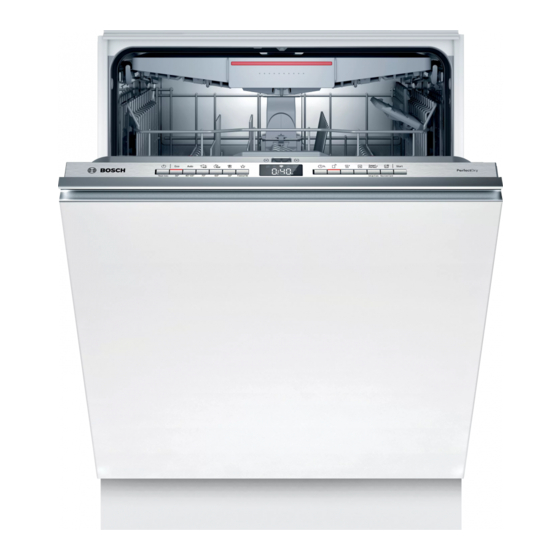

- Page 1 Dishwasher SMD6TCX00E [en] Information for Use Connect Get the app Scan QR code your dishwasher with Home Google Play and the Google Play logo are trademarks of Google Connect today! LLC. Apple and the Apple logo are trademarks of Apple Inc.
-
Page 2: Table Of Contents
Futher information and explanations are available online: Table of contents 1 Safety .......... 4 7 Programmes ....... 18 1.1 General information.... 4 7.1 Information for test institutes .. 19 1.2 Intended use....... 4 7.2 Favourite ...... 19 1.3 Restriction on user group... 4 8 Additional functions .... - Page 3 13.3 Information on detergents .. 28 20.3 Transporting the appliance .. 51 13.4 Adding detergent.... 28 20.4 Disposing of old appliance .. 51 14 Tableware ......... 29 21 Customer Service..... 51 14.1 Damage to glass and table- 21.1 Product number (E-Nr.), ware........ 30 production number (FD) and consecutive numbering 14.2 Arrange tableware .... 30...
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... - Page 5 Safety en WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing.
-
Page 6: Safe Use
en Safety Contact between the appliance and installation lines may lead to a defect in these lines, e.g. gas pipes and power lines. Gas from a corroded gas pipe can ignite. A damaged power line can cause a short circuit. ▶ Check that there is a distance of at least 5 cm between the ap- pliance and installation lines. - Page 7 Safety en Highly caustic alkaline or highly acidic cleaning agents in conjunc- tion with aluminium parts in the interior of the appliance may cause explosions. ▶ Never use highly caustic alkaline or highly acidic cleaning agents, in particular commercial or industrial products, in con- junction with aluminium parts (e.g.
-
Page 8: Damaged Appliance
en Safety WARNING ‒ Risk of burns! The blow opening of the Zeolith container becomes hot and can cause burns. ▶ Never touch the blow opening of the Zeolith container. 1.6 Damaged appliance WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. ▶... -
Page 9: Safety Systems
Safety en ▶ Never let children play with or operate the appliance. WARNING ‒ Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk. ▶ With redundant appliances, unplug the power cord. Then cut through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close. -
Page 10: Preventing Material Damage
en Preventing Modified or damaged water hoses Preventing 2 Preventing material may result in material damage and damage to the appliance. damage Never kink, crush, modify or cut ▶ through water hoses. Preventing 2.1 Safe installation Only use the water hoses supplied ▶ with the appliance or genuine ATTENTION! spare hoses. -
Page 11: Childproof Lock
Childproof lock en So as not to scratch the finish on ▶ 4 Environmental protec- the appliance, do not use sponges with a rough surface or abrasive tion and saving energy cleaning agents. To prevent corrosion, do not use ▶ sponge cloths on dishwashers with 4.1 Disposing of packaging a stainless steel front or rinse such The packaging materials are environ-... -
Page 12: Efficient Dry
en Installation and connection During dishwashing heat energy is 5 Installation and con- used to heat up the washing water and dry the mineral. nection During the drying phase moisture from the interior of the dishwasher is To ensure proper operation, connect stored in the mineral and heat energy the appliance to the power and water is released. -
Page 13: Drainage Connection
Installation and connection en installing it under a continuous work- 5.4 Drinking water connec- top that is securely connected to ad- tion jacent cabinets. Follow the safety instructions. Connect your appliance to a drinking → Page 4 water connection. Follow the instructions for electrical Installing the drinking water connection. -
Page 14: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance 6 Familiarising yourself with your appliance 6.1 Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with E number and FD num- ber → Page 52. The data you need for Customer Service → Page 51. - Page 15 Familiarising yourself with your appliance en Detergent dispenser Detergent is added to the detergent dis- penser. Bottom basket Bottom basket → Page 22 Dispenser for special salt Add special salt to the dispenser for spe- cial salt. → "Water softening system", Page 23 Lower spray arm The lower spray arm washes the table- ware in the bottom basket.
-
Page 16: Controls
en Familiarising yourself with your appliance 6.2 Controls You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions. 3 4 5 6 ON/OFF button and reset Switching on the appliance button... - Page 17 Familiarising yourself with your appliance en button If you press for approx. 3 seconds, you can open the basic set- tings. → "Changing basic settings", Page 37 Remote Start → "Remote Start ", Page 38 Timer programming Setting timer programming → Page 32 Door handle Open the appliance door. → Page 31 Display The display shows information about the remaining running time or the ba-...
- Page 18 en Programmes 7 Programmes You can find an overview of the pro- ted. The running time will change if grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending...
-
Page 19: Information For Test Institutes
Programmes en Programme Programme se- quence Tableware: Time-optimised: ¡ Mixed tableware and cutlery ¡ Cleaning 60 °C Express 60° Level of soiling: ¡ Intermediate rinse ¡ Common household food rem- ¡ Final rinse 50 °C nants lightly dried on ¡ Dry Use only if appliance is unloaded. Machine Care 70 °C Machine Care → "Favourite ", Page 19... -
Page 20: Features
en Additional functions 8 Additional functions You can find an overview of the additional functions that can be selected here. Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration. You can se- lect certain additional functions depending on the programme. -
Page 21: Top Basket
Features en Raise or lower the basket evenly to 9.1 Top basket the right level. Arrange cups, glasses and small items of tableware in the top basket. Check that the basket is level on both sides. Release the levers. You can adjust the height of the top a The basket clicks into position. -
Page 22: Bottom Basket
en Features 9.3 Bottom basket 9.4 Folding prongs Arrange pans and plates in the bot- Use the folding prongs to position tom basket. tableware securely, e.g. plates. Large plates up to a diameter of You can fold the prongs down to po- 31 cm can be arranged in the bottom sition pans, bowls and glasses basket as shown. -
Page 23: Cutlery Drawer
first time en Add special salt. → Page 24 9.5 Cutlery drawer Add rinse aid. → Page 26 Arrange cutlery in the cutlery drawer. Switch on the appliance. → Page 32 Setting the water softening system. → Page 24 Set the amount of rinse aid to be dispensed. → Page 26 Add detergent → Page 27. Start the Programme with the highest cleaning temperature without tableware. -
Page 24: Setting The Water Softening System
en Water softening system Water hardness Hardness range mmol/l Setting value °E 0 - 8 Soft 0 - 1.1 9 - 10 Soft 1.2 - 1.4 11 - 12 Medium 1.5 - 1.8 13 - 15 Medium 1.9 - 2.1 16 - 20 Medium 2.2 - 2.9 21 - 26... -
Page 25: Switching Off The Water Softening System
Water softening system en Note: Only use special salt for ¡ The water hardness is 0 - 8 °E. dishwashers. You do not need to use special Do not use salt tablets. salt. Do not use table salt. Press . Add the special salt to the dis- To open the basic settings, press penser. -
Page 26: Rinse Aid System
en Rinse aid system Add rinse aid up to the max mark. Additional power consump- 0.05 tion in kWh The consumption values specified are laboratory measurements determ- ined in accordance with the currently applicable standard using the Eco 50° programme and with the factory value of the water hardness set to 16 - 20 °E. -
Page 27: Switching The Rinse Aid System Off
Detergent en To save the settings, press starch and remove protein. Oxygen- for 3 seconds. based bleaching agents are generally used to remove coloured marks, e.g. tea or ketchup. 12.3 Switching the rinse aid system off Note: Follow the manufacturer's in- structions for each detergent. If you find the rinse aid refill indicator Tip: Suitable detergents are available irritating, e.g. -
Page 28: Unsuitable Detergents
en Detergent With powder and liquid detergent the 13.3 Information on deter- dosage can be individually adjusted gents to the level of soiling of the table- ware. Follow the instructions on detergents For better washing and drying results in everyday use. and to avoid damage to the appli- ¡... - Page 29 Tableware en Add the detergent to the dry deter- Close the lid of the detergent dis- gent dispenser. penser. 50 ml 25 ml 15 ml If you are using tablets, one is a The lid clicks into position. enough. Insert the tablets in a hori- a The detergent dispenser will open zontal position.
-
Page 30: Tableware
en Tableware 14.1 Damage to glass and Cause Recommenda- tion tableware Highly caustic al- If you are using Only put glasses and china in the kaline or highly highly caustic al- dishwasher if it is marked as dish- acidic cleaning kaline or highly washer-safe by the manufacturer. -
Page 31: Removing Tableware
operation en ¡ For better washing and drying res- ults, position items with curves or recesses at an angle so water can run off. 14.3 Removing tableware WARNING Remove large remnants of food Risk of injury! from tableware. Hot tableware can cause burns to the To save resources, do not pre- skin. -
Page 32: Switching On The Appliance
en operation If the electric childproof lock is ac- 15.4 Setting additional func- tivated, press on the upper middle tions section of the appliance door twice with a short interval in between. You can set additional functions to a The appliance door will open auto- complete the washing programme matically. -
Page 33: Interrupting Programme
operation en ¡ You can only change a pro- Press gramme when running if you can- Tip: If you press during the wash cel it. cycle, the programme currently run- → "Terminate programme", ning will be interrupted. When you Page 33 switch the appliance back on, the ¡... -
Page 34: Basic Settings
en Basic settings 16 Basic settings You can configure the basic settings for your appliance to meet your needs. 16.1 Overview of the basic settings The basic settings depend on the features of your appliance. Basic setting Display text Selection Description Water hardness H00 - H07 Set the water softening sys- tem to your water hardness. - Page 35 Basic settings en Basic setting Display text Selection Description InfoLight I00 - I01 Switch InfoLight on or off. While the programme is run- ning, a spot of light is pro- jected onto the floor below the appliance door. This light will not be visible if the appli- ance is installed at eye level with the cabinet front fitted flush.
- Page 36 en Basic settings Basic setting Display text Selection Description Efficient Dry o00 - o02 Activate or deactivate auto- matic opening of the appli- ance door during the drying phase. If the function has been ac- tivated, the running time may increase. The following settings are possible: ¡...
-
Page 37: Changing Basic Settings
Home Connect en Basic setting Display text Selection Description Remote Start rc0 - rc2 Activate or deactivate → "Remote Start ", Page 38. The following settings are possible: ¡ With the setting "rc0", the function is permanently deactivated. ¡ With the setting "rc1", the function can be selected via the button. -
Page 38: Home Connect Quick Start
en Home Connect To be able to use Home Connect, Connecting the appliance to you must first set up the connection WLAN home network (Wi-Fi) to the WLAN home network (Wi-Fi Requirements and to the Home Connect app. ¡ The Home Connect app is installed on your mobile device. -
Page 39: Data Protection
Cleaning and servicing en Note: Please note that the Requirements ¡ The appliance is connected to your Home Connect functions can only be WLAN home network. utilised with the Home Connect app. ¡ The appliance is connected to the Information on data protection can be Home Connect app. -
Page 40: Tips On Appliance Care
Dishwasher Care and Ma- ance to malfunction. To avoid such chine Cleaner for Dishwashers online faults and reduce odours, we recom- at https://www.bosch-home.com/ mend cleaning your appliance at reg- store or from customer service. ular intervals. Machine Care is a programme which... -
Page 41: Filter System
Cleaning and servicing en ¡ Make sure that there are no alu- 18.5 Filter system minium parts, e.g. extractor hood The filter system removes coarse grease filters or aluminium pans, in soiling from the dishwashing cycle. the interior of the appliance. ¡ If you have not run Machine Care after 3 washing cycles, the indic- ator for Machine Care will go out automatically. -
Page 42: Cleaning Spray Arms
en Cleaning and servicing Pull down the micro filter to re- Insert the filter system into the ap- move. pliance and turn the coarse filter clockwise. Make sure that the arrow mark- ‒ ings match up. Press the locking catches gether and lift the coarse filter out ... - Page 43 Cleaning and servicing en Pull up the lower spray arm to re- move. Check the outlet nozzles on the spray arms for blockages under running water and remove any for- eign bodies. Insert the lower spray arm. a The spray arm clicks into position. Insert the upper spray arm and screw it firmly in place.
-
Page 44: Troubleshooting
This will avoid unneces- sary costs. Tip: You can find further information and explanations on troubleshooting on- line by scanning the QR code in the table of contents and on our website www.bosch-home.com. WARNING Risk of electric shock! Incorrect repairs are dangerous. - Page 45 Troubleshooting en Fault Cause and troubleshooting E:32-00 will light up Remove the filter from the supply hose alternately or indicator for water supply lights Clean the filter. Re-insert the filter in the supply hose. Screw the water connection back on. Check the water connection for leaks. Restore the power supply.
- Page 46 en Troubleshooting Fault Cause and troubleshooting E:61-03 will light up Not an appliance fault. Wastewater pump is blocked alternately. Water is or the cover of the wastewater pump is loose. not drained. Clean the wastewater pump. → "Clean wastewater pump", Page 50 Secure the cover of the wastewater pump so it clicks into position.
- Page 47 Troubleshooting en Fault Cause and troubleshooting Remnants of food on Tableware is placed too close together or basket is tableware. overfilled. Arrange tableware with sufficient space in between. The spray jets must reach the surfaces of the table- ware. Avoid points of contact. Spray arm rotation of the lower spray arm is blocked.
- Page 48 en Troubleshooting Fault Cause and troubleshooting Remnants of food on Do not position tall narrow receptacles at too great ▶ tableware. an angle or in corner areas. Top baskets on right and left are not set to same height. Set the upper basket on the left and right to the ▶...
- Page 49 Troubleshooting en Fault Cause and troubleshooting Detergent residue is Detergent dispenser was damp when detergent was present in the deter- added. gent dispenser or the Only add detergent to a detergent dispenser when ▶ tablet collecting tray. dry. Special salt refill indic- Insufficient special salt.
-
Page 50: Clean Wastewater Pump
en Transportation, storage and disposal Insert the pump cover and press 19.1 Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. -
Page 51: Protect Appliance From Frost
Customer Service en 20.2 Protect appliance from 20.4 Disposing of old appli- frost ance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely. -
Page 52: Product Number (E-Nr.), Production Number (Fd) And Consecutive Numbering (Z-Nr.)
en Customer Service Customer Service for a period of at 21.2 AQUA-STOP guarantee least 10 years from the date on In addition to warranty claims against which your appliance was placed on the seller under the purchase agree- the market within the European Eco- ment and in addition to our manufac- nomic Area. -
Page 53: Technical Specifications
Technical specifications en 22 Technical specifications Weight Max.: 60 kg Voltage 220 - 240 V, 50 Hz or 60 Hz Power rating 2000 - 2400 W Fuse 10 - 16 A Water pressure ¡ min. 50 kPa (0.5 bar) ¡ max. 1000 kPa (10 bar) Inlet rate Min. 10 l/min Water temperature Cold water. Hot water max.: 60 °C Capacity 14 place settings You can find more information about... -
Page 54: Declaration Of Conformity
BSH Hausgeräte GmbH hereby de- A detailed Declaration of Conformity clares that the appliance with Home can be found online at www.bosch- Connect functionality conforms to the home.co.uk among the additional basic requirements and other relev- documents on the product page for ant provisions of Directive 2014/53/ your appliance. - Page 56 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
