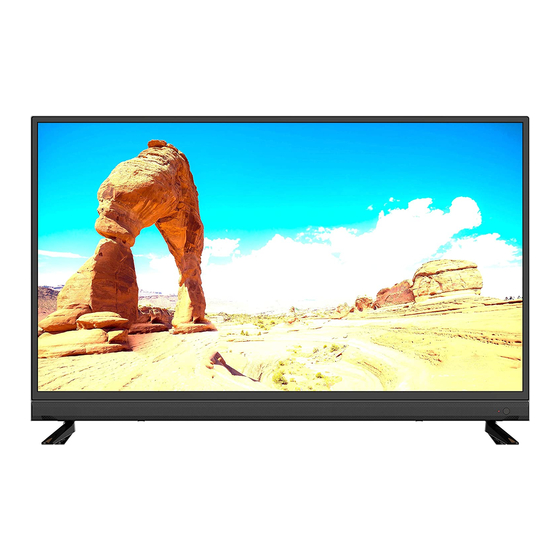

Linsar 40SB100 User Manual

40” fhd led tv
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

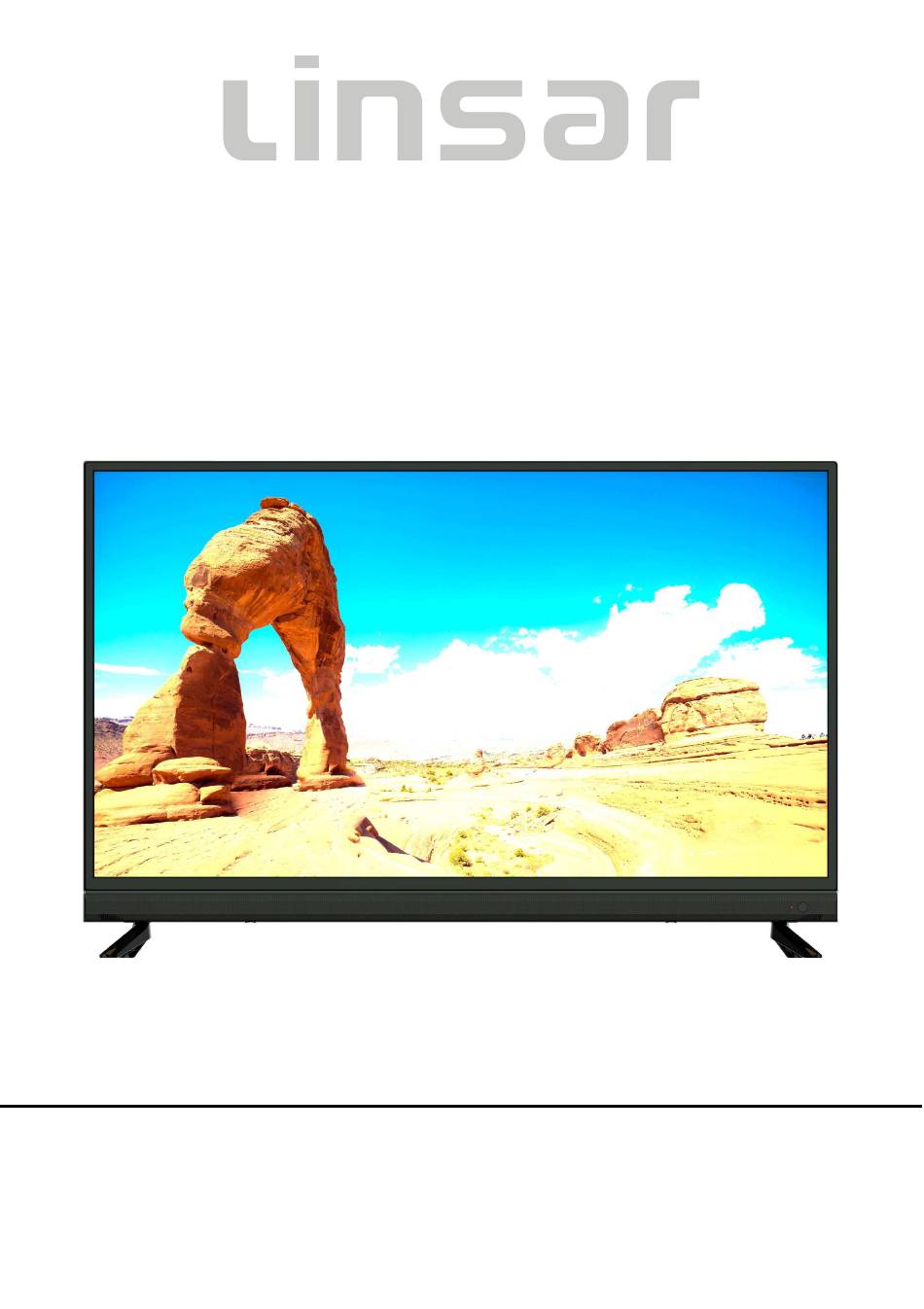

40" FHD LED TV
MODEL NO.: 40SB100
USER MANUAL
Please read this manual carefully before using,
and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40SB100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Linsar 40SB100

Summary of Contents for Linsar 40SB100

  • Page 1 40” FHD LED TV MODEL NO.: 40SB100 USER MANUAL Please read this manual carefully before using, and keep it for future reference.

  • Page 2: Important Instructions

    IMPORTANT INSTRUCTIONS SAFETY INSTRUCTIONS The lightning flash and CAUTION: TO REDUCE THE RISK The exclamation arrow head within the OF ELECTRIC SHOCK. DO NOT point within the triangle is a warning REMOVE COVER (OR BACK). triangle is a warning sign alerting you of NO USER SERVICEABLE PARTS sign alerting you of “dangerous voltage”...
  • Page 3 Do not operate this product under the following conditions. ● - When the power-supply cord or plug is damaged. - If liquid has been spilled into or objects have fallen into the product. - If the product has been exposed to rain or water. - If the product does not operate when used according to the operating instructions.

  • Page 4: Accessories

    DISPOSAL OF OLD ELECTRICAL APPLIANCES The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS GETTING STARTED IMPORTANT INSTRUCTIONS...................1-3 ACCESSORIES……….......................3 FEATURES........................5 GENERAL PARTS......................6-7 REMOTE CONTROL.....................8-9 REMOTE CONTROL PREPARATION.................10 BASIC CONNECTION....................11-15 OPERATIONS BASIC OPERATIONS....................16-21 MAIN MENU........................22-33 FIRST TIME INSTALLATION……..………………….………………………………..………22 DTV MODE.........................23-32 ATV AND OTHER MODES....................33 FOR REFERENCE MAINTENANCE........................33 WALL MOUNTING…………………………………………………………………………..33 STAND INSTALLATION…………………………………………………………………………..34 SPECIFICATIONS.......................35 TROUBLESHOOTING......................36...

  • Page 6: Features

    FEATURES 40" LED Display This unit has a built-in LED display window to provide clear vision and low radiation. With Hotel Lock Support Auto TV Scanning Support Digital Broadcasting Reception Support TV Guide Function Support TELETEXT (Europe) Function Support USB Multimedia Playback Support Multi-languages On Screen Display Support Full Function Remote Control Support LAN, HDMI, SCART, YPBPR, AV and CI Input...

  • Page 7: General Parts

    GENERAL PARTS MAIN UNIT Front View Side View 1. LED display screen 2. Remote control sensor / Power indicator - In standby mode the indicator light is red; when switching on the unit the indicator light is blue color. 3. Stand holder 4.
  • Page 8 GENERAL PARTS Back View 1. Power Input (AC power cord) 2. LAN input terminal (Note: LAN port is for network signal return only!) 3. SCART input terminal 4. OPTICAL output terminal 5. RF input terminal- To connect the external antenna. 6.

  • Page 9: Remote Control

    REMOTE CONTROL POWER: Set the unit in standby mode; press it again to switch it on. GOTO: Jump to a different chapter of DVD.* ANGLE: View DVD playback from different angles, if the DVD has this feature.* REPEAT: Repeat different chapter/title or entire DVD.* FAV: Press to display your favourite program in DTV mode.
  • Page 10 REMOTE CONTROL 24 CH +/-: Press to play the next or previous channel; press repeatedly to scan through the channels. 25 MUTE: Mute the sound. Press again or press VOL+ to restore the sound. 26 GUIDE / D. MENU: Display electronic program guide; Display the main disc menu.* 27 OK: Confirm selection.

  • Page 11: Remote Control Preparation

    REMOTE CONTROL PREPARATION BATTERY INSTALLATION Install the batteries as the following pictures. Be sure + and – terminals are positioned as indicated in the battery compartment (Fig1). SERVICE LIFE OF BATTERIES - The batteries normally last for one year although this depends on how often the remote control is used.

  • Page 12: Basic Connection

    BASIC CONNECTION ● Ensure all the cables are disconnected from the main unit before connecting to AC power source. ● Read through the instructions before connecting other equipments. CONNECTING TO AC POWER SOURCE To power outlet CONNECT EXTERNAL ANTENNA TO UNIT Install external antenna into antenna jack for best picture.
  • Page 13 HDMI CONNECTION HDMI cable (Not included) Use HDMI cable to connect the unit with other devices to receive high-definition multimedia signal. LAN CONNECTION Use a LAN cable (not included) to connect this TV with available network.
  • Page 14 AV (COMPOSITE VIDEO) CONNECTION Adaptor cable for AV cable Mini AV (Not included) (Included) For basic connection, use the composite Audio L/R (white/red) and CVBS (yellow) cable to connect the unit with other devices. YPbPr CONNECTION YPbPr cable (Not included) Audio L/R of AV Cable Adaptor cable (Not Included)
  • Page 15 SCART CONNECTION SCART cable (Not included) INSERT A CI CARD CI slot (CI card is not included)
  • Page 16 OPTICAL CONNECTION Use Optical cable to connect the unit with amplifier or other audio decoding devices for audio signal output. (Optical cable is not included.) USB CONNECTION USB Memory Device (Not included) EARPHONE CONNECTION Earphone cable (Not included)

  • Page 17: Basic Operations

    MAKE SURE ALL THE EQUIPMENTS AND POWER PLUG ARE CONNECTED PROPERLY AND THE UNIT IS SET IN CORRECT MODE BEFORE KINDS OF OPERATIONS. BASIC OPERATIONS - Press POWER button on the unit or remote control to power ON the unit (indicator will glow blue);...
  • Page 18 VIDEO SIZE SETTING - Press the ASPECT button on the remote control repeatedly to select the VIDEO SIZE directly. Available options: Auto, 4:3, 16:9, Zoom1, Zoom2. NOTE: The available video size may be different for different input sources. MULTIAUDIO SETTING - Press the AUDIO button on the remote control repeatedly to select the desired audio language.
  • Page 19 - Press SOURCE button on Remote Control and select Bluetooth mode. - Activate your Bluetooth device, search and connect the name “Linsar Soundbar TV” . - When the TV works in Bluetooth mode, it will auto connect the last paired device.
  • Page 20 RECORDER (FOR DTV MODE ONLY) - Insert your USB memory device into the USB slot first. - When watching digital programs, press the button on the remote control start recording. - Press the LEFT or RIGHT navigation button to select the desired option. Press the OK button to confirm the selection.
  • Page 21 MEDIA PLAYBACK - Insert a USB memory device into the USB slot before the following operations. - Press the MENU button on remote control to open main menu. Then press UP navigation button to move the cursor to title. Select Media and press DOWN navigation button to highlight USB.
  • Page 22 a. MOVIE - Use the navigation buttons to select a desired folder or file. - Press the OK button to start playback. - Press the MENU button to open/close the tool bar. Use navigation buttons to select a desired option and press OK to confirm the selection. - Press the EXIT button to return.
  • Page 23 c. PHOTO - Use the navigation buttons to select a desired folder or file. - Press the OK button to start playback. - Press the MENU button to open/close the tool bar. Use navigation buttons to select a desired option and press OK to confirm the selection. - Press the EXIT button to return.

  • Page 24: Main Menu

    MAIN MENU ● The unit contains different setting menus. Once the initial programming is entered, it will be remained in the memory until change, and the unit can always be operated under the same conditions. ● The settings will be remained in the memory until the settings are changed ever after setting the player to standby mode.
  • Page 25 DTV Settings - Press SOURCE button on the remote control to select DTV input source. - Press the MENU button on remote control to open main menu. Notes: - If Setting is not highlighted on menu title, press UP navigation button to move the cursor to title.
  • Page 26 1.4 Event List - Show schedule list if you have scheduled a program through EPG menu. 2. Picture 2.1 Picture Mode - Press the LEFT/RIGHT navigation buttons to select an option. Picture Mode: available options: Standard, Personal, Dynamic, Movie, Economy Note: When Picture Mode is “Personal”, you can see and adjust Brightness, Contrast, Colour, Tint, Sharpness and Backlight.(Tint is only for NTSC system.) 2.2 Aspect Ratio...
  • Page 27 3. Sound 3.1 Sound Mode - Press the LEFT/RIGHT navigation buttons to select an option. Sound Mode: available options: Standard, Music, Sports, Movie, Personal. 3.2 Surround Sound - Turn on/off surround sound. 3.3 Speaker Audio Output: PCM, RAW, Off. Digital Audio Delay: adjust this item if Digital Output and TV picture are not simultaneous. 3.4 AVC (Auto Volume Level) - Turn on/off Auto Volume Level.
  • Page 28 4. Channel 4.1 Auto Scan - Choose DTV or ATV tuning mode firstly. - Then enter “Auto Tuning” to scan available channels. 4.2 DVB Antenna - Display current antenna type. 4.3 Digital Manual Scan - Press LEFT/RIGHT navigation button to select the channel. - Then enter “Start Scan”...
  • Page 29 5. Network 5.1 Network - Display the network type (not adjustable for this model). 5.2 Ethernet Notice: Connect your local network using a LAN cable first. DHCP (Dynamic Host Configuration Protocol): turn on/off DHCP. When DHCP is off, you can see and adjust IP address, Netmask, Gateway and DNS using navigation buttons. 5.3 Network Test - Test the network condition.
  • Page 30 6. Time 6.1 Time - It displays the current system time when an available channel was saved. Auto Sync: turn on/off auto synchronization. If it’s off, you can see and adjust date and time using navigation buttons. Time Zone: select correct time zone. 6.2 On Time On Time: set the hour, minute and day using navigation buttons.
  • Page 31 7. System 7.1 Country - Select the country you are living in. 7.2 Language - Select the OSD menu language, Audio and Subtitle languages. 7.3 Lock - Input the factory default password “0000” using number buttons on remote control. - Then highlight “OK” on screen and press OK to enter it. Note: If you forget the password, please use the universal password “4711”.
  • Page 32 7.4 HDMI Link To use the HDMI Link function: - Make sure the HDMI device (Amplifier, etc.) is connected correctly. - Press the SOURCE button on the remote control to select the HDMI input source. Note: HDMI ARC in “HDMI 2” only. HDMI Link: turn on/off HDMI CEC.

  • Page 33: Dtv Mode

    8. About TV 8.1 System Information - Show TV system information. 8.2 Software Upgrade - Update software through network or USB memory device. Note: Only technicians are authorized to update the software. 8.3 Restore to Default - Restore OSD menu to default settings. ATV AND OTHER MODES - Press SOURCE button on the remote control to select desired input source.

  • Page 34: Maintenance

    MAINTENANCE ● Be sure to press POWER button to set the player to the standby mode and disconnect the power plug before maintaining the player. ● Wipe the player with a dry, soft cloth. ● If the surface is extremely dirty, wipe clean with a cloth which has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth.

  • Page 35: Stand Installation

    STAND INSTALLATION Your TV is packaged with the Stand and the Cabinet separated. Before enjoying this TV, please carry out the Stand Installation according to the instructions below. Step 1 Place the TV faced down on a soft cloth or cushion to prevent the panel from being damaged.

  • Page 36: Specifications

    SPECIFICATIONS Display Device 40 inch LED TV Resolution 1920×1080 Display Colors 16.7M Contrast Ratio 3500:1 Aspect Ratio 16:9 Movie: AVI, MPEG 1/2 USB Multimedia Music: MP3 Playback Format Photo: JPG/JPEG Power Source AC 100-240V, 50/60Hz Power Consumption <80W Operation Temperature -5℃...

  • Page 37: Troubleshooting

    GENERAL TROUBLESHOOTING Check the following points before assuming malfunctions of this unit: Symptom[COMMON] Remedy No power. Insert the power plug securely into the power outlet. No picture. Ensure that the equipment is connected properly. ● Ensure that the equipment is connected properly. ●...
