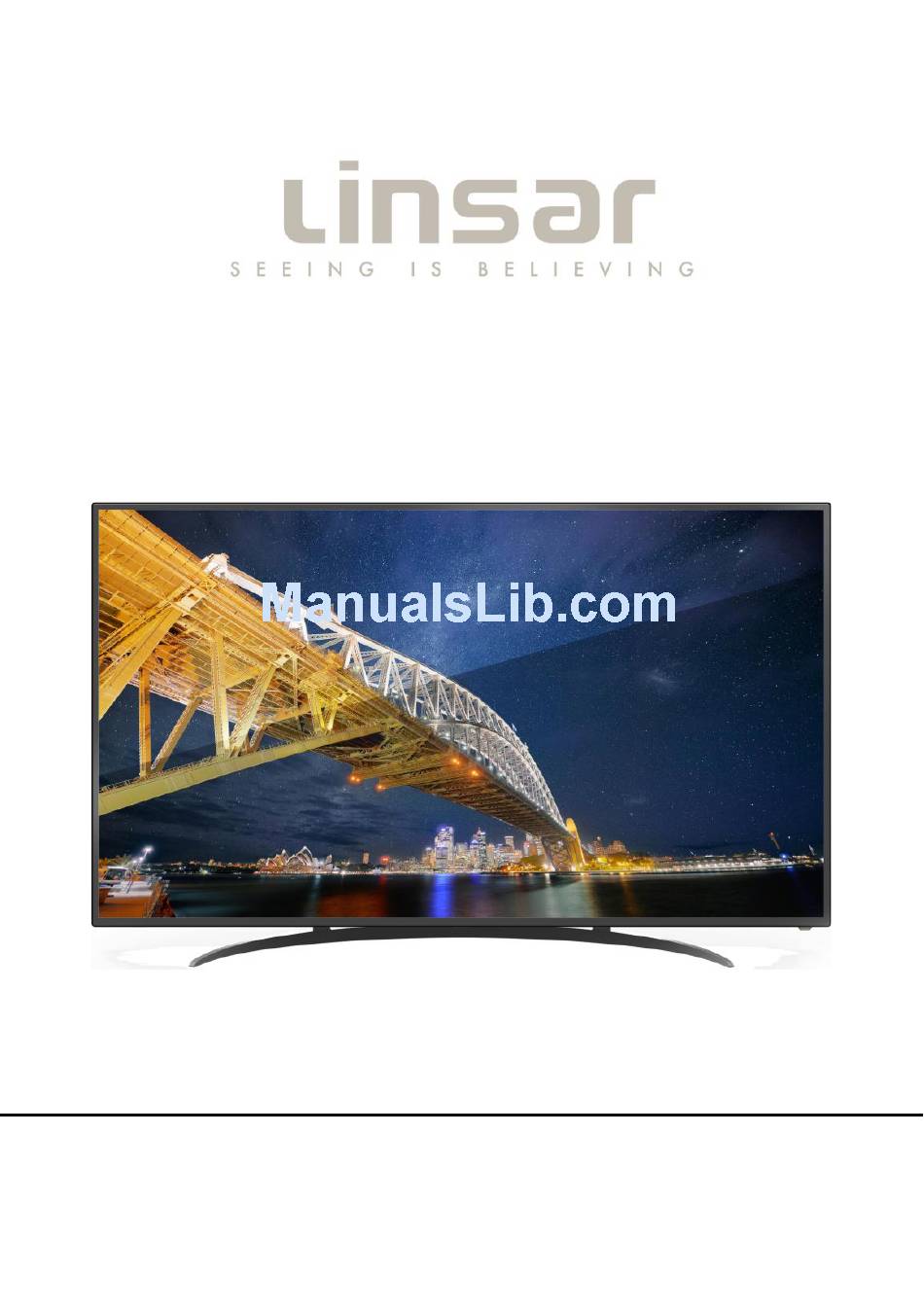

55" LED Smart TV
MODEL NO.: 55UHD110

USER MANUAL

Please read this manual carefully before using,
and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 55UHD110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Linsar 55UHD110

Summary of Contents for Linsar 55UHD110

  • Page 1: User Manual

    55” LED Smart TV MODEL NO.: 55UHD110 USER MANUAL Please read this manual carefully before using, and keep it for future reference.

  • Page 2: Important Instructions

    IMPORTANT INSTRUCTIONS SAFETY INSTRUCTIONS The lightning flash and CAUTION: TO REDUCE THE RISK The exclamation arrow head within the OF ELECTRIC SHOCK. DO NOT point within the triangle is a warning REMOVE COVER (OR BACK). triangle is a warning sign alerting you of NO USER SERVICEABLE PARTS sign alerting you of “dangerous voltage”...
  • Page 3 ● Do not operate this product under the following conditions. - When the power-supply cord or plug is damaged. - If liquid has been spilled into or objects have fallen into the product. - If the product has been exposed to rain or water. - If the product does not operate when used according to the operating instructions.

  • Page 4: Accessories

    DISPOSAL OF OLD ELECTRICAL APPLIANCES The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS GETTING STARTED IMPORTANT INSTRUCTIONS...................1-3 ACCESSORIES……….......................3 FEATURES........................5-6 GENERAL PARTS......................7-8 REMOTE CONTROL.....................9-10 REMOTE CONTROL PREPARATION.................11 BASIC CONNECTION....................12-16 OPERATIONS BASIC OPERATIONS.....................17-22 MAIN MENU......................23-34 FIRST TIME INSTALLATION………………………………………………..……………23-24 SMART HUB…………………………………………………………………………………..24 DTV MODE......................25-34 ATV AND OTHER MODES.....................34 FOR REFERENCE MAINTENANCE........................35 WALL MOUNTING………………………………………………………………………………...35 STAND INSTALLATION…………………………………………………………………………..36 SPECIFICATIONS.......................37...

  • Page 6: Features

    FEATURES 55” LED Display This unit has a built-in LED display window to provide clear vision and low radiation. Compatible with Smart TV Support Digital Broadcasting Reception Support H.264 \ H.265 High Definition Display Support Multiple OSD Languages Support Full Function Remote Control Support LAN, HDMI, YPbPr, CVBS and AUDIO L/R Input Support Earphone, Optical and Coaxial Output Support Auto TV Scanning...
  • Page 7 FEATURES Support USB Multimedia Playback NOTE: For detailed operations, please refer to the guide on Page 21. Support PVR Function NOTE: For detailed operations, please refer to the guide on Page 20. Support TIME SHIFT Function NOTE: For detailed operations, please refer to the guide on Page 20. With Detachable Stand Holder With External Antenna Jack With Built-in Speakers...

  • Page 8: General Parts

    GENERAL PARTS MAIN UNIT Front View Side View 1. LED display screen 2. Remote control sensor / Power indicator- In standby mode the indicator light is red; when switching on the unit the indicator light is blue color. 3. VOL +/- button- To increase/decrease the volume level or move left/right. 4.

  • Page 9: General Parts

    GENERAL PARTS Back View 1. Power Input (AC power cord) 2. LAN (RJ45) input 3. HDMI 1/2 inputs Note: “ARC” for HDMI 2 port only! 4. Headphones output 5. Coaxial S/PDIF output 6. OPTICAL output 7. SCART input 8. HDMI 3 input 9.

  • Page 10: Remote Control

    REMOTE CONTROL 1 POWER Set the unit in standby mode; press it again to switch it 2 TV/RADIO Switch the unit between TV and Radio. 3 RED button 4 GREEN button 5 BLUE button 6 YELLOW button 7 FAV Display the favorite channels list. 8 TEXT Display the available Teletext.

  • Page 11: Remote Control

    REMOTE CONTROL Play the next file. INDEX Display the record list or Teletext index. Play the previous file. 23 MENU Call out the main menu or return to previous menu. 24 AUDIO Switch the available sound-track. 25 OK Confirm selection. 26 ▲/▼/◄/►...

  • Page 12: Remote Control Preparation

    REMOTE CONTROL PREPARATION BATTERY INSTALLATION Install the batteries as the following pictures. Be sure + and – terminals are positioned as indicated in the battery compartment (Fig1). SERVICE LIFE OF BATTERIES - The batteries normally last for one year although this depends on how often the remote control is used.

  • Page 13: Basic Connection

    BASIC CONNECTION ● Ensure all the cables are disconnected from the main unit before connecting to AC power source. ● Read through the instructions before connecting other equipments. CONNECTING TO AC POWER SOURCE To power outlet CONNECT EXTERNAL ANTENNA TO UNIT Install external antenna into antenna jack for best picture.

  • Page 14: Hdmi Connection

    HDMI CONNECTION HDMI cable (Not included) Use HDMI cable to connect the unit with other devices to receive high-definition multimedia signal. LAN CONNECTION Use a LAN cable (not included) to connect this TV with available network.

  • Page 15: Basic Connection

    AV (COMPOSITE VIDEO) CONNECTION Adaptor cable for AV cable Mini AV (Not included) (Included) For basic connection, use the composite Audio L/R (white/red) and CVBS (yellow) cable to connect the unit with other devices. YPbPr CONNECTION YPbPr cable (Not included) Audio L/R of AV Cable Adaptor cable (Not Included)

  • Page 16: Scart Connection

    SCART CONNECTION SCART cable (Not included) INSERT A CI CARD CI slot (CI card is not included)

  • Page 17: Usb Connection

    COAXIAL \ OPTICAL CONNECTION Use a Coaxial \ Optical cable (not included) to connect the unit with amplifier or other audio decoding devices for audio signal output. USB CONNECTION USB Memory Device (Not included) EARPHONE CONNECTION Earphone cable (Not included)

  • Page 18: Basic Operations

    MAKE SURE ALL THE EXTERNAL EQUIPMENT AND POWER PLUGS ARE CONNECTED PROPERLY TO THE TV. THE TV MUST BE IN THE CORRECT SOURCE MODE IN ORDER TO VIEW THE CHOSEN INPUT. BASIC OPERATIONS - Press POWER button on the unit or remote control to power ON the unit (indicator will glow blue);...
  • Page 19 INFORMATION DISPLAY - Press INFO button on remote control to display information of current program. TV GUIDE (FOR DTV MODE ONLY) - Press EPG button on remote control to enter EPG menu page. - Press UP/DOWN navigation button to select preferred program - Press LEFT/RIGHT navigation button to switch between left and right column.
  • Page 20 FAVORITE LIST When viewing an available channel, press FAV button on remote control to enter Favorite List menu page. - Press UP or DOWN navigation button to select preferred channel. - Press OK button to confirm selection. Note: To add a channel to the Favorite List or remote it, press MENU and go to Channel→Channel Edit.
  • Page 21 RECORDER (FOR DTV MODE ONLY) - Insert your USB memory device into USB slot first. ● - When watching digital programs, press button on remote control and below tool bar will appear on the screen: - Press LEFT or RIGHT navigation button to select desired option. Press OK button to confirm selection.
  • Page 22 MEDIA PLAYBACK - Insert a USB memory device into USB slot before following operations. - Press the SMART HUB button on remote control to call out the Smart Hub directly. - Press LEFT/RIGHT navigation button to select “Media” and press OK to enter it. - Press EXIT button to return to previous page.
  • Page 23 - Press LEFT/RIGHT navigation button to select desired option and press OK button to confirm it. - Press EXIT button to return. 3. Photo - Press UP/DOWN navigation button to select Photo in the main menu and press OK button to enter it.

  • Page 24: Main Menu

    MAIN MENU ● The unit contains different setting menus. Once the initial programming is entered, it will be remembered in the memory until changed, and the unit can always be operated under the same conditions. ● This setting will be remembered in the memory until the settings are changed even after setting the player to standby mode.

  • Page 25: Smart Hub

    Usage Mode - Press LEFT/RIGHT navigation button to select Home or Shop mode. - Press OK to confirm selection and enter next page. Auto Tuning - Press navigation buttons to select the tuning mode, country and time zone. - Then highlight “Auto Start” and press OK to start auto tuning.

  • Page 26: Dtv Mode

    DTV mode - Press SOURCE button on remote control to select DTV input source. - Press MENU button on remote control to call out on-screen menu. 1. PICTURE 1.1 Picture Mode - When highlighted, press LEFT/RIGHT navigation button to select an option. Available options: Standard, Mild, Movie, Personal, Dynamic.
  • Page 27 2. SOUND 2.1 Sound Mode - When highlighted, press LEFT/RIGHT navigation button to select an option. Available options: Standard, Music, Movie, Sports, Personal. Treble / Bass: adjustable value: 0-100. NOTE: When the value of Treble or Bass is changed, Sound Mode will turn to “Personal” automatically.
  • Page 28 2.7 AD Volume Select desire volume level when “Audio Description” is turned on. 2.8 Audio Track Select available audio track. 2.9 Audio Delay Adjust this item if you found Picture and Sound are not totally synchronized. 2.10 S/PDIF Delay Adjust this item if you found Picture and Sound are not totally synchronized, when connected to external amplifier.
  • Page 29 3.3 Digital Manual Tuning - Press OK or RIGHT navigation button to enter it. - Use LEFT/RIGHT navigation button to select the channel. Then press OK button to start searching. 3.4 Channel Edit - Press OK or RIGHT navigation button to enter it. - Press UP/DOWN navigation button to highlight desired channel.
  • Page 30 4. LOCK - Press OK or RIGHT navigation button to enter it. - Input the factory default password “0000” using number buttons on remote control. - Press UP/DOWN navigation button to select preferred item. NOTE: If you forget the password, please use the universal password “4711”. 4.1 System/Hotel Lock This item is used to turn on/off Lock System.
  • Page 31 5. TIME 5.1 Clock It displays current system time when an available channel was saved. 5.2 Off Time - Press OK or RIGHT navigation button to enter it. - Use navigation buttons to select an option or adjust the value. - When “Time”...
  • Page 32 5.5 OSD Timer This item is used to select desired OSD menu duration. Available options: Off, 5/15/30/60 seconds. 5.6 Auto Standby This item is used to select desired Auto Sleep (standby) duration when there has been no input from the remote control for a period of time. Available options: Off, 3, 4 or 5 hours.
  • Page 33 MAC Addr: show the MAC address. When above settings are finished, highlight “OK” on this menu and press OK button on remote to finish configuration. Wireless Config (Network Configuration is “Wireless”) - Press OK or RIGHT navigation button to enter it. - Press UP/DOWN navigation button to highlight desired option.
  • Page 34 This item is used to select desired audio languages. 7.3 Audio Languages 2 This item is used to select desired second audio languages. 7.4 Subtitle Language This item is used to select available subtitle languages. 7.5 Subtitle Language 2 This item is used to select desired second subtitle languages. 7.6 Hearing Impaired This item is used to turn on/off Hearing Impaired function.

  • Page 35: Atv And Other Modes

    7.13 HDMI CEC To use HDMI CEC function: - Make sure the HDMI device (Amplifier, etc.) is connected correctly. - Press SOURCE button on the unit or remote control to select HDMI input source. Device List: display all available devices. HDMI CEC: turn on/off HDMI CEC.

  • Page 36: Maintenance

    MAINTENANCE ● Be sure to press POWER button to set the player to the standby mode and disconnect the power plug before maintaining the player. ● Wipe the player with a dry, soft cloth. ● If the surface is extremely dirty, wipe clean with a cloth which has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth.

  • Page 37: Stand Installation

    STAND INSTALLATION Your TV is packaged with the Stand and the Cabinet separated. Before enjoying this TV, please carry out the Stand Installation according to the instructions below. Step 1 Place the TV faced down on a soft cloth or cushion to prevent the panel from being damaged.

  • Page 38: Specifications

    SPECIFICATIONS Display Device 55 inch LED TV Resolution 3840×2160 Display Colors 16.7M Contrast Ratio 4800:1 Aspect Ratio 16:9 Movie: AVI, MPEG, TS, MKV, RMVB Music: MP3, WAV, AAC USB Multimedia Playback Format Photo: JPG/JPEG Text: TXT Power Source AC 100-240V, 50/60Hz <185W Power Consumption Operation Temperature...

  • Page 39: Troubleshooting

    GENERAL TROUBLESHOOTING Check the following points before assuming the unit has malfunctioned: Symptom[COMMON] Remedy No power. Insert the power plug securely into the power outlet. No picture. Ensure that the equipment is connected properly. ● Ensure that the equipment is connected properly. ●...
