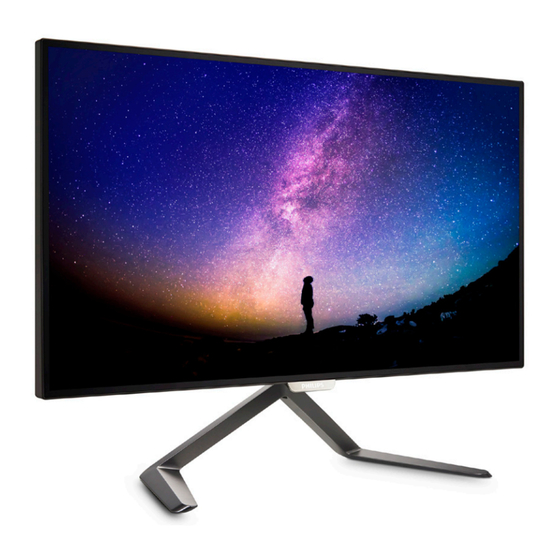

Philips 2X8C6 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

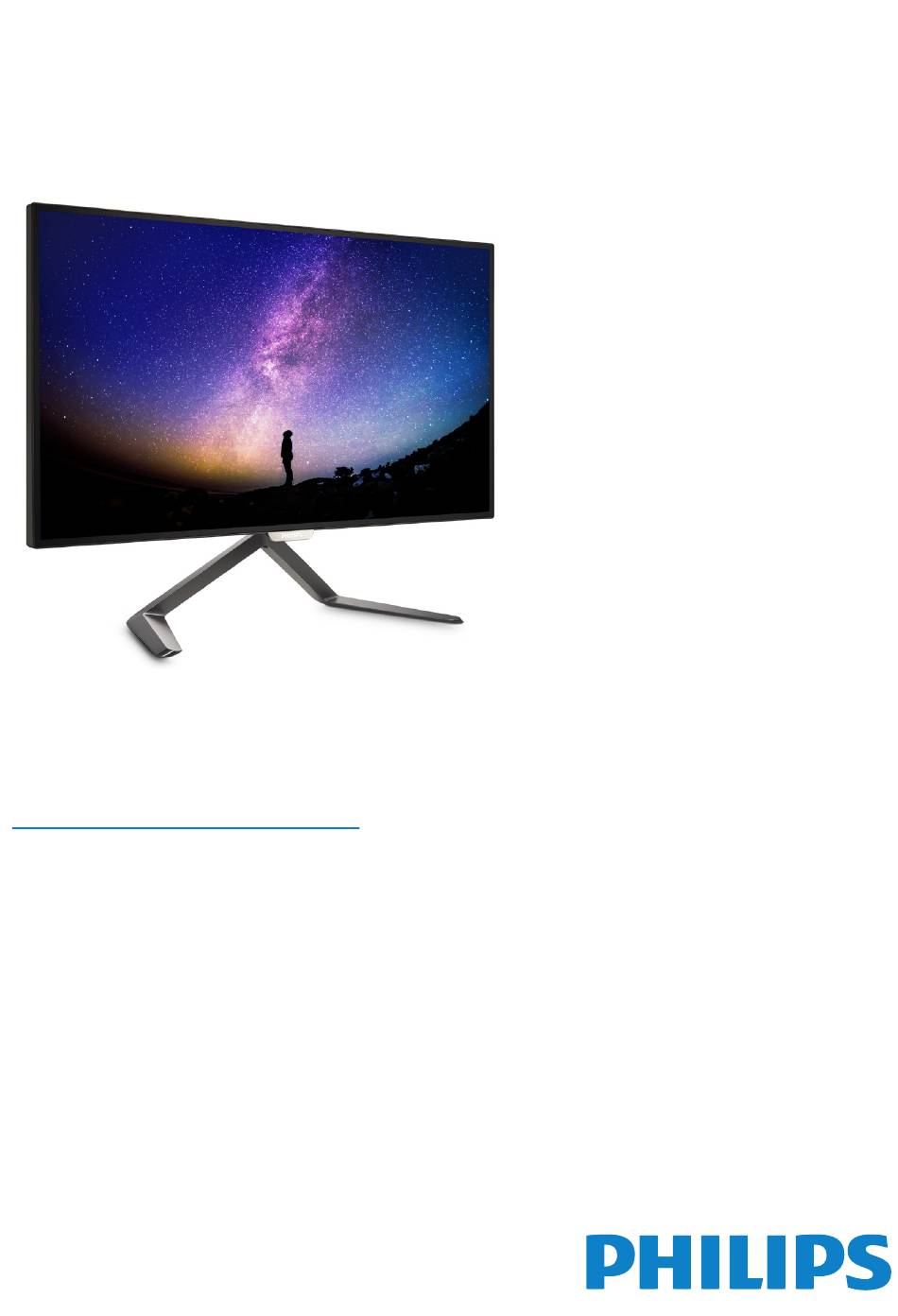

www.philips.com/welcome
EN
User manual
Customer care and warranty
Troubleshooting & FAQs
2X8C6
1
20
28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2X8C6 and is the answer not in the manual?

Questions and answers

Related Manuals for Philips 2X8C6

Summary of Contents for Philips 2X8C6

  • Page 1 2X8C6 www.philips.com/welcome User manual Customer care and warranty Troubleshooting & FAQs...

  • Page 2: Table Of Contents

    4. Technical Specifications ... 15 4.1 Resolution & Preset Modes ..18 5. Power Management ....19 6. Customer care and warranty ..20 6.1 Philips’ Flat Panel Monitors Pixel Defect Policy .....20 6.2 Customer Care & Warranty ..23 7. Troubleshooting & FAQs ..28 7.1 Troubleshooting ......28...

  • Page 3: Important

    • Please use approved power cord provided by Philips at all times. If The Philips guarantee applies provided your power cord is missing, please the product is handled properly for contact your local service center.
  • Page 4 1. Important off immediately and disconnect the Service power cord. Then, remove the for- • The casing cover should be opened eign substance or water, and send it only by qualified service personnel. to the maintenance center. • If there is any need for any docu- • Do not store or use the monitor in ment for repair or integration, locations exposed to heat, direct...

  • Page 5: Notational Descriptions

    1. Important 1.2 Notational Descriptions The following subsections describe notational conventions used in this document. Notes, Cautions and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic type. These blocks contain notes, cautions or warnings.

  • Page 6: Disposal Of Product And Packing Material

    From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, This marking on the product or on end-of-life management primarily its packaging illustrates that, under...

  • Page 7: Setting Up The Monitor

    User’s Manual 使用产品前请阅读使用说明 278C6 Contents: User’s Manual Monitor drivers 保留备用 www.philips.com/welcome Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. AC/DC Adapter * CD * VGA * HDMI Monitor User’s Manual...

  • Page 8: Operating The Monitor

    2. Setting up the monitor Connecting to your PC 2.2 Operating the monitor 278C6Q Front view product description 248C6Q AC/DC power input HDMI Audio out VGA input DP input Press to switch power on. MHL-HDMI input Press more than 3 seconds to switch power off.
  • Page 9 Description of the On Screen Display What is On-Screen Display (OSD)? On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window.
  • Page 10 2. Setting up the monitor The OSD Menu 248C6Q Below is an overall view of the structure Main menu Sub menu of the On-Screen Display. You can use Input this as a reference when you want to MHL-HDMI DisplayPort work your way around the different Picture Picture Format Wide Screen, 4:3, 1:1...
  • Page 11 2. Setting up the monitor Resolution notification This monitor is designed for optimal performance at its native resolution, 2560×1440@60Hz (278C6Q), 1920×1080@60Hz (248C6Q). When the monitor is powered on at a different resolution, an alert is displayed on screen: Use 2560×1440@60Hz for best results (278C6Q), Use 1920×1080@60Hz for best results (248C6Q) .

  • Page 12: Multiview (278C6Q)

    MultiView function can also be selected in OSD menu. Why do I need it? 1. Toggle to the right to enter OSD With the ultra high resolution Philips Menu Screen. MultiView display, you can experience a world of connectivity in a comfortable ...
  • Page 13 2. Setting up the monitor [PIP]: Picture in Picture • PIP Size: When PIP is activated, there are three sub-window sizes to Open up a sub-window choose: [Small], [Middle], [Large]. of another signal source. (main) Small Middle Large (main) When the sub source is not detected: • PIP Position: When PIP is activated, (main)

  • Page 14: Mhl (Mobile High-Definition Link) Introduction

    • You may have to manually switch to simply connect your MHL capable the monitor to MHL-HDMI mode in mobile device to this large Philips MHL order to activate the monitor, if you display, and watch your HD videos have other devices already working come to life with full digital sound.

  • Page 15: Image Optimization

    Whether you're working with text applications, displaying images or watching a video, Philips SmartImage Lite delivers great optimized monitor performance. 1. Toggle to the left to launch the SmartImage on screen display.

  • Page 16: Smartcontrast

    3. Image Optimization sharpness of text content, the 3.2 SmartContrast display is optimized for a stress-free reading by adjusting the brightness, What is it? contrast and color temperature of Unique technology that dynamically the monitor. analyzes displayed content and • Office: Enhances text and dampens automatically optimizes a LCD monitor's brightness to increase readability contrast ratio for maximum visual clarity...

  • Page 17: Technical Specifications

    4. Technical Specifications 4. Technical Specifications Picture/Display Monitor Panel Type PLS LCD Backlight W-LED system W (68.6cm) (278C6Q) " Panel Size 23.8 W (60.5cm) (248C6Q) " Aspect Ratio 16:9 0.233 x 0.233 mm (278C6Q) Pixel Pitch 0.2745 x 0.2745 mm (248C6Q) SmartContrast 20,000,000:1 Response Time...
  • Page 18 4. Technical Specifications 278C6Q Power AC Input Voltage AC Input Voltage AC Input Voltage Consumption at 100 V AC, 50 at 115 V AC, 60 at 230 V AC, 50 (typ.) (typ.) (typ.) Normal Operation 40.4 W 40.5 W 40.6 W (typ.) (typ.) (typ.)
  • Page 19 Finish Glossy Note 1. EPEAT Gold or Silver is valid only where Philips registers the product. Please visit www.epeat.net for registration status in your country. 2. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet.

  • Page 20: Resolution & Preset Modes

    4. Technical Specifications 248C6Q 4.1 Resolution & Preset Modes Maximum Resolution 278C6Q 1920 x 1080 @ 60 Hz (analog input) Maximum Resolution 1920 x 1080 @ 60 Hz (digital input) 1920x1080@60Hz (analog input) Recommended Resolution 2560x1440@60Hz (digital input) 1920 x 1080 @ 60 Hz (digital input) Recommended Resolution H.

  • Page 21: Power Management

    5. Power Management 5. Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically.

  • Page 22: Customer Care And Warranty

    Other combinations Pixel Defect Policy of lit and dark sub pixels appear as single pixels of other colors. Philips strives to deliver the highest quality products. We use some of the Types of Pixel Defects industry's most advanced manufacturing...
  • Page 23 Black Dot Defects the warranty period, a TFT Monitor Black dot defects appear as pixels or panel in a Philips flat panel monitor sub pixels that are always dark or 'off'. must have pixel or sub pixel defects That is, a dark dot is a sub-pixel that...
  • Page 24 6. Customer care and warranty BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 5 or fewer...

  • Page 25: Customer Care & Warranty

    Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below.
  • Page 26 6. Customer care and warranty Italy Anovo Italy +39 840 320 041 € 0.08 Mon to Fri : 9am - 6pm Luxembourg Ecare +352 26 84 30 00 Local call Mon to Fri : 9am - 6pm tariff Netherlands Ecare +31 0900 0400 €...
  • Page 27 +372 6519900(General) Estonia FUJITSU +372 6519972(workshop) Georgia Esabi +995 322 91 34 71 +36 1 814 8080(General) Hungary Profi Service +36 1814 8565(For AOC&Philips only) Classic Service Kazakhstan +7 727 3097515 I.I.c. +371 67460399 Latvia ServiceNet LV +371 27260399 +370 37 400160(general)
  • Page 28 6:00pm Macau Technology Ltd. Macau:Tel: (853)-0800- Sat. 9:00am-1:00pm Tel: 1 800 425 6396 Mon. to Fri. 9:00am- India REDINGTON INDIA LTD SMS: PHILIPS to 56677 5:30pm +62-21-4080-9086 Mon. to Thu. 08:30- PT. CORMIC SERVISINDO (Customer Hotline) 12:00; 13:00-17:30 Indonesia PERKASA +62-8888-01-9086 Fri.
  • Page 29 6. Customer care and warranty Armenia Azerbaijan Sun. to Thu. 09:00 - Georgia Firebird service centre +97 14 8837911 18:00 Kyrgyzstan Tajikistan Soniko Plus Private Mon. to Fri. 09:00 - Uzbekistan +99871 2784650 Enterprise Ltd 18:00 Mon. to Fri. 09:00 - Turkmenistan Technostar Service Centre +(99312) 460733, 460957 18:00...

  • Page 30: Troubleshooting & Faqs

    • Disconnect the monitor from mains • First, ensure that the power button power source immediately for safety on the front of the monitor is in the • Contact with Philips customer OFF position, then press it to the service representative immediately. ON position.

  • Page 31: General Faqs

    For further assistance, refer to the images over an extended period Consumer Information Centers list may cause "burn in", also known as and contact Philips customer service "after-imaging " or "ghost imaging", representative. on your screen. "Burn-in", "after- * Functionality different according to imaging", or "ghost imaging"...
  • Page 32 • Shut down your computer, the panel surface side. This may disconnect your old monitor and affect your warranty conditions. reconnect your Philips LCD monitor. How should I clean the LCD • Turn on your monitor and then turn surface? on your PC.
  • Page 33 Q12: Why is my Display not showing any PC, workstation or Mac? sharp text, and is displaying jagged Ans.: Yes. All Philips LCD monitors are characters? fully compatible with standard Ans.: Your LCD monitor works best PCs, Macs and workstations.

  • Page 34: Mhl Faqs

    7. Troubleshooting & FAQs Why is the image on the monitor 7.3 MHL FAQs display of poor quality? My mobile device looks far better. I cannot see my mobile device Ans.: image on the monitor screen Ans.: • The MHL standard defines fixed 1080p@30Hz for output, and input.
  • Page 35 © 2016 Koninklijke Philips N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. Specifications are subject to change without notice. Version: M62x8CQE2T...
