  • Page 1 User's Manual 3x1 Matrix Switch for HDMI 4K*2K & 3D Product number: KN40593...
  • Page 2 Dear customer, This 3x1 HDMI Matrix Switch from our brand KanaaN is specially designed for either home or professional application. It enables you to connect multiple HDMI devices to two display devices without having to change any cables for usage. The included remote control enables you to switch easily.
  • Page 3: Technical Details

    TECHNICAL DETAILS Supported formats HDMI 1.4b, ARC, 3D supported, CEC, Blu-Ray 24/50/60fs, HD-DVD, xvYCC HDMI resolution 4k*2k (3840*2160) @ 24/25/30 Hz/ 3D /1080p /1080i /720p / 576p / 576i / 480p / 480i @ 24/50/60 Hz Maximum data throughput 10.2 Gbps Colour depth 24/30/36/48 bit Band width...
  • Page 4: Package Contents

    User's Manual CONNECTION AND OPERATION Step 1: Connect your source devices and displays to the KanaaN Matrix Switch. Step 2: Connect the Micro-USB-Power cable with the HDMI splitter. You can charge it, for example, with a USB-power supply.
  • Page 5 REMOTE CONTROL (IR)

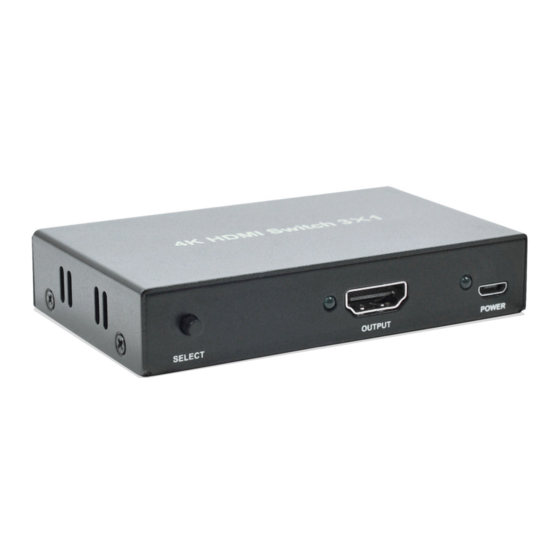

  • Page 6 CONNECTION AND KEY´S Figure 1: Front Panel • 1: Input Select • 2: HDMI Output and LED • 3: USB Power Input and LED Figure 2: Back Panel • 1: IR Input • 2-4: HDMI Input´s and LED...
  • Page 7: Troubleshooting

    TROUBLE SHOOTING Please check the connection carefully before turning on the device. Please check, if all cables are correctly connected. The LEDs will help you to localise any cable problems as fast as possible. Problem Possible Cause/Possible Solution No image •...
  • Page 8: Safety Notes

    SAFETY NOTES For your own safety and for long enjoyment of our product, please follow the following safety instructions: • Please use device as described in the manual. • To avoid damages to the video system by inrush current, please switch the amplifier/TV off before installing the converter.
  • Page 9: Important Note

    FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 10: Declaration Of Conformity

    DISPOSAL This device contains materials that must not be disposed of as household waste. Please check local laws concerning the applicable disposal regulations. Protect the environment by participating in recycling programs! DECLARATION OF CONFORMITY EMC 2014/30/EU Declaration of Conformity with regard to the EU Directive .
  • Page 11 CONTACT If you have any questions, please feel free to contact us. PRODUCTION & WHOLESALE LEICKE GmbH Dohnanyistr. 28 04103 Leipzig Germany Web: www.leicke.com Mail: info@leicke.com...
