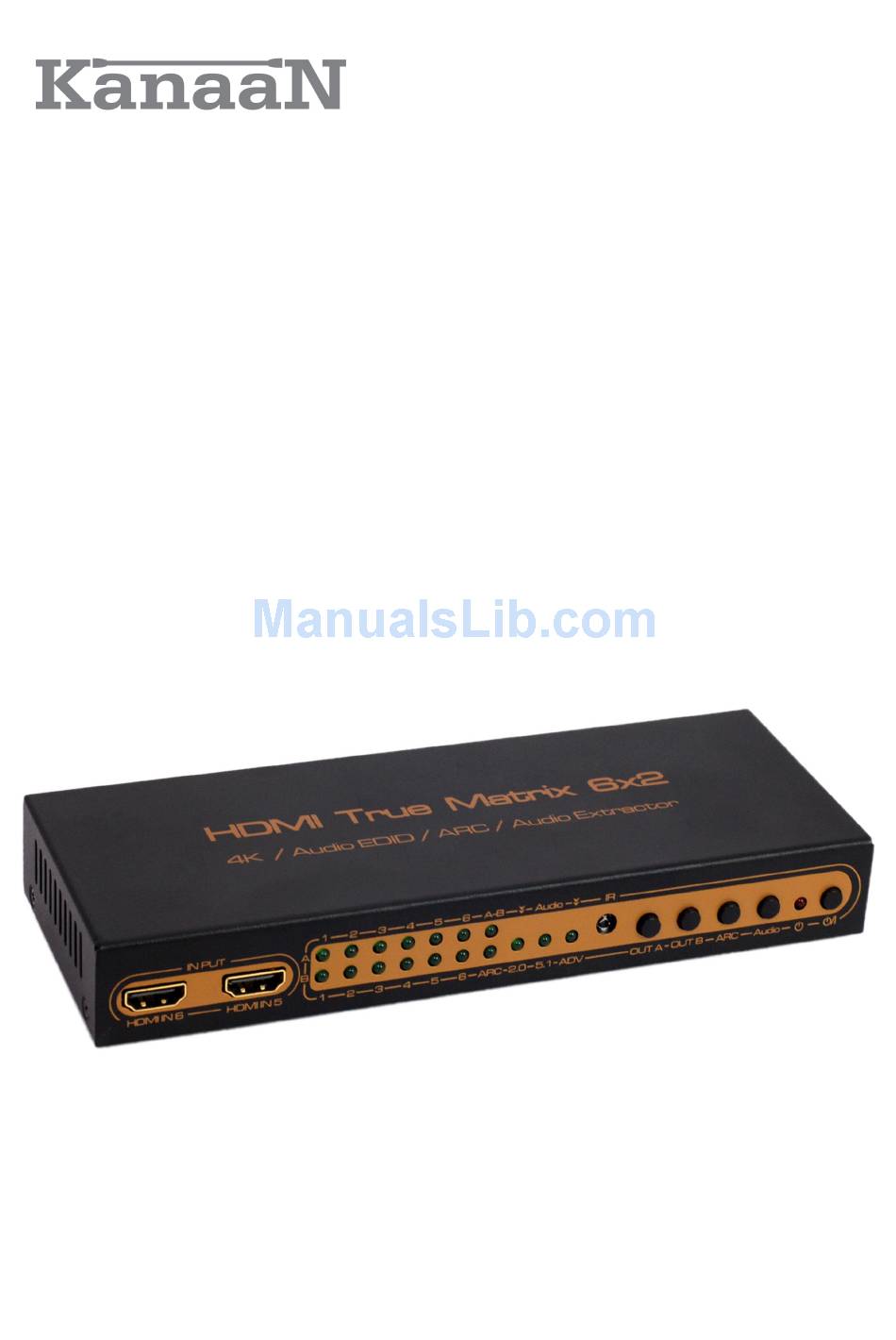

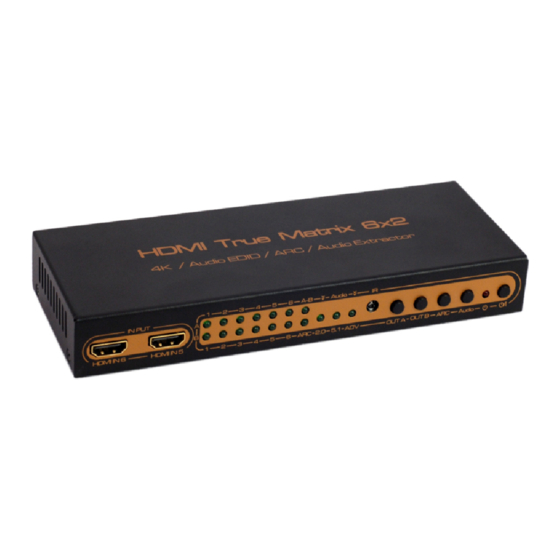

- Page 1 User's Manual 6x2 Matrix Switch for HDMI 4K*2K Product number: KN40573...
- Page 2 Dear customer, This 6x2 HDMI Matrix Switch from our brand KanaaN is specially designed for either home or professional application. It enables you to connect multiple HDMI devices to two display devices without having to change any cables for usage.
-
Page 3: Package Contents
Before attempting to use this device, please check the packaging and make sure the following items are contained in the package: Number of Name Note Pieces KanaaN 6x2 HDMI 4K*2K Matrix Switch Power Adapter DC 5V/1A Remote control battery included... -
Page 4: Connection And Operation
CONNECTION AND OPERATION Step 1: Connect your source devices and displays to the KanaaN Matrix Switch. Please notice, that the additional audio outs can be use regardless of HDMI out A an B to output the audio signal. HDMI output A additionally possesses the ARC function compared to HDMI output B. - Page 5 REMOTE CONTROL (IR) Red key with ON/OFF symbol: Switch on and off Audio: Choose between 2.0, 5.1, ADV ARC: ARC function on or off PIP: PIP function on or off Select: to choose the PIP input signal Enter: enter A-B: The Switch Button for Output A, Output B Audio Extract OUT A: Output A port ON/OFF key OUT B: Output B port ON/OFF key Note:...
-
Page 6: Connection Diagram
CONNECTION DIAGRAM Connection example... - Page 7 Panel and Labels Front Panel • HDMI IN6: HDMI Input 6 • HDMI IN5: HDMI Input 5 • A (1-6): Status of inputs allocated to output A • B (1-6): Status of inputs allocated to output B • A-B: HDMI Output A-/B audio output status LED •...
-
Page 8: Troubleshooting
Back: • DC5V: Input power supply 5V/2A • HDMI-IN 1-4: HDMI inputs • OUT-B: HDMI out B • OUT-A: HDMI output A (supports ARC function) • SPDIF: optical SPDIF output, digital (selectable regardless of the HDMI Output A –B with the remote control) •... - Page 9 Problem Possible Cause/Possible Solution No audio • Audio out chosen correctly? (change with SPDIF key until right output is activated) • Is the audio format supported? (if necessary, check your audio device for the format); analogue: stereo PCM, digital: PCM, Dolby 5.1 Audio and image troubles •...
-
Page 10: Safety Notes
SAFETY NOTES For your own safety and for long enjoyment of our product, please follow the following safety instructions: Please use device as described in the manual. To avoid damages to the video system by inrush current, please switch the amplifier/TV off before installing the converter. -
Page 11: Important Note
FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 12 CONTACT If you have any questions, please feel free to contact us. PRODUCTION & WHOLESALE LEICKE GmbH Dohnanyistr. 28 04103 Leipzig Germany Web: www.leicke.com Mail: info@leicke.com...
