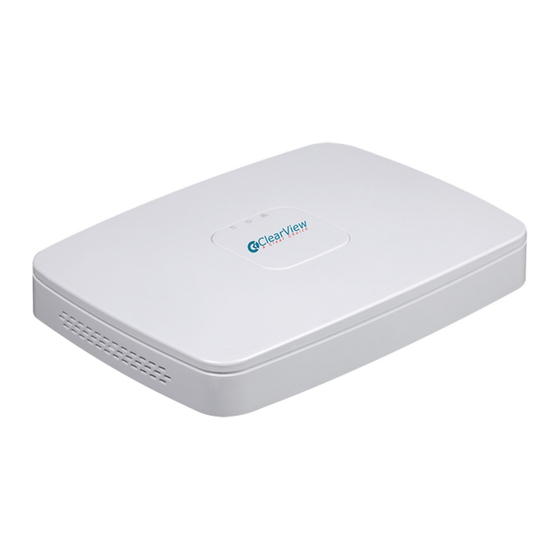

ClearView PhoenixPlus-08-M User Manual

page of 270

/ 270
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Network Video Recorder User's Manual

V 2.4.2

Table of Contents

Need help?

Do you have a question about the PhoenixPlus-08-M and is the answer not in the manual?

Questions and answers

Summary of Contents for ClearView PhoenixPlus-08-M

Page 1 Network Video Recorder User’s Manual V 2.4.2...
Page 2: Table Of Contents
Table of Contents Features and Specifications .......................1 Overview ............................1 Features ............................1 Specifications ..........................2 PhoenixPlus-08-M .........................2 1.3.1 1.3.2 PhoenixPlus-08 ........................4 PhoenixPlus-16 ........................6 1.3.3 Front Panel and Rear Panel .......................9 Front Panel ............................9 2.1.1 PhoenixPlus-08-M .........................9 PhoenixPlus-08 ........................9 2.1.2 PhoenixPlus-16 ........................10 2.1.3 Rear Panel ..........................10...
Page 3 Navigation Bar ..........................30 Main Menu ..........................31 4.4.1 4.4.2 Dual-screen operation ......................31 Output Screen ........................31 4.4.3 Tour ............................31 4.4.4 4.4.5 PTZ ............................31 Color ............................31 4.4.6 Search ...........................31 4.4.7 4.4.8 Alarm Status .........................31 Channel Info .........................32 4.4.9 Remote Device ........................32 4.4.10 Network ..........................32 4.4.11 4.4.12 HDD Manager ........................32...
Page 4 Schedule ..........................64 4.10.2 4.10.2.1 Schedule Record ......................64 4.10.2.2 Schedule Snapshot ....................67 Motion detect record/snapshot ..................69 4.10.3 4.10.3.1 Motion detect record ....................69 4.10.3.2 Motion Detect Snapshot ....................71 Alarm Record/Snapshot .....................72 4.10.4 4.10.4.1 Alarm Record ......................72 4.10.4.2 Alarm Snapshot ......................73 Manual Record/Snapshot ....................74 4.10.5 4.10.5.1 Manual Record ......................74...
Page 5 4.14.1.3 WIFI AP ........................115 4.14.1.3.1 WIFI AP ........................115 4.14.1.3.2 Advanced ........................ 116 4.14.1.4 WIFI ..........................117 4.14.1.5 3G ..........................118 4.14.1.6 PPPoE ........................119 4.14.1.7 DDNS .........................120 4.14.1.8 UPnP ..........................122 4.14.1.9 IP Filter ........................123 4.14.1.10 Email ..........................125 4.14.1.11 FTP..........................126 4.14.1.12 SNMP ........................128 4.14.1.13 Multicast ........................128 4.14.1.14 Alarm Centre ......................130...
Page 6 4.17.3.1.1 File Manage ......................154 4.17.3.1.2 Schedule ........................155 Account ..........................155 4.17.4 4.17.4.1.1 Add User .........................157 4.17.4.1.2 Modify user ......................159 4.17.4.1.3 Change Password ....................159 4.17.4.1.4 Add/Modify Group ....................159 4.17.4.1.5 Security Question ....................161 Update ..........................161 4.17.5 4.17.5.1 Local Update ......................161 4.17.5.2 Uboot ..........................162 Default ..........................162 4.17.6 4.17.7...
Page 7 5.8.2.5.1 CDMA/GPRS ......................188 5.8.2.5.2 Mobile ........................189 5.8.2.6 PPPoE ........................190 5.8.2.7 DDNS .........................190 5.8.2.8 IP filter ........................191 5.8.2.9 Email...........................192 5.8.2.10 UPnP ..........................193 5.8.2.11 SNMP .........................194 5.8.2.12 Multicast ........................195 5.8.2.13 Auto Register ......................196 5.8.2.14 Alarm Centre ......................196 5.8.2.15 HTTPS ........................197 5.8.2.15.1 Create Server Certificate ..................197 5.8.2.15.2 Download root certificate ..................198 5.8.2.15.3 View and set HTTPS port ..................201 5.8.2.15.4 Login ........................201...
Page 8 5.8.4.5.1 Main Stream ......................226 5.8.4.5.2 Sub Stream ........................226 5.8.4.5.3 Snapshot ........................227 5.8.5 Setting ..........................227 5.8.5.1 General ........................227 5.8.5.1.1 General ........................227 5.8.5.1.2 Date and time ......................228 5.8.5.1.3 Holiday Setup......................229 5.8.5.2 Account ........................229 5.8.5.2.1 User name .........................230 5.8.5.2.2 Group ........................231 5.8.5.3 Display ........................233 5.8.5.3.1 Display ........................233 5.8.5.3.2 Tour ...........................234 5.8.5.4...
Page 9 Welcome Thank you for purchasing our network video recorder! This user’s manual is designed to be a reference tool for your system. Please open the accessory bag to check the items one by one in accordance with the list below. Contact your local retailer ASAP if something is missing or damaged in the bag.
Page 10 Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. The product must be grounded to reduce the risk of electric shock. We assume no liability or responsibility for all the fires or electric shock caused by improper handling or installation.
Page 11  Keep away from extreme hot places and sources；  Avoid direct sunlight；  Keep away from extreme humid places；  Avoid violent vibration；  Do not put other devices on the top of the NVR；  Be installed in well ventilated place; do not block the vent. ...
Page 12: Features And Specifications
1 Features and Specifications 1.1 Overview This series NVR is a high performance network video recorder. This series product support local preview, multiple-window display, recorded file local storage, remote control and mouse shortcut menu operation, and remote management and control function. This series product supports centre storage, front-end storage and client-end storage.
Page 13: Specifications
IR control function (For some series product only.). Shortcut menu operation via remote control.  Support IPC or NVS remote video preview and control. 1.3 Specifications 1.3.1 PhoenixPlus-08-M Model PhoenixPlus-08-M 8-ch series product support 8 HD connection respectively. Total System System bandwidth supports 80Mbps.
Page 14 Model PhoenixPlus-08-M Type Decode Max 4-ch 1080P 30fps or 8-ch 720P 30fps or 8-ch D1 30fps Capability Video Video Input 4/8-ch network compression video input Video Output 1-channel VGA analog video output HDMI 1-ch HDMI output. Version number is 1.4...
Page 15: Phoenixplus-08
Model PhoenixPlus-08-M Network 1 RJ45 10/100Mbps self-adaptive Ethernet port. Connection Power Port 1 power socket. Power adapter power supplying mode. DC 48V power. Power Button Power On-off Button Receiver Window Clock Built-in clock. One power status indicator light. Indicator Light One network status indicator light.
Page 16 PhoenixPlus-08 Model 8-ch series product support 8 HD connection respectively. Total System System bandwidth supports 56Mbps respectively. Resources Embedded Linux real-time operation system Operation WEB/Local GUI Interface Decode Video Decode H.264/MJPEG/MJPEG4 Type Decode Max 2-ch 5M 25fps or 4-ch 3M 25fps or 4-ch 1080P 30fps Capability or 8-ch 720P 30fs Video...
Page 17: Phoenixplus-16
PhoenixPlus-08 Model Power Button 1 button Power On-off Button Receiver Window Clock Built-in clock. One power status indicator light. Indicator Light One network status indicator light. One HDD status indicator light. Power ＜10W (No HDD) General Consumption Working ﹣10℃～﹢55℃ Temperature Working 10℅～90℅...
Page 18 HDMI 1-ch HDMI output. Version number is 1.4 Window 1/4/8/9/16-window Split Audio 1-ch bidirectional talk input Audio Input Audio 1-ch bidirectional talk output Output Audio G.711a Compres sion Alarm 4-ch alarm input Alarm Input Alarm 2-ch alarm output Output Function Storage 2 built-in SATA ports.
Page 19 ＜30W(No HDD) General Power Consump tion Working -10℃～+55℃ Temperat 10℅－90℅ Working Humidity 86kpa－106kpa pressure Dimensio 375mm×287mm×52mm Weight 1.5kg～2.5kg（No HDD） Installatio Desk installation...
Page 20: Front Panel And Rear Panel
2 Front Panel and Rear Panel 2.1 Front Panel 2.1.1 PhoenixPlus-08-M The front panel is shown as in Figure 2-1. Figure 2-1 Please refer to the following sheet for detailed information. Name Function HDD status indictor light The red light becomes on when HDD is abnormal.
Page 21: Phoenixplus-16
Connect to peripheral USB 2.0 storage device, mouse, burner and etc. 2.2 Rear Panel 2.2.1 PhoenixPlus-08-M The PhoenixPlus-08-M series NVR rear panel is shown as below. See Figure 2-4. Figure 2-4 Please refer to the following sheet for detailed information.
Page 22: Phoenixplus-08
Port Name Connection Function Power input port Power socket Input DC 48V/2A. 10M/100Mbps self-adaptive Ethernet port. Connect to the Network port network cable. USB port. Connect to mouse, USB storage device and USB port etc. High definition audio and video signal output port. It High Definition transmits uncompressed high definition video and...
Page 23: Phoenixplus-16
Port Name Connection Function High definition audio and video signal output port. High Definition It transmits uncompressed high definition video HDMI Media Interface and multiple-channel data to the HDMI port of the display device. HDMI version is 1.4. VGA video output port. Output analog video video signal.
Page 24 Name Function MIC IN Audio input port Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup. Audio output port. It is to output the analog audio signal MIC OUT Audio output port to the devices such as the sound box.
Page 25: Alarm Connection
2.3 Alarm Connection 2.3.1 Alarm Port The alarm port is shown as below. See Figure 2-7. The following figure for reference only. Figure 2-7 Icon Function 1～16 ALARM1～ALARM16. The alarm becomes activated in the low level. NO1 C1， NO2 C2， NO3 C3， NO4 Four NO activation output groups.
Page 26: Alarm Input And Output Port
Figure 2-8 Note  There are two alarm input types: NO/NC.  When connect the ground port of the alarm device to the NVR, you can use any of the GND ports  Connect the NC port of the alarm device to the alarm input port (ALARM) of the NVR. ...
Page 27: Bidirectional Talk
Between touches with different 1000VAC 1minute polarity Between touch and winding 1000VAC 1minute Between touches with same Surge voltage 1500V (10× 160us) polarity Length of open 3ms max time Length of close 3ms max time Longevity Mechanical 50× 106 (3Hz) Electrical 200×...
Page 28: Mouse Operation
Login the Web and then enable the corresponding channel real-time monitor. Please refer to the above interface (Figure 2-9) to enable bidirectional talk. Listening Operation At the PC-end, speak via the speaker or the pickup, and then you can get the audio from the earphone or sound box at the device-end.
Page 29: Remote Control
In multiple-window mode, double left click one channel to view in full-window. Double left click current video again to go back to previous multiple-window mode. Right click In real-time monitor mode, pops up shortcut menu. mouse Exit current menu without saving the modification. Press middle In numeral input box: Increase or decrease numeral value.
Page 30 Forward Various forward speeds normal speed playback. Slow play Multiple slow play speeds or normal playback. Next record In playback mode, playback the next video. Previous record In playback mode, playback the previous video. Play/Pause In pause mode, click this button to realize normal playback.
Page 31: Connection Sample
In motion detection interface, working with direction keys to complete setup. In text mode, click it to delete character. 0-9 number key Input password, channel switch channel. Shift is the button to switch the input method. Connection Sample Please refer to Figure 2-13 for connection sample. The following figure for reference only. Figure 2-13...
Page 32: Device Installation
You can refer to the Appendix for HDD space information and recommended HDD brand. Please use HDD of 7200rpm or higher. Usually we do not recommend the PC HDD. Please follow the instructions below to install hard disk. The following figure for reference only. 3.3.1 PhoenixPlus-08-M/PhoenixPlus-08 ○ ○ ○...
Page 33: Phoenixplus-16
○ ○ ○ Turn the device upside down and Fix the HDD firmly. Connect the HDD cable and then turn the screws in firmly. power cable. ○ ○ Put the cover in accordance with Secure the screws in the rear panel and the side panel. the clip and then place the upper cover back.
Page 34 then turn the screws in firmly. cable. ⑦ ⑧ Put the cover in accordance with Secure the screws in the rear panel the clip and then place the upper cover and the side panel. back.
Page 35: Local Basic Operation
4 Local Basic Operation 4.1 Boot up and Shutdown 4.1.1 Boot up Caution Before the boot up, please make sure:  For device security, please connect the NVR to the power adapter first and then connect the device to the power socket. ...
Page 36: Reset Password
 For reset information, please refer to chapter 4.2.2. Figure 4-1 Click Cancel button, system pops up the following interface for you to confirm. See Figure 4-2. Check the box here, system will not pop up the change password interface the next time. Figure 4-2 4.2.2 Reset Password Once you forgot password, you can answer the security questions you set in chapter 4.2.1 to reset the...
Page 37: Startup Wizard
Figure 4-3 System pops up the following dialogue box, please answer the security questions and then input the new password twice. See Figure 4-4. Figure 4-4 4.3 Startup Wizard After device successfully booted up, it goes to startup wizard. Click Cancel/Next button, you can see system goes to login interface. Tips Check the box Startup button here, system goes to startup wizard again when it boots up the next time.
Page 38 Figure 4-5 Click Smart add, Cancel button or Next button, system goes to login interface. See Figure 4-6. System consists of three accounts:  Username: admin. Password: admin. (administrator, local and network)  Username: 888888. Password: 888888. (administrator, local only) ...
Page 39 Figure 4-7 Click Next button, you can go to network interface. See Figure 4-8. For detailed information, please refer to chapter 4.14. Figure 4-8 Click Next button, you can set P2P function. Scan the QR code, download the App to the cellphone, you can use the smart phone to add the device.
Page 40 Figure 4-9 Click Next button, you can go to remote device interface. See Figure 4-10. For detailed information, please refer to chapter 4.5. Figure 4-10...
Page 41: Navigation Bar
Click Next button, you can go to Schedule interface. See Figure 4-11. For detailed information, please refer to chapter 4.10.2. Figure 4-11 Click Finish button, system pops up a dialogue box. Click the OK button, the startup wizard is complete. See Figure 4-12.
Page 42: Main Menu
4.4.1 Main Menu Click button to go to the main menu interface. 4.4.2 Dual-screen operation Important This function is for some series only. Click to select screen 2, you can view an interface shown as below. See Figure 4-14. It is a navigation bar for screen 2.
Page 43: Channel Info
Click button , system goes to alarm status interface. It is to view device status and channel status. Please refer to chapter 4.17.1.4. 4.4.9 Channel Info Click button , system goes to the channel information setup interface. It is to view information of the corresponding channel.
Page 44 When the network camera(s) and the NVR are in the same router or switch, you can use smart add function to add all network cameras to the NVR at the same time. There are two ways for you to go to the smart add interface. ...
Page 45 Figure 4-19 Click smart add button, you can see device enables DHCP function. See Figure 4-20. Figure 4-20...
Page 46 System pops up the following interface for you to confirm IP information if there are several IP segments. See Figure 4-21. Figure 4-21 Now you can see system is auto adding IPC to the corresponding channels. See Figure 4-22. Figure 4-22...
Page 47: Remote Device
You can see the following dialog box after system successfully added network cameras. See Figure 4-23. Figure 4-23 4.6 Remote Device 4.6.1 Device Manager (For WIFI Series Only) From Main menu->Setting->Camera->Manager, you can see the following interface. See Figure 4-24. ...
Page 48 Figure 4-24  Modify: Click Modify button, you can see the following interface. See Figure 4-25.  Name: Change current channel name.  Protocol: Select protocol from the dropdown list.  IP Address: Input IP address here.  TCP port: Input TCP port value. ...
Page 49: Remote Device Connection
Figure 4-25 4.6.2 Remote Device Connection From Mani menu->Setting->Remote device or right click mouse on the preview interface and then select remote device item, you can see the following interface. See Figure 4-26. Figure 4-26...
Page 50: Short-Cut Menu
Click Device search button, you can view the searched IP addresses at the top pane of the interface. Double click an IP address or check one IP address and then click Add button, you can add current device to the bottom pane of the interface. System supports batch add function. Click Manual Add button, you can add a device directly.
Page 51: Image
Figure 4-28 4.6.4 Image From main menu->setting->camera->image, you can see the image interface is shown as below. See Figure 4-29.  Channel: Select a channel from the dropdown list.  Saturation: It is to adjust monitor window saturation. The value ranges from 0 to 100. The default value is 50.
Page 52: Channel Name
 HLC: After you enabled HLC function, the device can lower the brightness of the brightest section according to the HLC control level. It can reduce the area of the halo and lower the brightness of the whole video.  OFF: It is to disable the BLC function.
Page 53: Upgrade
Figure 4-30 4.6.6 Upgrade Note Right now, the NVR can upgrade the IPC via the USB device or WEB. You can upgrade 8 network cameras of the same model (or the NVR supported) at the same time. It is to update the network camera. From main menu->setting->camera->remote, the interface is shown as below.
Page 54: Upnp
Figure 4-31 4.6.7 UPNP Important Do not connect the switch to the PoE port, otherwise the connection may fail! Please connect the IPC to the PoE port of the device rear panel (Figure 4-32), system can auto connect to the network camera. Please note the following figure is for reference only. Figure 4-32 4.6.8 Built-in Switch Setup The built-in switch function is for product of PoE port.
Page 55: Preview
Figure 4-33 4.7 Preview After device booted up, the system is in multiple-channel display mode. See Figure 4-34.Please note the displayed window amount may vary. The following figure is for reference only. Please refer to chapter 1.3 Specifications for the window-amount your product supported. Figure 4-34 4.7.1 Preview If you want to change system date and time, you can refer to general settings ( Main...
Page 56: Preview Control Interface
Recording status Video loss Motion detection Camera lock Tips  Preview drag: If you want to change position of channel 1 and channel 2 when you are previewing, you can left click mouse in the channel 1 and then drag to channel 2, release mouse you can switch channel 1 and channel 2 positions.
Page 57: Right Click Menu
Figure 4-37 Right click mouse to cancel zoom and go back to the original interface. Manual record function It is to backup the video of current channel to the USB device. System can not backup the video of multiple-channel at the same time. Click button , system begins recording.
Page 58: Preview Display Effect Setup
 Remote device: Search and add a remote device.  Alarm output: Generate alarm output signal manually.  Main menu: Go to system main menu interface. Tips: Right click mouse to go back to the previous interface. Figure 4-38 4.7.4 Preview Display Effect Setup 4.7.4.1 Video Color Here you can set hue, brightness, contrast, saturation, gain, white level, color mode and etc.
Page 59 Please refer to the following sheet for detailed information. Item Note Period There are two periods in one day. You can set different sharpness, brightness, and contrast setup for different periods. Effective Time Check the box here to enable this function and then set period time.
Page 60: Display
4.7.4.2 Display From Main Menu->Setting->System->Display, you can go to the following interface. See Figure 4-40. Here you can set menu and video preview effect. All you operation here does not affect the record file and playback effect. Figure 4-40 Now you can set corresponding information. ...
Page 61: Tv Adjust
 VGA+HDMI2: It is for dual-screen operation. Please select from the dropdown list according to your actual situation. Click Apply button, system needs to restart to activate new setup. For example, 32+4 means for VGA, system max supports 32-window split and for HDMI2, system max supports 4-window split.
Page 62: Fish Eye (Optional)
 Set preview display mode: On the preview interface, right click mouse, you can view right-click menu. Now you can select preview window amount and channel.  Set channel display mode: On the preview interface, if you want to change channel 1 and channel 16 position, please right click channel 1 video window and then drag to the channel 16 video window, release button, you can change channel 1 and channel 16 position.
Page 63 Figure 4-43. Figure 4-43 Now you can see an interface shown as in Figure 4-44. You can set fish eye installation mode and display mode. Note:  For the non-fish eye channel, system pops up dialogue box to remind you it is not a fish eye channel and does not support de-warp function.
Page 64 There are three installation modes: ceiling mount/wall mount/ground mount. The different installations modes have different de-warp modes. Please refer to the following sheet for detailed information. Installation modes Icon Note 360°panorama original view （Ceiling mount） 1 de-warp window+1 panorama stretching 2 panorama stretching view （Ground mount）...
Page 65: Fish Eye De-Warp During Playback
4.8.2 Fish eye de-warp during playback On the main menu, click search button. Select 1-window playback mode and corresponding fish eye channel, click to play. Right click the , you can go to the de-warp playback interface. For detailed information, please refer to chapter 4.8.1.
Page 66: Ptz Control
Figure 4-46 If you are connecting to network PTZ, the PTZ type shall be remote. See Figure 4-47. Figure 4-47 4.9.2 PTZ Control After completing all the setting please click save button. Right click mouse (click “Fn” Button in the front panel or click “Fn”...
Page 67 Figure 4-48 The PTZ setup is shown as in See Figure 4-49. Please note the commend name is grey once device does not support this function. The PTZ operation is only valid in one-window mode. Here you can control PTZ direction, speed, zoom, focus, iris, preset, tour, scan, pattern aux function, light and wiper, rotation and etc.
Page 68: Ptz Function Setup
zone you dragged, the higher the speed. Figure 4-50 Name Function function Shortcut Function function Shortcut  Zoom Near  ► │ │ Focus Near   Iris close Open In Figure 4-49, click to open the menu, you can set preset, tour, pattern, scan and etc. See Figure 4-51.
Page 69 Click , you can go to the following interface to set preset, tour, pattern, and scan. See Figure 4-52. Figure 4-52 Preset Setup In Figure 4-52, click preset button and use eight direction arrows to adjust camera to the proper position. The interface is shown as in Figure 4-53.
Page 70 Figure 4-54 Pattern Setup In Figure 4-52, click Pattern button and input pattern number. Click Begin button to start direction operation. Or you can go back to Figure 4-49 to operate zoom/focus/iris/direction operation. In Figure 4-52, click End button. Figure 4-55 Scan Setup In Figure 4-52, click Scan button.
Page 71: Call Ptz Function
Figure 4-56 4.9.2.2 Call PTZ Function Call Preset In Figure 4-51, input preset value and then click to call a preset. Click again to stop call. Call Pattern In Figure 4-51, input pattern value and then click to call a pattern. Click again to stop call.
Page 72: Record And Snapshot
Figure 4-57 4.10 Record and Snapshot The record/snapshot priority is: Alarm->Motion detect->Schedule. 4.10.1 Encode 4.10.1.1 Encode Encode setting is to set IPC encode mode, resolution, bit stream type and etc From Main menu->Setting->System->Encode, you can see the following interface. See Figure 4-58. ...
Page 73: Overlay
Figure 4-58 4.10.1.2 Overlay Click overlay button, you can see an interface is shown in Figure 4-59.  Cover area: Here is for you to cover area section. You can drag you mouse to set proper section size. In one channel video, system max supports 4 zones in one channel. You can set with Fn button or direction buttons.
Page 74: Snapshot
Figure 4-59 4.10.1.3 Snapshot Here you can set snapshot mode, picture size, quality and frequency. See Figure 4-60.  Snapshot mode: There are two modes: regular and trigger. If you set regular mode, you need to set snapshot frequency. If you set trigger snapshot, you need to set snapshot activation operation. ...
Page 75: Schedule
Figure 4-60 Figure 4-61 4.10.2 Schedule The record type priority is: Alarm>Motion detect>Regular. 4.10.2.1 Schedule Record Set record time, record plan and etc. Please note system is in 24-hour record by default after its first boot up. In the main menu, from Main menu->Setting->Storage->Schedule, you can go to schedule menu. See Figure 4-65.
Page 76  Channel: Please select the channel number first. You can select “all” if you want to set for the whole channels.  : Sync connection icon. Select icon of several dates, all checked items can be edited or together. Now the icon is shown as ...
Page 77 Figure 4-64 Please check the box to select the corresponding function. After completing all the setups please click save button, system goes back to the previous menu. There are color bars for your reference. Green color stands for regular recording, yellow color stands for motion detection and red color stands for alarm recording.
Page 78: Schedule Snapshot
Figure 4-66 Quick Setup Copy function allows you to copy one channel setup to another. After setting in channel 1, click Copy button, you can go to interface Figure 4-67. You can see current channel name is grey such as channel 1. Now you can select the channel you want to paste such as channel 5/6/7.
Page 79 Figure 4-68 From Main menu->Setting->Camera->Encode->Snapshot, you can go to snapshot interface. See Figure 4-69. Select the snapshot channel from the dropdown list and then select snapshot mode as Timing (Schedule) from the dropdown list and then set picture size, quality and snapshot frequency. Figure 4-69...
Page 80: Motion Detect Record/Snapshot
In the main menu, from Main menu->Setting->Storage->Schedule, you can go to schedule menu. See Figure 4-65. Here you can set snapshot period. There are total six periods in one day. Please refer to chapter 4.10.2.1 for detailed setup information. The setup steps are general the same. Figure 4-70 Note ...
Page 81 Figure 4-71 Select motion detect from the event type dropdown list. Select a channel from the dropdown list and then check the enable button to enable motion detect function. Click Region Select button to set motion detect zone. There are 396(PAL)/330(NTSC) small zones.
Page 82: Motion Detect Snapshot
Click Copy button to copy current setup to other channel(s). Click OK button to complete motion detect record setup. Figure 4-72 Figure 4-73 4.10.3.2 Motion Detect Snapshot From Main menu->Setting->Camera->Encode->Snapshot, you can go to snapshot interface. See Figure 4-74. In Figure 4-74, select trigger snapshot from the dropdown list and then set picture size, quality and snapshot frequency.
Page 83: Alarm Record/Snapshot
Figure 4-74 4.10.4 Alarm Record/Snapshot 4.10.4.1 Alarm Record Before you set alarm setup information, please go to chapter 2.3 to connect alarm input and alarm output cable (such as light, siren and etc). The record priority is: Alarm>Motion detect>Regular. In the main menu, from Setting->Event-> Alarm, you can see alarm setup interface. See Figure 4-75. ...
Page 84: Alarm Snapshot
Figure 4-75 From Mani menu->Setting->Storage->Schedule, you can go to Figure 4-65. Select alarm channel, period and the record type shall be alarm. Please refer to chapter 4.10.2. Click Copy button to copy current setup to other channel(s). Click OK button to save alarm record information. 4.10.4.2 Alarm Snapshot Please refer to Step a) to step c) of chapter 4.10.3.2 to enable timing snapshot.
Page 85: Manual Record/Snapshot
Figure 4-76 4.10.5 Manual Record/Snapshot You need to have proper rights to implement the following operations. Please make sure the HDD has been properly installed. 4.10.5.1 Manual Record Right click mouse select manual record main menu, from Setting->Storage->Manual Record. Manual record menu is shown as in Figure 4-77. Tips You can click Rec button on the front panel (if possible) to go to the Manual Record interface.
Page 86: Manual Snapshot
Figure 4-77 Check the box here to select manual record channel(s). You can see the corresponding indicator light on the front panel is on.  Channel: It is to display device all channels.  Manual: It has the highest priority. Enable corresponding channel to record no matter what period applied in the record setup.
Page 87 4-78. Figure 4-78 Click Add new holiday button, you can see an interface shown as in Figure 4-79. Here you can set holiday date name, repeat mode, start time/end time and etc. Figure 4-79...
Page 88: Holiday Snapshot
Click Add button to complete holiday setup. Now you can enable holiday setup and then click Apply button. From Main menu->setting->Storage->schedule, you can go to schedule interface. See Figure 4-80. Now you can set period and record type of holiday time. Please refer to chapter 4.10.2.1 for detailed setup information.
Page 89: Search Interface
4.11.2 Search Interface From Main menu->Search, or on the preview interface right click mouse and then select search item, you can go to the following interface. See Figure 4-81. Figure 4-81 Please refer to the following sheet for more information. Name Function ...
Page 90  Playback mode：1/4/9/16. (It may vary due to different series.)  In 1-window playback mode: you can select 1-X channels (X depends on the product channel amount). Playback  In 4-window playback mode: you can select 4 channels according to your mode requirement.
Page 91 In playback mode, click it to play the next or the previous section. You can click continuously when you are watching the files from the same channel. │/ In normal play mode, when you pause current play, you can click │ and │...
Page 92 the file.  Select the file(s) you want to backup from the file list. You can check from the list. Then click the backup button, now you can see the backup menu. System supports customized path setup. After select or create new folder, click the Start button to begin the backup operation.
Page 93: Smart Search
play when playback When the system is in full-screen playback mode, left click the mouse in the Digital screen. Drag your mouse in the screen to select a section and then left click zoom mouse to realize digital zoom. You can right click mouse to exit. Manually switch During the file playback process, you can switch to other channel via the...
Page 94: Accurate Playback By Time
4.11.2.2 Accurate playback by time Select records from one day, click the list, you can go to the file list interface. You can input time at the top right corner to search records by time. See image on the left side of the Figure 4-83 For example, input time 11:00.00 and then click Search button , you can view all the record files after 11:00.00 (The records includes current time.).
Page 95: Picture Playback
interface. Double click one mark file, you can begin playback from the mark time.  Play before mark time Here you can set to begin playback from previous N seconds of the mark time. Note Usually, system can playbacks previous N seconds record if there is such kind of record file. Otherwise, system playbacks from the previous X seconds when there is such as kind of record.
Page 96: Backup
Please refer to chapter 4.11.2 to select picture you want to view. 4.12 Backup 4.12.1 File Backup In this interface, you can backup record file to the USB device. a) Connect USB burner, USB device or portable HDD and etc to the device. b) From Main menu->Backup, you can go to the Backup interface.
Page 97: Import/Export
Figure 4-87 h) Click backup button, system begins burning. At the same time, the backup button becomes stop button. You can view the remaining time and process bar at the left bottom. Note  During backup process, you can click ESC to exit current interface for other operation (For some series product only).
Page 98: Backup Log
Figure 4-88  Export: Please connect the peripheral device first and then go to the following interface. Click Export button, you can see there is a corresponding “Config_Time” folder. Double click the folder, you can view some backup files.  Import: Here you can import the configuration files from the peripheral device to current device.
Page 99: Usb Device Auto Pop-Up
Figure 4-89 b) Select log type and then set start time/end time, click Search button, you can see log time and event information. Click to view detailed log information. c) Select log items you want to save and then click backup button, you can select a folder to save them.
Page 100: Alarm
Figure 4-90 4.13 Alarm 4.13.1 Detect Alarm In the main menu, from Setting to Detect, you can see motion detect interface. See Figure 4-91.There are three detection types: motion detection, video loss, tampering. 4.13.1.1 Motion Detect After analysis video, system can generate a motion detect alarm when the detected moving signal reached the sensitivity you set here.
Page 101 screen prompt, alarm upload, email will not be activated again. After 10s, if system detects another alarm signal, it can generate an alarm since the anti-dither time is out.  Period: Click set button, you can see an interface is shown as in Figure 4-94. Here you can set motion detect period.
Page 102 Figure 4-91 Figure 4-92...
Page 103 Figure 4-93 Figure 4-94...
Page 104: Tampering
Figure 4-95 Motion detect here only has relationship with the sensitivity and region setup. It has no rel ationship with other setups. 4.13.1.2 Tampering When someone viciously masks the lens, or the output video is in one-color due to the environments light change, the system can alert you to guarantee video continuity.
Page 105: Video Loss
Figure 4-96 4.13.1.3 Video Loss In Figure 4-91, select video loss from the type list. You can see the interface is shown as in Figure 4-97. This function allows you to be informed when video loss phenomenon occurred. You can enable alarm output channel and then enable show message function.
Page 106: Ivs (Optional)
Figure 4-97 4.13.2 IVS (Optional) Please make sure you are connecting to the smart network camera, otherwise you can not use IVS function! From main menu->Setting->Event, you can go to the IVS interface. It includes four interfaces: Tripwire/intrusion/object/scene. 4.13.2.1 Tripwire （Optional） Please make sure you are connecting to the smart network camera, otherwise you can not use IVS function! System generates an alarm once there is any object crossing the tripwire in the specified direction.
Page 107 Figure 4-98 Check the Enable box to enable tripwire function. Click Rule setup to draw the tripwire. See Figure 4-99. Figure 4-99 Select SN (Line1/2/3/4) and direction, and then input customized rule name.  Line1/2/3/4: System supports four tripwires. Each SN stands for one tripwire.
Page 108  Direction ( ): System can generate an alarm once there is any object crossing in the specified direction. Now you can draw a rule. Left click mouse to draw a tripwire. The tripwire can be a direct line, curve or polygon.
Page 109 the icon is shown as . Click to delete a record type from one period.  In Figure 4-94. Click button after one date or a holiday, you can see an interface shown as in Figure 4-95.  Alarm output: when an alarm occurs, system enables peripheral alarm devices. ...
Page 110: Intrusion (Cross Warning Zone) （Optional
Figure 4-102 Figure 4-103 4.13.2.2 Intrusion (Cross warning zone) （Optional） Please make sure you are connecting to the smart network camera, otherwise you can not use IVS function! System generates an alarm once there is any object entering or exiting the zone in the specified direction. From main menu->Setting->Event->IVS->Intrusion, the intrusion interface is shown as below.
Page 111 Figure 4-104 Check the enable box to enable intrusion function. Click Rule setup to draw the zone. See Figure 4-105. Figure 4-105 Select SN (Area1/2/3/4) and direction, and then input customized rule name.  Area1/2/3/4: System supports four zones. Each SN stands for one zone. ...
Page 112: Object Detect （Optional
Click to delete the corresponding rule. You can refer to the chapter 4.13.2.1 to set parameters. 4.13.2.3 Object Detect （Optional）  Please make sure you are connecting to the smart network camera, otherwise you can not use IVS function!  For the same channel, the object detect and the intrusion can not be valid at the same time.
Page 113: Scene Change （Optional
Select SN (object1/2/3/4) and direction, and then input customized rule name.  Object1/2/3/4: System supports four zones. Each SN stands for one zone.  Direction ( ): For icon , system can generate an alarm once the object left in the one for the specified time..
Page 114: Face Detect (Optional)
4.13.3 Face Detect (Optional) Please make sure you are connecting to the smart network camera, otherwise you can not use IVS function! When camera detects human face, system can generate an alarm. From main menu->Setting->Event->Face detect, the interface is shown as in Figure 4-109. ...
Page 115: Alarm Output
 Threshold: It is to set intensity change threshold. The smaller the value is, the higher the sensitivity  Log: Check the box here, system can record audio detect alarm log. You can refer to the chapter 4.13.2.1 t to set other parameters. Figure 4-110 4.13.5 Alarm output From Main menu->Setting->Event->Alarm output, you can see an interface shown as in Figure 4-111.
Page 116: Alarm Setup
Figure 4-111 Please highlight icon to select the corresponding alarm output. After all the setups please click OK button, system goes back to the previous menu. 4.13.6 Alarm Setup In the main menu, from Setting->Event->Alarm, you can see alarm setup interface. ...
Page 117 screen prompt, alarm upload, email will not be activated again. After 10s, if system detects another alarm signal, it can generate an alarm since the anti-dither time is out.  Alarm output: The number here is the device alarm output port. You can select the corresponding ports(s) so that system can activate the corresponding alarm device(s) when an alarm occurred.
Page 118 Figure 4-112 Figure 4-113...
Page 119 Figure 4-114 Figure 4-115...
Page 120 Figure 4-116 Figure 4-117...
Page 121: Abnormality
Figure 4-118 Please highlight icon to select the corresponding function. After setting all the setups please click save button, system goes back to the previous menu. 4.13.7 Abnormality There are two types: Disk/Network.  Disk: Disk error, no disk, no space. See Figure 4-119 and Figure 4-120. ...
Page 122 Figure 4-119 Figure 4-120...
Page 123: Network
Figure 4-121 4.14 Network 4.14.1.1 TCP/IP The single network adapter interface is shown as in Figure 4-122 and the dual network adapters interface is shown as in Figure 4-123.  Network Mode : Includes multiple access, fault tolerance, and load balancing ...
Page 124  IP Version: There are two options: IPv4 and IPv6. Right now, system supports these two IP address format and you can access via them.  MAC address: The host in the LAN can get a unique MAC address. It is for you to access in the LAN. It is read-only.
Page 125: Connection
Figure 4-122 Figure 4-123 4.14.1.2 Connection The connection setup interface is shown as in Figure 4-124.  Max connection: system support maximal 128 users. 0 means there is no connection limit.  TCP port: Default value is 37777.
Page 126: Wifi Ap
 UDP port: Default value is 37778.  HTTP port: Default value is 80.  HTTPS port: Default value is 443.  RTSP port: Default value is 554. Important: System needs to reboot after you changed and saved any setup of the above four ports. Please make sure the port values here do not conflict.
Page 127: Advanced
Figure 4-125 4.14.1.3.2 Advanced Click Advanced, you can see an interface shown as below. See Figure 4-126.  IPv4 address: Input WIFI AP IP address.  IPv4 netmask: Input WIFI AP network mask.  IPv4 gateway: Input WIFI AP gateway. ...
Page 128: Wifi
Figure 4-126 4.14.1.4 WIFI The WIFI interface is shown as below. See Figure 4-127.  Enable: Check the box here to enable WIFI function.  Refresh: You can click it to search the hotspot list again. It can automatically add the information such as the password if you have set it before.
Page 129: 118
Figure 4-127  WIFI working status: Here you can view current connection status. Please note:  After successful connection, you can see WIFI connection icon at the top right corner of the preview interface.  When the hotspot verification type is WEP, system displays as AUTO since the device can not detect its encryption type.
Page 130: Pppoe
 APN: It is the wireless connection server. It is to set you access the wireless network via which method.  AUTH: It is the authentication mode. It supports PAP/CHAP.  Dial number: Please input 3G network dialup number you got from your ISP. ...
Page 131: Ddns
Figure 4-129 4.14.1.7 DDNS DDNS setup interface is shown as in Figure 4-130. You need a PC of fixed IP in the internet and there is the DDNS software running in this PC. In other words, this PC is a DNS (domain name server). In network DDNS, please select DDNS type and highlight enable item.
Page 132 Figure 4-130 Please note DDNS type includes: CN99 DDNS, NO-IP DDNS, Quick DDNS, Dyndns DDNS and sysdns DDNS. All the DDNS can be valid at the same time, you can select as you requirement. Private DDNS function shall work with special DDNS server and special Professional Surveillance Software (PSS).
Page 133: Upnp
the device IP.  User name: It is optional. You can input your commonly used email address. Important  Do not register frequently. The interval between two registrations shall be more than 60 seconds. Too many registration requests may result in server attack. ...
Page 134: Ip Filter
Figure 4-131 Figure 4-132 4.14.1.9 IP Filter IP filter interface is shown as in Figure 4-133. You can add IP in the following list. The list supports max 64 IP addresses. System supports valid address of IPv4 and IPv6. Please note system needs to check the validity of all IPv6 addresses and implement optimization.
Page 135  Type: You can select trusted site and blacklist from the dropdown list. You can view the IP address on the following column.  Start address/end address: Select one type from the dropdown list, you can input IP address in the start address and end address.
Page 136: Email
Figure 4-134 4.14.1.10 Email The email interface is shown as below. See Figure 4-135.  SMTP server: Please input your email SMTP server IP here.  Port: Please input corresponding port value here.  User name: Please input the user name to login the sender email box. ...
Page 137: Ftp
Figure 4-135 4.14.1.11 FTP You need to download or buy FTP service tool (such as Ser-U FTP SERVER) to establish FTP service. Please install Ser-U FTP SERVER first. From “start” -> “program” -> Serv-U FTP Server -> Serv-U Administrator. Now you can set user password and FTP folder. Please note you need to grant write right to FTP upload user.
Page 138 or not. See Figure 4-137. Figure 4-137 System also supports upload multiple NVRs to one FTP server. You can create multiple folders under this FTP. FTP interface is shown as in Figure 4-138. Please highlight the icon in front of Enable to activate FTP function. Here you can input FTP server address, port and remote directory.
Page 139: Snmp
4.14.1.12 SNMP SNMP is an abbreviation of Simple Network Management Protocol. It provides the basic network management frame of the network management system. The SNMP widely used in many environments. It is used in many network device, software and system. You can set in the following interface.
Page 140 Figure 4-140 Here you can set a multiple cast group. Please refer to the following sheet for detailed information.  IP multiple cast group address -224.0.0.0-239.255.255.255 -“D” address space  The higher four-bit of the first byte=”1110”  Reserved local multiple cast group address -224.0.0.0-224.0.0.255 -TTL=1 When sending out telegraph -For example...
Page 141: Alarm Centre
After you logged in the Web, the Web can automatically get multiple cast address and add it to the multiple cast groups. You can enable real-time monitor function to view the view. Please note multiple cast function applies to special series only. 4.14.1.14 Alarm Centre This interface is reserved for you to develop.
Page 142: Easy4Ip
Figure 4-142 2) The proxy server software developed from the SDK. Please open the software and input the global setup. Please make sure the auto connection port here is the same as the port you set in the previous step. 3) Now you can add device.
Page 143 Figure 4-143  Android: Open Google Play app in your smart phone. Search gDMSS Lite or gDMSS Plus, download it and install.  iOS: Open App Store app in your smart phone. Search iDMSS Lite or iDMSS Plus, download it and install. Please follow the steps listed below.
Page 144: Easy Space
Figure 4-144 4.14.1.17 Easy Space This function allows you to upload motion detect record or snapshot image to the dropbox and etc. The easy space interface is shown as below. See Figure 4-145. Please select the easy space address from the dropdown list and then input corresponding user name and password.
Page 145: Switch
Note：  The uploaded file is for sub stream only. Please go to record control interface (main stream->setting->Storage->Record) and then select sub stream.  The easy space function uses upload bandwidth. Usually the recommended upload bandwidth shall be more than 512kbps and please make sure the network is stable. ...
Page 146: Network Load
You can view all connected network adapter names (including Ethernet, PPPoE, WIFI, and 3G), you can click the button on the right panel to begin Sniffer. Click the grey stop button to stop. Please note system can not Sniffer several network adapters at the same time. After Sniffer began, you can exit to implement corresponding network operation such as login WEB, monitor.
Page 147: Hdd Setup
Figure 4-148 4.15 HDD Setup Here you can view HDD information such as type, status, total capacity, record time and etc. The operation includes format, resume from error, change HDD property (Read write, Read-only). Here you can also set alarm and HDD storage position. 4.15.1 Format From Mani-menu->Setting->Storage->HDD Manager, you can go to HDD management interface.
Page 148: Hdd Information
Figure 4-149 b) Select a HDD and then select format from the dropdown list. Click Execute button. c) Click OK button to complete the setup. You can see system needs to restart to activate current setup. 4.15.2 HDD Information Here is to list hard disk type, total space, free space, and status. See Figure 4-150. ○...
Page 149 Figure 4-150 In Figure 4-150, click one HDD item, the S.M.A.R.T interface is shown as in Figure 4-151. Figure 4-151...
Page 150: Advanced
Parameter Function SATA 1 here means there is 1 HDD. For different series product, the max HDD amount may vary, When HDD is working properly, system is shown as O. . “_” means there is no HDD. You can view the HDD amount the device connected to; ﹡...
Page 151 Figure 4-152 Please select the correspond group from the dropdown list and then click Apply button. Click main stream/sub stream/snapshot button to set corresponding HDD group information. See Figure 4-153 through Figure 4-155. Figure 4-153...
Page 152: Hdd Detect
Figure 4-154 Figure 4-155 4.15.4 HDD Detect Note This function is for some series product only. The HDD detect function is to detect HDD current status so that you can clearly understand the HDD performance and replace the malfunction HDD.
Page 153: Manual Detect
There are two detect types:  Quick detect is to detect via the universal system files. System can quickly complete the HDD scan. If you want to use this function, please make sure the HDD is in use now. If the HDD is removed from other device, please make sure the write-data once was full after it installed on current device.
Page 154 Figure 4-157 Click View, you can see the detailed information such as detect result, backup and S.M.A.R.T. See Figure 4-158 and Figure 4-159. Figure 4-158...
Page 155: Raid Manager
Figure 4-159 4.15.5 RAID Manager Important Please make sure your purchased product support the RAID function, otherwise you can not see the following interface. Right now, RAID supports Raid0, Raid1, Raid5, Raid6, and Raid10. Local hotspare supports Raid1, Raid5, Raid6, and Raid10. 4.15.5.1 RAID Config It is for you to manage RAID HDD.
Page 156: Hotspare Disks
Figure 4-160 4.15.5.2 Hotspare disks Click Hotspare disks tab name, you can add the hot spare HDD. See Figure 4-161. The type includes two options:  Global: It is global hotspare disk. When any RAID becomes degrading, it can replace and build the RAID.
Page 157: Basic Setups
Figure 4-161 4.16 Basic Setups Set NVR basic setup, device setup and other setups. 4.16.1 Device Setup From Main menu->Setting->System->General, you can go to the general interface. See Figure 4-163.  Pack duration: Here is for you to specify record duration. The value ranges from 0 to 120 minutes. Default value is 60 minutes.
Page 158: Data And Time
 IPC Time Sync: You can input an interval here to synchronize the NVR time and IPC time.  Startup wizard: Once you check the box here, system will go to the startup wizard directly when the system restarts the next time. Otherwise, it will go to the login interface. ...
Page 159: Holiday
Figure 4-163 4.16.3 Holiday Please refer to chapter 4.10.6 for detailed information. 4.17 Device Maintenance and Manager 4.17.1 System Info 4.17.1.1 Version From main menu->Info->System->version, you can go to version interface. Here is for you to view some version information. See Figure 4-164. Please note the following figure for reference only.
Page 160: Bps
Figure 4-164 4.17.1.2 BPS Here is for you to view current video bit rate (kb/s) and resolution. See Figure 4-165. Figure 4-165 4.17.1.3 Online User Here is for you manage online users connected to your NVR. See Figure 4-166.
Page 161: Remote Device Information
You can click button to disconnect or block one user if you have proper system right. System detects there is any newly added or deleted user in each five seconds and refresh the list automatically. Figure 4-166 4.17.1.4 Remote Device Information From main menu->info-Event, here you can view the channel status of the remote device, connection log and etc.
Page 162: Remote
Figure 4-167 4.17.1.5 Remote 4.17.1.5.1 Device Status Here you can view the IPC status of the corresponding channel such as motion detect, video loss, tampering, alarm and etc. See Figure 4-168.  IPC status: : Front-end does not support. : Front-end supports. : There is alarm event from current front-end.
Page 163: Firmware
Figure 4-168 4.17.1.5.2 Firmware It is to view channel, IP address, manufacturer, type, system version, SN, video input, audio input, external alarm and etc. See Figure 4-169. Figure 4-169...
Page 164: Log
4.17.2 Log From Main menu->Info->Log, you can go to the following interface. See Figure 4-170.  Start time/end time: Pleased select start time and end time, then click search button. You can view the log files in a list. System max displays 100 logs in one page. It can max save 1024 log files. Please use page up/down button on the interface or the front panel to view more.
Page 165: Voice
4.17.3 Voice Note This function is for some series product only. The audio function is to manage audio files and set schedule play function. It is to realize audio broadcast activation function. 4.17.3.1.1 File Manage Here you can add audio file, listen to the audio file, or rename/delete audio file. Here you can also set audio volume.
Page 166: Schedule
Figure 4-173 4.17.3.1.2 Schedule It is to set schedule broadcast function. You can play the different audio files in the specified periods. See Figure 4-174. Figure 4-174 4.17.4 Account Here is for you to implement account management. See Figure 4-175. Here you can: ...
Page 167  Modify user  Add group  Modify group  Modify password. For account management please note:  For the user account name and the user group, the string max length is 6-byte. The backspace in front of or at the back of the string is invalid. There can be backspace in the middle. The string includes the valid character, letter, number, underline, subtraction sign, and dot.
Page 168: Add User
4.17.4.1.1 Add User Click modify user button in Figure 4-175 , the interface is shown as in Figure 4-176. Please input the user name, password, select the group it belongs to from the dropdown list. Then you can check the corresponding rights for current user. For convenient user management, usually we recommend the general user right is lower than the admin account.
Page 169 Figure 4-177 Click Set button, you can set six periods in one day. See Figure 4-178. Check the box after the period, you can enable current setup. Figure 4-178...
Page 170: Modify User
4.17.4.1.2 Modify user Click , you can go to the following interface to change user information. See Figure 4-179. For admin, 888888, and default (hidden user), you can not change period setup. Figure 4-179 4.17.4.1.3 Change Password In Figure 4-179, check the Modify password box, you can change password. Please input old password, and then input new password twice to confirm.
Page 171 Figure 4-180 Click add group button in Figure 4-180 , the interface is shown as below. See Figure 4-181. Here you can input group name and then input some memo information if necessary. There are total 98 rights such as control panel, shut down, real-time monitor, playback, record, record file backup, PTZ, user account, system information view, alarm input/output setup, system setup, log view, clear log, upgrade system, control device and etc.
Page 172: Security Question
4.17.4.1.5 Security Question The security question is shown as below. See Figure 4-182. Here you can change security questions. Figure 4-182 4.17.5 Update 4.17.5.1 Local Update From Mani menu->Setting->Info->Update, you can go to the following interface. See Figure 4-183. Insert USB device that contain the upgrade file. Click Start button and then select the .bin file.
Page 173: Uboot
Figure 4-183 4.17.5.2 Uboot When device is booting up, it can auto detect the USB device and the update file on it. It can auto update once there is proper upgrade file. Important  USB device root directory shall have “u-boot.bin.img” and “update.img” files. USB device shall be FAT32 mode.
Page 174: Rs232
Please highlight icon to select the corresponding function. After all the setups please click OK button, system goes back to the previous menu. Warning! After you use default function, some your customized setup may lose forever! Please think twice before you begin the operation! Figure 4-184 4.17.7 RS232...
Page 175: Auto Maintain
 Parity: None After completing all the setups please click save button, system goes back to the previous menu. Figure 4-185 4.17.8 Auto Maintain Here you can set auto-reboot time and auto-delete old files setup. You can set to delete the files for the specified days.
Page 176: Logout /Shutdown/Restart
4.17.9 Logout /Shutdown/Restart From Mani menu->Operation->Shutdown, you can see an interface shown as in Figure 4-187.  Shutdown: System shuts down and turns off power.  Logout: Log out menu. You need to input password when you login the next time. ...
Page 177: Web Operation
5 Web Operation 5.1 General Introduction The device web provides channel monitor menu tree, search, alarm setup, system setup, PTZ control and monitor window and etc. Important The following operation is based on 32-channel series device. 5.1.1 Preparation Before log in, please make sure: ...
Page 178: Log In
Thirdly, according to the <PoE port>---<Channel> map, system can know the previous mapping channel of current PoE port. System can select current channel if it is free. Otherwise, it goes to the next step: Fourthly, system goes to find the first idle channel it can get. Generally speaking, once you insert PoE, system follow the steps listed above to find the channel available.
Page 179: Lan Mode
Figure 5-2 After installation, the interface is shown as below. See Figure 5-3. Figure 5-3 Please input your user name and password. Default factory name is admin and password is admin. Note: For security reasons, please modify your password after you first login. 5.2 LAN Mode For the LAN mode, after you logged in, you can see the main window.
Page 180  Section 1: there are six function buttons: Live（chapter 0）, setup (chapter 5.8), info (Chapter 5.9), playback (chapter 5.10), alarm (chapter 5.11), and logout (chapter 5.12).  Section 2: There are monitor channels successfully connected to the NVR. Please refer to Figure 5-4 for main stream and extra stream switch information. Figure 5-4 ...
Page 181: Real-Time Monitor
The Web can playback the saved (Extension name is dav) files in the PC-end. Click local play button, system pops up the following interface for you to select local play file. See Figure 5-8. Figure 5-8  Section 7：Zero-channel encoding. Please refer to chapter 5.6 for detailed information. ...
Page 182: Ptz
In section 2, left click the channel name you want to view, you can see the corresponding video in current window. On the top left corner, you can view device IP(172.11.10.11), channel number(1), network monitor bit stream(2202Kbps) and stream type(M=main stream, S=sub stream). See Figure 5-10. Figure 5-10 On the top right corner, there are six unction buttons.
Page 183 Parameter Function  Select Preset from the dropdown list. Preset  Turn the camera to the corresponding position and Input the preset value. Click Add button to add a preset.  Select Tour from the dropdown list. Tour  Input preset value in the column. Click Add preset button, you have added one preset in the tour.
Page 184: Image/Alarm-Out
5.5 Image/Alarm-out Select one monitor channel video and then click Image button in section 9, the interface is shown as Figure 5-13. 5.5.1 Image Here you can adjust its brightness, contrast, hue and saturation. (Current channel border becomes green). Or you can click Reset button to restore system default setup. Figure 5-13 5.5.2 Alarm output Here you can enable or disable the alarm signal of the corresponding port.
Page 185: Wan Login
Figure 5-15 5.7 WAN Login In WAN mode, after you logged in, the interface is shown as below. See Figure 5-16. Figure 5-16 Please refer to the following contents for LAN and WAN login difference. 1) In the WAN mode, system opens the main stream of the first channel to monitor by default. The open/close button on the left pane is null.
Page 186: Setup
Figure 5-17. Figure 5-17 Important The window display mode and the channel number are by default. For example, for the 16-channel, the max window split mode is 16. 3) Multiple-channel monitor, system adopts extra stream to monitor by default. Double click one channel, system switches to single channel and system uses main stream to monitor.
Page 187 Figure 5-18 Figure 5-19 Please refer to the following sheet for log parameter information. Parameter Function Click Device search button, you can view the searched device Device search information on the list. It includes device IP address, port, device name, manufacturer and type. Select a device in the list and then click Add button, system can connect the device automatically and add it to the Added device list.
Page 188: Image
Parameter Function Modify Click or any device in the Added device list, you can change the corresponding channel setup. Delete Click , you can delete the remote connection of the corresponding channel. : Connection succeeded. Connection status : Connection failed. Delete Select a device in the Added device list and then click Delete button, system can disconnect the device and remove it from the Added...
Page 189 Figure 5-20 Please refer to the following sheet for detailed information. Parameter Function Channel Please select a channel from the dropdown list. Period It divides one day (24 hours) to two periods. You can set different hue, brightness, and contrast for different periods. It is to adjust monitor video brightness and darkness level.
Page 190 attractive if the value is too low. The recommended value ranges from 40 to 60. Gain The gain adjust is to set the gain value. The smaller the value is, the low the noise is. But the brightness is also too low in the dark environments.
Page 191: Encode
video according to the device feature (The general bright of the video or there is IR light or not.)  B/W: The device outputs the black and white video.  Sensor: It is to set when there is peripheral connected IR light.
Page 192: Snapshot
Frame Rate PAL：1～25f/s；NTSC：1～30f/s.  Bit Rate Main stream: You can set bit rate here to change video quality. The large the bit rate is, the better the quality is. Please refer to recommend bit rate for the detailed information.  Extra stream: In CBR, the bit rate here is the max value.
Page 193: Video Overlay
Image size It is the same with the resolution of the main stream. It is to set the image quality. There are six levels. Quality It is to set snapshot frequency. The value ranges from 1s to 7s. Interval Or you can set customized value. The max setup is 3600s/picture.
Page 194: Channel Name
The storage path interface is shown as in Figure 5-24. Here you can set snap image saved path ( in the preview interface) and the record storage path in the preview interface).The default setup is C:\PictureDownload and C:\RecordDownload. Please click the Save button to save current setup. Figure 5-24 5.8.1.4 Channel Name Here you can set channel name.
Page 195: Network
Figure 5-26 5.8.2 Network 5.8.2.1 TCP/IP The TCP/IP interface is shown as in Figure 5-27. Figure 5-27 Please refer to the following sheet for detailed information. Parameter Function Mode There are two modes: static mode and the DHCP mode.  The IP/submask/gateway are null when you select the DHCP mode to auto search the IP.
Page 196: Connection
IP/submask/gateway manually.  If you select the DHCP mode, you can view the IP/submask/gateway from the DHCP.  If you switch from the DHCP mode to the static mode, you need to reset the IP parameters.  Besides, IP/submask/gateway and DHCP are read-only when the PPPoE dial is OK.
Page 197: Wifi Ap
number if necessary. UDP port The default value is 37778. You can input the actual port number if necessary. HTTP port The default value is 80. You can input the actual port number if necessary. HTTPS The default value is 443. You can input the actual port number if necessary.
Page 198: Wifi
Figure 5-30 Please refer to the following sheet for detailed information. Parameter Function Input WIFI AP IP address. IPv4 address Input WIFI AP network mask. IPv4 netmask Input WIFI AP gateway. IPv4 gateway Start IP/End IP Input start IP and end IP. The NVR can allocate the IP address in the range you specified here.
Page 199: 188
Figure 5-31 Please check the box to enable WIFI function and then click the Search SSID button. Now you can view all the wireless network information in the following list. Double click a name to connect to it. Click Refresh button, you can view latest connection status. 5.8.2.5 3G 5.8.2.5.1 CDMA/GPRS The CDMA/GPRS interface is shown as in Figure 5-32.
Page 200: Mobile
Parameter Function WLAN type Here you can select 3G network type to distinguish the 3G module from different ISP. The types include WCDMA， CDMA1x and etc. APN/Dial No. Here is the important parameter of PPP. Authorization It includes PAP,CHAP,NO_AUTH. Pulse interval It is to set time to end 3G connection after you close extra stream monitor.
Page 201: Pppoe
5.8.2.6 PPPoE The PPPoE interface is shown as in Figure 5-34. Input the PPPoE user name and password you get from the IPS (internet service provider) and enable PPPoE function. Please save current setup and then reboot the device to get the setup activated. Device connects to the internet via PPPoE after reboot.
Page 202: Ip Filter
Please refer to the following sheet for detailed information. Parameter Function Server Type You can select DDNS protocol from the dropdown list and then enable DDNS function. Server IP DDNS server IP address Server Port DDNS server port. Domain Name Your self-defined domain name.
Page 203: Email
Figure 5-36 5.8.2.9 Email The email interface is shown as in Figure 5-37. Figure 5-37 Please refer to the following sheet for detailed information. Parameter Function Please check the box here to enable email function. Enable Input server address and then enable this function. SMTP Server Port Default value is 25.
Page 204: Upnp
Parameter Function Anonymity For the server supports the anonymity function. You can auto login anonymously. You do not need to input the user name. password and the sender information. The user name of the sender email account. User Name The password of sender email account. Password Sender email address.
Page 205: Snmp
Figure 5-38 Please refer to the following sheet for detailed information. Parameter Function Check the corresponding box to enable PAT function. Status Display UPnP function status. It is corresponding to the UPnP mapping information on the router. Check the box before the service name to enable current PAT service. Otherwise, the service is null.
Page 206: Multicast
Figure 5-39 Please refer to the following sheet for detailed information. Parameter Function SNMP Port The listening port of the proxy program of the device. It is a UDP port not a TCP port. The value ranges from 1 to 65535. The default value is 161 It is a string.
Page 207: Auto Register
packet, multiple-cast is the best option to reduce the broad width and the CPU load. The source host can just send out one data to transit. This function also depends on the relationship of the group member and group of the outer. Figure 5-40 5.8.2.13 Auto Register The auto register interface is shown as below.
Page 208: Https
Figure 5-42 5.8.2.15 HTTPS In this interface, you can set to make sure the PC can successfully login via the HTTPS. It is to guarantee communication data security. The reliable and stable technology can secure the user information security and device safety. See Figure 5-43. Note ...
Page 209: Download Root Certificate
Figure 5-44 You can see the corresponding prompt. See Figure 5-45. Now the server certificate is successfully created. Figure 5-45 5.8.2.15.2 Download root certificate In Figure 5-43, click button, system pops up a dialogue box. See Figure 5-46. Figure 5-46 Click Open button, you can go to the following interface.
Page 210 Figure 5-47 Click Install certificate button, you can go to certificate wizard. See Figure 5-48. Figure 5-48 Click Next button to continue. Now you can select a location for the certificate. See Figure 5-49.
Page 211 Figure 5-49 Click Next button, you can see the certificate import process is complete. See Figure 5-50. Figure 5-50 Click Finish button, you can see system pops up a security warning dialogue box. See Figure 5-51. Figure 5-51...
Page 212: View And Set Https Port
Click Yes button, system pops up the following dialogue box, you can see the certificate download is complete. See Figure 5-52. Figure 5-52 5.8.2.15.3 View and set HTTPS port From Setup->Network->Connection, you can see the following interface. See Figure 5-53. You can see HTTPS default value is 443.
Page 213: Event
device status and SN. Figure 5-54 Event 5.8.3 5.8.3.1 Video detect 5.8.3.1.1 Motion Detect After analysis video, system can generate a video loss alarm when the detected moving signal reached the sensitivity you set here. The motion detect interface is shown as in Figure 5-55.
Page 214 Figure 5-55 Figure 5-56...
Page 215 Figure 5-57 Figure 5-58 Figure 5-59...
Page 216 Figure 5-60 Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable motion detection function. Please select a channel from the dropdown list. Period Motion detection function becomes activated in the specified periods.
Page 217: Video Loss
Parameter Function Buzzer Check the box here to enable this function. The buzzer beeps when an alarm occurs. Alarm upload System can upload the alarm signal to the centre (Including alarm centre. Message When 3G network connection is OK, system can send out a message when motion detect occurs.
Page 218: Tampering
5.8.3.1.3 Tampering The tampering interface is shown as in Figure 5-62. After analysis video, system can generate a tampering alarm when the detected moving signal reached the sensitivity you set here. For detailed setups, please refer to chapter 5.8.3.1.1 motion detect for detailed information. Figure 5-62 5.8.3.2 IVS (Optional) Please make sure you are connecting to the smart network camera, otherwise you can not...
Page 219 Figure 5-63 Check the Tripwire box to enable tripwire function. Select SN (Line1/2/3/4) and direction, and then input customized rule name.  No. and Line1/2/3/4: System supports four tripwires. Each SN stands for one tripwire.  Direction: There are three options: A->B, B->A, both. System can generate an alarm once there is any object crossing in the specified direction.
Page 220: Intrusion (Cross Warning Zone)
Click to draw filter object. See Figure 5-65. Figure 5-65 Select the blue line and then use mouse to adjust zone size. Note Each rule can set two sizes (min size/max size). Once the object is smaller than the min size or larger than the max size, there is no alarm.
Page 221 Figure 5-66 Check the Intrusion box to enable intrusion function. Select SN (Area1/2/3/4) and direction, and then input customized rule name.  No. and Area1/2/3/4: System supports four zones. Each SN stands for one zone.  Direction: There are three options: A->B, B->A, both. System can generate an alarm once there is any object enter/exit (Or both) the zone.
Page 222: Object Detect
Figure 5-67 For detailed setups, please refer to chapter 5.8.3.1.1 motion detect for detailed information. 5.8.3.2.3 Object Detect Please make sure you are connecting to the smart network camera, otherwise you can not use IVS function! For the same channel,the object detect and the intrusion can not be valid at the same time. From main menu->Setup->Event->IVS->Object, the object interface is shown as below.
Page 223: Change Scene
Check the Object box to enable object detect function. Select SN (object1/2/3/4) and rule type, and then input customized rule name.  No. and Object1/2/3/4: System supports four zones. Each SN stands for one zone.  Rule type: Please select from the dropdown list. There are two types: Missing object detect/abandoned object detect.
Page 224: Face Detect (Optional)
Figure 5-70 For detailed setups, please refer to chapter 5.8.3.1.1 motion detect for detailed information. 5.8.3.3 Face Detect (Optional) Please make sure you are connecting to the smart network camera, otherwise you can not use IVS function! When camera detects human face, system can generate an alarm. From main menu->Setup->Event->Face detect, the interface is shown as in Figure 5-71.
Page 225: Audio Detect (Optional)
5.8.3.4 Audio Detect (Optional) Please make sure you are connecting to the smart network camera, otherwise you can not use IVS function! System can generate an alarm once it detect the audio input is abnormal or audio volume changes. From main menu->Setup->Event->Audio detect, you can see an interface shown as in Figure 5-72. ...
Page 226 Figure 5-73 Figure 5-74...
Page 227 Figure 5-75 Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable this function. Please select a channel from the dropdown list. Period This function becomes activated in the specified periods. There are six periods in one day.
Page 228: Net Alarm
Parameter Function Show message System can pop up a message to alarm you in the local host screen if you enabled this function. Buzzer Check the box here to enable this function. The buzzer beeps when an alarm occurs. Alarm upload System can upload the alarm signal to the centre (Including alarm centre).
Page 229: Ipc Offline Alarm
setup. For setup information, please refer to chapter 5.8.3.5.1. Figure 5-77 5.8.3.5.4 IPC Offline Alarm The IPC offline alarm interface is shown as in Figure 5-78. System can generate an alarm once the network camera is offline. For setup information, please refer to chapter 5.8.3.5.1.
Page 230: Abnormality
5.8.3.6 Abnormality It includes six types: No disk, disk error, disks no space, disconnect, IP conflict, MAC conflict. See Figure 5-79 through Figure 5-84. Figure 5-79 Figure 5-80 Figure 5-81 Figure 5-82...
Page 231 Figure 5-83 Figure 5-84 Please refer to the following sheet for detailed information. Parameter Function Event The abnormal events include: No disk, disk error, disk no space, net Type disconnection, IP conflict and MAC conflict. You can set one or more items here. Less than: You can set the minimum percentage value here (For disk not space only).
Page 232: Storage
Parameter Function Buzzer Check the box here to enable this function. The buzzer beeps when an alarm occurs. 5.8.4 Storage 5.8.4.1 Schedule In this interfaces, you can add or remove the schedule record setup. See Figure 5-85. There are four record modes: general (auto), motion detect, alarm and MD&alarm. There are six periods in one day.
Page 233 Figure 5-87 Please refer to the following sheet for detailed information. Parameter Function Channel Please select a channel from the dropdown list. Pre-record Please input pre-record time here. The value ranges from 0 to 30. Redundancy Check the box here to enable redundancy function. Please note this function is null if there is only one HDD.
Page 234: Hdd Manager
Parameter Function 5/6/7. If you want to save current setup of channel 1 to all channels, you can click the first box “ALL”. Click the OK button to save current copy setup. Click the OK button in the Encode interface, the copy function succeeded.
Page 235: Record Control
Figure 5-90 5.8.4.3 Record Control The interface is shown as in Figure 5-91. Figure 5-91 Please refer to the following sheet for detailed information. Parameter Function Here you can view channel number. Channel The number displayed here is the max channel amount of your device.
Page 236: Raid Manager
It has the highest priority. Manual Enable corresponding channel to record no matter what period applied in the record setup. Stop current channel record no matter what period applied in the Stop record setup. Check the corresponding All button, you can enable or disable all Start all/ stop all channels record.
Page 237: Storage
Figure 5-93 5.8.4.5 Storage 5.8.4.5.1 Main Stream The main stream interface is shown as in Figure 5-94. Here you can set corresponding HDD group to save main stream. Figure 5-94 5.8.4.5.2 Sub Stream The sub stream interface is shown as in Figure 5-95. Here you can set corresponding HDD group to save sub stream.
Page 238: Snapshot
Figure 5-95 5.8.4.5.3 Snapshot The snapshot interface is shown as in Figure 5-96. Here you can set corresponding HDD group to save snapshot picture. Figure 5-96 5.8.5 Setting 5.8.5.1 General The general interface includes general, date/time and holiday setup. 5.8.5.1.1 General The general interface is shown as in Figure 5-97.
Page 239: Date And Time
Please refer to the following sheet for detailed information. Parameter Function It is to set device name. Device ID Device No. It is device channel number. Language You can select the language from the dropdown list. Please note the device needs to reboot to get the modification activated.
Page 240: Holiday Setup
There are two options: 24-H and 12-H. Time Format The time zone of the device. Time zone It is to set system time. It becomes valid after you set. System time Sync PC You can click this button to save the system time as your PC current time.
Page 241: User Name
5.8.5.2.1 User name In this interface you can add/remove user and modify user name. See Figure 5-100. Figure 5-100 Add user: It is to add a name to group and set the user rights. See Figure 5-101. There are three default users: admin/888888 and hidden user “default”. Hidden user “default”...
Page 242: Group
Modify user It is to modify the user property, belonging group, password and rights. See Figure 5-102. Modify password It is to modify the user password. You need to input the old password and then input the new password twice to confirm the new setup. Please click the OK button to save. Please note, the password ranges from 1-digit to 6-digit.
Page 243 Add group: It is to add group and set its corresponding rights. See Figure 5-104. Please input the group name and then check the box to select the corresponding rights. It includes: shutdown/reboot device, live view, record control, PTZ control and etc. Figure 5-104 Modify group Click the modify group button, you can see an interface is shown as in Figure 5-105.
Page 244: Display
5.8.5.3 Display Display interface includes GUI, TV adjust, Tour and zero-channel encoding. 5.8.5.3.1 Display Here you can set background color and transparency level. See Figure 5-106. Figure 5-106 Please refer to the following sheet for detailed information. Parameter Function Resolution There four options:...
Page 245: Tour
Original scale Click the Set button to select a channel, it can restore original scale. Auto logout Here is for you to set auto logout interval once login user remains inactive for a specified time. Value ranges from 0 to 60 minutes. 0 means there is no standby time.
Page 246: Default
The alarm output interface is shown as below. See Figure 5-108 Here you can set alarm output mode: auto/manual/stop. Figure 5-108 5.8.5.5 Default The default setup interface is shown as in Figure 5-109. Here you can select Network/Event/Storage/Setting/Camera. Or you can check the All box to select all items.
Page 247: Auto Maintain
Figure 5-110 Please refer to the following sheet for detailed information. Parameter Function Click to select import file. Browse It is to import the local setup files to the system. Import It is to export the corresponding WEB setup to your local PC. Export 5.8.5.7 Auto maintain The auto maintain interface is shown as in Figure 5-111.
Page 248: Rs232
Figure 5-112 5.8.5.9 RS232 The RS232 interface is shown as in Figure 5-113. Figure 5-113 Please refer to the following sheet for detailed information. Parameter Function Select the corresponding dome protocol. Protocol Default setup is console. Select the baud rate. Baud Rate Default setup is 115200.
Page 249 Figure 5-114 Figure 5-115 Please refer to the following sheet for detailed information. Parameter Function Select speed dome connected channel. Channel There are two options: local/remote. PTZ Type Please select remote type if you are connecting to the network PTZ. Please select local type if you are using RS485 to the PTZ camera.
Page 250: Information
Parameter Function The value ranges from 1 to 2. Default setup is 1. Please set according Stop bit to the speed dome dial switch setup. Parity The options include non/odd/even/space/null. Default setup is none. Please set according to the speed dome dial switch setup. Information 5.9.1 Version The version interface is shown as in Figure 5-116.
Page 251: Online User
Please refer to the following sheet for log parameter information. Parameter Function Log types include: system operation, configuration operation, data Type operation, event operation, record operation, user management, log clear. Set the start time of the requested log. Start time Set the end time of the requested log.
Page 252: Search Record
Figure 5-119 5.10.1 Search Record Please set record type, record date, window display mode and channel name.  Select Date You can click the date on the right pane to select the date. The green highlighted date is system current date and the blue highlighted date means it has record files.
Page 253: Playback
Figure 5-122 5.10.3 Playback Select a file you want to play and then click Play button, system can begin playback. You can select to playback in full-screen. Please note for one channel, system can not playback and download at the same time.
Page 254: Download
5.10.4 Download Select the file(s) you want to download and then click download button, you can see an interface shown as in Figure 5-124. The Download button becomes Stop button and there is a process bar for your reference. Please go to you default file saved path to view the files. Figure 5-124 5.10.5 Load more It is for you to search record or picture.
Page 255: Download By Time
Check the file(s) you want to download and there are two options for you to save the file(s).  Download to local Click Download to local, system pops up the following interface for you to set record format and saved path.
Page 256: Watermark
Figure 5-128 Set record format and saved path, you can click OK to download and view the download process. After the download operation, you can see corresponding dialog box. 5.10.5.3 Watermark Watermark interface is shown as In Figure 5-129. Please select a file and then click Verify button to see the file has been tampered with or not Figure 5-129 5.11 Alarm...
Page 257: Log Out
Figure 5-130 Please refer to the following sheet for detailed information. Type Parameter Function Alarm Video loss System alarms when video loss occurs. Type Motion detection System alarms when motion detection alarm occurs. Tampering System alarms when camera is viciously masking. Disk full System alarms when disk is full.
Page 258: Un-Install Web Control
Figure 5-131 5.13 Un-install Web Control You can use web un-install tool “uninstall web.bat” to un-install web control. Please note, before you un-installation, please close all web pages, otherwise the un-installation might result in error...
Page 259: Glossary
6 Glossary  DHCP: DHCP (Dynamic Host Configuration Protocol) is a network protocol. It is one of the TCP/IP protocol cluster. It is principally used to assign temporary IP addresses to computers on a network.  DDNS: DDNS (Dynamic Domain Name Server) is a service that maps Internet domain names to IP addresses.
Page 260: Faq
7 FAQ Questions Solutions  NVR can not boot up Input power is not correct.  properly. Power connection is not correct.  Power switch button is damaged.  Program upgrade is wrong.  HDD malfunction or something wrong with HDD ribbon. ...
Page 261 Questions Solutions  Front panel PTZ error  PTZ decoder setup, connection or installation is not correct.  Cable connection is not correct.  PTZ setup is not correct.  PTZ decoder and NVR protocol is not compatible. NVR can not control PTZ. ...
Page 262 Questions Solutions  Alarm setup is not correct. Alarm signal can not been  Alarm output has been open manually. disarmed.  Input device error or connection is not correct.  Some program versions may have this problem. Please upgrade your system.
Page 263 Questions Solutions  Please make sure the IPC has booted up.  IPC network connection is right and it is online  IPC IP is in the blacklist.  I can not connect to the The device has connected to the too many IPC. It can not transmit the video.
Page 264 Otherwise it may result in HDD malfunction.  Please make sure the device is away from the direct sunlight or other heating sources. Please keep the sound ventilation.  Please check and maintain the device regularly.
Page 265: Appendix A Hdd Capacity Calculation
Appendix A HDD Capacity Calculation Calculate total capacity needed by each device according to video recording (video recording type and video file storage time). Step 1: According to Formula (1) to calculate storage capacity that is the capacity of each channel needed for each hour, unit Mbyte.
Page 266: Appendix B Compatible Network Camera List
Appendix B Compatible Network Camera List Please note all the models in the following list for reference only. For those products not included in the list, please contact your local retailer or technical supporting engineer for detailed information. Manufact Model Version Video Encode Audio/Vid...
Page 267 Manufact Model Version Video Encode Audio/Vid Protocol √ － Cannon VB-M400 H264 Private √ MPix2.0DIR XNETM112011 H264 ONVIF 1229 √ VIPBL1.3MIR XNETM210011 H264 ONVIF 1229 √ IGC-2050F XNETM210011 H264 ONVIF 1229 √ CP PLUS CP-NC9-K 6.E.2.7776 H264 ONVIF/Private √ CP-NC9W-K 6.E.2.7776 H264 Private...
Page 268 Manufact Model Version Video Encode Audio/Vid Protocol √ HIDC-0100P h.2.2.1824 H264 ONVIF √ HIDC-1300V 2.0.0.21 H264 ONVIF √ HICC-1300W 2.0.1.7 H264 ONVIF √ HICC-2300 2.0.0.21 H264 ONVIF √ HDZ20HDX H20130114NS H264 ONVIF √ － LW342-FP H264 Private √ － LNB5100 H264 ONVIF √...
Page 269 Manufact Model Version Video Encode Audio/Vid Protocol √ D5118 1.7.8.9310-A1. H264 Private 5288 √ IM10C10 1.6.13.9261-O2 H264 Private .4657 √ DD4N-X 01.02.0015 MPEG4 Private √ DD423-X 01.02.0006 MPEG4 Private √ D5220 1.8.3-FC2-2012 H264 Private 0614-1.9320-A 1.8035 √ Samsung SNB-3000P 2.41 H264、MPEG4 ONVIF/Private √...
Page 270 Note  This manual is for reference only. Slight difference may be found in the user interface.  All the designs and software here are subject to change without prior written notice.  All trademarks and registered trademarks are the properties of their respective owners. ...

This manual is also suitable for:

Phoenixplus-08 Phoenixplus-16

ClearView PhoenixPlus-08-M User Manual

Quick Links

Need help?

Questions and answers

Related Manuals for ClearView PhoenixPlus-08-M

Summary of Contents for ClearView PhoenixPlus-08-M
