United Security Products AVD-45 Installation And Instruction Manual

Automatic voice dialer
Hide thumbs
Table of Contents

Advertisement

Quick Links

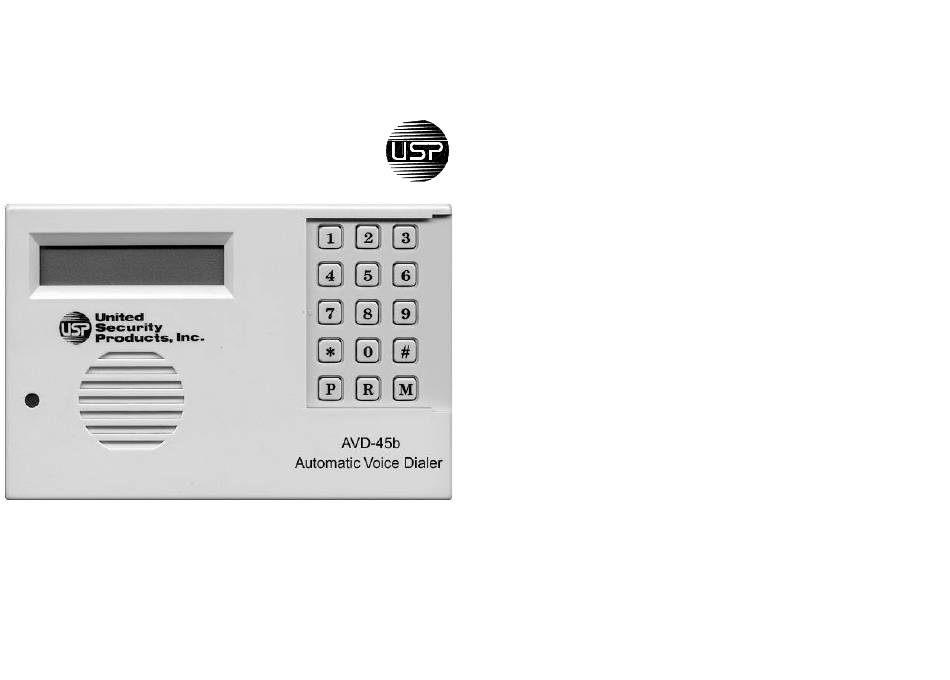

United Security Products
Model AVD-45b
Automatic Voice Dialer
Patents
Pending
Installation and Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVD-45 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for United Security Products AVD-45

Summary of Contents for United Security Products AVD-45

  • Page 1 United Security Products Model AVD-45b Automatic Voice Dialer Patents Pending Installation and Instruction Manual...
  • Page 2 INTRODUCTION Thank you for purchasing United Security Products Model AVD-45b, the single channel voice dialer that can be incorporated into hard wired or wireless security systems or used as a stand-alone unit. This versatile dialer can be easily expanded to operate in conjunction with an alarm, temperature or water level sensor, or any other sensor that can provide the appropriate trigger.

  • Page 3: Rear View

    AVD-45b PANEL DISPLAY BLACK YELLOW STANDBY BATTERY WHITE TEL LINE ALARM REAR VIEW Keypad Speaker Mode Program/ Pause AVD-45b 9V ALKALINE Automatic Voice Dialer BATTERY BACK VIEW FRONT VIEW - 3 -...
  • Page 4 N.C./N.O. DRY CONTACT ACTIVATION HOOKUP PANEL OR SENSOR PP-1 NC, NO, MOMENTARY, OR CONTINUOUS ALARM STANDBY ACTIVATION BATTERY (optional) 12VDC ALARM BLACK YELLOW WHITE TEL LINE GREEN Notes: 1. In momentary mode the dialer automatically dials all numbers even after the alarm input is restored to non-alarm. To stop dialing you must press the M button to switch the unit to the OFF mode.
  • Page 5 VOLTAGE LEVEL ACTIVATION HOOKUP WHEN THE ALARM OUTPUT VOLTAGE IS RELAY DRIVEN, YOU MUST ADD A 1K RESISTOR ACROSS ALARM OUTPUT TERMINALS. HOOK UP DIALER AS SHOWN BELOW. Note: You may either program for momentary or ALARM CONTROL PANEL PP-1 W/VOLTAGE TRIGGER continuous voltage activation.

  • Page 6: Programming The Dialer

    PROGRAMMING THE DIALER IMPORTANT: Before operating the AVD-45b, make sure wiring is correct and power is set within specified limits. Recording and data recall can be performed without connection to a telephone line. We strongly recommend that final testing be performed under simulated alarm conditions, and that confirmation of transmission be obtained from the numbers dialed.
  • Page 7 PROGRAMMING THE DIALER How to store phone numbers Follow these directions to store up to 4 telephone numbers in the dialer’s memory. Please remember that local ordinances may prohibit automatic dialing of police, fire departments and other emergency agencies. The AVD-45b will call up to 4 numbers. This can be any combination of regular telephones, cellular telephones or pagers.
  • Page 8 PROGRAMMING THE DIALER Example 1: Store telephone number 1-800-555-1212 in Location 1. Program/Pause Press: (Press momentarily) Example 2: Store telephone number 555-1212 in Location 2. Program/Pause Press: (Press momentarily) Follow the steps above to store the desired numbers in Memory Locations 3 and 4. Note: If you enter the wrong number or wish to change a programmed number, press the MODE (“M”) button until “PROGRAM: NUMBERS”...
  • Page 9 PROGRAMMING THE DIALER To store a pager number and numeric code 1. With the dialer at the “PROGRAM: NUMBERS” prompt, press “1” (YES). 2. Enter all the digits of the pager number to be dialed. Check the LCD to insure the correct numbers are pressed.
  • Page 10 PROGRAMMING THE DIALER Example 1: Store pager number 555-1212 and numeric message 911 in Location 1. Program/Pause Program/Pause Press: (Hold for 2 seconds) (Press momentarily) Example 2: Store pager number 1-800-555-1212 with access code 3 and numeric message 911 in Location 2. Program/Pause Press: (Hold for 2 seconds)
  • Page 11 PROGRAMMING THE DIALER Programming Tone/Pulse and PBX 1. Press the “M” key until “PROGRAM: NUMBERS” appears in the LCD, then press “2”. 2. Press “1” (YES) at the “PROGRAM: T-LINE” prompt. 3. Press “1” (TONE) for touch tone phone service. Press “2”...
  • Page 12 PROGRAMMING THE DIALER 7 Immediately after selecting Exit and Entry delays, the LCD displays input options; N.O./N.C. for either normally open or normally closed contact operation. Select by entering 1 or 2, depending on the type alarm contact used; select N.O. when input is shorted or N.C. when input opens during an alarm. 8 Next, select either 1(MOM) or 2(CONT) for momentary or continuous activation.
  • Page 13 PROGRAMMING THE DIALER To verify telephone numbers and OGM without phone line connection Follow these directions to ensure the correct telephone numbers have been properly stored and the recorded message satisfactory. 1. Press the “M” key until “TEST: T-LINE appears. 2.
  • Page 14 8. The AVD-45b will sequentially dial the programmed Locations (1-4). If there is no number stored in a location, it will be skipped. The OGM will be delivered when the AVD-45b receives an answer. (The OGM will not be played through the speaker.) For pager numbers, the pager code will be transmitted instead of an OGM.
  • Page 15 IMPORTANT INFORMATION LOCATION Place the dialer on a flat level surface or mount the unit on the wall, away from extreme cold or heat, direct sunlight, excessive humidity and away from equipment that generates a strong magnetic field. Avoid placing near large metal objects and areas that produce smoke, dust or mechanical vibrations. CARE Clean the housing with a soft cloth lightly moistened with water or mild detergent solution.
  • Page 16 ?? Connect the equipment into a different outlet so that the equipment and receiver are on different branch circuits. ?? Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by United Security Products, Inc. will void the warranty. - 16 -...
  • Page 17 FEATURES SUMMARIZED ??Non volatile (EEPROM) memory for voice message and phone numbers ??Calls up to 4 phone numbers, any combination of telephones or pagers ??Sends up to 16 second voice message to telephones or numeric code to pagers ??Record your own message in any language ??Easily change message and phone numbers without a programmer ??Voice chip technology (no tape required) ??Ability to program up to 10 (2-second) pauses and pound (#) for pager dialing...

  • Page 18: Dialer Accessories

    DIALER ACCESSORIES Consult factory for availability and pricing 24V APPLICATION: AVD-45b/F - For this option the dialer is configured to operate at 24VDC to 32VDC max. All other specifications apply. - AC-2 AC/DC ADAPTOR (500mA) Plugs into regular 110VAC outlet to provide the dialer with the required 12VDC primary power.
  • Page 19 DO NOT DISASEMBLE THIS EQUIPMENT. IT does not contain any user serviceable components. Attn: CUSTOMER SERVICE DEPT. United Security Products * 11025 Sorrento Valley Court * San Diego, CA 92121 (858) 597—6677...

  • Page 20: Specifications

    White Warranty: 1 year Note: Design and specifications subject to change without notice. 11025 Sorrento Valley Court San Diego, CA 92121 (800) 227-1592 (858) 597-6677 Fax: (858) 455-0036 : usp@ix.netcom.com United Security Products, Inc. E-Mail 5/22/01Rev. B - 20 -...

This manual is also suitable for:

Avd-45b
