Summary of Contents for AVProConnect AC-EX70-UHD-KIT

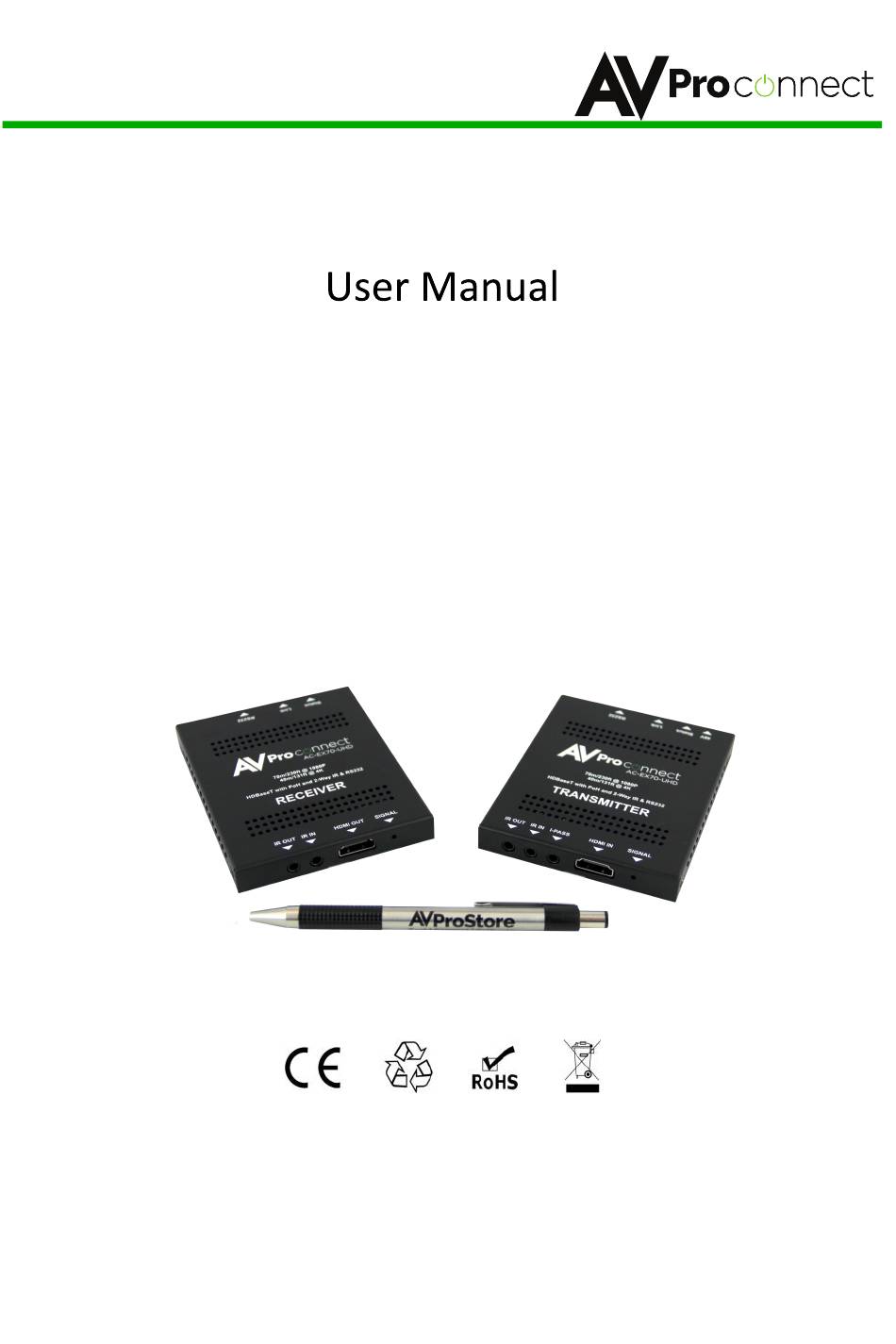

- Page 1 AC-EX70-UHD AC-EX70-UHD 4K HDMI 2.0 Extender With HDCP 2.2 A V P r o C o n n e c t 3 5 1 8 N C a s c o A v e n u e ~ S i o u x F a l l s , S D 5 7 1 0 4 1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5 s u p p o r t @ a v p r o c o n n e c t .
- Page 2 AC-EX70-UHD Introduction The AC-EX70-UHD is a super slim 70 meter (230ft) HDMI via HDBaseT extender over single CAT-5e/6a/7 UTP/STP. Key benefits of using AC-EX70-UHD: EXTEND 4K HDMI: The length of manufactured HDMI cable is unchangeable after it is made and they are unreliable after about 25FT. Additionally, HDMI connectors can only be terminated in specialized factory environment due to its extremely high frequencies and high density.
- Page 3 AC-EX70-UHD Applications: The AVProConnect primary super slim extender is the most cost effective, state of the art and reliable single CAT 70 meter (230ft) extender on the market today and solves problems for both commercial and residential markets for distributing high value 4K UHD content from rack to display.
- Page 4 AC-EX70-UHD Super Slim HDMI HDBaseT Extender Product Overview ( Model Number: AC-EX70-UHD) ■ Features ■ Plug & Play – Field Firmware Updateable 10.2 GBPS Video Bandwidth Use single UTP/STP LAN cable (CAT-5E/6A) with substitute HDMI cable to achieve long distance transmission.
- Page 5 AC-EX70-UHD Notice AVProConnect reserves all the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. Warning To reduce the risk of fire, electric shock or product damage: 1. Do not expose this device to 6.
- Page 6 AC-EX70-UHD What’s In The Box? ■ ① Transmitter Unit P/N_ AC-EX70-UHD-TX. ② Receiver Unit P/N_ AC-EX70-UHD-RX. ③ Operating instructions. ④ 48V DC Power Supply P/N_VDC4805. (In scope of supply only single PS for TX, as RX should be powered from TX to create functional transmission line) ⑤...
- Page 7 AC-EX70-UHD ※Setting Dip Switch – Initial Setup/Updating Firmware 1. Selector switch is intended for bypassing RS232 signal or for purpose of firmware update. 2. Serial RS232 selection: Position “Program” for firmware update, “Normal” for RS232 Command string transmission. Change switch positions to set desired RS232 port function.
- Page 8 AC-EX70-UHD Specifications ■...
- Page 9 AC-EX70-UHD RS-232 Configuration ■ IR Configuration ■ IR can be used in 3 ways: 1. From Rack: Use an IR Sensor on the AC-EX70-UHD Transmitter (IR In Port) to send IR Signals to the remote end (Receiver) and come out of the IR Out Port with an emitter. 2.
- Page 10 The unit has been dropped or the housing damaged. ● Warranty If your product does not work properly because of a defect in materials or workmanship, AVProConnect (referred to as “the warrantor”) will, for the length period indicated below, (10) （Parts/Labor...
-
Page 11: Warranty Limits And Exclusions
AC-EX70-UHD ● Warranty Limits and Exclusions This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer... - Page 12 AC-EX70-UHD Thank you for choosing AVProConnect! Please contact us with any questions, we are happily at your service! A V P r o C o n n e c t 3 5 1 8 N C a s c o A v e n u e ~ S i o u x F a l l s , S D 5 7 1 0 4 1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5 s u p p o r t @ a v p r o c o n n e c t .
