AC-EX100-UHD
AC-EX100-UHD-T
&
AC-EX100-UHD-R (v1 & v2)
100M HDMI 2.0 Extender With HDCP 2.2
Ethernet, Audio Extraction, EDID Management
A V P r o C o n n e c t
3 5 1 8 N C a s c o A v e n u e ~ S i o u x F a l l s , S D 5 7 1 0 4
1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5
s u p p o r t @ a v p r o c o n n e c t . c o m
1
Advertisement
Related Manuals for AVProConnect AC-EX100-UHD-T
Summary of Contents for AVProConnect AC-EX100-UHD-T

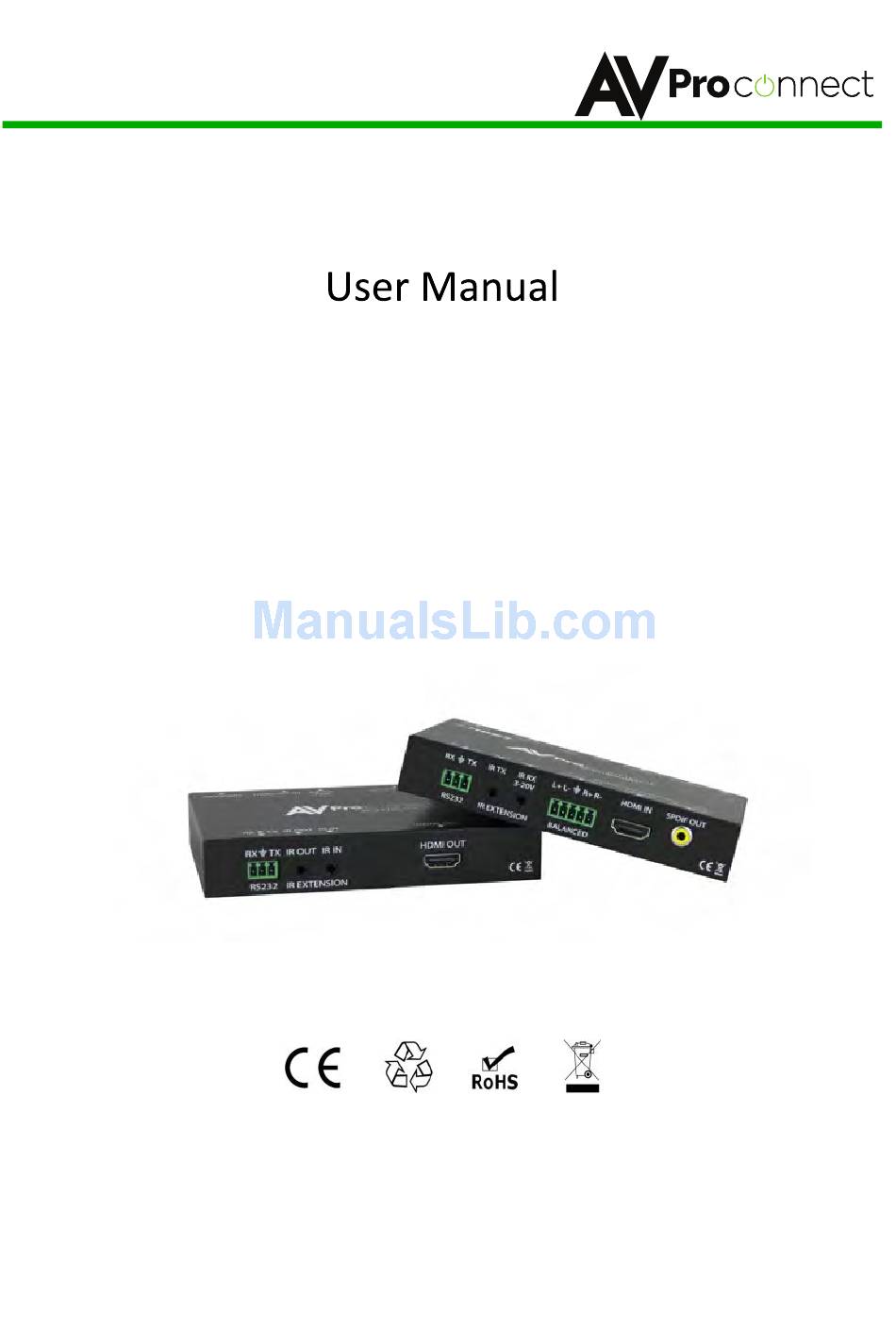

- Page 1 AC-EX100-UHD AC-EX100-UHD-T & AC-EX100-UHD-R (v1 & v2) 100M HDMI 2.0 Extender With HDCP 2.2 Ethernet, Audio Extraction, EDID Management A V P r o C o n n e c t 3 5 1 8 N C a s c o A v e n u e ~ S i o u x F a l l s , S D 5 7 1 0 4 1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5 s u p p o r t @ a v p r o c o n n e c t .
- Page 2 AC-EX100-UHD Introduction The AC-EX100-UHD is a 100m HDBaseT Tx/Rx with Bi-Directional Power, RS-232, IR, Ethernet, Audio Extraction and EDID Management. Key benefits of using AC-EX100-UHD: 1) ULTRA HIGH DEFINITION: Our AC-EX100-UHD supports 4K up to 70M NOTE: (230FT) & HD up to 100M (330FT) with crystal clear 4K Resolution. High Quality CAT6a Shielded required for maximum performance.
- Page 3 AC-EX100-UHD Applications: This long range (up to 100m, 330ft & 70m 4K) is unrivaled when it comes to the features it comes with. these extenders are designed to be a true problem solver. When the situation requires more power, distance, added Ethernet and reverse power or control, the B.A.E has it covered.
-
Page 4: Product Overview
Long Range Extender w/ Ethernet, EDID & Control Product Overview ■ Model Numbers: ■ AC-EX100-UHD-T ~ HDBaseT Transmitter w/ Audio Extraction, • Ethernet (2-ports), IR, RS-232, EDID & Bi-Directional PoE AC-EX100-UHD-R ~ HDBaseT Receiver w/ Ethernet (1-port), IR, • RS-232, PoE (not bi-directional) AC-EX100-UHD-R2 ~ HDBaseT Receiver w/ Ethernet (2-ports), •... - Page 5 AC-EX100-UHD Notice AVProConnect reserves all the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. Warning To reduce the risk of fire, electric shock or product damage: 1. Do not expose this device to 6.
- Page 6 AC-EX100-UHD Available Kits & What's Included ■ NOTE: Standalone Transmitters & Receivers can be purchased standalone as well in needed to use with other HDBaseT Compatible devices like Displays, Projectors, AVR's, etc... For thes best advice when purchasing a standalone Transmitter or Receiver please consult your AVPro Sales Manager or your distributor.
- Page 7 AC-EX100-UHD Specifications ■...
- Page 8 AC-EX100-UHD Using Bi-Directional Power (Receiver V2 Required) ■ Using the Bi-Directional PoE feature is fairly easy to do, and even though the AC- EX100-UHD System is designed to handle "hot" changes. We strongly recommend you switch directinal power while the units are completely unplugged from Power, HDMI or CAT Cable.
- Page 9 AC-EX100-UHD RS-232 Configuration ■ RS232 can be used to pass control signals bi-directionally to & from any RS232 compatible device. This is commonly used to rout control signals in the following way: 1. Control System --> Display/Projector (ie, Power On/Off) 2.
- Page 10 AC-EX100-UHD RS-232 Cable Prep ■ RS-232 Sample Application ■...
- Page 11 Receiver (IR In Port) and send IR Signals BACK to the rack and come out of the TRANSMITTER IR Out Port with an emitter. *There is a 3-20v protection circuit built into the AC-EX100-UHD-T Transmitter to safely plug IR signals directly into it for pass through to...
- Page 12 AC-EX100-UHD IR Connections to AC-EX100-UHD-T (Transmitter) ■ IR Connections to AC-EX100-UHD-R (Receivers) ■...
- Page 13 Audio Extraction on AC-EX100-UHD-T (Transmitter) ■ Audio Extraction is an always active feature on the AC-EX100-UHD-T. This feature extracts PCM Audio Only (2ch or 6ch) from the source device to be ran to a separate amplifier or AVR. BOTH the audio ports are always active (balanced stereo &...
- Page 14 AC-EX100-UHD Audio Extraction Routing Diagram ■ Stereo Cable Preparation ■ NOTE: Pre-made audio cable can be purchased from www.avprostore.com. The part number is: AC-CABLE-5PIN-2CH...
- Page 15 ■ Advanced EDID Management is a unique and extremely powerful feature of the AC-EX100-UHD-T. EDID problems are common in todays installations and this feature overcomes that problem. By default the EDID is set to position "0" (See Chart) - This reflects the absolute maximum capabilities of the HDBaseT Link.
- Page 16 AC-EX100-UHD Using Ethernet ■ Using Ethernet is a valuable feature for expanding the LAN in the commercial or residential space you are working in. The simple to use feature allows you simply plug & play the network expansion. 1. Simply plug in one of the Ethernets ports on the AC-EX100-UHD Tx or Rx to the main switch, hub, router, etc...
- Page 17 The unit has been dropped or the housing damaged. ● Warranty If your product does not work properly because of a defect in materials or workmanship, AVProConnect (referred to as “the warrantor”) will, for the length period indicated below, (10) （Parts/Labor...
-
Page 18: Warranty Limits And Exclusions
AC-EX100-UHD ● Warranty Limits and Exclusions This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer... - Page 19 AC-EX100-UHD Notes: ■...
- Page 20 AC-EX100-UHD Thank you for choosing AVProConnect! Please contact us with any questions, we are happily at your service! A V P r o C o n n e c t 3 5 1 8 N C a s c o A v e n u e ~ S i o u x F a l l s , S D 5 7 1 0 4 1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5 s u p p o r t @ a v p r o c o n n e c t .
