Owner's Manual and Assembly Instructions
Model #: W426AC-F W426AC-R
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.

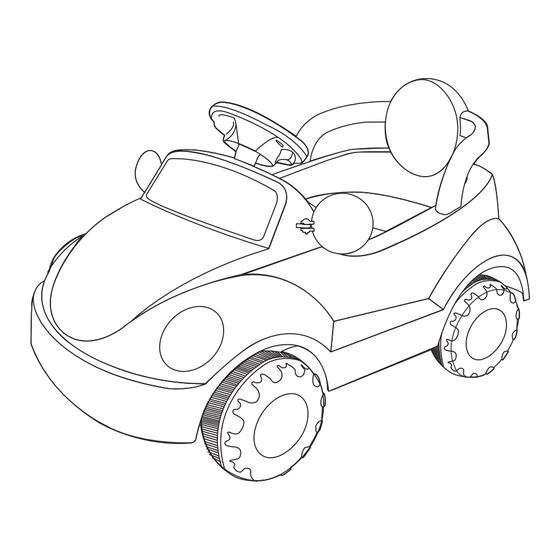

6V Peppa Pig Ride On
Advertisement
Table of Contents
Related Manuals for Rollplay Peppa Pig Ride On W426AC-F
Summary of Contents for Rollplay Peppa Pig Ride On W426AC-F
- Page 1 6V Peppa Pig Ride On ® Owner’s Manual and Assembly Instructions Model #: W426AC-F W426AC-R Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions. Made in China.
- Page 2 Introduction Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please have your model number and serial number ready before calling. Please have proof of purchase.
- Page 3 Call Customer Service if you need assistance or replacement parts. Please have your model number and serial number ready before calling. Please have proof of purchase. Keep your sales receipt or register your product at www.rollplay.com as we may require proof of purchase. www.rollplay.com 1 -888-982-9309...
-
Page 4: Table Of Contents
Table of Contents Safety ..............5 Parts ..............7 Charging Instructions ........8 Assemble the Front Wheels ......9 Assemble the Rear Wheels ......10 Assemble the Left Rear Wheel ....... 11 Assemble the Right Rear Wheel ..... 12 Assemble the backrest and the armrest .. -
Page 5: Safety
Safety WARNING: SAFETY RIDING RULES The user must follow all safety rules and guidelines, or serious injury or death may occur to the user. • Always use common sense and safe practices when using the vehicle. The user must be at least 3 years old and weigh no more than 35 kg (77 lbs). •... - Page 6 Safety (Continued) WARNING: BATTERY SAFETY • Battery posts, terminals and related accessories contain lead and lead compound (asic) chemicals known to the state of California to cause cancer, reproductive harm, and are toxic and corrosive. DO NOT open the battery. •...
-
Page 7: Parts
Parts Not Included: • Phillips scr ewdriver • 2 AAA batteries 1. Manual 11. Front Bumper 2. Battery 12. Rear Mirror 3. Charger 13. Steering Wheel 4. Car Body 14. Seat Cover 5. Front Wheel 15. Spoiler 6. Rear Wheel 16. -
Page 8: Charging Instructions
Charging Instructions 1. Ensure the car is stopped and turned off. Turn the seat lock to the unlock position or coin. Remove the seat. 2. Unplug the red battery con- nector from the red engine connector. 3. Connect the red battery connector to the red battery charger connector and plug into a 120V outlet. -
Page 9: Assemble The Front Wheels
Assemble the Front Wheels 1. Slide the small washer onto the front axle. 2. To assemble the front wheels, slide a front wheel onto the front wheel axle. 3. Slide a small washer onto the front axle, then insert the straight end of the snap pin through the whole on the front axle. -
Page 10: Assemble The Rear Wheels
Assemble the Left Rear Wheel Left Rear Wheel: 1. Then slide the inner wheel spacer onto the axle. 2. Slide the left rear wheel onto the left rear axle. The side with the gear teeth faces inward. 3. Slide the large washer onto the rear axle. 4. -
Page 11: Assemble The Left Rear Wheel
Assemble the Right Rear Wheel Right Rear Wheel: 1. Slide the right rear wheel onto right rear wheel axle. The side with gear teeth faces inward. (Note: the gear teeth must engage with the gear box.) 2. Slide the large washer onto the rear axle. 3. - Page 12 Assembly the Steering Wheel Steering Wheel Steering Pole 1. Remove the screw and nut from the steering wheel. 2. Insert the steering wheel onto the steering rod. Ensure the holes on the wheel align with the holes on the axle. 3.
-
Page 13: Assemble The Backrest And The Armrest
Assemble the Backrest and Armrest 1. Insert either side of the backrest and armrest into the slot on the car body until it clicks into place. -
Page 14: Connect The Battery
Connect the Battery 1. Use a flathead screwdriver to open the seat compartment. 2. Connect the red battery connector to the red engine connector. 3. Replace and secure the seat. -
Page 15: Steering Wheel Battery
Steering Wheel Battery WARNING! DO NOT mix old and new batteries. DO NOT mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. AAA1.5VD.C.LR03 AAA1.5V AAA1.5VD.C.LR03 Sounds Sounds Press the left and right buttons on the steering wheel to hear sounds. Note: The steering wheel requires 2 x 1.5v AAA/LR03 batteries to make sounds. -
Page 16: Operation Instructions
Operation Instructions Pedal Power Switch Forward/Reverse Power Switch: Turn the power switch to the ON position to turn on the vehicle. Turn the power switch to the OFF position to turn off the vehicle. Forward/Reverse: Press the switch to the forward position, then press the foot pedal to go forward. -
Page 17: Maintenance
Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. • time. • Recharge the battery immediately after each use. Charge for at least 8-12 hours, but no more than 20 hours. -
Page 18: General Care
General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service information on Page 21. •... -
Page 19: Troubleshooting Guide
Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Loose wires or loose Ensure the battery connectors are connectors securely attached. -
Page 20: Fcc Information
FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 21: Service And Repairs
Hours: 9 AM - 5 PM (CST), Monday - Friday 888-982-9309 Phone: 1- Email: customerservice@rollplay.com Web: www.rollplay.com For a list of available replacement parts, please visit www.rollplay.com. WE WILL REQUIRE PROOF OF PURCHASE. Please save your sales receipt or register your product at www.rollplay.com. -
Page 22: Warranty
This warranty does not cover, and is not intended to exclude any liability on the part of Rollplay, whether under this warranty or implied by law for any indirect or consequential damages for breach of warranty. Some states may not allow the exclusion or limitation so this limitation may not apply to you. -
Page 23: Product Registration
City: State: Zip Code: Email: Phone: Date of Purchase: The following product information is on the cover of the owner’s manual. Product Name: Model Number: Serial Number: Retailer Place of Purchase: Questions or comments? Contact us at www.rollplay.com or 1-888-982-9309...
