EN

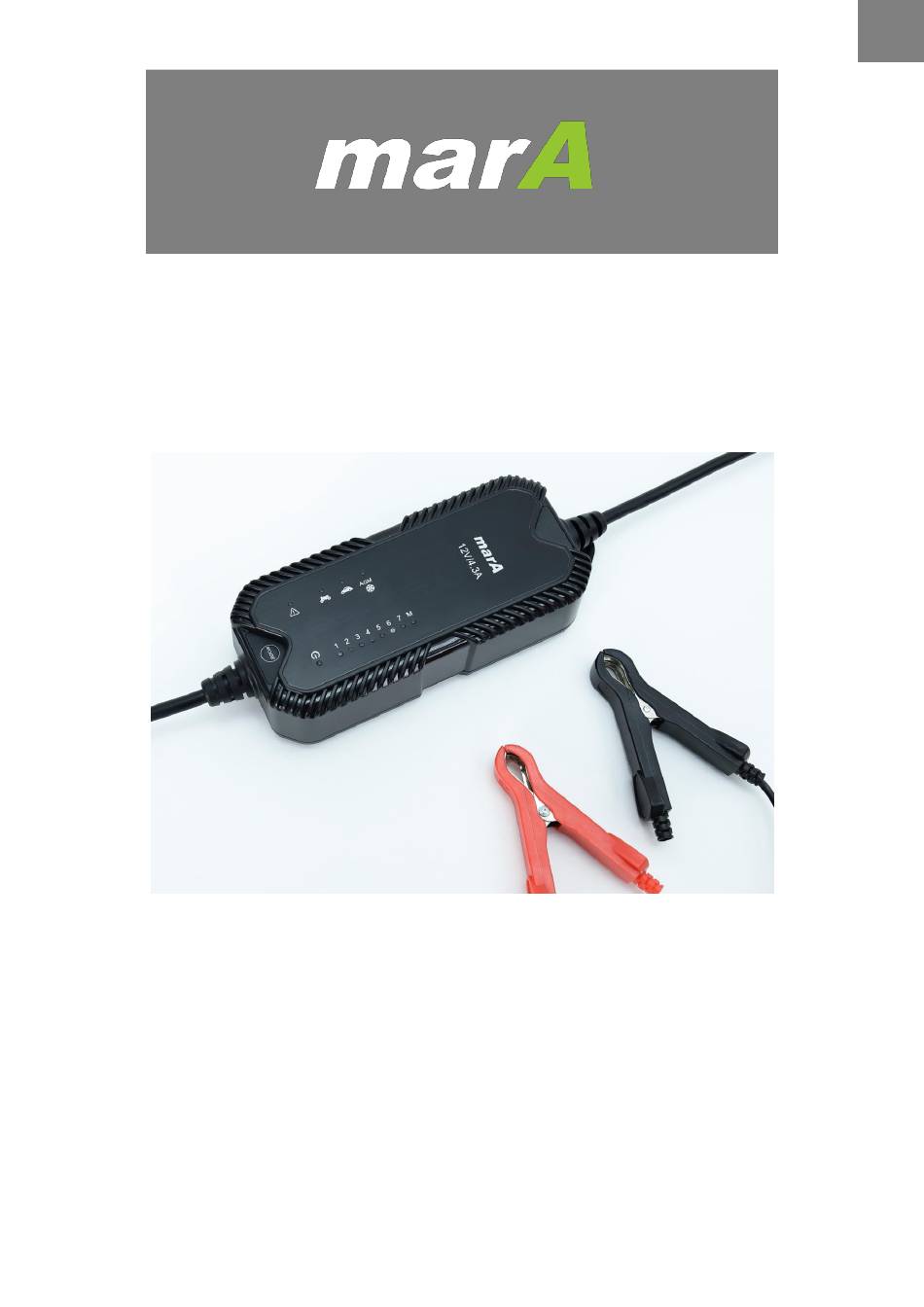

Pro Smart Charger
User Manual
SCC-63A065 / SCC-61A065
IMPORTANT SAFETY NOTIFICATIONS READ BEFORE USE
Thank you for buying the marA Pro Smart Charger, SCC-63A065 / SCC-61A065
PLEASE SAVE THIS USER MANUAL AND READ BEFORE EACH USE.
This manual will guide you in how to use the charger safely and effectively. Please read
and follow these instructions carefully.
For more questions on our chargers, please view our comprehensive support information
at http://www.marapower.com/en-us/support/support-7.html
1
Advertisement
Table of Contents
Related Manuals for Mara Pro Smart Charger
Summary of Contents for Mara Pro Smart Charger
- Page 1 SCC-63A065 / SCC-61A065 IMPORTANT SAFETY NOTIFICATIONS READ BEFORE USE Thank you for buying the marA Pro Smart Charger, SCC-63A065 / SCC-61A065 PLEASE SAVE THIS USER MANUAL AND READ BEFORE EACH USE. This manual will guide you in how to use the charger safely and effectively. Please read and follow these instructions carefully.
-
Page 2: Important Safety Instructions
SAVE THESE INSTRUCTIONS. This manual contains important safety and operating instructions. Do not expose the charger to rain or snow. Follow use of an attachment recommended or sold by marA. Do not use of an attachment provided by third party. A warning against recharging non-rechargeable batteries. - Page 3 Remove personal metal items such as rings, necklaces, bracelets and watches when working with a lead-acid battery. A lead acid battery can produce a short-circuit current high enough to weld a ring or similar metal objects, causing a severe burn. Use the charger for charging only Lead acid, Gel, Calcium, AGM and EFB, batteries.
- Page 4 OVERVIEW (for SCC-61A065) 4. Power LED 1. Mode button 5 Charging programs 2. Error LED 6. Maintenance program 3. LFP Battery program INCLUDE ACCESSORIES Jump Booster Cable &Jump Eyelet Cable...
-
Page 5: How To Charge
HOW TO CHARGE 1. Connect the charger to the wall socket. Power LED display steady green and continue with the next step. 2. Connect the charger to the battery. The power LED displays a steady green. Then charger has entered the standby mode. The error LED will indicate if the battery clamps are correctly connected. -
Page 6: Charging Modes
CHARGING MODES Charging modes listing as the below. Do not operate the charger until you confirm the appropriate charge mode for your battery. Below is a brief description: Mode Battery size (Ah) Explanation Small Battery 14.4 Voltage max, Current 0.8A 1.6 ~14Ah For charging 12V lead-acid batteries. -
Page 7: Charging Steps
Lithium ion Battery 14.4 Voltage max, Current 4.3A 6 ~60Ah For charging 12V Lithium ion batteries (LiFePO4), after selecting it, the LED will then light up as green. CHARGING STEPS Step 1: Diagnosis Checks the battery’s present condition, including voltage, battery health, and state-of-charge, to determine if the battery is stable before charging. - Page 8 Maintenance + Battery Tester After the maintenance(“M”) mode is selected, the battery capacity checked until completing the analysis of battery capacity known, and LED indicator is staying at the remaining capacities for 10 seconds. After that, the charger starts to charge depending on the optimized output program, and maintain the battery in a full capacity NOTE: Maintain a healthy battery with the reliable maintain mode technology for extended period of time, however, problems with battery electronic problems in the vehicle, incorrect...
-
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS Input Voltage 100-240V AC, 1.5-0.5A, 50-60Hz 10~14.7V DC Output Voltage Output Current 0.8A ~4.3A Battery Capacity 1.6–110Ah Power Watts 65 watts Type of Charger 7 Steps charging program Operation Temperature -20~50℃(-4~122℉) Insulation Class IP65 All types of lead-acid batteries, Wet, Gel, Battery Types MF, CA, EFB, AGM, LIB, or LiFePO4 batteries (for SCC-61A065)
