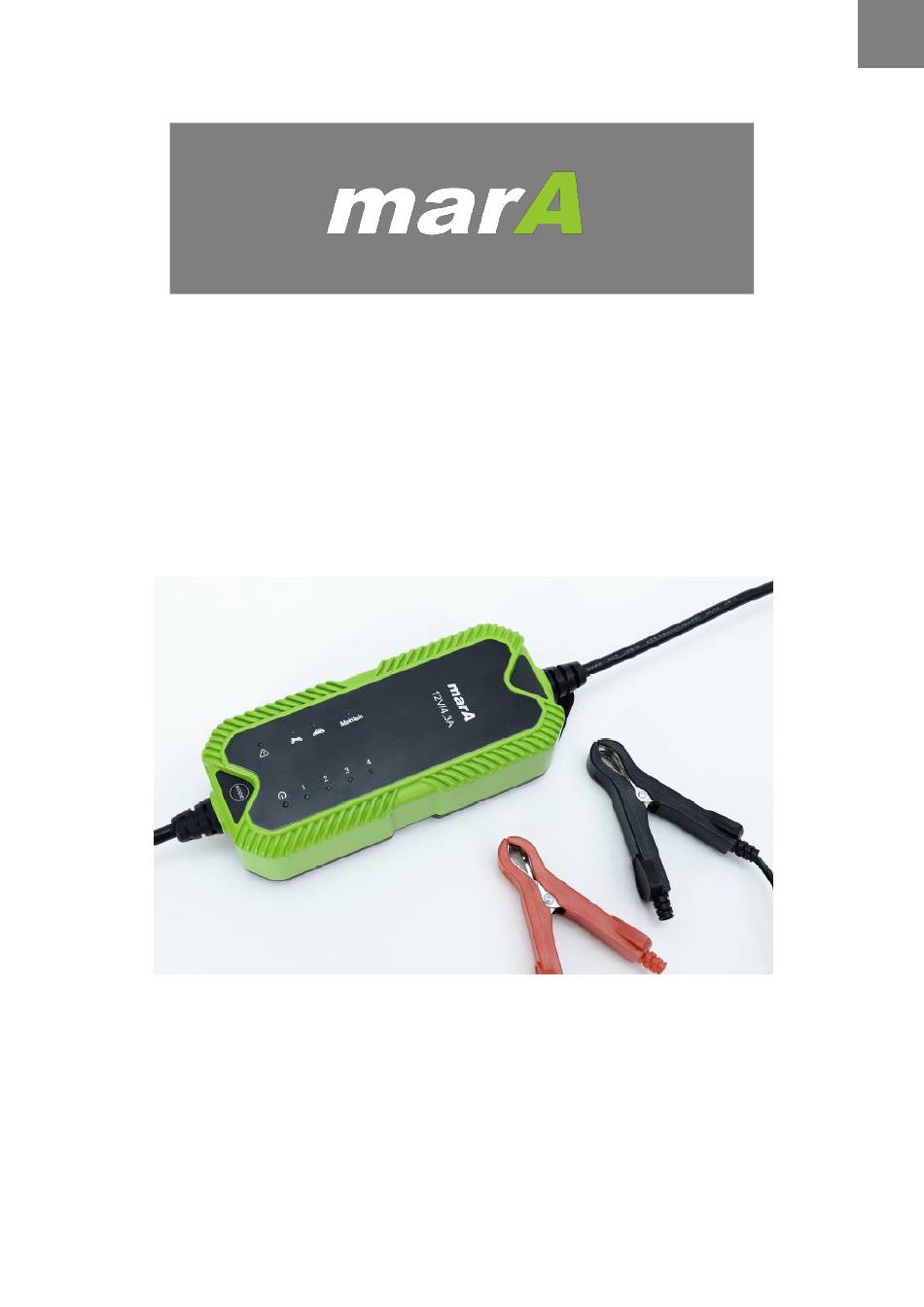

Green Smart Charger
User Manual
SCC-42A065 / SCC-41A065
IMPORTANT SAFETY NOTIFICATIONS READ BEFORE USE
Thank you for buying the marA Green Smart Charger, SCC-42A065 / SCC-41A065
PLEASE SAVE THIS USER MANUAL AND READ BEFORE EACH USE.
This manual will guide you in how to use the charger safely and effectively. Please
read and follow these instructions carefully.
For more questions on our chargers, please view our comprehensive support
information at http://www.marapower.com/en-us/support/support-7.html
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCC-42A065 and is the answer not in the manual?

Questions and answers

Related Manuals for Mara SCC-42A065

Summary of Contents for Mara SCC-42A065

  • Page 1 SCC-42A065 / SCC-41A065 IMPORTANT SAFETY NOTIFICATIONS READ BEFORE USE Thank you for buying the marA Green Smart Charger, SCC-42A065 / SCC-41A065 PLEASE SAVE THIS USER MANUAL AND READ BEFORE EACH USE. This manual will guide you in how to use the charger safely and effectively. Please read and follow these instructions carefully.

  • Page 2: Important Safety Instructions

    SAVE THESE INSTRUCTIONS. This manual contains important safety and operating instructions. Do not expose the charger to rain or snow. Follow use of an attachment recommended or sold by marA. Do not use of an attachment provided by third party. A warning against recharging non-rechargeable batteries.
  • Page 3 Children should be supervised to ensure that they do not play with the appliance. (7.12 of EN 60335-1) OVERVIEW (for SCC-42A065) 5. Maintain Program 1. Mode Button 6.
  • Page 4 OVERVIEW (for SCC-41A065) 4. Maintain Program 1. Mode Button 5. Power LED 2. Error LED 6. Charging programs 3. LFP Battery program INCLUDE ACCESSORIES Jump Booster Cable & Jump Eyelet Cable...

  • Page 5: How To Charge

    HOW TO CHARGE 1. Connect the charger to the wall socket. Power LED display steady green and continue with the next step. 2. Connect the charger to the battery. The power LED displays a steady green. Then charger has entered the standby mode. The error LED will indicate if the battery clamps are correctly connected.

  • Page 6: Charging Steps

    14.4 Voltage max, Current 4.3A 14 ~110Ah For charging 12V lead-acid batteries. After selecting it, the LED will then light up as green. Maintain(for SCC-42A065) 14.4 Voltage max, Current 2A Maintain 1.6~160Ah For maintaining 12V lead-acid batteries. and after selecting it, the LED will then light up as green.

  • Page 7: Technical Specifications

    to determine if the battery is stable before charging. Reinstate the battery to reach to an appropriate workable level before bulk charge. Step2: CC (Constant Current) Starts the charging process with maximum current until reaching approximately 80% of battery capacity. Step 3: CV (Constant Voltage) Charging with declining current to maximize up to 98% of battery capacity.

  • Page 8: Error Led

    ERROR LED If the error LED indicator turns to red, check the following: Troubleshooting : Cause How to do Reversed polarity Check the connection Battery voltage is too Check battery Battery voltage is too Check Battery high Over heated Unplug the power, plug it in again after cooling down For more information about the possible faults when charging, please refer to our...

This manual is also suitable for:

Scc-41a065
