Char-Broil QUICKSET 463742704 Parts List

13
Parts to assemble:
1 Grease Clip
A. Hang grease clip
beneath grill bottom.
B. Hang an empty soup
can (not included) from
grease clip.
CAUTION
• Failure to install can in clip will cause hot grease to
drip from bottom of grill with risk of fire or property
damage.
Rear view
Grease Clip
of grill.

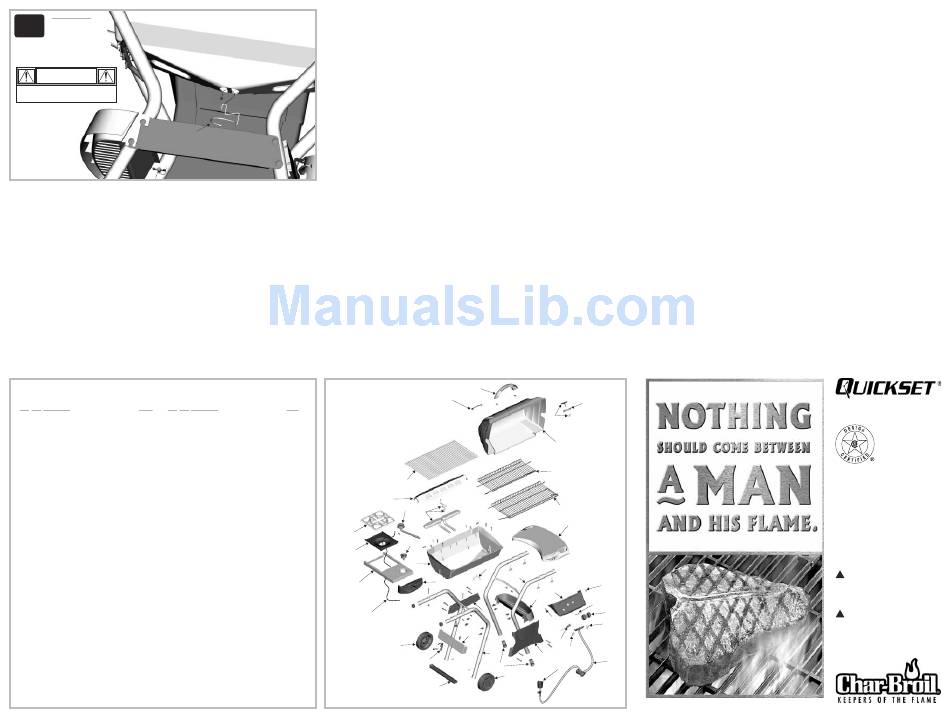

Parts List - Model 463742704
Key Qty. Description Part # Key Qty. Description
A 1 Lower SwingAway . . . . . . . . . . . . . . . . . . . . 4152124 W 2 Control Knob . . . . . . . . . . . . . . . . . . . . . . . . 4154470
B 1 Cooking Grate . . . . . . . . . . . . . . . . . . . . . . . 4152739 X 1 Grill Bottom . . . . . . . . . . . . . . . . . . . . . . . . . 4580184
C 1 Condiment Basket . . . . . . . . . . . . . . . . . . . . 4154271 Y 1 Grill Lid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4580587
D 1 Tool Holder . . . . . . . . . . . . . . . . . . . . . . . . . . 4154273 Z 1 Tank Retainer Wire. . . . . . . . . . . . . . . . . . . . 4151018
E 1 Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4154488 AA 1 Sideburner Knob . . . . . . . . . . . . . . . . . . . . . 4154471
F 1 Side Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . 4154542 BB 1 Logo Plate . . . . . . . . . . . . . . . . . . . . . . . . . . 4157147
G 2 Wheel Assembly. . . . . . . . . . . . . . . . . . . . . . 4310002 CC 1 Sideburner . . . . . . . . . . . . . . . . . . . . . . . . . . 5068026
H 1 Sideburner Grate . . . . . . . . . . . . . . . . . . . . . 4156179 DD 1 Grease Clip . . . . . . . . . . . . . . . . . . . . . . . . . 5156607
I 1 Upper SwingAway . . . . . . . . . . . . . . . . . . . . 4156448 EE 2 Leg Extender . . . . . . . . . . . . . . . . . . . . . . . . 4154540
J 1 Temperature Gauge with Wing Nut . . . . . . . 4157171 FF 1 Temperature Gauge Bezel . . . . . . . . . . . . . . 4157169
K 1 Back Support Brace . . . . . . . . . . . . . . . . . . . 4500251 1 Hardware Bag, Cart . . . . . . . . . . . . . . . . . . . 4254079
L 1 V Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4500290 1 Hardware Bag, Shelf . . . . . . . . . . . . . . . . . . 4254050
M 1 Sideburner Frame . . . . . . . . . . . . . . . . . . . . 4501705 1 Hardware Bag, Sideburner. . . . . . . . . . . . . . 4254086
N 1 Side Support Brace . . . . . . . . . . . . . . . . . . . 4503120
O 1 Tank Support Bracket . . . . . . . . . . . . . . . . . . 4503122
P 2 Leg Assembly . . . . . . . . . . . . . . . . . . . . . . . . 4503229
Q 1 Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . 4503136
R 1 Sideburner Body. . . . . . . . . . . . . . . . . . . . . . 4310005
S 4 #10x1/2", T-20, Self-Tap Screw . . . . . . . . . . 4080043
T 2 Valve Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . 4151043
Optional Assembly Hardware
U 1 Burner/Collector Assembly . . . . . . . . . . . . . . 4505084
We realize some customers prefer to use tools.
V 1 Control Panel Assembly . . . . . . . . . . . . . . . . 4530184 nuts have been provided for you to use.
BB
Part#
B
L
CC
U
H
AA
M
X
D
R
V
G
Z
Optional hex
O
E
FF
J
Y
I
A
F
DD
P
S
V
C
S
K
W
S
T
N
V
T
P
Q
V
EE
V
G
463742704
ASSEMBLY MANUAL
THIS GRILL IS FOR
OUTDOOR USE ONLY
CAUTION: Read and follow all safety
statements, assembly instructions, and use
and care directions before attempting to
assemble and cook.
INSTALLER/ASSEMBLER:
instructions with consumer.
CONSUMER: Keep this manual for future
reference.
WARNING
!
Failure to follow all manufacturer's
instructions could result in serious personal
injury and/or property damage.
CAUTION
!
Some parts may contain sharp edges –
especially as noted in the manual! Wear
protective gloves if necessary.
If you have any questions or need assistance
during assembly, please call 1-800-241-7548.
Visit us on the web at:
www.charbroil.com
463742704 / 0–4165374 (12-03-03) C O L U M B U S , G A
